Machine Learning for Antenna Array Failure Analysis Lydia de Lange Under Dr DJ Ludick and Dr TL Grobler Dept. Electrical and Electronic Engineering, Stellenbosch University MML 2019 Outline 15/03/2019 3 Introduction 15/03/2019 4

slide-1
SLIDE 1

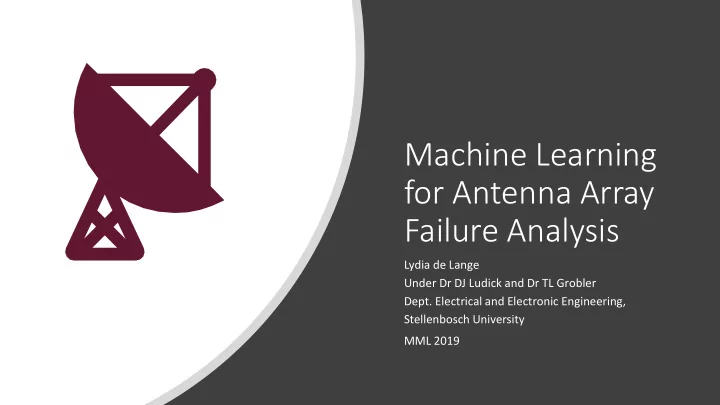

Machine Learning for Antenna Array Failure Analysis

Lydia de Lange Under Dr DJ Ludick and Dr TL Grobler

  • Dept. Electrical and Electronic Engineering,

Stellenbosch University MML 2019

slide-2
SLIDE 2

Outline

15/03/2019 3

slide-3
SLIDE 3

4 15/03/2019

Introduction

slide-4
SLIDE 4

Antenna Arrays

5 15/03/2019

slide-5
SLIDE 5

Reconstructed Sky Im Image

6 15/03/2019

slide-6
SLIDE 6

Square Kilometer Array (S (SKA)

7 15/03/2019

slide-7
SLIDE 7

Lydia’s Arrays (LA) and Far-Field Patterns

8 15/03/2019

slide-8
SLIDE 8

Problem Statement

Element failure Inaccurate far-field patterns (beam patterns) Distorted results (e.g. in reconstructed sky image)

Important applications:

  • Array failure correction
  • System health management of large antenna arrays
slide-9
SLIDE 9

Previous work

11 15/03/2019

Failed antenna element detection and location possible with machine learning techniques e.g.:

  • Feedforward neural

networks

  • Support vector

models

slide-10
SLIDE 10

Methodology

12 15/03/2019

slide-11
SLIDE 11

Methodology

Simulate scenarios for input data Sampling methods Train FNN

slide-12
SLIDE 12

Sampling Methods

Name Number of Samples πœ’ (Β°) πœ„ (Β°)

Single cut (πœ’ = 0) 181 πœ„ ∈ [βˆ’90, 90] Single cut (πœ’ = 45) 45 Single cut (πœ’ = 90) 90 Single cut (πœ’ = 135) 135 Principle cuts 362 0, 90 Diagonal cuts 45, 135 All cuts 724 0, 45, 90, 135 3-D pattern (182 samples) 182 3-D far-field pattern sampled in a (πœ„, πœ’) grid. 3-D pattern (361 samples) 361 3-D pattern (725 samples) 725

slide-13
SLIDE 13

Training of FNN

Sampled far-field observation of 1 failure scenario

𝑦

y = ON or OFF state of each antenna in the array β€œmulti-label” – 1 label for each antenna (25)

𝑧

Multi-label feedforward neural network

slide-14
SLIDE 14

Training of FNN

Adapt parameters 𝛾 with each pass until f is as similar as possible to true relationship.

slide-15
SLIDE 15

22 15/03/2019

Results

slide-16
SLIDE 16

FNN Results

23

15/03/2019

Nature of FNN*:

  • ↑ Number of samples (S)
  • ↑ Number of parameters (𝛾)

to be estimated

  • ↓ Accuracy
  • If accuracy ↑: sampling

pattern found a useful region in the 3-D far-field pattern to accurately identify failure scenarios

* # training iterations = const.

slide-17
SLIDE 17

FNN Results

Dataset Samples Training Time (sec) Accuracy (%)

90α΅’ cut 181 31.98 69.70 3-D pattern 182 32.17 87.88 Diagonal cuts 362 35.48 90.91 All cuts 724 40.73 75.76

slide-18
SLIDE 18

Additional experiments

25

slide-19
SLIDE 19

Additional Experiments

  • Compared 14 other classification algorithms1 according to accuracy

using the 10 sampling method datasets.

  • Best 4:
  • FNN
  • One vs Rest Classifier + Linear SVC
  • One vs Rest Classifier + Logistic Regression
  • One vs Rest Classifier + Logistic Regression CV

x1 Scikit-learn algorithms

slide-20
SLIDE 20

Additional Experiments

27 15/03/2019

  • Best: One vs Rest +

Logistic Regression CV

  • 100% accuracy

achieved

  • Number of parameters

vs accuracy relationship is different

  • 3-D sampling method

contains more information than combined single cuts

10 20 30 40 50 60 70 80 90 100

ACCURACY (%) SAMPLING METHOD DATASETS

Classification Algorithm Comparison

FNN OvR+LinearSVC OvR+LogisticRegression OvR+LogisticRegressionCV

slide-21
SLIDE 21

Conclusion

28 15/03/2019

slide-22
SLIDE 22

Conclusion

  • FNN used to detect and locate failed antenna elements in a bow-tie

antenna array

  • Investigated choice of training data on FNN accuracy and training time
  • Diagonal cuts – 90.91% accuracy, 35.48 secs
  • 3-D pattern (182 samples) – 87.88% accuracy, 32.17 secs
  • On larger datasets with more scenarios, the difference in training

time may become more significant.

  • Additional work:
  • Best algorithm: One vs Rest + Logistic Regression CV
  • Best sampling method: 3-D pattern
slide-23
SLIDE 23

Future work

  • Manufacturing and measuring

an antenna array with a spherical nearfield scanner!

  • Look at SVMs
  • Looking at other places in

pipeline to do ML on: Power Spectral Density and Correlations

slide-24
SLIDE 24

Acknowledgement

The financial assistance of the South African SKA project (SKA SA) towards this research is hereby acknowledged (www.ska.ac.za).

15/03/2019 31

slide-25
SLIDE 25

References

15/03/2019

  • [1] R. J. Mailloux, β€œArray Failure Correction With

A Digitally Beamformed Array,” IEEE Trans. Antennas Propag., vol. 44, no. 12, pp. 1543– 1550, 1996.

  • [2] P. Hall, β€œThe Square Kilometre Array: An

Engineering Perspective,” Springer, 2010.

  • [3] J. A. RodrΓ¬guez, et al., β€œA Comparison Among

Several Techniques For Finding Defective Elements In Antenna Arrays,” 2nd European Conference on Antennas and Propagation (EUCAP), pp. 1–8, 2007.

  • [4] I. Goodfellow, Y. Bengio, and A. Courville,

β€œDeep Learning,” MIT Press, pp. 164–167, 2016.
