slide-1

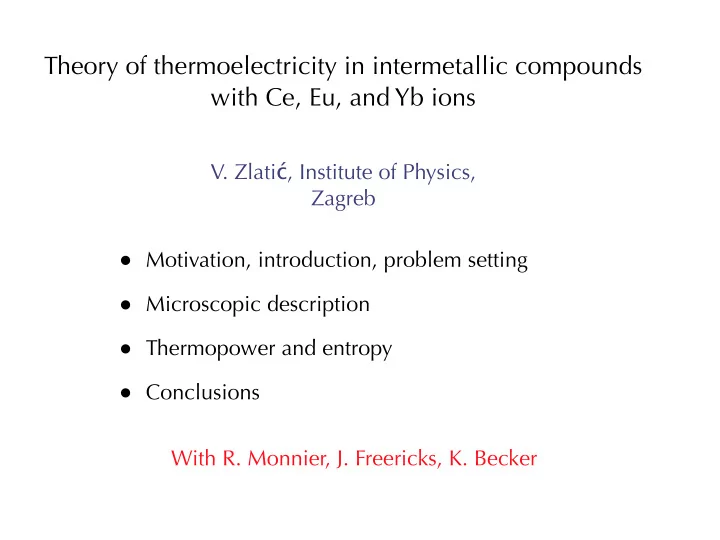

SLIDE 1

Theory of thermoelectricity in intermetallic compounds with Ce, Eu, and Yb ions

  • Motivation, introduction, problem setting
  • Microscopic description
  • Thermopower and entropy
  • Conclusions
  • V. Zlatić, Institute of Physics,

Zagreb With R. Monnier, J. Freericks, K. Becker

slide-2
SLIDE 2
  • Thermoelectricity has been a fasinating subject for a long time.

It unifies thermodynamics, electrodynamics, quantum mechanics.

  • Thermopower S(T) of Ce, Eu, and Yb ions could be quite large.

Is there a potential for applications?

  • S(T) is often a non-monotonic and complicated function of

temperature.

  • Functional form varies with pressure but only a few typical

shapes appear. The shape of S(T) correlates with magnetic character of 4f ions. Motivation

slide-3
SLIDE 3
  • Why does the temperature dependence of S(T) varies so much in

different systems? What determines S(T)?

  • Is the low-temperature behavior really universal?
  • The thermopower slope S/T and specific heat coefficient ϒ=CV/T

can differ in various systems by orders of magnitude. But the ratio q=(NAe)(S/ϒT) is almost constant (q ~ 1). Problem setting

slide-4
SLIDE 4

p

P.Link et al., Physica B 225, 207 (1996)

Schematic diagram of the thermopower of Ce compounds Theory should explain:

  • Large positive and

negative values of S(T).

  • Typical shapes (a) - (e)
  • Changes in shape with

pressure or doping.

slide-5
SLIDE 5

Type (d) Type (c) Type (a)

  • Large values of S(T)
  • Typical shapes

Some Ce examples Type (a) and (b) systems are magnetic. Type (d) is non-magnetic.

slide-6
SLIDE 6

Low temperatures behavior: S(T) > 0 for Ce ions Arrows mark specific heat coefficient. q is almost universal

slide-7
SLIDE 7

S/T γ

slide-8
SLIDE 8

Universal low-temperature behavior

slide-9
SLIDE 9

(c) Type (a) (b) (d) Shape evolution of S(T): (a) for P < 2 GPa (b) above 2 GPa, (c) above 4 GPa, (d) above 8 GPa. Case study CeRu2Ge2

slide-10
SLIDE 10

(c) Type (a) (b) (d) Shape evolution of S(T): (a) for P < 2 GPa (b) above 2 GPa, (c) above 4 GPa, (d) above 8 GPa. Physical scales revealed by distinct points of S(T). Low-T maxima: TK(P) Case study CeRu2Ge2

slide-11
SLIDE 11

(c) Type (a) (b) (d) Physical scales revealed by distinct points of S(T). Low-T maxima: TK(P) High-T maxima: TV(P) (AFM transition not shown) Shape evolution of S(T): (a) for P < 2 GPa (b) above 2 GPa, (c) above 4 GPa, (d) above 8 GPa. Case study CeRu2Ge2

slide-12
SLIDE 12

4 8 12 0.0 0.5 1.0 1.5

1 10 100 300 50 100

A (µΩ cm/K

2)

p (GPa)

TN TC TL TN 5.7 p (GPa) 11 8 0.9 3.4

CeRu2Ge2

ρ ⊥ c ρmag (µΩcm) T (K)

Resistivity changes due to pressure in CeRu2Ge2

  • characteristic energies are similar as before.
slide-13
SLIDE 13

4 8 12 0.0 0.5 1.0 1.5

1 10 100 300 50 100

A (µΩ cm/K

2)

p (GPa)

TN TC TL TN 5.7 p (GPa) 11 8 0.9 3.4

CeRu2Ge2

ρ ⊥ c ρmag (µΩcm) T (K)

Resistivity changes due to pressure in CeRu2Ge2

  • characteristic energies are similar as before.
slide-14
SLIDE 14

4 8 12 1 10 100 500 TK TS TN Tc TL TK α A

  • 0.5

CeRu2Ge2

T (K) p (GPa)

Phase diagram derived from transport data

slide-15
SLIDE 15

4 8 12 1 10 100 500 TK TS TN Tc TL TK α A

  • 0.5

CeRu2Ge2

T (K) p (GPa)

AFM Phase diagram derived from transport data

slide-16
SLIDE 16

4 8 12 1 10 100 500 TK TS TN Tc TL TK α A

  • 0.5

CeRu2Ge2

T (K) p (GPa)

AFM Kondo

VF

Phase diagram derived from transport data

slide-17
SLIDE 17

4 8 12 1 10 100 500 TK TS TN Tc TL TK α A

  • 0.5

CeRu2Ge2

T (K) p (GPa)

AFM Kondo

FL VF

Phase diagram derived from transport data

slide-18
SLIDE 18

SC I

4 8 12 1 10 100 500 TK TS TN Tc TL TK α A

  • 0.5

CeRu2Ge2

T (K) p (GPa)

Kondo

FL afm

SC II

VF

Phase diagram derived from transport data How to explain these features? AFM

slide-19
SLIDE 19

Modeling unstable 4f ions 4f0 4f1 V Configurational splitting is Ef (say, between 3+ and 2+) Configurational mixing is due to hybridization V. Mixing parameter is Γ=V2n(EF)/Ef Intra-configurational splittings are due to the CEF or H. Two possible local configurations. W Ef

slide-20
SLIDE 20

Sequence of energy scales: 4f2 states states (in Ce) not admitted: Uff >> W Configurational splitting: Ef < W << Uff CF splitting: Δ << Ef f-d mixing: Γ << Ef but Γ < Δ or Γ > Δ Properties depend on g=Γ/π|Ef, ∆/Γ But we are dealing with a many-body system, properties depend on the particle numbers nc(T) and nf(T)

slide-21
SLIDE 21

Anderson lattice model

U → ∞

Hd = Σij,σ(tij − µδij)d†

iσdjσ

Hf = Σl,η(fη − µ)f †

lηflη − UΣl,σ>ηf † lσflσf † lηflη

Hfd = 1 √ N Σk,l,σ(Vkc†

kσflσ + h. c.)

Infinite correlation Fixed points of the periodic model not well understood.

slide-22
SLIDE 22

Poor man’s solution

  • Neglect coherent scattering on 4f ions.
  • Impose local charge conservation at each f-site.

ci=1

ntot = nc(T) + ci nf(T) Thermoelectric properties depend on g=Γ/π|Ef| and ∆/Γ

slide-23
SLIDE 23

What is needed?

A(ω) = − 1 π Im Gf(ω + i0+)

Spectral function Green’s function

Gf(z) = 1 z − (f − µ) − Γ(z) − Σ(z)

Transport relaxition time

1 τ(ω) = cNπV 2A(ω)

Lij = σ0 ∞

−∞

  • −d

f(ω) dω

  • τ(ω)ωi+j−2

Transport integrals

slide-24
SLIDE 24

Self-consistent NCA solution: Hybridization parameter Bosonic Green’s function Fermionic Green’s function Fermionic self energy Bosonic self energy

G0(ω) = 1 ω − 0 − Π(ω) Π(ω) =

n∆

f

  • d G∆

f (ω + )Γ()f()

Σ(ω) =

  • d G0(ω + )Γ(−)f()

G∆

f (ω) =

1 ω − ∆

f − Σ(ω)

Γ(ω) =

  • V 2()ρc( − ω)
slide-25
SLIDE 25

Additional self-consistent loop for spectral functions: B-spectral function F-spectral function Self-consistency eqns. Partition function

b(ω) = |G0|2

  • d a∆(ω + )Γ(−)f()

a∆(ω) = |G∆|2

  • d b(ω + )Γ()f()

Z = e−βω0

  • dω[b(ω) +

a∆(ω)] a∆() = e−β(−ω0) πZ ImG∆() b() = e−β(−ω0) πZ ImG0()

slide-26
SLIDE 26

NCA calculations for CeRu2Ge2 (initial parameters at ambient pressure)

  • Semielliptic conduction band of W=4 eV
  • Initial ground CF doublet at Ef = - 0.7 eV
  • Excited CF quartet at Ef + Δ=0.693 eV
  • Initial hibridization width Γ=0.06 eV
  • 0.93 particles per effective ‘spin’ channel
  • Chemical potential adjusted at each T and P
  • Pressure changes hybridization
slide-27
SLIDE 27

P>0 E0 < 0 Ef - E0 P=0 4f1 E0 > 0 W Ce summary of calculations: Pressure increases Γ and reduces nf. E0 and Ef are measured with respect to μ For each Γ we shift μ so as to conserve ntot. E0 and Ef are shifted by δμ but Ef - E0 is unchanged. This procedure makes Ce less magnetic with applied pressure. Ef Ef - E0 Ef

slide-28
SLIDE 28

Changing the width of the f-state (with pressure) Type (d) (b) Type (c) Type (a) Low pressure High pressure

slide-29
SLIDE 29

TS TS

Changing the width of the f-state (with pressure)

slide-30
SLIDE 30

TS TS

TK Changing the width of the f-state (with pressure)

slide-31
SLIDE 31

TS TS

TK Changing the width of the f-state (with pressure)

slide-32
SLIDE 32

TS TS

TK Changing the width of the f-state (with pressure)

slide-33
SLIDE 33

Comparing the NCA solution with CeRu2Ge2: low pressure data. Theory Experiment

slide-34
SLIDE 34

Experiment Theory Comparing the NCA solution with CeRu2Ge2: high pressure data. T T

slide-35
SLIDE 35

Eu ion is found in the 4f7 or 4f6 Hund’s rule state. Configurational fluctuations give rise to Kondo effect 4f7 4f6

Ef

Eu 3+ Eu 2+ Configurational splitting is Ef conduction electron Sz=7/2 J=0 Jz =7/2 Jz=7/2 Eu2Cu2(SixGe1-x)2 example

slide-36
SLIDE 36

Thermopower of Eu2(Si1xGe1-x)2: comparison of NCA results with experiment. Theory Experiment

slide-37
SLIDE 37

Summary of Yb calculations: Pressure shifts Ef and reduces nf. Γ is unchanged. For each Ef(P) we shift μ so as to conserve ntot. Ef and E0 change with pressure. Yb gets additional f-holes and is more magnetic under pressure. Ef - E0 P>0 W

4f13

E0= 0 Ef - E0 P=0

4f13.5

E0> 0

slide-38
SLIDE 38

NCA results for Yb ions: Experiment Chemical pressure effects

slide-39
SLIDE 39

f-particle number: Electrical resistance Transport and thermodynamics should be related to the fixed points of the model! Inadequacy of the single-ion description

slide-40
SLIDE 40

Δ>Γ

Transport is defined by the spectrum of elementary excitation

T≈Δ T≈Δ/2 T≈T0 T>T0 T=2 K T=200 K T=41 K T=700 K

(small hybridization)

slide-41
SLIDE 41

T=2 K T=200 K T=41 K T=700 K T≈Δ T≈Δ/2 T≈T0 T>T0 The NCA Kondo scale T0 is defined by the low-temperature peak of A(ω). Properties of A(ω) in the Fermi window (± 2kBT) determine S(T) Zooming in Δ > Γ case:

T=2 K: T=200 K: T=700 K:

T0

zoom x10 zoom x 100 Δ>Γ

slide-42
SLIDE 42

T=2 K: T=200 K: T=700 K:

T<T0 T>T0

Δ < Γ < 2Δ

Spectrum of elementary excitation T0 T0

zoom x10 zoom x 100 Δ>Γ T=41 K T=2 K T=200 K T=700 K zoom x10

slide-43
SLIDE 43

T≈Δ T≈Δ T=200 K

Γ=2Δ Γ>2Δ

Spectrum of elementary excitation T=41 K T=2 K For Γ>2Δ the low-energy CF peaks disappear. T0 jumps to new values. larger hybridization very large hybridization

T0 T0

slide-44
SLIDE 44

Calculated phase diagram

slide-45
SLIDE 45

Kondo Calculated phase diagram

slide-46
SLIDE 46

Kondo

FL

Calculated phase diagram

slide-47
SLIDE 47

Kondo

FL VF Calculated phase diagram

slide-48
SLIDE 48

Kondo

FL VF

AFM

Calculated phase diagram

slide-49
SLIDE 49
  • Thermopower in Ce, Eu, and Yb intermetallics can be understood

from the fixed point analysis of the effective single impurity Anderson model.

  • S(T) depends on the number of electrons and the relative magnitude
  • f Γ/Ef and Γ/∆.
  • Shape of S(T) follows from the redistribution of the spectral weight

within the Fermi window.

  • Pressure changes Ef in Yb and Γ in Ce.
  • Combining the NCA and the Fermi liquid approximations we find

solution for any T. Summary of NCA thermopower calculations

slide-50
SLIDE 50

Conclusions

  • Above the coherence temperature ( Tc~T0 ), we do not see

significant effects due to the QCP.

  • Single ion Kondo effect seems to be doing all the work. Effective f-

degeneracy changes with T and P. Local environment is most important (CF splitting, ligands).

  • High-concentration data and low-concentration data are not related

by a simple scaling law. Shape of S(T) changes with concentration (chemical pressure).

slide-51
SLIDE 51

Thermopower (α) versus entropy (sN)

j=<e-βH j >/<e-βH> current q=<e-βH q >/<e-βH> heat current H contains inter-particle interactions and couplings to electrical and gravitational fields. Gradient expansion leads to transport equations (Luttinger) j = -σ∇φ-σα∇T q = (φ+Π)j-κ∇T eNA(α/SN)=NA/N=qN

} ⇒

slide-52
SLIDE 52

Seebeck effect: current generation by heat flow Seebeck coefficient: transport eq. for j=0 α=∆V/∆T

T+ΔT q T ΔV≠0 ∇T ∇T j To

slide-53
SLIDE 53

Peltier effect: heat transfer by current flow Peltier coefficient: transport eq. for ∇T=0

Π(T) = q j

T+ΔT q T ΔV≠0 j To ∇T ∇T

Onsager: α = Π/T

slide-54
SLIDE 54

T q T j Q,e Q,e Stationary state in isothermal condition (Peltier experiment): dQ/dt = -div q = 0 div q= Tj∇α Integrating over the interface: qs-ql=T(αs- αl)j q has a discontinuity at the interface. j is always continuous. Stationary flow: j = nev q = Qv v - drift velocity n - particle density

α = q jT

slide-55
SLIDE 55

T q T j Q,e Q,e Stationary state in isothermal condition (Peltier experiment): dQ/dt = -div q = 0 div q= Tj∇α Integrating over the interface: qs-ql=T(αs- αl)j q has a discontinuity at the interface. j is always continuous. Stationary flow: j = nev q = Qv v - drift velocity n - particle density

α = q jT = Q/T en

slide-56
SLIDE 56

dQ/dt = -div q = 0 div q= Tj∇α Integrating over the interface: qs-ql=T(αs- αl)j q has a discontinuity at the interface. j is always continuous. Stationary flow: j = nev q = Qv v - drift velocity n - particle density T q T j Q,e Q,e Stationary state in isothermal condition (Peltier experiment):

eNA α γT = NA N = qN

slide-57
SLIDE 57

Analysis of transport equation

  • Free electrons: qN=1
  • Anderson model: qN~1
  • Falicov-Kimball model: qN=1
  • Periodic Anderson model (NFL) α ~ sN

(N/NA) is proportional to the Fermi volume of charge carriers

slide-58
SLIDE 58

Conclusions

  • The ratio qN=(NAe)(α/ϒT) calculated from transport equation is

almost constant and qN ~ N/NA, where NA/N is the Fermi volume

  • f the interacting system.
  • But qN is not a universal number, as heat and charge currents are

not always proportional to the particle density.

  • qN refers to α and ϒ of the charge carriers. Experimental data

should be corrected for the phonon, magnon, etc. contributions.

  • Reliable model calculations of the thermopower for interacting

electrons on the lattice are badly needed.
