– 04 – 2015-05-04 – main –

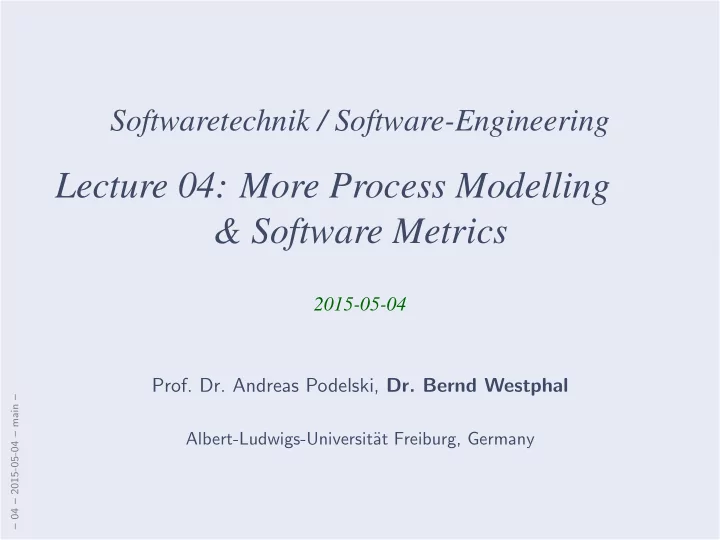

Softwaretechnik / Software-Engineering

Lecture 04: More Process Modelling & Software Metrics

2015-05-04

• Prof. Dr. Andreas Podelski, Dr. Bernd Westphal

Albert-Ludwigs-Universit¨ at Freiburg, Germany

Contents & Goals

– 04 – 2015-05-04 – Sprelim –

2/91 Last Lecture:

• process, model, process vs. procedure model
• code & fix, waterfall, S/P/E programs, (rapid) protoyping

This Lecture:

• Educational Objectives: Capabilities for following tasks/questions.
• what is evolutionary, incremental, iterative?
• what’s the fundamental idea of the spiral model? where’s the spiral?
• what is the difference between procedure and process model?
• what are the constituting elements of “V-Modell XT”? what project types does it support,

what is the consequence? what is tailoring in the context of “V-Modell XT”?

• what are examples of agile process models? what are their principles? describe XP, Scrum
• what is a nominal, . . . , absolute scale? what are their properties?
• which properties make a metric useful?
• what’s the difference between objective, subjective, and pseudo metrics?
• compute LOC, cyclomatic complexity, LCOM, . . . for this software
• Content:
• non-linear procedure models cont’d, process models (V-Modell XT, Scrum, . . . )
• scales, metrics

Non-Linear Procedure Models

– 04 – 2015-05-04 – main –

3/91

Evolutionary and Iterative Development

– 04 – 2015-05-04 – Sevoinciter –

4/91

Analysis of Requirements Use on Target System Defined Steps Preliminary Results Used Complete Plan

Rapid Prototyping Evolutionary Development Iterative Development Incremental Development

. . .

yes to some amount to a low amount

Evolutionary and Iterative Development

– 04 – 2015-05-04 – Sevoinciter –

4/91

Analysis of Requirements Use on Target System Defined Steps Preliminary Results Used Complete Plan

Rapid Prototyping Evolutionary Development Iterative Development Incremental Development

. . .

yes to some amount to a low amount

evolutionary software development — an approach which includes evolutions

• f the developed software under the influence of practical/field testing. New and

changed requirements are considered by developing the software in sequential steps

• f evolution.

Ludewig & Lichter (2013), flw. (Z¨ ullighoven, 2005)

Evolutionary and Iterative Development

– 04 – 2015-05-04 – Sevoinciter –

4/91

Analysis of Requirements Use on Target System Defined Steps Preliminary Results Used Complete Plan

Rapid Prototyping Evolutionary Development Iterative Development Incremental Development

. . .

yes to some amount to a low amount

evolutionary software development — an approach which includes evolutions

• f the developed software under the influence of practical/field testing. New and

changed requirements are considered by developing the software in sequential steps

• f evolution.

Ludewig & Lichter (2013), flw. (Z¨ ullighoven, 2005)

iterative software development — software is developed in multiple iterative

steps, all of them planned and controlled. Goal: each iterative step, beginning with the second, corrects and improves the existing system based on defects detected during usage. Each iterative steps includes the characteristic activities analyse, design, code, test.

Ludewig & Lichter (2013)

Incremental Development

– 04 – 2015-05-04 – Sevoinciter –

5/91

Analysis of Requirements Use on Target System Defined Steps Preliminary Results Used Complete Plan

Rapid Prototyping Evolutionary Development Iterative Development Incremental Development

. . .

incremental software development — The total extension of a system under

development remains open; it is realised in stages of expansion. The first stage is the core system. Each stage of expansion extends the existing system and is subject to a separate project. Providing a new stage of expansion typically includes (as with iterative development) an improvement of the old components.

Ludewig & Lichter (2013)

Incremental Development

– 04 – 2015-05-04 – Sevoinciter –

5/91

Analysis of Requirements Use on Target System Defined Steps Preliminary Results Used Complete Plan

Rapid Prototyping Evolutionary Development Iterative Development Incremental Development

. . .

incremental software development — The total extension of a system under

development remains open; it is realised in stages of expansion. The first stage is the core system. Each stage of expansion extends the existing system and is subject to a separate project. Providing a new stage of expansion typically includes (as with iterative development) an improvement of the old components.

Ludewig & Lichter (2013)

Incremental Development

– 04 – 2015-05-04 – Sevoinciter –

5/91

Analysis of Requirements Use on Target System Defined Steps Preliminary Results Used Complete Plan

Rapid Prototyping Evolutionary Development Iterative Development Incremental Development

. . .

incremental software development — The total extension of a system under

development remains open; it is realised in stages of expansion. The first stage is the core system. Each stage of expansion extends the existing system and is subject to a separate project. Providing a new stage of expansion typically includes (as with iterative development) an improvement of the old components.

Ludewig & Lichter (2013)

• Note: (to maximise confusion) IEEE calls our “iterative” incremental:

incremental development — A software development technique in which requirements definition, design, implementation, and testing occur in an overlapping, iterative (rather than sequential) manner, resulting in incremental completion of the overall software product. IEEE 610.12 (1990)

Incremental Development

– 04 – 2015-05-04 – Sevoinciter –

5/91

Analysis of Requirements Use on Target System Defined Steps Preliminary Results Used Complete Plan

Rapid Prototyping Evolutionary Development Iterative Development Incremental Development

. . .

incremental software development — The total extension of a system under

development remains open; it is realised in stages of expansion. The first stage is the core system. Each stage of expansion extends the existing system and is subject to a separate project. Providing a new stage of expansion typically includes (as with iterative development) an improvement of the old components.

Ludewig & Lichter (2013)

• Note: (to maximise confusion) IEEE calls our “iterative” incremental:

incremental development — A software development technique in which requirements definition, design, implementation, and testing occur in an overlapping, iterative (rather than sequential) manner, resulting in incremental completion of the overall software product. IEEE 610.12 (1990)

• One difference (in our definitions):
• iterative: steps towards fixed goal,
• incremental: goal extended for each step; next step goals may already be planned.

Examples: operating system releases, short time-to-market (→ continuous integration).

The Spiral Model

– 04 – 2015-05-04 – main –

6/91

Quick Excursion: Risk and Riskvalue

– 04 – 2015-05-04 – Sspiral –

7/91 risk — a problem, which did not occur yet, but on occurrence threatens important project goals or results. Whether it will occur, cannot be surely predicted.

Ludewig & Lichter (2013)

riskvalue = p · K

p: probability of problem occurrence, K: cost in case of problem occurrence.

Quick Excursion: Risk and Riskvalue

– 04 – 2015-05-04 – Sspiral –

7/91 risk — a problem, which did not occur yet, but on occurrence threatens important project goals or results. Whether it will occur, cannot be surely predicted.

Ludewig & Lichter (2013)

riskvalue = p · K

p: probability of problem occurrence, K: cost in case of problem occurrence.

105 106 107 108 cost in case

• f incidence

/ e 0.01 0.1 1 10 100 500 incidence prob- ability p / 10−3

acceptable risks inacceptable risks extreme risks

Quick Excursion: Risk and Riskvalue

– 04 – 2015-05-04 – Sspiral –

7/91 risk — a problem, which did not occur yet, but on occurrence threatens important project goals or results. Whether it will occur, cannot be surely predicted.

Ludewig & Lichter (2013)

riskvalue = p · K

p: probability of problem occurrence, K: cost in case of problem occurrence.

105 106 107 108 cost in case

• f incidence

/ e 0.01 0.1 1 10 100 500 incidence prob- ability p / 10−3

acceptable risks inacceptable risks extreme risks

• Avionics requires: “Average Probability per Flight Hour for Catastrophic Failure Conditions of

10−9 or ‘Extremely Improbable”’ (AC 25.1309-1).

• “problems with p = 500 · 10−3 = 0.5 are not risks, but environment conditions to be dealt with”

The Spiral Model (Boehm, 1988)

– 04 – 2015-05-04 – Sspiral –

8/91

Barry W. Boehm

Repeat until end of project (successful completion or failure):

(i) determine the set R of risks threatening the project; if R = ∅, the project is successfully completed (ii) assign each risk r ∈ R a risk value v(r) (iii) for the risk r0 with the highest risk value, r0 = max{v(r) | r ∈ R}, find a way to eliminate this risk, and go this way; if there is no way to eliminate the risk, stop with project failure

The Spiral Model (Boehm, 1988)

– 04 – 2015-05-04 – Sspiral –

8/91

Barry W. Boehm

Repeat until end of project (successful completion or failure):

(i) determine the set R of risks threatening the project; if R = ∅, the project is successfully completed (ii) assign each risk r ∈ R a risk value v(r) (iii) for the risk r0 with the highest risk value, r0 = max{v(r) | r ∈ R}, find a way to eliminate this risk, and go this way; if there is no way to eliminate the risk, stop with project failure

Advantages:

• we know early if the project goal is unreachable,
• knowing that the biggest risks are eliminated gives a good feeling.

The Spiral Model (Boehm, 1988)

– 04 – 2015-05-04 – Sspiral –

8/91

Barry W. Boehm

Repeat until end of project (successful completion or failure):

(i) determine the set R of risks threatening the project; if R = ∅, the project is successfully completed (ii) assign each risk r ∈ R a risk value v(r) (iii) for the risk r0 with the highest risk value, r0 = max{v(r) | r ∈ R}, find a way to eliminate this risk, and go this way; if there is no way to eliminate the risk, stop with project failure

Advantages:

• we know early if the project goal is unreachable,
• knowing that the biggest risks are eliminated gives a good feeling.

Note: risk can by anything; e.g. open technical questions (→ prototype?), but also lead developer leaving the company (→ invest in documentation), changed market situation (→ adapt appropriate features), . . .

Wait, Where’s the Spiral?

– 04 – 2015-05-04 – Sspiral –

9/91

Wait, Where’s the Spiral?

– 04 – 2015-05-04 – Sspiral –

9/91

A concrete process using the Spiral Model could look as follows:

t (cost, project progress) t0 t1 t2 t3

• fix goals, conditions,
• risk analysis,
• develop and test,
• plan next phase,

Wait, Where’s the Spiral?

– 04 – 2015-05-04 – Sspiral –

9/91

A concrete process using the Spiral Model could look as follows:

t (cost, project progress) t0 t1 t2 t3

• fix goals, conditions,
• risk analysis,
• develop and test,
• plan next phase,

Process Models

– 04 – 2015-05-04 – main –

10/91

From Procedure to Process Model

– 04 – 2015-05-04 – Sprocesses –

11/91

A process model may describe:

• organisation, responsibilities, roles;
• structure and properties of documents;
• methods to be used, e.g. to gather requirements or to check intermediate results
• steps to be conducted during development, their sequential arrangement, their

dependencies (the procedure model);

• project phases, milestones, testing criteria;
• notations and languages;
• tools to be used (in particular for project management).

Process models typically come with their own terminology (to maximise confusion?), e.g. what we call artefact is called product in V-Model terminology.

From Procedure to Process Model

– 04 – 2015-05-04 – Sprocesses –

11/91

A process model may describe:

• organisation, responsibilities, roles;
• structure and properties of documents;
• methods to be used, e.g. to gather requirements or to check intermediate results
• steps to be conducted during development, their sequential arrangement, their

dependencies (the procedure model);

• project phases, milestones, testing criteria;
• notations and languages;
• tools to be used (in particular for project management).

Process models typically come with their own terminology (to maximise confusion?), e.g. what we call artefact is called product in V-Model terminology. Process models are legion; we will take a closer look onto:

• V-Model XT, (Rational) Unified Process, Cleanroom, Agile (XP, Scrum)

Light vs. Heavyweight Process Models

– 04 – 2015-05-04 – Sprocesses –

12/91

• You may hear about “light” and “heavyweight” process models.
• Sometimes, “heaviness” seems to be measured in number of rules. . .
• Sometimes, “heaviness” seems to be related to flexibility, adaptability during a
• process. . .
• “Light” sounds better than “heavy”, so advocates of a certain process model tend

to tag theirs “light” and all others “heavy”.

• In the end,
• a process model is too “light” if it doesn’t support you in doing things which

are useful and necessary for your project;

• a process model is too “heavy” if it forces you to do things which are neither

necessary nor useful for your project.

• Thus following (Ludewig and Lichter, 2013), we will not try to assign the following

process models to a “weight class”.

Phase Models

– 04 – 2015-05-04 – Sprocesses –

13/91

The Phase Model

– 04 – 2015-05-04 – Sprocesses –

14/91

• The project is planned by phases, delimited by well-defined milestones.
• Each phase is assigned a time/cost budget.
• Phases and milestones may be part of the development contract;

partial payment when reaching milestones.

• Roles, responsibilities, artefacts defined as needed.
• By definition, there is no iteration of phases.
• But activities may span multiple phases.
• Not uncommon for small projects (few software people, small product size), small

companies.

V-Modell XT

– 04 – 2015-05-04 – main –

15/91

– 04 – 2015-05-04 – Svxt –

16/91

V-Modell XT

– 04 – 2015-05-04 – Svxt –

17/91

• There are different V-shaped (in a minute) process models,

we discuss the (German) “V-Modell”.

• “V-Modell”: developed by company IABG in cooperation with the Federal Office

for Defence Technology and Procurement (‘Bundesministerium f¨ ur Verteidigung’), released 1998

• (German) government as customer often requires usage of the V-Modell
• 2012: “V-Modell XT” Version 1.4 (Extreme Tailoring) (V-Modell XT, 2006)

V-Modell XT: Project Types

– 04 – 2015-05-04 – Svxt –

18/91

project role

customer ‘Auftraggeber’ developer ‘Auftragnehmer’ customer/developer ‘Auftragg.’/‘Auftragn.’ customer/developer ‘Auftragg.’/‘Auftragn.’

project type

system development project (AG) system development project (AN) system development project (AG/AN) introduction and maintenance of specific process model

project subject

HW system SW system HW-SW system/embedded System integration introduction and maintenance of specific process model

V-Modell XT offers support for four different project types:

V-Modell XT: Project Types

– 04 – 2015-05-04 – Svxt –

18/91

project role

customer ‘Auftraggeber’ developer ‘Auftragnehmer’ customer/developer ‘Auftragg.’/‘Auftragn.’ customer/developer ‘Auftragg.’/‘Auftragn.’

project type

system development project (AG) system development project (AN) system development project (AG/AN) introduction and maintenance of specific process model

project subject

HW system SW system HW-SW system/embedded System integration introduction and maintenance of specific process model

V-Modell XT offers support for four different project types:

• AG: project from the perspective of the customer

(create call for bids, choose developer, accept product)

V-Modell XT: Project Types

– 04 – 2015-05-04 – Svxt –

18/91

project role

customer ‘Auftraggeber’ developer ‘Auftragnehmer’ customer/developer ‘Auftragg.’/‘Auftragn.’ customer/developer ‘Auftragg.’/‘Auftragn.’

project type

system development project (AG) system development project (AN) system development project (AG/AN) introduction and maintenance of specific process model

project subject

HW system SW system HW-SW system/embedded System integration introduction and maintenance of specific process model

V-Modell XT offers support for four different project types:

• AG: project from the perspective of the customer

(create call for bids, choose developer, accept product)

• AN: project from the perspective of the developer

(create offer, develop system, hand over system to customer)

V-Modell XT: Project Types

– 04 – 2015-05-04 – Svxt –

18/91

project role

customer ‘Auftraggeber’ developer ‘Auftragnehmer’ customer/developer ‘Auftragg.’/‘Auftragn.’ customer/developer ‘Auftragg.’/‘Auftragn.’

project type

system development project (AG) system development project (AN) system development project (AG/AN) introduction and maintenance of specific process model

project subject

HW system SW system HW-SW system/embedded System integration introduction and maintenance of specific process model

V-Modell XT offers support for four different project types:

• AG: project from the perspective of the customer

(create call for bids, choose developer, accept product)

• AN: project from the perspective of the developer

(create offer, develop system, hand over system to customer)

• AG/AN: customer and developer from same organisation

V-Modell XT: Project Types

– 04 – 2015-05-04 – Svxt –

18/91

project role

customer ‘Auftraggeber’ developer ‘Auftragnehmer’ customer/developer ‘Auftragg.’/‘Auftragn.’ customer/developer ‘Auftragg.’/‘Auftragn.’

project type

system development project (AG) system development project (AN) system development project (AG/AN) introduction and maintenance of specific process model

project subject

HW system SW system HW-SW system/embedded System integration introduction and maintenance of specific process model

V-Modell XT offers support for four different project types:

• AG: project from the perspective of the customer

(create call for bids, choose developer, accept product)

• AN: project from the perspective of the developer

(create offer, develop system, hand over system to customer)

• AG/AN: customer and developer from same organisation
• PM: introduction or improvement of a process model

V-Modell XT: Project Types

– 04 – 2015-05-04 – Svxt –

18/91

project role

customer ‘Auftraggeber’ developer ‘Auftragnehmer’ customer/developer ‘Auftragg.’/‘Auftragn.’ customer/developer ‘Auftragg.’/‘Auftragn.’

project type

system development project (AG) system development project (AN) system development project (AG/AN) introduction and maintenance of specific process model

project subject

HW system SW system HW-SW system/embedded System integration introduction and maintenance of specific process model

V-Modell XT offers support for four different project types:

• AG: project from the perspective of the customer

(create call for bids, choose developer, accept product)

• AN: project from the perspective of the developer

(create offer, develop system, hand over system to customer)

• AG/AN: customer and developer from same organisation
• PM: introduction or improvement of a process model
• project type variants:
• ne/more customer; development/improvement/migration; maintenance

V-Modell XT: Terminology

– 04 – 2015-05-04 – Svxt –

19/91

• ur course

V-Modell XT explanation role role (‘Rolle’) activity activity (‘Aktivit¨ at’)

• step (‘Arbeitsschritt’)

parts of activities artefact product (‘Produkt’)

• topic

(‘Thema’) parts of products

• discipline (‘Disziplin’)

a set of related products and activities phase project segment (?) (‘Projektabschnitt’)

V-Modell XT: Decision Points

– 04 – 2015-05-04 – Svxt –

20/91

V-Modell XT: The V-World (naja. . . )

– 04 – 2015-05-04 – Svxt –

21/91

%''".'

V-Modell XT: Tailoring Instance

– 04 – 2015-05-04 – Svxt –

22/91

Model Instance

V-Modell XT: Customer/Developer Interface

– 04 – 2015-05-04 – Svxt –

23/91

V-Modell XT: Roles (a lot!)

– 04 – 2015-05-04 – Svxt –

24/91

Project Roles:

Anwender Projektleiter Pr¨ ufer SW-Entwickler

Organisation Roles:

V-Modell XT: Roles (a lot!)

– 04 – 2015-05-04 – Svxt –

24/91

Project Roles:

¨ Anderungssteuerungsgruppe (Change Control Board), ¨ Anderungsverantwortlicher, Anforderungsanalytiker (AG), Anforderungsanalytiker (AN), Anwender, Assessor, Ausschreibungsverantwortlicher, Datenschutzverantwortlicher, Ergonomieverantwortlicher, Funktionssicherheitsverantwortlicher, HW-Architekt, HW-Entwickler, Informationssicherheitsverantwortlicher, KM-Administrator, KM-Verantwortlicher, Lenkungsausschuss, Logistikentwickler, Logistikverantwortlicher, Projektkaufmann, Projektleiter, Projektmanager, Prozessingenieur, Pr¨

ufer,

QS-Verantwortlicher, SW-Architekt, SW-Entwickler, Systemarchitekt, Systemintegrator, Technischer Autor, Trainer

Organisation Roles:

Akquisiteur, Datenschutzbeauftragter (Organisation), Eink¨ aufer, IT-Sicherheitsbeauftragter (Organisation), Qualit¨ atsmanager

V-Modell XT: Disciplines and Products (even more!)

– 04 – 2015-05-04 – Svxt –

25/91

5L

V-Modell XT: Disciplines and Products (even more!)

– 04 – 2015-05-04 – Svxt –

25/91

5L

V-Modell XT: Activities (as many?!)

– 04 – 2015-05-04 – Svxt –

26/91

V-Modell XT: Activities (as many?!)

– 04 – 2015-05-04 – Svxt –

26/91

V-Modell XT: Procedure Building Blocks

– 04 – 2015-05-04 – Svxt –

27/91

• a discipline comprises one or more product
• a product may be external (‘E’) or initial (‘I’),

i.e. created always and exactly once (e.g. project plan)

• a product may consist of topics
• a product may depend on other products
• an activity creates a product and belongs to a discipline
• an activity may consist of steps
• a step works on a topic
• a role may be responsible for a product or contribute
• each product has at most one responsible role

V-Modell XT: Example Building Block

– 04 – 2015-05-04 – Svxt –

28/91 SW-Development (‘SW-Entwicklung’)

V-Modell XT: Example Building Block

– 04 – 2015-05-04 – Svxt –

28/91 SW-Development (‘SW-Entwicklung’)

vs.

coding . . .

• spec. of . . .

programmer

V-Modell XT: Development Strategies

– 04 – 2015-05-04 – Svxt –

29/91

Recall the idea of the “V shape”:

requirements fixed requirements fixed acceptance acceptance system specified system specified system delivered system delivered architecture designed architecture designed system integrated system integrated modules designed modules designed system realised system realised verification & validation

V-Modell XT: Development Strategies

– 04 – 2015-05-04 – Svxt –

29/91

Recall the idea of the “V shape”:

requirements fixed requirements fixed acceptance acceptance system specified system specified system delivered system delivered architecture designed architecture designed system integrated system integrated modules designed modules designed system realised system realised verification & validation

V-Modell XT mainly supports three strategies to develop a system, i.e. principal sequences between decision points:

• incremental,
• component based,
• prototypical.

V-Modell XT: Development Strategies

– 04 – 2015-05-04 – Svxt –

30/91

requirements fixed requirements fixed acceptance acceptance system specified system specified system delivered system delivered architecture designed architecture designed system integrated system integrated modules designed modules designed system realised system realised verification & validation

incremental component based prototypical

V-Modell XT: Discussion

– 04 – 2015-05-04 – Svxt –

31/91

Advantages:

• certain management related building block are part of each project,

thus they may receive increased attention of management and developers

• publicly available, can be used free of license costs
• very generic, support for tailoring
• comprehensive, low risk of forgetting things

Disadvantages:

• comprehensive, tries to cover everything; tailoring is supported, but may need high effort
• tailoring is necessary, otherwise a huge amount of useless documents is created
• description/presentation leaves room for improvement

Needs to prove in practice, in particular in small/medium sized enterprises (SME).

Rational Unified Process

– 04 – 2015-05-04 – main –

32/91

Rational Unified Process (RUP)

– 04 – 2015-05-04 – Srup –

33/91

Exists.

• in contrast to “V-Modell XT”, a commercial product

Agile Process Models

– 04 – 2015-05-04 – main –

34/91

The Agile Manifesto

– 04 – 2015-05-04 – Sagile –

35/91 “Agile denoting ‘the quality of being agile; readiness for motion; nimbleness, activity, dexterity in motion’ software development methods are attempting to

• ffer an answer to the eager business community asking for lighter weight along

with faster and nimbler software development processes. This is especially the case with the rapidly growing and volatile Internet software industry as well as for the emerging mobile application environment.” (Abrahamsson et al., 2002)

The Agile Manifesto

– 04 – 2015-05-04 – Sagile –

35/91 “Agile denoting ‘the quality of being agile; readiness for motion; nimbleness, activity, dexterity in motion’ software development methods are attempting to

• ffer an answer to the eager business community asking for lighter weight along

with faster and nimbler software development processes. This is especially the case with the rapidly growing and volatile Internet software industry as well as for the emerging mobile application environment.” (Abrahamsson et al., 2002)

The Agile Manifesto (2001): We are uncovering better ways of developing software by doing it and helping others do it. Through this work we have come to value: Individuals and interactions over processes and tools Working software

• ver comprehensive documentation

Customer collaboration

• ver contract negotiation

Responding to change

• ver following a plan

that is, while there is value in the items on the right, we value the items on the left more.

Agile Principles

– 04 – 2015-05-04 – Sagile –

36/91

• Our highest priority is to satisfy the customer through early and continuous delivery of

valuable software.

• Welcome changing requirements, even late in development. Agile processes harness

change for the customers competitive advantage.

• Deliver working software frequently, from a couple of weeks to a couple of months, with

a preference to the shorter timescale.

Agile Principles

– 04 – 2015-05-04 – Sagile –

36/91

• Our highest priority is to satisfy the customer through early and continuous delivery of

valuable software.

• Welcome changing requirements, even late in development. Agile processes harness

change for the customers competitive advantage.

• Deliver working software frequently, from a couple of weeks to a couple of months, with

a preference to the shorter timescale.

• Business people and developers must work together daily throughout the project.
• Build projects around motivated individuals. Give them the environment and support

they need, and trust them to get the job done.

• The most efficient and effective method of conveying information to and within a

development team is face-to-face conversation.

Agile Principles

– 04 – 2015-05-04 – Sagile –

36/91

• Our highest priority is to satisfy the customer through early and continuous delivery of

valuable software.

• Welcome changing requirements, even late in development. Agile processes harness

change for the customers competitive advantage.

• Deliver working software frequently, from a couple of weeks to a couple of months, with

a preference to the shorter timescale.

• Business people and developers must work together daily throughout the project.
• Build projects around motivated individuals. Give them the environment and support

they need, and trust them to get the job done.

• The most efficient and effective method of conveying information to and within a

development team is face-to-face conversation.

• Working software is the primary measure of progress.
• Agile processes promote sustainable development. The sponsors, developers, and users

should be able to maintain a constant pace indefinitely.

• Continuous attention to technical excellence and good design enhances agility.

Agile Principles

– 04 – 2015-05-04 – Sagile –

36/91

• Our highest priority is to satisfy the customer through early and continuous delivery of

valuable software.

• Welcome changing requirements, even late in development. Agile processes harness

change for the customers competitive advantage.

• Deliver working software frequently, from a couple of weeks to a couple of months, with

a preference to the shorter timescale.

• Business people and developers must work together daily throughout the project.
• Build projects around motivated individuals. Give them the environment and support

they need, and trust them to get the job done.

• The most efficient and effective method of conveying information to and within a

development team is face-to-face conversation.

• Working software is the primary measure of progress.
• Agile processes promote sustainable development. The sponsors, developers, and users

should be able to maintain a constant pace indefinitely.

• Continuous attention to technical excellence and good design enhances agility.
• Simplicity the art of maximizing the amount of work not done is essential.
• The best architectures, requirements, and designs emerge from self-organizing teams.
• At regular intervals, the team reflects on how to become more effective, then tunes and

adjusts its behavior accordingly.

Similarities of Agiles Process Models

– 04 – 2015-05-04 – Sagile –

37/91

• iterative; cycles of a few weeks, at most three months,
• require work in small groups (6–8 people),
• dislike the idea of large, comprehensive documentation (radical or with

restrictions),

• consider the customer important;

recommend or request customer’s presence in the project,

• dislike dogmatic rules.

(Ludewig and Lichter, 2013)

Extreme Programming (XP)

– 04 – 2015-05-04 – Sagile –

38/91

Extreme Programming (XP) (Beck, 1999)

– 04 – 2015-05-04 – Sagile –

39/91

XP values:

• simplicity, feedback, communication, courage, respect.

XP practices:

• management
• integral team

(including customer)

• planning game

(→ Delphi method)

• short release cycles
• stand-up meetings
• assess in hindsight
• team:
• joint responsibility for

the code

• coding conventions
• acceptable workload
• central metaphor
• continuous integration
• programming
• test driven development
• refactoring
• simple design
• pair programming

Extreme Programming (XP) (Beck, 1999)

– 04 – 2015-05-04 – Sagile –

39/91

XP values:

• simplicity, feedback, communication, courage, respect.

XP practices:

• management
• integral team

(including customer)

• planning game

(→ Delphi method)

• short release cycles
• stand-up meetings
• assess in hindsight
• team:
• joint responsibility for

the code

• coding conventions
• acceptable workload
• central metaphor
• continuous integration
• programming
• test driven development
• refactoring
• simple design
• pair programming

. . . ✘ coding . . . tests for . . .

• spec. of . . .

programmer programmer

Scrum

– 04 – 2015-05-04 – Sagile –

40/91

Scrum

– 04 – 2015-05-04 – Sagile –

41/91

• first published 1995 (Schwaber, 1995), based on ideas of Takeuchi and Nonaka
• inspired by Rugby: get the ball in a scrum, then sprint to score
• role-based; iterative and incremental;

in contrast to XP no techniques proposed/required

Scrum

– 04 – 2015-05-04 – Sagile –

41/91

• first published 1995 (Schwaber, 1995), based on ideas of Takeuchi and Nonaka
• inspired by Rugby: get the ball in a scrum, then sprint to score
• role-based; iterative and incremental;

in contrast to XP no techniques proposed/required Three roles:

• product owner:
• scrum team:
• scrum master:

Scrum

– 04 – 2015-05-04 – Sagile –

41/91

• first published 1995 (Schwaber, 1995), based on ideas of Takeuchi and Nonaka
• inspired by Rugby: get the ball in a scrum, then sprint to score
• role-based; iterative and incremental;

in contrast to XP no techniques proposed/required Three roles:

• product owner:
• representative of

customer,

• maintains requirements

in the product backlog,

• plans and decides which

requirement(s) to realise in next sprint,

• (passive) participant of

daily scrum,

• assesses results of

sprints

• scrum team:
• scrum master:

Scrum

– 04 – 2015-05-04 – Sagile –

41/91

• first published 1995 (Schwaber, 1995), based on ideas of Takeuchi and Nonaka
• inspired by Rugby: get the ball in a scrum, then sprint to score
• role-based; iterative and incremental;

in contrast to XP no techniques proposed/required Three roles:

• product owner:
• representative of

customer,

• maintains requirements

in the product backlog,

• plans and decides which

requirement(s) to realise in next sprint,

• (passive) participant of

daily scrum,

• assesses results of

sprints

• scrum team:
• members capable of

developing autonomously,

• decides how and how

many requirements to realise in next sprint,

• distribution of tasks

self-organised, team decides who does what when,

• environment needs to

support communication and cooperation, e.g. by spatial locality

• scrum master:

Scrum

– 04 – 2015-05-04 – Sagile –

41/91

• first published 1995 (Schwaber, 1995), based on ideas of Takeuchi and Nonaka
• inspired by Rugby: get the ball in a scrum, then sprint to score
• role-based; iterative and incremental;

in contrast to XP no techniques proposed/required Three roles:

• product owner:
• representative of

customer,

• maintains requirements

in the product backlog,

• plans and decides which

requirement(s) to realise in next sprint,

• (passive) participant of

daily scrum,

• assesses results of

sprints

• scrum team:
• members capable of

developing autonomously,

• decides how and how

many requirements to realise in next sprint,

• distribution of tasks

self-organised, team decides who does what when,

• environment needs to

support communication and cooperation, e.g. by spatial locality

• scrum master:
• helps to conduct scrum the

right way,

• looks for adherence to

process and rules,

• ensures that the team is

not disturbed from

• utside,
• moderates daily scrum,

responsible for keeping product backlog up-to-date,

• should be able to assess

techniques and approaches

Scrum Documents

– 04 – 2015-05-04 – Sagile –

42/91

• product backlog
• comprises all requirements to be realised,
• priority and effort estimation for

requirements,

• collects tasks to be conducted,
• maintained by product owner
• release plan
• based on initial version of product

backlog,

• how many sprints, which major

requirements in which sprint,

• release-burndown report
• see sprint-burndown report
• sprint backlog
• requirements to be realised in next

spring, taken from product backlog,

• more precise estimations,
• daily update (tasks done, new tasks, new

estimations)

• sprint-burndown report
• completed/open tasks from sprint

backlog,

• should decrease linearly, otherwise

remove tasks from sprint backlog,

• sprint report
• which requirements have (not) been

realised in last sprint,

• description of obstacles/problems during

sprint

Scrum Process

– 04 – 2015-05-04 – Sagile –

43/91

Product Backlog sprint planning release planning Release Plan Release Burn. Sprint Backlog

sprint

realisation daily scrum Sprint Burndown review retrospective Sprint Report requirements workshop Product Increment

• daily scrum:
• daily meeting, 15 min.
• discuss progress, synchronise day plan, discuss and document new obstacles
• team members, scrum master, product owner (if possible)
• sprint: at most 30 days, usually shorter (initially longer)
• sprint review: assess amount and quality of realisations; product owner accepts results
• sprint retrospective: assess how well the scrum process was implemented; identify

actions for improvement (if necessary)

Scrum: Discussion

– 04 – 2015-05-04 – Sagile –

44/91

• has been used in many projects, experience in majority positive
• team size bigger 7–10 may need scrum of scrums
• competent product owner necessary for success
• success depends on motivation, competence, and communication skills of team

members

• team members responsible for planning, and for adhering to process and rules, thus

intensive learning and experience necessary

• can (as other process models) be combined with techniques from XP

Software and Process Metrics

– 04 – 2015-05-04 – main –

45/91

Software and Process Metrics

– 04 – 2015-05-04 – Smetricintro –

46/91

• To systematically compare and improve industrial products, we need to

precisely describe and assess the products and the process of creation.

• This common practice for many material good, e.g. cars
• fuel consumption,
• size of trunk,
• fixed costs per year,
• time needed to change headlight’s light bulb,
• clearance (accuracy of fit and gaps of, e.g., doors)
• . . .

Note: all these key figures are models of products — they reduce everything but the aspect they are interested in.

• Less common practice for immaterial goods like Software.
• It should be — (objective) measures are central to engineering approaches.
• Yet: it’s not that easy for software.

Excursion: Scales

– 04 – 2015-05-04 – main –

47/91

Scales and Types of Scales

– 04 – 2015-05-04 – Sscales –

48/91

• measuring maps elements from a set A to a scale M:

m : A → M

• we distinguish

(i) nominal scale

• operations: = (and =)

(ii) ordinal scale

• operations: =, </> (with transitivity), min/max, percentiles (e.g. median)

(iii) interval scale (with units)

• operations: =, <, >, min/max, percentiles, ∆

(iv) rational scale (with units)

• operations: =, <, >, min/max, percentiles, ∆, proportion, 0

(v) absolute scale

• a rational scale where M comprises the key figures itself

Nominal Scale

– 04 – 2015-05-04 – Sscales –

49/91

m : A → M

• operations: = (and =)
• that is, there is no (natural) order between elements of M,
• the lexicographic order can be imposed, but is not related to measured information

(thus not natural).

• general example:
• nationality, gender, car manufacturer, geographic direction, . . .
• Autobahn number, train number, . . .
• software engineering example:
• programming laguage

Ordinal Scale

– 04 – 2015-05-04 – Sscales –

50/91

m : A → M

• operations: =, <, >, min/max, percentiles (e.g. median)
• there is a (natural) order between elements of M, but no (natural) notion of

distance or average

• general example:
• strongly agree > agree > disagree > strongly disagree
• administrative ranks: Chancellor > Minister
• ranking list, leaderboard:

finishing number tells us who was, e.g. faster, than who; but nothing about how much faster 1st was than 2nd

• types of scales, . . .
• software engineering example:
• CMMI scale (maturity levels 1 to 5)

Interval Scale

– 04 – 2015-05-04 – Sscales –

51/91

m : A → M

• operations: =, <, >, min/max, percentiles, ∆
• there’s a (natural) notion of difference ∆ : M × M → R,
• but no (natural) 0
• general example:
• temperature in Celsius (no zero),
• year dates,

two persons, born B1, B2, died D1, D2 (all dates beyond, say, 1900) — if ∆(B1, D1) = ∆(B2, D2), they reached the same age

• software engineering example:
• time of check-in in revision control system,

Rational Scale

– 04 – 2015-05-04 – Sscales –

52/91

m : A → M

• operations: =, <, >, min/max, percentiles, ∆, proportion, 0
• the (natural) zero induces a meaning for proportion m1/m2
• general example:
• age (“twice as old”), finishing time, weight, pressure, . . .
• price, speed, distance from Freiburg, . . .
• software engineering example:
• runtime of a program for certain inputs,

Absolute Scale

– 04 – 2015-05-04 – Sscales –

53/91

m : A → M

• M = N0,
• a rational scale where M comprises the key figures itself
• absolute scale has median, but in general not an average in the scale.
• general example:
• seats in a bus, number of public holidays, number of inhabitants of a country, . . .
• “average number of children per family: 1.203” – what is a 0.203-child? the

absolute scale has been viewed as a rational scale, makes sense for certain purposes

• software engineering example:
• number of known errors,

Communicating Figures

– 04 – 2015-05-04 – Sscales –

54/91

Median and Box-Plots

– 04 – 2015-05-04 – Sscales –

55/91

M1 M2 M3 M4 M5 LOC 127 213 152 139 13297

• arithmetic average: 2785.6
• median: 127, 139, 152, 213, 13297

Median and Box-Plots

– 04 – 2015-05-04 – Sscales –

55/91

M1 M2 M3 M4 M5 LOC 127 213 152 139 13297

• arithmetic average: 2785.6
• median: 127, 139, 152, 213, 13297
• a boxplot visualises 5 aspects of data at once

(whiskers sometimes defined differently, with “outliers”):

100 % (maximum) 75 % (3rd quartile) 50 % (median) 25 % (1st quartile) 0 % (minimum)

Median and Box-Plots

– 04 – 2015-05-04 – Sscales –

55/91

M1 M2 M3 M4 M5 LOC 127 213 152 139 13297

• arithmetic average: 2785.6
• median: 127, 139, 152, 213, 13297
• a boxplot visualises 5 aspects of data at once

(whiskers sometimes defined differently, with “outliers”):

100 % (maximum) 75 % (3rd quartile) 50 % (median) 25 % (1st quartile) 0 % (minimum)

40.000 30.000 20.000 10.000

median: 2,078 average: 7,033.027 LOC lecture’s *.tex files

Software Metrics

– 04 – 2015-05-04 – main –

56/91

Software Metrics

– 04 – 2015-05-04 – Smetrics –

57/91

metric — A quantitative measure of the degree to which a system, compo- nent, or process posesses a given attribute. See: quality metric.

IEEE 610.12 (1990)

Software Metrics

– 04 – 2015-05-04 – Smetrics –

57/91

metric — A quantitative measure of the degree to which a system, compo- nent, or process posesses a given attribute. See: quality metric.

IEEE 610.12 (1990)

quality metric — (1) A quantitative measure of the degree to which an item possesses a given quality attribute. (2) A function whose inputs are software data and whose output is a single numerical value that can be interpreted as the degree to which the software possesses a given quality attribute.

IEEE 610.12 (1990)

Software Metrics

– 04 – 2015-05-04 – Smetrics –

57/91

metric — A quantitative measure of the degree to which a system, compo- nent, or process posesses a given attribute. See: quality metric.

IEEE 610.12 (1990)

quality metric — (1) A quantitative measure of the degree to which an item possesses a given quality attribute. (2) A function whose inputs are software data and whose output is a single numerical value that can be interpreted as the degree to which the software possesses a given quality attribute.

IEEE 610.12 (1990)

Recall: Metric Space [math.]

– 04 – 2015-05-04 – Smetrics –

58/91

• Definition. [Metric Space] Let X be a set. A function d : X×X → R

is called metric on X if and only if, for each x, y, x ∈ X, (i) d(x, y) ≥ 0 (non-negative) (ii) d(x, y) = 0 ⇐ ⇒ x = y (identity of indiscernibles) (iii) d(x, y) = d(y, x) (symmetry) (iv) d(x, z) ≤ d(x, y) + d(y, z) (triangle inequality) (X, d) is called metric space.

Software Metrics: Motivation and Goals

– 04 – 2015-05-04 – Smetrics –

59/91

Important motivations and goals for using software metrics:

• Support decisions
• Quantify experience, progress, etc.
• Assess the quality of products and processes
• Predict cost/effort, etc.

Software Metrics: Motivation and Goals

– 04 – 2015-05-04 – Smetrics –

59/91

Important motivations and goals for using software metrics:

• Support decisions
• Quantify experience, progress, etc.
• Assess the quality of products and processes
• Predict cost/effort, etc.

Metrics can be used:

• descriptive or prescriptive:
• “the current average LOC per module is N” vs. “a prodecure must not have more then

N parameters”

• a descriptive metric can be diagnostic or prognostic:
• “the current average LOC per module is N” vs. “the expected test effort is N hours”
• Note: prescriptive and prognostic are different things.

Software Metrics: Motivation and Goals

– 04 – 2015-05-04 – Smetrics –

59/91

Important motivations and goals for using software metrics:

• Support decisions
• Quantify experience, progress, etc.
• Assess the quality of products and processes
• Predict cost/effort, etc.

Metrics can be used:

• descriptive or prescriptive:
• “the current average LOC per module is N” vs. “a prodecure must not have more then

N parameters”

• a descriptive metric can be diagnostic or prognostic:
• “the current average LOC per module is N” vs. “the expected test effort is N hours”
• Note: prescriptive and prognostic are different things.
• Examples for diagnostic/guiding use:
• measure time spent per procedure before starting “optimisations”,
• focus testing effort accordingly, e.g. guided cyclomatic complexity,
• develop measures indicating architecture problems, (analyse,) then focus re-factoring

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P.

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated
• comparable
• reproducible
• available
• relevant
• economical
• plausible
• robust

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated – worst case: same valuation for all probands
• comparable
• reproducible
• available
• relevant
• economical
• plausible
• robust

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated – worst case: same valuation for all probands
• comparable – ordinal scale, better: rational (or absolute) scale
• reproducible
• available
• relevant
• economical
• plausible
• robust

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated – worst case: same valuation for all probands
• comparable – ordinal scale, better: rational (or absolute) scale
• reproducible – multiple applications of a metric to the same proband should yield

the same valuation

• available
• relevant
• economical
• plausible
• robust

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated – worst case: same valuation for all probands
• comparable – ordinal scale, better: rational (or absolute) scale
• reproducible – multiple applications of a metric to the same proband should yield

the same valuation

• available – valuation yields need to be in place when needed
• relevant
• economical
• plausible
• robust

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated – worst case: same valuation for all probands
• comparable – ordinal scale, better: rational (or absolute) scale
• reproducible – multiple applications of a metric to the same proband should yield

the same valuation

• available – valuation yields need to be in place when needed
• relevant – wrt. overall needs
• economical
• plausible
• robust

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated – worst case: same valuation for all probands
• comparable – ordinal scale, better: rational (or absolute) scale
• reproducible – multiple applications of a metric to the same proband should yield

the same valuation

• available – valuation yields need to be in place when needed
• relevant – wrt. overall needs
• economical – worst case: doing the project gives a perfect estimatio of duration,

but is expensive; irrelevant metrics are not economical (if not available for free)

• plausible
• robust

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated – worst case: same valuation for all probands
• comparable – ordinal scale, better: rational (or absolute) scale
• reproducible – multiple applications of a metric to the same proband should yield

the same valuation

• available – valuation yields need to be in place when needed
• relevant – wrt. overall needs
• economical – worst case: doing the project gives a perfect estimatio of duration,

but is expensive; irrelevant metrics are not economical (if not available for free)

• plausible – (→ pseudo-metric)
• robust

Requirements on Useful Metrics

– 04 – 2015-05-04 – Smetrics –

60/91

• Definition. A thing which is subject to the application of a metric is called
• proband. The value m(P) yielded by a given metric m on a proband P

is called valuation yield (‘Bewertung’) of P. In order to be useful, a (software) metric should be:

• differentiated – worst case: same valuation for all probands
• comparable – ordinal scale, better: rational (or absolute) scale
• reproducible – multiple applications of a metric to the same proband should yield

the same valuation

• available – valuation yields need to be in place when needed
• relevant – wrt. overall needs
• economical – worst case: doing the project gives a perfect estimatio of duration,

but is expensive; irrelevant metrics are not economical (if not available for free)

• plausible – (→ pseudo-metric)
• robust – developers cannot arbitrarily manipulate the yield; antonym: subvertible

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated comparable reproducible available relevant economical plausible robust

(Ludewig and Lichter, 2013)

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated program length in LOC CMM/CMMI level below 2 comparable reproducible available relevant economical plausible robust

(Ludewig and Lichter, 2013)

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated program length in LOC CMM/CMMI level below 2 comparable cyclomatic complexity review (text) reproducible available relevant economical plausible robust

(Ludewig and Lichter, 2013)

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated program length in LOC CMM/CMMI level below 2 comparable cyclomatic complexity review (text) reproducible memory consumption grade assigned by inspector available relevant economical plausible robust

(Ludewig and Lichter, 2013)

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated program length in LOC CMM/CMMI level below 2 comparable cyclomatic complexity review (text) reproducible memory consumption grade assigned by inspector available number of developers number of errors in the code (not only known ones) relevant economical plausible robust

(Ludewig and Lichter, 2013)

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated program length in LOC CMM/CMMI level below 2 comparable cyclomatic complexity review (text) reproducible memory consumption grade assigned by inspector available number of developers number of errors in the code (not only known ones) relevant expected development cost; number of errors number of subclasses (NOC) economical plausible robust

(Ludewig and Lichter, 2013)

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated program length in LOC CMM/CMMI level below 2 comparable cyclomatic complexity review (text) reproducible memory consumption grade assigned by inspector available number of developers number of errors in the code (not only known ones) relevant expected development cost; number of errors number of subclasses (NOC) economical number of discovered errors in code highly detailed timekeeping plausible robust

(Ludewig and Lichter, 2013)

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated program length in LOC CMM/CMMI level below 2 comparable cyclomatic complexity review (text) reproducible memory consumption grade assigned by inspector available number of developers number of errors in the code (not only known ones) relevant expected development cost; number of errors number of subclasses (NOC) economical number of discovered errors in code highly detailed timekeeping plausible cost estimation following COCOMO (to a certain amount) cyclomatic complexity of a program with pointer

• perations

robust

(Ludewig and Lichter, 2013)

Requirements on Useful Metrics: Examples

– 04 – 2015-05-04 – Smetrics –

61/91 characteristic

(‘Merkmal’)

positive example negative example differentiated program length in LOC CMM/CMMI level below 2 comparable cyclomatic complexity review (text) reproducible memory consumption grade assigned by inspector available number of developers number of errors in the code (not only known ones) relevant expected development cost; number of errors number of subclasses (NOC) economical number of discovered errors in code highly detailed timekeeping plausible cost estimation following COCOMO (to a certain amount) cyclomatic complexity of a program with pointer

• perations

robust grading by experts almost all pseudo-metrics

(Ludewig and Lichter, 2013)

Software Metrics: Blessing and Curse

– 04 – 2015-05-04 – Smetrics –

62/91

Application domains for software metrics:

• Cost metrics (including duration)
• Error metrics
• Volume/Size metrics
• Quality metrics

Software Metrics: Blessing and Curse

– 04 – 2015-05-04 – Smetrics –

62/91

Application domains for software metrics:

• Cost metrics (including duration)
• Error metrics
• Volume/Size metrics
• Quality metrics

Being good wrt. to a certain metric is in general not an asset on its own. In particular critical: pseudo-metrics for quality (→ in a minute).

Kinds of Metrics

– 04 – 2015-05-04 – main –

63/91

Kinds of Metrics: ISO/IEC 15939:2011

– 04 – 2015-05-04 – Smetrickinds –

64/91

base measure — measure defined in terms of an attribute and the method for quantifying it.

ISO/IEC 15939 (2011)

Examples:

• lines of code, hours spent on testing, . . .
• derived measure — measure that is defined as a function of two or more

values of base measures.

ISO/IEC 15939 (2011)

Examples:

• average/median lines of code, productivity (lines per hour), . . .

Kinds of Metrics: by Measurement Procedure

– 04 – 2015-05-04 – Smetrickinds –

65/91

• bjective metric

subjective metric pseudo metric

Procedure Advantages Disadvan- tages Example, general Example in Software Engineering Usually used for (Ludewig and Lichter, 2013)

Kinds of Metrics: by Measurement Procedure

– 04 – 2015-05-04 – Smetrickinds –

65/91

• bjective metric

subjective metric pseudo metric

Procedure measurement, counting, poss. normed Advantages exact, reproducible, can be obtained automatically Disadvan- tages not always relevant,

• ften subvertable, no

interpretation Example, general body height, air pressure Example in Software Engineering size in LOC or NCSI; number of (known) bugs Usually used for collection of simple base measures (Ludewig and Lichter, 2013)

Kinds of Metrics: by Measurement Procedure

– 04 – 2015-05-04 – Smetrickinds –

65/91

• bjective metric

subjective metric pseudo metric

Procedure measurement, counting, poss. normed review by inspector, verbal or by given scale Advantages exact, reproducible, can be obtained automatically not subvertable, plausible results, applicable to complex characteristics Disadvan- tages not always relevant,

• ften subvertable, no

interpretation assessment costly, quality of results depends on inspector Example, general body height, air pressure health condition, weather condition (“bad weather”) Example in Software Engineering size in LOC or NCSI; number of (known) bugs usability; severeness

• f an error

Usually used for collection of simple base measures quality assessment; error weighting (Ludewig and Lichter, 2013)

Kinds of Metrics: by Measurement Procedure

– 04 – 2015-05-04 – Smetrickinds –

65/91

• bjective metric

subjective metric pseudo metric

Procedure measurement, counting, poss. normed review by inspector, verbal or by given scale computation (based on measurements or assessment) Advantages exact, reproducible, can be obtained automatically not subvertable, plausible results, applicable to complex characteristics yields relevant, directly usable statement on not directly visible characteristics Disadvan- tages not always relevant,

• ften subvertable, no

interpretation assessment costly, quality of results depends on inspector hard to comprehend, pseudo-objective Example, general body height, air pressure health condition, weather condition (“bad weather”) body mass index (BMI), weather forecast for the next day Example in Software Engineering size in LOC or NCSI; number of (known) bugs usability; severeness

• f an error

productivity; cost estimation following COCOMO Usually used for collection of simple base measures quality assessment; error weighting predictions (cost estimation); overall assessments (Ludewig and Lichter, 2013)

Some Objective Metrics, Base Measures

– 04 – 2015-05-04 – Smetrickinds –

66/91 dimension name unit measurement procedure

size of group, department, etc. headcount – number of filled positions (rounded on 0.1); part-time positions rounded on 0.01 program size – LOCtot number of lines in total net program size – LOCne number of non-empty lines code size – LOCpars number of lines with not only comments and non-printable delivered program size – DLOCtot, DLOCne, DLOCpars like LOC, only code (as source or compiled) given to customer number of units unit-count – number of units, as defined for version control (Ludewig and Lichter, 2013)

• Note: who measures when?

Assessment of Subjective Metrics

– 04 – 2015-05-04 – Smetrickinds –

67/91 kind of assessment example problems countermeasures Statement “The specification is available.” Assessment “The module is coded in a clever way.” Grading “Readability is graded 4.0.”

(Ludewig and Lichter, 2013)

Assessment of Subjective Metrics

– 04 – 2015-05-04 – Smetrickinds –

67/91 kind of assessment example problems countermeasures Statement “The specification is available.” Terms are ambiguous, conclusions are hardly possible. Allow only certain statements, characterise them precisely. Assessment “The module is coded in a clever way.” Grading “Readability is graded 4.0.”

(Ludewig and Lichter, 2013)

Assessment of Subjective Metrics

– 04 – 2015-05-04 – Smetrickinds –

67/91 kind of assessment example problems countermeasures Statement “The specification is available.” Terms are ambiguous, conclusions are hardly possible. Allow only certain statements, characterise them precisely. Assessment “The module is coded in a clever way.” No basis for comparisons. Only offer particular outcomes, put them on an (at least

• rdinal) scale.

Grading “Readability is graded 4.0.”

(Ludewig and Lichter, 2013)

Assessment of Subjective Metrics

– 04 – 2015-05-04 – Smetrickinds –

67/91 kind of assessment example problems countermeasures Statement “The specification is available.” Terms are ambiguous, conclusions are hardly possible. Allow only certain statements, characterise them precisely. Assessment “The module is coded in a clever way.” No basis for comparisons. Only offer particular outcomes, put them on an (at least

• rdinal) scale.

Grading “Readability is graded 4.0.” Subjective, grading not reproducible. Define criteria for grades; give examples how to grade

(Ludewig and Lichter, 2013)

Some Subjective Metrics

– 04 – 2015-05-04 – Smetrickinds –

68/91

• Norm Conformance

Considering (all or some of)

• size of units (modules etc.)
• labelling
• naming of identifiers
• design (layout)
• separation of literals
• style of comments
• Locality
• use of parameters
• information hiding
• local flow of control
• design of interfaces
• Readability
• data types
• structure of control flow
• comments
• Testability
• test driver
• test data
• preparation for test evaluation
• diagnostic components
• dynamic consistency checks
• Typing
• type differentiation
• type restriction

(Ludewig and Lichter, 2013)

Practical Use of Grading-based Metrics

– 04 – 2015-05-04 – Smetrickinds –

69/91

• Grading by human inspectors can be used to construct sophisticated

grading schemes, see (Ludewig and Lichter, 2013).

• Premises for their practical application:
• Goals and priorities are fixed and known (communicated).
• Consequences of the assessment are clear and known.
• Accepted inspectors are fixed.
• The inspectors practiced on existing examples.
• Results of the first try are not over-estimated, procedure is improved

before results becoming effective.

• Also experienced developers work as inspectors.
• Criteria and weights are regularly checked and adjusted if needed.

Pseudo-Metrics

– 04 – 2015-05-04 – main –

70/91

Pseudo-Metrics

– 04 – 2015-05-04 – Spseudo –

71/91

Some of the most interesting aspects of software development projects are hard or impossible to measure directly, e.g.:

• is the documentation sufficient and well usable?
• how much effort is needed until completion?
• how is the productivity of my software people?
• how maintainable is the software?
• do all modules do appropriate error handling?

Pseudo-Metrics

– 04 – 2015-05-04 – Spseudo –

71/91

Some of the most interesting aspects of software development projects are hard or impossible to measure directly, e.g.:

• is the documentation sufficient and well usable?
• how much effort is needed until completion?
• how is the productivity of my software people?
• how maintainable is the software?
• do all modules do appropriate error handling?

Due to high relevance, people want to measure despite the difficulty in measuring. Two main approaches:

d i ff e r e n t i a t e d c

• m

p a r a b l e r e p r

• d

u c i b l e a v a i l a b l e r e l e v a n t e c

• n
• m

i c a l p l a u s i b l e r

• b

u s t Expert review, grading (✔) (✔) (✘) (✔) ✔! (✘) ✔ ✔ Pseudo-metrics, derived measures ✔ ✔ ✔ ✔ ✔! ✔ ✘ ✘

Pseudo-Metrics Cont’d

– 04 – 2015-05-04 – Spseudo –

72/91

Note: not every derived measure is a pseudo-metric:

• average lines of code per module: derived, not pseudo

→ we really measure average LOC per module.

• use average lines of code per module to measure maintainability: derived, pseudo

→ we don’t really measure maintainability; average-LOC is only interpreted as maintainability. Not robust, easily subvertible (see exercises).

Pseudo-Metrics Cont’d

– 04 – 2015-05-04 – Spseudo –

72/91

Note: not every derived measure is a pseudo-metric:

• average lines of code per module: derived, not pseudo

→ we really measure average LOC per module.

• use average lines of code per module to measure maintainability: derived, pseudo

→ we don’t really measure maintainability; average-LOC is only interpreted as maintainability. Not robust, easily subvertible (see exercises). Example: productivity (derived).

• Team T develops software S with LOC N = 817 in t = 310h.
• Define productivity as p = N/t, here: ca. 2.64 LOC/h.
• Pseudo-metric: measure performance, efficiency, quality, . . . of teams by

productivity (as defined above).

• team may write

x := y + z;

instead of x := y + z; → 5-time productivity increase, real efficiency actually decreased.

Pseudo-Metrics Cont’d

– 04 – 2015-05-04 – Spseudo –

73/91

• Still, pseudo-metrics can be useful if there is a correlation with few false positives

and false negatives between valuation yields and the property to be measured:

valuation yield low high quality high false positive × true positive × × × × × × × low true negative × × × × × false negative × × ×

• Which may strongly depend on context information:
• if everybody adheres to a certain coding style,

LOC says “lines of code in this style” — this may be a useful measure.

McCabe Complexity

– 04 – 2015-05-04 – Spseudo –

74/91

complexity — (1) The degree to which a system or component has a design

• r implementation that is difficult to understand and verify. Contrast with:

simplicity. (2) Pertaining to any of a set of structure-based metrics that measure the attribute in (1).

IEEE 610.12 (1990)

McCabe Complexity

– 04 – 2015-05-04 – Spseudo –

74/91

complexity — (1) The degree to which a system or component has a design

• r implementation that is difficult to understand and verify. Contrast with:

simplicity. (2) Pertaining to any of a set of structure-based metrics that measure the attribute in (1).

IEEE 610.12 (1990)

• Definition. [Cyclomatic Number [graph theory]] Let G = (V, E) be a graph

comprising vertices V and edges E. The cyclomatic number of G is defined as v(G) = |E| − |V | + 1. Intuition: minimum number of edges to be removed to make G cycle free.

McCabe Complexity Cont’d

– 04 – 2015-05-04 – Spseudo –

75/91

• Definition. [Cyclomatic Complexity [McCabe, 1976]] Let G = (V, E) be the

Control Flow Graph of program P. Then the cyclomatic complexity of P is defined as v(P) = |E|−|V |+p where p is the number of entry or exit points.

McCabe Complexity Cont’d

– 04 – 2015-05-04 – Spseudo –

75/91

• Definition. [Cyclomatic Complexity [McCabe, 1976]] Let G = (V, E) be the

Control Flow Graph of program P. Then the cyclomatic complexity of P is defined as v(P) = |E|−|V |+p where p is the number of entry or exit points.

1

void i n s e r t i o n S o r t ( i nt [ ] a r r a y ) {

2

for ( i nt i = 2; i < a r r a y . length ; i++) {

3

tmp = a r r a y [ i ] ;

4

a r r a y [ 0 ] = tmp ;

5

i nt j = i ;

6

while ( j > 0 && tmp < a r r a y [ j −1]) {

7

a r r a y [ j ] = a r r a y [ j −1];

8

j −−;

9

}

10

a r r a y [ j ] = tmp ;

11

}

12

}

Number of edges: |E| = 11 Number of nodes: |V | = 6 + 2 + 2 = 10 External connections: p = 2 → v(P) = 11 − 10 + 2 = 3

1 2 3 4 5 8 7 6 10 Entry Exit

McCabe Complexity Cont’d

– 04 – 2015-05-04 – Spseudo –

75/91

• Definition. [Cyclomatic Complexity [McCabe, 1976]] Let G = (V, E) be the

Control Flow Graph of program P. Then the cyclomatic complexity of P is defined as v(P) = |E|−|V |+p where p is the number of entry or exit points.

• Intuition: number of paths, number of

decision points.

• Interval scale (not absolute, no zero

due to p > 0); easy to compute

• Somewhat independent from

programming language.

• Plausibility: doesn’t consider data.
• Plausibility: nesting is harder to

understand than sequencing.

• Prescriptive use: “For each procedure,

either limit cyclomatic complexity to [agreed-upon limit] or provide written explanation of why limit exceeded.”

1 2 3 4 5 8 7 6 10 Entry Exit

Code Metrics for OO Programs (Chidamber and Kemerer, 1994)

– 04 – 2015-05-04 – Spseudo –

76/91

metric computation

weighted methods per class (WMC)

n

• i=1

ci, n = number of methods, ci = complexity of method i depth of inheritance tree (DIT) graph distance in inheritance tree (multiple inheritance ?) number of children of a class (NOC) number of direct subclasses of the class coupling between object classes (CBO) CBO(C) = |Ko ∪ Ki|, Ko = set of classes used by C, Ki = set of classes using C response for a class (RFC) RFC = |M ∪

i Ri|, M set of methods of C,

Ri set of all methods calling method i lack of cohesion in methods (LCOM) max(|P| − |Q|, 0), P = methods using no common attribute, Q = methods using at least one common attribute

Code Metrics for OO Programs (Chidamber and Kemerer, 1994)

– 04 – 2015-05-04 – Spseudo –

76/91

metric computation

weighted methods per class (WMC)

n

• i=1

ci, n = number of methods, ci = complexity of method i depth of inheritance tree (DIT) graph distance in inheritance tree (multiple inheritance ?) number of children of a class (NOC) number of direct subclasses of the class coupling between object classes (CBO) CBO(C) = |Ko ∪ Ki|, Ko = set of classes used by C, Ki = set of classes using C response for a class (RFC) RFC = |M ∪

i Ri|, M set of methods of C,

Ri set of all methods calling method i lack of cohesion in methods (LCOM) max(|P| − |Q|, 0), P = methods using no common attribute, Q = methods using at least one common attribute

• objective metrics: DIT, NOC, CBO; pseudo-metrics: WMC, RFC, LCOM

. . . there seems to be angreement that it is far more important to focus on empirical validation (or refutation) of the proposed metrics than to propose new ones, . . . (Kan, 2003)

Goal-Question-Metric

– 04 – 2015-05-04 – main –

77/91

“Tanker Summit Europe” von world24 in der Wikipedia auf Deutsch. Lizenziert unter CC BY-SA 3.0 ¨ uber Wikimedia Commons - http://commons.wikimedia.org/wiki/File:Tanker Summit Europe.JPG#/media/File:Tanker Summit Europe.JPG

– 04 – 2015-05-04 – Sgqm –

78/91

Goal-Question-Metric (Basili and Weiss, 1984)

– 04 – 2015-05-04 – Sgqm –

79/91

The three steps of GQM: (i) Define the goals relevant for a project or an organisation. (ii) From each goal, derive questions which need to be answered to check whether the goal is reached. (iii) For each question, choose (or develop) metrics which contribute to finding answers. Note: we usually want to optimise wrt. goals, not wrt. metrics.

Goal-Question-Metric (Basili and Weiss, 1984)

– 04 – 2015-05-04 – Sgqm –

79/91

The three steps of GQM: (i) Define the goals relevant for a project or an organisation. (ii) From each goal, derive questions which need to be answered to check whether the goal is reached. (iii) For each question, choose (or develop) metrics which contribute to finding answers. Note: we usually want to optimise wrt. goals, not wrt. metrics. Development of pseudo-metrics: (i) Identify aspect to be represented. (ii) Devise a model the aspect. (iii) Fix a scale for the metric. (iv) Develop a definition of the pseudo-metric, how to compute the metric. (v) Develop base measures for all parameters of the definition. (vi) Apply and improve the metric.

Now, Which Metric Should We Use?

– 04 – 2015-05-04 – Sgqm –

80/91

It is often useful to collect some basic measures before they are actually required, in particular if collection is cheap:

• size
• of newly created and changed code,
• of separate documentation,
• effort
• for coding, review, testing, verification, fixing, maintenance, . . .
• for restructuring (preventive maintenance), . . .
• errors
• at least errors found during quality assurance, and errors reported by customer
• for recurring problems causing significant effort:

is there a (pseudo-)metric which correlates with the problem?

Now, Which Metric Should We Use?

– 04 – 2015-05-04 – Sgqm –

80/91

It is often useful to collect some basic measures before they are actually required, in particular if collection is cheap:

• size
• of newly created and changed code,
• of separate documentation,
• effort
• for coding, review, testing, verification, fixing, maintenance, . . .
• for restructuring (preventive maintenance), . . .
• errors
• at least errors found during quality assurance, and errors reported by customer
• for recurring problems causing significant effort:

is there a (pseudo-)metric which correlates with the problem?

Measures derived from the above basic measures:

• error rate per release, error density (errors per LOC),
• average effort for error detection and correction,
• . . .

If in doubt, use the simpler measure.

Now, Which Metric Should We Use?

– 04 – 2015-05-04 – Sgqm –

80/91

It is often useful to collect some basic measures before they are actually required, in particular if collection is cheap:

• size
• of newly created and changed code,
• of separate documentation,
• effort
• for coding, review, testing, verification, fixing, maintenance, . . .
• for restructuring (preventive maintenance), . . .
• errors
• at least errors found during quality assurance, and errors reported by customer
• for recurring problems causing significant effort:

is there a (pseudo-)metric which correlates with the problem?

Measures derived from the above basic measures:

• error rate per release, error density (errors per LOC),
• average effort for error detection and correction,
• . . .

If in doubt, use the simpler measure.

LOC and changed lines over time (obtained by statsvn(1).

Process Metrics

– 04 – 2015-05-04 – main –

81/91

Assessment and Improvement of the Process

– 04 – 2015-05-04 – Sprocmet –

82/91

• For material goods:

quality of the production process influences product quality.

• Idea: specify abstract criteria (metrics)

to determine good production processes (e.g., to choose manufacturer).

Assessment and Improvement of the Process

– 04 – 2015-05-04 – Sprocmet –

82/91

• For material goods:

quality of the production process influences product quality.

• Idea: specify abstract criteria (metrics)

to determine good production processes (e.g., to choose manufacturer).

• Again: a good process does not stop us from creating bad products, but

(the hope is, that) it is less likely, i.e. there is a correlation:

process quality low high product quality high false positive × true positive × × × × × × × low true negative × × × × × false negative × × ×

Assessment and Improvement of the Process

– 04 – 2015-05-04 – Sprocmet –

82/91

• For material goods:

quality of the production process influences product quality.

• Idea: specify abstract criteria (metrics)

to determine good production processes (e.g., to choose manufacturer).

• Again: a good process does not stop us from creating bad products, but

(the hope is, that) it is less likely, i.e. there is a correlation:

process quality low high product quality high false positive × true positive × × × × × × × low true negative × × × × × false negative × × ×

• Industry in general (production!):

ISO 9001, ISO/TS 16949 (automotive), . . .

• Software industry (development!): CMM(I), SPICE

– 04 – 2015-05-04 – Sprocmet –

83/91

• &00,ŠIRU'HYHORSPHQW9HUVLRQ

&00,'(99

&00,3URGXFW7HDP

• Improving

processes for developing better products and services

1RYHPEHU 7(&+1,&$/5(3257 &086(,75 (6&75

• 6RIWZDUH(QJLQHHULQJ3URFHVV0DQDJHPHQW3URJUDP

8QOLPLWHGGLVWULEXWLRQVXEMHFWWRWKHFRS\ULJKW

• KWWSZZZVHLFPXHGX

CMMI

– 04 – 2015-05-04 – Sprocmet –

84/91

• 1991: Capability Maturity Model (CMM), DoD/SEI/CMU; superseded by
• 1997: Capability Maturity Model Integration (CMMI) (Team, 2010);

constellations: CMMI-DEV (development), CMMI-ACQ (acquisition), CMMI-SRV (service)

CMMI

– 04 – 2015-05-04 – Sprocmet –

84/91

• 1991: Capability Maturity Model (CMM), DoD/SEI/CMU; superseded by
• 1997: Capability Maturity Model Integration (CMMI) (Team, 2010);

constellations: CMMI-DEV (development), CMMI-ACQ (acquisition), CMMI-SRV (service)

• Goals:
• applicable to all organisations which develop software,
• make strengths and weaknesses of the real process visible, to point out ways for

improvement,

• neutral wrt. technology employed in project,
• levels: higher levels have lower levels as premise,
• be consistent with ISO 15504 (SPICE)

CMMI

– 04 – 2015-05-04 – Sprocmet –

84/91

• 1991: Capability Maturity Model (CMM), DoD/SEI/CMU; superseded by
• 1997: Capability Maturity Model Integration (CMMI) (Team, 2010);

constellations: CMMI-DEV (development), CMMI-ACQ (acquisition), CMMI-SRV (service)

• Goals:
• applicable to all organisations which develop software,
• make strengths and weaknesses of the real process visible, to point out ways for

improvement,

• neutral wrt. technology employed in project,
• levels: higher levels have lower levels as premise,
• be consistent with ISO 15504 (SPICE)
• Assumptions:
• better defined, described, and planned processes have higher maturity,
• higher maturity levels require statistical control to support continuous improvement,
• higher maturity level yields:
• better time/cost/quality prediction;
• lower risk to miss project goals;
• higher quality of products.

CMMI Levels

– 04 – 2015-05-04 – Sprocmet –

85/91 level level name process areas 1 initial

• 2

managed REQM, PP, PMC, MA, PPQA, CM, SAM 3 defined + RD, TS, PI, VER, VAL, OPF, OPD, OT, IPM, RSKM, DAR 4 quantitatively managed + OPP, QPM 5

• ptimising

+ OID, CAR

CMMI Levels

– 04 – 2015-05-04 – Sprocmet –

85/91 level level name process areas 1 initial

• 2

managed REQM, PP, PMC, MA, PPQA, CM, SAM 3 defined + RD, TS, PI, VER, VAL, OPF, OPD, OT, IPM, RSKM, DAR 4 quantitatively managed + OPP, QPM 5

• ptimising

+ OID, CAR

• initial – the process is not consciously designed, just evolved (need not be bad!)

CMMI Levels

– 04 – 2015-05-04 – Sprocmet –

85/91 level level name process areas 1 initial

• 2

managed REQM, PP, PMC, MA, PPQA, CM, SAM 3 defined + RD, TS, PI, VER, VAL, OPF, OPD, OT, IPM, RSKM, DAR 4 quantitatively managed + OPP, QPM 5

• ptimising

+ OID, CAR

• managed (formerly: repeatable) – important areas of software development
• rganised and prescribed to responsible people; each project may have own process
• Areas: requirements management (REQM), project planning (PP), project

monitoring and control (PMC), measurement and analysis (MA), Process and Product Quality Assurance (PPQA), configuration management (CM), supplier agreement management (SAM)

CMMI Levels

– 04 – 2015-05-04 – Sprocmet –

85/91 level level name process areas 1 initial

• 2

managed REQM, PP, PMC, MA, PPQA, CM, SAM 3 defined + RD, TS, PI, VER, VAL, OPF, OPD, OT, IPM, RSKM, DAR 4 quantitatively managed + OPP, QPM 5

• ptimising

+ OID, CAR

• defined – all projects of an organisation follow a unified scheme; standard process

is defined, documented, and used; tailoring for projects.

• Areas: requirements development (RD), technical solution (TS), product

integration (PI), verification (VER), validation (VAL), organisational process focus (OPF), organisational process definition (OPD), organisational training (OT), integrated project management (IPM), risk management (RSKM), decision analysis and resolution (DAR)

CMMI Levels

– 04 – 2015-05-04 – Sprocmet –

85/91 level level name process areas 1 initial

• 2

managed REQM, PP, PMC, MA, PPQA, CM, SAM 3 defined + RD, TS, PI, VER, VAL, OPF, OPD, OT, IPM, RSKM, DAR 4 quantitatively managed + OPP, QPM 5

• ptimising

+ OID, CAR

• quantitatively managed – unified metrics enable people to detect problems early

and take countermeasures.

• Areas: organisational process performance (OPP), quantitative project

management (QPM)

CMMI Levels

– 04 – 2015-05-04 – Sprocmet –

85/91 level level name process areas 1 initial

• 2

managed REQM, PP, PMC, MA, PPQA, CM, SAM 3 defined + RD, TS, PI, VER, VAL, OPF, OPD, OT, IPM, RSKM, DAR 4 quantitatively managed + OPP, QPM 5

• ptimising

+ OID, CAR

• optimising – errors and problems are analysed systematically, to avoid them in the

future; process organisation/techniques change accordingly

• Areas: organisational innovation and deployment (OID), causal analysis and

resolution (CAR)

CMMI General/Specific Goals and Practices

– 04 – 2015-05-04 – Sprocmet –

86/91

• CMMI certificates can be obtained via a so-called appraisal
• there are three levels of review methods A, B, C; A most thorough (and expensive)

CMMI General/Specific Goals and Practices

– 04 – 2015-05-04 – Sprocmet –

86/91

• CMMI certificates can be obtained via a so-called appraisal
• there are three levels of review methods A, B, C; A most thorough (and expensive)
• a certificate authority checks, to what amount generic goals GG.1, . . . , GG.3 with

their generic practices are reached. Example: GG.2 (for level 2) includes

• GG 2.1: create strategy for planning and installation of process
• GG 2.2: plan the process
• GG 2.3: allocate reources
• . . .

CMMI General/Specific Goals and Practices

– 04 – 2015-05-04 – Sprocmet –

86/91

• CMMI certificates can be obtained via a so-called appraisal
• there are three levels of review methods A, B, C; A most thorough (and expensive)
• a certificate authority checks, to what amount generic goals GG.1, . . . , GG.3 with

their generic practices are reached. Example: GG.2 (for level 2) includes

• GG 2.1: create strategy for planning and installation of process
• GG 2.2: plan the process
• GG 2.3: allocate reources
• . . .
• each area, like RD, has specific goals and specific practices, sometimes per level

Example: RD (requirements development) includes

• SG 1: develop customer requirements
• SG 2: develop product requirements
• SG 3: analyse and validate requirements
• that is, to reach CMMI level 2, an organisation has to reach GG.1, GG.2, and in

particular for area RD SG 1 and SG 2.

CMMI Statistics

– 04 – 2015-05-04 – Sprocmet –

87/91 % of organisations

10.17% 0.91% 32.15% 46.87% 2.00% 7.90% 7.18% 0.95% 25.99% 59.74% 1.42% 4.73% 5.75% 0.36% 23.13% 64.66% 1.51% 4.60% 4.21% 0.22% 22.86% 63.72% 2.76% 6.24% 1.69% 1.33% 20.63% 67.13% 2.14% 7.07% 1.53% 1.39% 17.88% 70.63% 1.46% 7.10% 1.22% 1.03% 15.91% 71.78% 2.69% 7.38% 0.67% 1.34% 16.44% 67.79% 4.70% 9.06% Not Given Initial Managed Defined Quantitatively Managed Optimizing 2007 (1101 Appraisals) 2008 (1058 Appraisals) 2009 (1392 Appraisals) 2010 (1378 Appraisals) 2011 (1357 Appraisals) 2012 (1437 Appraisals) 2013 (1559 Appraisals) 2014 (298 Appraisals)

CMMI level

Statistics on achieved CMMI maturity levels (Source: SEI, Jan. 1, 2007 – Mar. 31, 2014)

• Note: appearance in the statistics is voluntary.

CMMI: Discussion

– 04 – 2015-05-04 – Sprocmet –

88/91

• in CMMI, e.g. area RD requires that requirements are analysed, but does not state

how — there are examples, but no particular techniques or approaches

• CMMI as such is not a process model in the sense of the course
• CMMI certificate is required by certain (U.S) government customers; may guide

selection of sub-contractors (a certificate at least proves that they think about their process)

• CMMI can serve as an inspiration for important aspects of process models wrt.

product quality

CMMI: Discussion

– 04 – 2015-05-04 – Sprocmet –

88/91

• in CMMI, e.g. area RD requires that requirements are analysed, but does not state

how — there are examples, but no particular techniques or approaches

• CMMI as such is not a process model in the sense of the course
• CMMI certificate is required by certain (U.S) government customers; may guide

selection of sub-contractors (a certificate at least proves that they think about their process)

• CMMI can serve as an inspiration for important aspects of process models wrt.

product quality

• Criticism:
• CMM(I) assumptions are based on experience in specific projects; may not be present

for all kinds of software,

• CMMI certification applies to one particular state of process management; changed

processes may require new (expensive) appraisal, in this sense CMMI may hinder innovation,

• CMMI levels are chosen somewhat arbitrarily; “why is an area in level N and not

already in level N − 1?”

SPICE / ISO 15504

– 04 – 2015-05-04 – Sprocmet –

89/91

• Software Process Improvement and Capability Determination
• ideas similar to CMM(I): maturity levels, assessment, certificates
• european development, standardised in ISO/IEC 15504 (2003)
• maturity levels: 0 (incomplete), . . . , 5 (optimizing); SPICE 0 corresponds to

CMMI 1

• provides “process reference models” (in particular specific ones for automotive,

aerospace, etc.)

• Literature: (H¨
• rmann et al., 2006)

References

– 04 – 2015-05-04 – main –

90/91

References

– 04 – 2015-05-04 – main –

91/91

Abrahamsson, P., Salo, O., Ronkainen, J., and Warsta, J. (2002). Agile software development methods. review and analysis. Technical Report 478. Basili, V. R. and Weiss, D. M. (1984). A methodology for collecting valid software engineering data. IEEE Transactions of Software Engineering, 10(6):728–738. Beck, K. (1999). Extreme Programming Explained – Embrace Change. Addison-Wesley. Boehm, B. W. (1988). A spiral model of software development and enhancement. IEEE Computer, 21(5):61–72. Chidamber, S. R. and Kemerer, C. F. (1994). A metrics suite for object oriented design. IEEE Transactions on Software Engineering, 20(6):476–493. H¨

• rmann, K., Dittmann, L., Hindel, B., and M¨

uller, M. (2006). SPICE in der Praxis: Interpretationshilfe f¨ ur Anwender und Assessoren. dpunkt.verlag. IEEE (1990). IEEE Standard Glossary of Software Engineering Terminology. Std 610.12-1990. ISO/IEC (2011). Information technology Software engineering Software measurement process. 15939:2011. Kan, S. H. (2003). Metrics and models in Software Quality Engineering. Addison-Wesley, 2nd edition. Ludewig, J. and Lichter, H. (2013). Software Engineering. dpunkt.verlag, 3. edition. Schwaber, K. (1995). SCRUM development process. In Sutherland, J. et al., editors, Business Object Design and Implementation, OOPSLA’95 Workshop Proceedings. Springer-Verlag. Team, C. P. (2010). Cmmi for development, version 1.3. Technical Report ESC-TR-2010-033, CMU/SEI. V-Modell XT (2006). V-Modell XT. Version 1.4. Z¨ ullighoven, H. (2005). Object-Oriented Construction Handbook - Developing Application-Oriented Software with the Tools and Materials

• Approach. dpunkt.verlag/Morgan Kaufmann.
