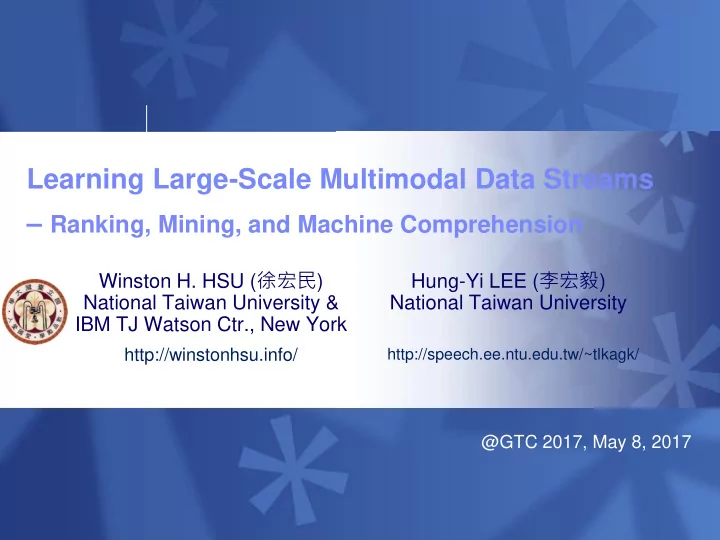

Learning Large-Scale Multimodal Data Streams Ranking, Mining, and Machine Comprehension Winston H. HSU ( ) Hung-Yi LEE ( ) National Taiwan University & National Taiwan University IBM TJ Watson Ctr., New York
Learning Large-Scale Multimodal Data Streams – Ranking, Mining, and Machine Comprehension
Hung-Yi LEE (李宏毅) National Taiwan University
@GTC 2017, May 8, 2017
http://speech.ee.ntu.edu.tw/~tlkagk/
http://winstonhsu.info/
Winston H. HSU (徐宏民) National Taiwan University & IBM TJ Watson Ctr., New York
@GTC, May 2017 – Winston Hsu 2
@GTC, May 2017 – Winston Hsu
The First AI-Generated Movie Trailer – Identifying the “Horror” Factors by Multimodal Learning ▪ The first movie trailer generated by AI system (Watson)
(tender) (scary) (suspenseful)
https://www.ibm.com/blogs/think/2016/08/cognitive-movie-trailer/
1
@GTC, May 2017 – Winston Hsu
Detecting Activities of Daily Living (ADL) from Egocentric Videos ▪ Activities of daily living – used in healthcare to refer to people's daily self care activities
– Enabling technologies for exciting applications
▪ Very challenging!!
4
ADL: brushing teeth
2
https://www.advancedrm.com/measuring-adls-to-assess-needs-and- improve-independence/
@GTC, May 2017 – Winston Hsu
Our Proposal: Beyond Objects – Leveraging More Contexts by Multimodal Learning
tap cup toothbrush Objects [1]:
Scene: bathroom … Scenes:
Sensors:
Sensors
[1] Ramanan et al., Detecting Activities of Daily Living in First-person Camera Views, CVPR 2012 [2] Hsieh et al., Egocentric activity recognition by leveraging multiple mid-level representations, ICME 2016
CNN for scene recognition (67)
5
[Hsieh et al., ICME’16]
@GTC, May 2017 – Winston Hsu
Experimental Results for ADL – Multimodal Learning Matters!
▪ Egocentric videos collected of 20 people (by Google Glass, GeneActiv)
6
0% 10% 20% 30% 40% 50% 60% 70%
Accuracy
[1] Ramanan et al., Detecting Activities of Daily Living in First-person Camera Views, CVPR 2012 [2] Hsieh et al., Egocentric activity recognition by leveraging multiple mid-level representations, ICME 2016
@GTC, May 2017 – Winston Hsu 7
@GTC, May 2017 – Winston Hsu
Outlines
▪ Why learning with multimodal deep neural networks ▪ Requiring techniques for multimodal learning ▪ Sample projects
– Medical segmentation by cross-modal and sequential learning – Cross domain and cross-view learning for 3D retrieval – Speech Summarization – Speech Question Answering – Audio Word to Vector
8
@GTC, May 2017 – Winston Hsu
3D Medical Segmentation by Deep Neural Networks ▪ Motivations – 3D biomedical segmentation plays a vital role in biomedical analysis. ▪ Brain tumors have different kinds of shapes, and can appear anywhere in the brain very challenging to localize the tumors ▪ Goal – To perform 3D segmentation with deep methods and segment by stacking all the 2D slices (sequences). ▪ Observing oncologists leverage the multi-modal signals in tumor diagnosis
9
3
[Tseng et al., CVPR 2017]
@GTC, May 2017 – Winston Hsu
Multi-Modal Biomedical Images
▪ 3D multi-modal MRI images
– Different modalities used to distinguish the boundary of different tumor tissues (e.g., edema, enhancing core, non-enhancing core, necrosis) – Four modalities: Flair, T1, T1c, T2
10
T1 T1c T2 Flair
@GTC, May 2017 – Winston Hsu
Related Work – SegNet (2D Image)
▪ Structured as encoder and decoder with multi- resolution fusion (MRF) ▪ But
– Ignoring multi-modalities – lacking sequential learning
11
Badrinarayanan, et al., SegNet: A Deep Convolutional Encoder-Decoder Architecture for Image Segmentation, 2015
@GTC, May 2017 – Winston Hsu
3D Medical Segmentation by Deep Neural Networks ▪ Our proposal – (first-ever) utilizing cross-modal learning in the (end-to-end) sequential and convolutional neural networks and effectively aggregating multiple resolutions
12
[Tseng et al., CVPR 2017]
Kuan-Lun Tseng, Yen-Liang Lin, Winston Hsu and Chung-Yang Huang. Joint Sequence Learning and Cross-Modality Convolution for 3D Biomedical Segmentation. CVPR 2017
@GTC, May 2017 – Winston Hsu
ConvLSTM – Temporally Augmented Convolutional Neural Networks ▪ Convolutional + sequential networks, e.g., convLSTM
– Modeling spatial cues in temporal (sequential) evolvements ▪ LSTM vs. convLSTM: Traditional LSTM employs the dot-product; Conv-LSTM replaces the dot-product by convolution.
13
Shi, et al., Convolutional LSTM Network: A Machine Learning Approach for Precipitation Nowcasting, NIPS 2015
@GTC, May 2017 – Winston Hsu
Cross Modality Convolution (CMC) – For Each Slice
T1c T2 Flair
Chan C
Chan C Chan C Chan 2 Chan 1 Chan 2 Chan 1 Chan 2 Chan 1
C w
… … …
Chan C Chan 2 Chan 1
…
Chan 1 Chan 1 Chan 1 Chan 1
w w K
…
h
…
T1
h
…
Chan 2 Chan 2 Chan 2 Chan 2 Chan C Chan C Chan C Chan C
… Multi-Modal Encoder Cross-Modality Convolution Decoder
Convolution LSTM
: Conv + Batch Norm + ReLU : Max pooling : Deconv : Conv + Batch Norm + ReLU
Encoder: Decoder:
Flair T2 T1c … … T1 Convolution LSTM Cross-Modality Convolution Multi-Modal Encoder Convolution LSTM Cross-Modality Convolution Multi-Modal Encoder slice 1 slice 2 slice n Convolution LSTM Cross-Modality Convolution Multi-Modal Encoder slice 1 slice 2 … slice n slice 1 slice 2 … slice n slice 1 slice 2 … slice n slice 1 slice 2 … slice n … … … Decoder Decoder Decoder Detailed structure in Figure 2 (a) (b) (c) (d) (e) (f) (g) (h)convolution with kernel 4x1x1xC Tensor(C * h * w * 4)
14
@GTC, May 2017 – Winston Hsu
Comparing with the State-of-The-Art in BRATS-2015
(b) Ground truth (c) U-Net (e) CMC + convLSTM (ours) (d) CMC (ours) (a) MRI slices
15
▪ MRF is effective ▪ MME + CMC is better than regular encoder + decoder ▪ Two phase is an important training strategy for imbalanced data ▪ convLSTM, sequential modeling, helps slightly
@GTC, May 2017 – Winston Hsu
Sketch/Image-Based 3D Model Search
▪ Speeding up 3D design and printing
– Current 3D shape search engines take text inputs only – Leveraging large-scale freely available 3D models
▪ Various applications in 3D models: 3D printing, AR, 3D game design, etc.
16
[Liu et al., ACMMM’15] demo
4
[Lee et al., 2017]
@GTC, May 2017 – Winston Hsu
▪ To retrieve 3D shapes based on photo inputs ▪ Challenges:
– Effective feature representations of 3D shapes (with CNNs) – Image to 3D cross-domain similarity learning
Image-based 3D Shape Retrieval
17
Query
[Lee et al., 2017]
@GTC, May 2017 – Winston Hsu
Our Proposal – Cross-Domain 3D Shape Retrieval with View Sequence Learning
▪ Novel proposal – End-to-end deep neural networks for cross-domain and cross-view learning and efficient triplet learning ▪ A brand-new problem
18
[Lee et al., 2017]
Image-CNN Adaptation Layer Cross-View Convolution Rank by L2 distance View-CNN
…
Query Image 3D Shapes Image representation Shape representation
Top Ranked 3D Shapes:
Rendered Views …
View-CNN
@GTC, May 2017 – Winston Hsu
Cross-Domain (Distance Metric) Learning: Siamese vs. Triplet Networks
19 Wang, Jiang, et al. "Learning fine-grained image similarity with deep ranking." CVPR 2014.
Contrastive Loss
image1 image2
Triplet Loss
positive image anchor image negative image identical, weights shared identical, weights shared
Neural Networks (CNN / DNN..)
@GTC, May 2017 – Winston Hsu
▪ Straightforward but ignoring view sequences
– Each view is passed to the same CNN (shared weights) – View-pooling is a MAX POOLING operation
Baseline: MVCNN, 3D Shape Feature by Max Pooling – Ignoring Sequences
View-Pooling
conv1 → pool5 fc6 fc7 fc8 airplane car bed
feature (4096D)
(same size as pool5) Pool 5 (4096D)
Su, Hang, et al. "Multi-view convolutional neural networks for 3d shape recognition.” CVPR 2015
20
@GTC, May 2017 – Winston Hsu
Our Proposal: Cross-Domain Triplet NN with View Sequence Learning
21
▪ Cross-View Convolution aggregates multi-view features ▪ The adaptation layer adapts image features to the joint embedding space ▪ Late triplet sampling speeds up the training of cross-domain triplet learning
@GTC, May 2017 – Winston Hsu
Cross-View Convolution (CVC)
22
▪ Stack the feature maps from V views by channel: V x ( H x W x C ) → H x W x V x C ▪ Convolve the new tensor with K kernels (1 x 1 x V x C)
– Assign K == C → #output channel == #input channel (for comparisons) – K = C = 256 = AlexNet pool5 feature map #channels
▪ CVC works as a weighted summation across views and channels
reshape from CNN features
@GTC, May 2017 – Winston Hsu
Late Triplet Sampling (Fast-CDTNN) – Speeding Up Cross-Domain Learning
▪ Naive cross-domain triplet neural networks (CDTNN) has three streams ▪ Fast-CDTNN has two streams. It forward sampled image/3D shape, and enumerates the triplets (combinations) at the integrated triplet loss layer ▪ In our experiments, Fast-CDTNN is ~4x - 5x faster.
23
@GTC, May 2017 – Winston Hsu
Comparisons and Datasets ▪ New image/3D shape: 12,311 3D shapes, 10,000 images, across 40 categories
24
Methods mAP AlexNet pool5 [1] 7.16% MVCNN [2] 7.92% Joint Embedding [3] 3.44% CDTNN + view pooling [2] 40.85% CDTNN + Adaptation Layer 47.84% CDTNN + Adaptation Layer + CVC 52.67%
[1] Krizhevsky, Alex, Ilya Sutskever, and Geoffrey E. Hinton. "Imagenet classification with deep convolutional neural networks." Advances in neural information processing systems. 2012. [2] Su, Hang, et al. "Multi-view convolutional neural networks for 3d shape recognition." Proceedings of the IEEE International Conference
[3] Li, Yangyan, et al. "Joint embeddings of shapes and images via cnn image purification." ACM Trans. Graph 5 (2015).
@GTC, May 2017 – Winston Hsu
Sample Results and Demo
25
Bathtub Person Bed Car Bookshelf Keyboard Guitar (a) (b)
demo
5
Audio File to be summarized This is the summary. ➢ Select the most informative segments to form a compact version
Extractive Summaries
…… deep learning is powerful …… …… ……
[Lee & Lee, Interspeech 12] [Lee & Lee, ICASSP 13] [Shiang & Lee, Interspeech 13]
➢ Machine does not write summaries in its own words
summaries in its own words)
sentence Title 1 Title 2 Title 3 Training Data title generated by machine without hand- crafted rules (in its own words)
ℎ1 ℎ2 ℎ3 ℎ4 RNN Encoder: read through the input w1 w4 w2 w3 transcriptions of audio from automatic speech recognition (ASR) 𝑨1 𝑨2 …… ……
wA wB
RNN generator
ROUGE-1 ROUGE-L Manual Transcription as input 26.8 23.9 ASR Transcription as input 21.3 20.0 ASR Transcription as input + Special Structure 22.9 20.9 Learn to ignore the words which are misrecognized when generating the title
[Yu, Lee, Lee, SLT 2016]
https://www.youtube.com/channel/UC- P4mEcWZVrFfdZIuiODiTg
6
What is a possible origin
Speech Question Answering: Machine answers questions based on the information in spoken content Gases released as a result of volcanic activity
Question: “ What is a possible origin of Venus’ clouds? ” Audio Story: Choices: (A) gases released as a result of volcanic activity (B) chemical reactions caused by high surface temperatures (C) bursts of radio energy from the plane's surface (D) strong winds that blow dust into the atmosphere (The original story is 5 min long.)
“what is a possible
Question: Audio Story:
Neural Network
4 Choices e.g. (A) answer
Using previous exams to train the network
ASR transcriptions
“what is a possible origin
Question: Question Semantics
…… It be quite possible that this be due to volcanic eruption because volcanic eruption often emit gas. If that be the case volcanism could very well be the root cause of Venus 's thick cloud cover. And also we have observe burst of radio energy from the planet 's surface. These burst be similar to what we see when volcano ……
Audio Story: Speech Recognition Semantic Analysis Semantic Analysis Attention Answer Select the choice most similar to the answer Attention
The whole model learned end-to-end.
(A) (A) (A) (A) (A) (B) (B) (B)
Accuracy (%) random Naïve approaches Example Naïve approach:
the question.
that paragraph. not easy to get high score without understanding
Accuracy (%) random 42.2% [Tseng, Shen, Lee, Lee, Interspeech’16] Naïve approaches 48.8% [Fan, Hsu, Lee, Lee, SLT’16]
Type 3: Connecting Information ➢Understanding Organization ➢Connecting Content ➢Making Inferences
Type 3: Pragmatic Understanding ➢Understanding the Function of What Is Said ➢Understanding the Speaker’s Attitude
Co Corp rpus & Co Code https://github.com/sunprinceS/Hierarchical-Attention-Model
7
Spoken Content Text Spoken Content Retrieval Dialogue Speech Summarization Speech Question Answering Speech Recognition
Can we bypass speech recognition?
…
Why? Need the manual transcriptions of lots of audio to learn. Most languages have little transcribed data. New Research Direction:
representing its meaning
dog cat rabbit jump run flower tree
vector
audio segment vector (word-level)
Learn from lots of audio without supervision
[Chung, Wu, Lee, Lee, Interspeech 16)
audio segment acoustic features x1 x2 x3 x4
RNN Encoder
vector The vector we want We use sequence-to-sequence auto-encoder here The training is unsupervised.
RNN Generator
x1 x2 x3 x4 y1 y2 y3 y4 x1 x2 x3 x4
RNN Encoder
audio segment acoustic features
The RNN encoder and generator are jointly trained.
Input acoustic features
𝑊 𝑆𝑝𝑛𝑓 − 𝑊 𝐽𝑢𝑏𝑚𝑧 + 𝑊 𝐻𝑓𝑠𝑛𝑏𝑜𝑧 ≈ 𝑊 𝐶𝑓𝑠𝑚𝑗𝑜 𝑊 𝑙𝑗𝑜 − 𝑊 𝑟𝑣𝑓𝑓𝑜 + 𝑊 𝑏𝑣𝑜𝑢 ≈ 𝑊 𝑣𝑜𝑑𝑚𝑓 V( ) - V( ) + V( ) = V( )
GIRL PEARL PEARLS
V( ) - V( ) + V( ) = V( )
GIRLS
flower tree dog cat cats walk walked run One day we can build all spoken language understanding applications directly from audio word to vector.
@GTC, May 2017 – Winston Hsu
Take-Home Messages ▪ Multimodal deep learning is ”must” for practical applications
– Perception/understanding is multimodal – Sensors are complementary and low-cost
▪ Dealing with issues including
– proper networks with domain knowledge, imbalanced training data, cross-modality/cross-domain learning, training strategies, etc.
▪ Promising in many tasks
– Segmentation, Ranking, Summarization, Question Answering, Unsupervised Representation
53
@GTC, May 2017 – Winston Hsu
54
Hung-Yi LEE (李宏毅) National Taiwan University Winston H. HSU (徐宏民) National Taiwan University & IBM TJ Watson Ctr., New York
