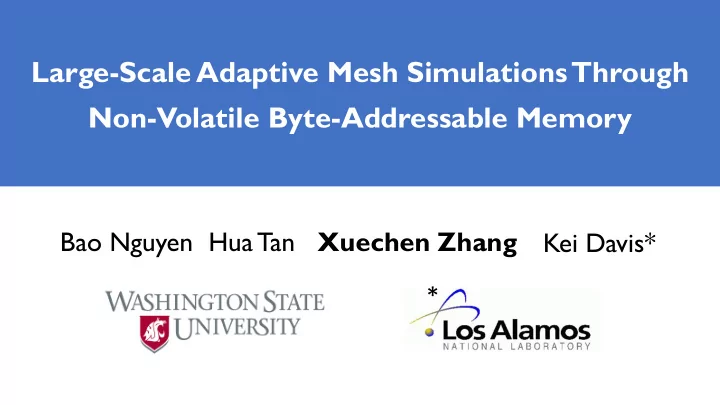

Large-Scale Adaptive Mesh Simulations Through Non-Volatile Byte-Addressable Memory

Bao Nguyen Hua Tan Xuechen Zhang Kei Davis* *

Octree Meshing is Widely Used in HPC Simulation

2

Droplet breakup Micro-boiling Droplet ejection

Quad/Octree-Based Adaptive Meshing

3

1 2 3 4 5 7 8 9 10 6 2 3 4 5 7 8 9 10

R

1 6

Quad/octree representation in DRAM Domain decomposition

Because models span larger length and time-scales, DRAM demand is significant even on supercomputers.

Per-core DRAM Capacity is Shrinking on Supercomputers

4

Jaguar: 2.7-4 GB/core Titan: 2 GB/core Due to associated capital costs and power consumptions

Using Non-Volatile Byte-addressable Memory for Meshing

5

Flash DRAM NVBM

Speed Cost Non-Volatility Byte-Addressability

Low High High* Decreasing Increasing Decreasing Yes No Yes No Yes Yes

Power

Low High Low

Speed Cost Non-Volatility Byte-Addressability Power

Existing Applications were Not Designed for NVBM

6

In-core Algorithms Out-of-core Algorithms Linear octree[SC’07], parallel octree[SC’05], etc. But they save snapshots on storage systems for failure recovery; I/Os can be the bottleneck. Etree[SC’04], visualization[TVCG’97], etc. But they were designed for slow non-volatile mediums, e.g., SSDs and HDDs.

Can we support in-NVBM octree meshing bypassing slow I/O buses?

Challenge I: NVBM Writes Incur Higher Latency

7

NVBM write latency is 2.5X greater than DRAM.

DRAM NVBM

Meshing operations (e.g., refinement) are write-intensive.

Challenge II: Existing Octrees Are Not Durable for NVBM

8

7 8 9 10 11

A failure may cause the pointer to link to an undefined region in NVBM.

After normal pointer writing

7 8 9 10 X

After failed pointer writing

Challenge III: Difficult to Handle Special Pointers

9

2 3 4 5 7 8 9 10

R

1 6

DRAM NVBM

Handling special pointers introduces extra complexity for application developers.

.

Special pointers

Design Objectives of Persistent-Merged Octree

10

In-NVBM meshing & storage Hiding write latency to NVBM Orthogonal persistence

+ +

Persistent-merged octree (PM-octree)

PM-Octree Design: A Multi-Version Data Structure

11

Vi-1 Vi

Persistent Volatile

NVBM DRAM +NVBM

The persistent version provides the desired durability.

PM-Octree Design: Octant Sharing between Versions

12

NVBM

C1 tree Vi-1 Vi

Observation: many spatial domains do not change in adjacent time steps.

.

Reduce the memory usage by up to 1.9X.

PM-Octree Design: Partitioned Data Structure

13

C1 tree in NVBM C0 tree in DRAM

2 3 4 5 7 8 9 10

R

1 6

Vi VD

i

Effectively use both DRAM and NVBM.

PM-Octree Design: Dynamic Layout Transformation

14

Layout transformation is periodically executed to hide NVBM write latency.

NVBM DRAM

2 3 4 5 7 8 9 10

R

1 6

ViD

NVBM DRAM

1 6

R

7 8 9 10 2 3 4 5

Vi ViD

Putting Together the Components of PM-Octree

15

A multi-version data structure for both in-memory meshing and storage.

NVBM DRAM

C1 tree C0 tree Vi-1 Vi Vi

D

C1 tree

It provides near-instantaneous failure recovery by accessing memory bus.

Basic Operation: Octant Insertion

16 2 3 4 5 7 8 9 10 R 1 6 Vi-1 11 u 2 3 4 5 7 8 9 10 R 1 6 9’ R’ Vi-1 Vi 11 u u’

Before inserting octant 11 After inserting octant 11

Basic Operation: Octant Update

17 2 3 4 5 7 8 9 10 R 1 6 10’ R’ Vi-1 Vi 9’ 11 u u’ 2 3 4 5 7 8 9 10 R 1 6 9’ R’ Vi-1 Vi 11 u u’

Before updating octant 10 After updating octant 10

PM-Octree Design: Orthogonal Persistence

18

Routine Description pmoctree ⋆ pm_create(octree ⋆ tree) create a new PM-octree; return a pointer to Vi void pm_persistent(pmoctree ⋆ tree) create a persistent version of

• ctree

pmoctree ⋆ pm_restore(void) restore a PM-octree; return a pointer to Vi void pm_delete(pmoctree ⋆ tree) delete all octants on NVBM and DRAM

We integrated it with Gerris flow solver.

Experimental Setting

19

• Hardware

ØTitan at ORNL ØEmulation of NVBM using DRAM

• Simulation
• Droplet rotation and ejection

Routine DRAM NVBM Read Latency (ns) 60 100 Write Latency (ns) 60 150

Comparison of Meshing Methods

20

Method name Objects in DRAM Objects in NVBM Interface

In-core-octree Octants Snapshot File System Out-of-core-octree Cache Octant record File System PM-octree Octants Octants Memory

Weak Scaling

21

• 1.2M to 1077M elements
• 1 to 1000 PEs
• Number of element on

each PE: ~1 million

The execution time of PM-octree increases as a logarithm of problem size.

Execution Time Breakdown with Weak Scaling

22

Tree partitioning overhead prevents from achieving an

• ptimal speedup.

Strong Scaling

23

• Problem size is 150

million elements

• 240 to 1000 PEs

Scalability of PM-octree is similar as in-core-octree.

Execution Time Breakdown with Strong Scaling

24

No scalability issue because no major fluctuation is observed

Failure Recovery

25

PM-octree guarantees data consistency after failures. PM-octree reduces the failure recovery time by up to 20X.

Conclusions

26

• PM-octree effectively extends memory

capacity using NVBM.

• It scales as well as in-core algorithms.
• It significantly reduces the time of recovery.
• It provides easy-to-program interface.

27

Acknowledgments

Xuechen Zhang xuechen.zhang@wsu.edu

Bao Nguyen Hua Tan

Basic Operation: Octant Merging

28 C1 NVBM subtree DRAM subtree C0 Vi-1 C1 C0 Vi

Before merging C0 After merging C0

Basic Operations: Persistent

29 R R’ Vi-1 Vi R R’ Vi+1 Vi

Before persistent After persistent

Layout Dynamic Transformation

30

Execution time is reduced by 25% while the number of writes is reduced by up to 30%.

Impact of DRAM Size

31

Varied memory sizes influence the merging frequency and execution time.
