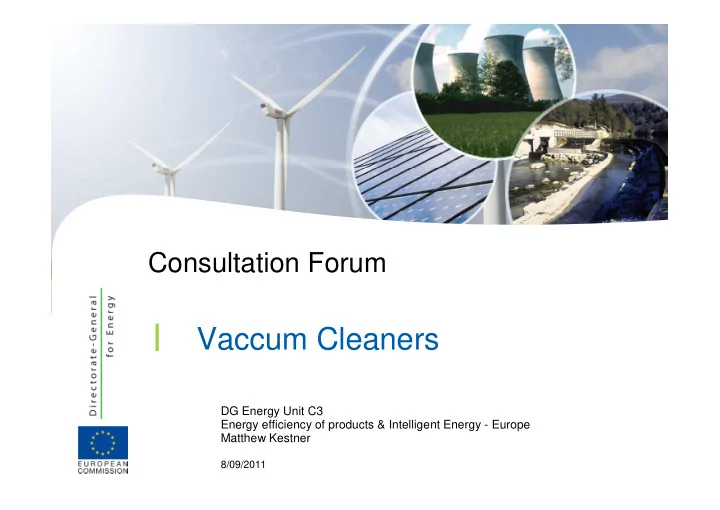

DG Energy Unit C3 Energy efficiency of products & Intelligent Energy - Europe Matthew Kestner

Consultation Forum

Vaccum Cleaners

l

l

Vacuum cleaners - Background:

. Increasing Energy Consumption Average

input power around 500W in 1960s to 1500W today

. Average Use 50 – 60 hours

(but lack of data)

. Annual Consumption Perhaps 20-30

TWh

l

Vacuum cleaners - Scope:

. All ‘normal’ Vacuum Cleaners

Domestic and Commercial

. Exclude

. Wet (Spray liquid) – e.g. carpet cleaners . Wet and Dry Workshop machines . Robot VCs . Industrial Machines Need specialist operator . Central VCs . Floor Polishers

l

Vacuum cleaners - Scope: Comments

. All ‘normal’ Vacuum Cleaners

Domestic and Commercial

.

Exclude

.

Wet (Spray liquid) – e.g. carpet cleaners

(Spray Extraction Machines – ECMA)

.

Wet and Dry Workshop machines (ANEC include)

.

Robot VCs (ANEC include)

.

Industrial Machines Need specialist operator

.

Central VCs

.

Floor Polishers

.

Scrubber Driers, Sweepers, commercial VC with head>50cm,

• ECMA

l

Vacuum cleaners - Scope:

. All ‘normal’ Vacuum Cleaners

But

. Wet filter VCs

2 years extra for measurement methods

. Large Battery VCs

No requirements, Labelling Optional

l

Vacuum cleaners - Scope: Comments

. All ‘normal’ Vacuum Cleaners

But

. Wet filter VCs

2 years extra for measurement methods

. Large Battery VCs

No requirements, Labelling Optional NL(ANEC) - Should not be optional, include battery VCs intended for normal household use, exclude others.

l

Vacuum cleaners - Categories:

. No technical Categories

. Canister . Upright . Motorized Brushes . Bags/cyclone etc. . All performing same function . difficult to define . Could limit e.g. inovation if ‘new type’ was excluded from labelling

l

Vacuum cleaners - Categories:

. Functional Categories

. All Purpose . Carpet only . Hard Floor only . Some VCs designed only for one one surface . No need to penalize, . Warn customer that only designed for Hard Floor or Carpet

l

Vacuum cleaners - Categories:

. Domestic Low voltage Directive . Commercial Machinery Directive

Same

. Ecodesign requirements . Information requirements

(possibly no label for commercial VCs)

. Finland need more clarification –

definition of commercial/domestic

l

Vacuum cleaners - Impacts:

. Energy in use 20-30 TWh

. Noise . Cleaning Increased Hygiene . Dust Re-emission Reduced pm (0.4-4 µ)

l

VCs – Policy : Noise

. Label

» dBa figure

. Ecodesign

» No Limit

l

VCs – Policy : Noise

. Label

» dBa figure

. Ecodesign

» No Limit

. ECMA – Commercial VCs covered by Machinery

Directive already defines noise with limits – should follow

. ANEC should include noise limit (76 dBa)

l VCs –Dust re-emission

. Technical particle size included

» E.g. 0.4 - 4 micron

l VCs –: Dust re-emission

. Technical impact on indoor environment

» Indoor particulate much higher than outdoor levels » Significant health impact » Not clear that ‘very good’ filtration (e.g. 99.5%)

significant improvement over ‘good’ filtration (e.g. 98%)

» Very important to some consumers (e.g. households

with asthma suffers)

l

VCs –: Dust re-emission

. Label

» Re-emission % figure e.g. 2.5%

. Ecodesign

» Limit

3% re-emission

l

VCs –: Dust re-emission

. Label

» Re-emission % figure e.g. 2.5%

. Ecodesign

» Limit

3% re-emission

. NL, CECED limit should be 2% . ANEC

» 0.3 µ to 20 µ » 1% after 1 year, 0.4% after 3 years

l VCs –Cleaning performance

. Dirt removal after 2 Double Strokes

» More realistic than 5 double strokes » Repeatability and Reprocability a little worse than after

5 double strokes

» but probably be acceptable for performance

declaration.

l VCs –Cleaning performance

. Dirt removal after 2 Double Strokes

» More realistic than 5 double strokes » Repeatability and Reprocability a little worse than

after 5 double strokes

» but probably be acceptable for performance

declaration.

. CECED, ECMA, Dyson, NL, 5 double strokes . ECOS, ANEC

2 Double Strokes

. ANEC Dyson

(also) measure with (half) full bag

l VCs –: Cleaning performance

. Label (no language)

» Separate A-G scale Carpet – Hard floor

l VCs –: Cleaning performance

. Label (no language)

» Separate A-G scales Carpet – Hard floor » ANEC harder scales (reflecting limits)

l VCs – Cleaning performance

. Fiche

» Separate A-G scales Carpet/Hard floor » Separate % figures Carpet/Hard floor

l VCs –: Cleaning performance

. Ecodesign

» No limits

l VCs –: Cleaning performance Comments

. Ecodesign

»

NL suggest limits of 65% carpets and 95% hard floor (5 double strokes) would meet (CECED) concerns about very low performance VCs receiving a label or better

»

Ro suggests limits

»

ECOS limit after 2 Double Strokes

»

ANEC limits of 55% carpets and 85% hard floor (2 double strokes)

l VCs –: Energy Consumption

. Real Life Behaviour

Information available suggests

» 2 double strokes (regardless of level of cleaning)

l VCs –: Energy Consumption

. Real Life v. EN standard

» Real life Cleaning times implies about 2 double strokes

in test

» Floor must be covered at least once » Test floors probably ‘dirtier’ than real life

(so fewer ‘double strokes’ needed to achieve set cleanliness)

l VCs –: Energy Consumption

. Real Life v. prEN standard

» Cleaning time implies about 2 double strokes in test » Floor must be covered at least once » Test floors probably ‘dirtier’ than real life

(so fewer ‘double strokes’ needed to achieve set cleanliness)

l VCs – : Energy Consumption

. Study

» LLCC for (standard size) vacuum cleaner

750W – about 28 kWh per year

» Extra costs low (and saving from smaller motor)

l VCs – : Energy Consumption

. Annual Energy Consumption

» Power input x Annual Cleaning time

l VCs – : Energy Consumption

. Annual Energy Consumption

Power input x Annual Cleaning time

. ANEC – suggest label etc on rated input

power (A 800W G 1200 W) (as in study)

l VCs – : Energy Consumption

. Annual Cleaning time

»50 Cleans x 87M² x 2 double strokes x F x P

+ 5h idle time

(divided between 40 M² carpet & 47 M² hard floor) (time to clean 87M² from head width and velocity of 0,5M/s)

l VCs –: Correction Factor ‘F’

.

Penalizes Vacuum Cleaners with ‘bad’ cleaning performance where after 2 double strokes users may still see visible dirt and so may continue to clean.

l VCs –: Correction Factor ‘F’

.

»For VCs with at least average Dust Pick up:

1

»For VCs with below average Dust Pick up:

Average Cleaning performance Cleaning Performance

l

VCs –: Correction Factor ‘F’ Comment

.

Penalizes Vacuum Cleaners with ‘bad’ cleaning performance where after 2 double strokes users may still see visible dirt and so may continue to clean.

. CECED suggests factor insufficient so

VCs with very low power and very low performance could still receive A energy rating (or better) – but with G performance rating.

l VCs –: Correction Factor ‘P’

.

Penalizes Vacuum Cleaners which require ‘high’ push force (over 25N), where users may push vacuum cleaner more slowly.

l VCs –: Correction Factor ‘P’

.

Penalizes Vacuum Cleaners which require ‘high’ push force (over 25N), where users may push vacuum cleaner more slowly.

l VCs –: Correction Factor ‘P’

.

»For VCs with push force under 25N:

1

»For VCs with push force over 25N:

Push force 25

l

VCs –: Correction Factor ‘P’ Comment

.

Penalizes Vacuum Cleaners which require ‘high’ push force (over 25N), where users may push vacuum cleaner more slowly.

. NL suggests different formula and

limit of 50N

l

VCs –: Energy Consumption Comments CECED

. Annual Cleaning time

»50 Cleans x 87M² x N double strokes + 5h idle time »Where » N is the extrapolated number of double strokes to achieve

reference cleaning performance.

»E.G. if cleaning performance on carpet after

• 1ds is 60, and after 2ds is 70 - then
• N = 1.5

(No other correction factors)

l

VCs –: Error Margins

. CECED Calculation

»Cleaning Performance (e.g. on carpets)

Declared Measured Difference

1 double stroke 60 55 9% 2 double strokes 70 65 8% Annual Energy kWh 29 37 28%

(1000W machine)

l VCs – : Energy Consumption

. Ecodesing Limits 2 years (2014)

. Commission

»Annual Energy Consumption < 62 kWh/year

»(1666W for VC without malus and 30cm head)

. CECED

»Power cap of 1600W and

» Annual Energy Consumption (CECED calculation) < 243 kWh/year

. ANEC

»Power cap 1200W

l

500 1000 1500 2000 2500 W A T T S

Ecodesign Requirements 2014

(30cm head)

DG ENER CECED

B 3 A 2 1 C 4 D 5 E 6,5 F 8 G 10

l VCs – : Energy Consumption

. Ecodesing Limits 5 years 2017)

. Commission

»Annual Energy Consumption < 36 kWh/year

»(967 W

for VC without malus and 30cm head)

. CECED

»Power cap of 1200W and

»Annual Energy Consumption (CECED calculation) < 91 kWh/year

l

500 1000 1500 2000 2500 W A T T S

Ecodesign Requirements 2017

(30cm head)

DG ENER CECED

B 3 A 2 1 C 4 D 5 E 6,5 F 8 G 10

l

500 1000 1500 2000 2500 W A T T S

Ecodesign Requirements 2017

(30cm head)

DG ENER CECED Performance

B 3 A 2 1 C 4 D 5 E 6,5 F 8 G 10

l

500 1000 1500 2000 2500

W A T T S

Energy efficiency classes (30cm head)

B 3 A 2 1 C 4 D 5 E 6,5 F 8 G 10

l

500 1000 1500 2000 2500 W A T T S B 3 A 2 1 C 4 D 5 E 6,5 F 8 G 10

Energy efficiency classes (CECED)

(30cm head)

A B C D E F G

l

Vacuum Cleaners –:

. Thank you
