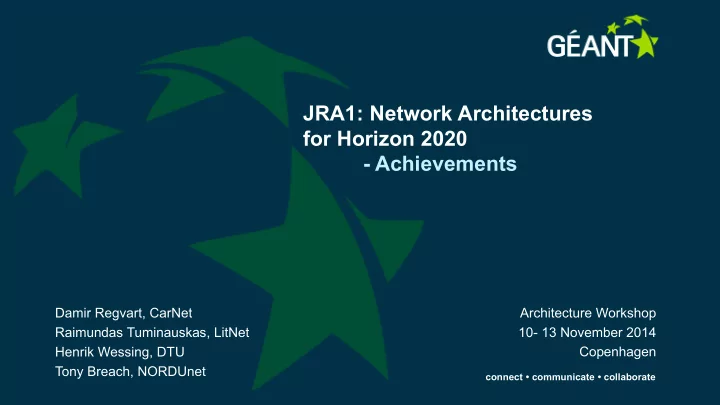

JRA1: Network Architectures for Horizon 2020

• Achievements

Damir Regvart, CarNet Raimundas Tuminauskas, LitNet Henrik Wessing, DTU Tony Breach, NORDUnet Architecture Workshop 10- 13 November 2014 Copenhagen

2 / 16

connect • communicate • collaborate

Agenda

JRA1: Network Architectures for Horizon 2020

• Role of JRA1

– Organisation and structure – Objectives

• Achievements

– Results and progress towards objectives

• Q&A

3 / 16

connect • communicate • collaborate

JRA1: Network Architectures for Horizon 2020

Organisation and structure

• Year 1 actual Manpower equal to 83 MM:

– actual vs budget: 92%

• 16 partners
• 2 subcontractors
• 28 participants

4 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements Q&A

JRA1: Network Architectures for Horizon 2020

Objectives

In GN3, JRA1 provided research on network technologies in general Architectural Design In GN3plus, JRA1 provides a set of architectural proposals for the GÉANT network and NRENs

5 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T2 Q&A

Achievements

Task 2: Cloud Architecture

Cloud Architecture

• Achievements

Damir Regvart Cloud Architecture

Task 2

6 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T2 Q&A

Achievements

Task 2: Cloud Architecture (g) Open Cloud Exchange concept

Direct service/inter-member peering

–

Re-use and leverage Internet eXchange

–

Open collocation services

–

Scalability for growing number of members

–

Controlled network parameters/QoS

No third party (intermediary/broker) services

–

Transparency for cloud based services

–

No involvement into peering or mutual business relations

Trusted Third Party (TTP)

–

Support dynamic service agreements and/or federation

–

Trusted Introducer for dynamic trust establishment Future support of special services

• Delivery and integration between CSP and Customer
• Local policies, service registry and discovery

7 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T2 Q&A

Achievements

Task 2: Cloud Architecture – gOCX Facility

OCX L0-L2/L3 topology

• Any-to-any
• Distributed or collapsed backbone
• Hierarchical
• Topology information exchange

L0-L2 between members

• Enable dynamic

federations establishing (TTP) QoS parameters

• Bandwidth
• Speed, latency
• Jitter, impairment

8 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T2 Q&A

Achievements

Task 2: General use case for infrastructure provisioning

Workflow and gOCX functions

Resource and Cloud Provider Domains

OCX at Cloud Carrier or Network

Provider (NREN) level

9 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T2 Q&A

Cloud Sigma Okeanos University of Amsterdam

GÉANT Internet

X X X

2014

Networking Conference

Achievements

Task 2: OCX demo at TNC2014 illustrates Big Data synchronisation

X

<OCX video clip>

10 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T2 Q&A

Achievements Task 2: OCX comming demo at SC14

11 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T2 Q&A

Achievements Task 2: OCX comming demo at SC14

12 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T3 Q&A

Achievements

Task 3: Mobility

MobilityArchitecture

• Mobility

Raimundas Tuminauskas Task Leader

Task 3

13 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T3 Q&A

Achievements

Task 3: Mobility Wi-Fi is easy NOT in campus Campus Wi-Fi eduroam Complex Deployed through NRENs Deployed by NRENs (aaS) Framework for aggregation Wire-free environment Integration of resources:

14 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T3 Q&A

Achievements

Task 3: Seamless handover PMIPv6 mandates switching of context moving across domains Dynamic tunneling between LMAs as a potential solution

15 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T3 Q&A

Achievements

Task 3: WiFi access WiFi as a Service, and Radio as a service Services for the public areas Framework for further development Universities/NRENs as providers

16 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T3 Q&A

Achievements

Task 3: Aggregation in the core High-speed mobile access does not have any distinctive properties aggregated at the core Offload in the core defaults to the ordinary BGP session Constant commodity traffic capacity increase

17 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T1 Q&A

Network Architectures for Horizon 2020 Achievements

Task 1: Network Architecture

Future Network Architectures

• Achievements

Henrik Wessing Task Leader

Task 1

18 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T1 Q&A

Network Architectures for Horizon 2020 Achievements

Task 1: Network Architecture

Model 1 Model 2 Model 3 Layer 3: Network Layer, Routing Layer 2: Ethernet/ Carrier Ethernet “Frame Switching” Layer 1: OTN switching @ ODU levels Layer 0: Photonic Layer, add/drop , λ-switching

1 Tbps 1 Tbps

Network Model?

• Still no clear path forward

–

Layer 0 integration with Layer 3

–

Layer 1 & 2 integration

• Where to do the switching and

switching granularity? Enablers For Big Pipes

• Coherent transmission (QPSK, QAM, etc.)

– Several bits per symbol

• Efficient use of spectrum – superchannels

Close collaboration with Open Call projects:

• COFFEE
• REACTION
• MOMoT

19 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements: T1 Q&A

Achievements

Task 1: Roaming – maintaining the leading edge

SyncE PTP GPS NTP

• TDM transport technologies are replaced with Ethernet in WANs
• Intrinsic timing / framing reference is no longer available

Longer-term perspectives

• PTP as part of Audio Video Bridging?
• Video transmission with QoS over heterogeneous networks
• How to ensure correct

time synchronisation?

• How accurate is PTP?
• Requirements of

number of slaves? Challenge for Next Generation Networks / Services

20 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements Q&A

Summary and next steps

Network Architectures for Horizon 2020

Open Call Mobility

Task 3 OC JRA1 Novel Architecture Cloud Architecture Mobility Architecture

Improve the NREN architectures in the future Act as a lighthouse for the industry and service providers

Cloud Services

Task 2

Future Network Architectures

Task 1

21 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements Q&A

Summary and next steps

GEANT & NREN Agile Network Design and Planning …. This are planed to be merged with SA1 Task 1 Demonstrating identified architectures in the NREN community Blueprinting and demonstrating a set a network architectures Task 3 Task 4 Research & Study the interworking of technologies and organizational entities

…How to glue technologies and operation together in a federate network environment

Task 2 Research and study network technologies

… Technical Study of technologies … no benchmarking or recommendations

Task 1

GN4 JRA1

22 / 16

connect • communicate • collaborate

Objectives Challenges / Mitigation Summary / Next Steps Achievements Q&A

Q&A

Thank you. Any questions?
