Interfacing Calibration and DAQ - part I Nuno Barros November 5 th 2019 1 Disclaimer This is still ongoing work Several discussions (both on calibration and DAQ sides) are required 2 Conceptual operation of DAQ/Calib during a run


slide-1
SLIDE 1

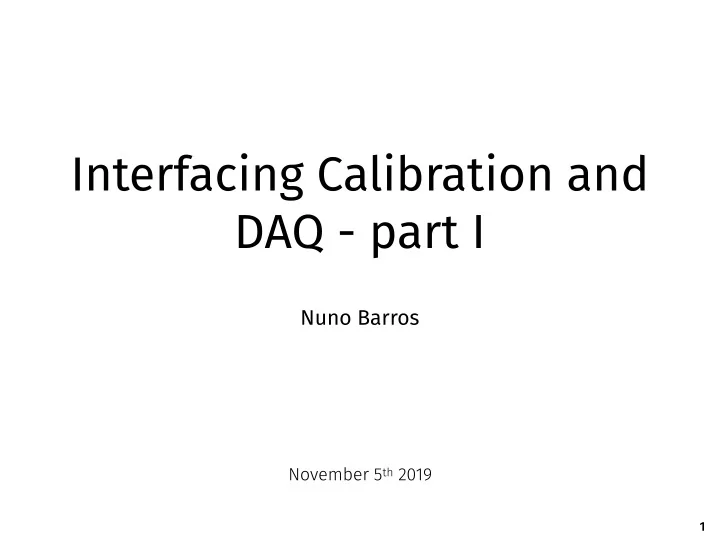

Interfacing Calibration and DAQ - part I

Nuno Barros

1

November 5th 2019

slide-2
SLIDE 2
  • This is still ongoing work
  • Several discussions (both on calibration and DAQ sides) are required

2

Disclaimer

slide-3
SLIDE 3

3

Conceptual operation of DAQ/Calib during a run

Operator Run Control Cal Interface Software Calibration Hardware 1 Trigger Dispatcher Event Builder Stored Calibration Data TPC Data Buffer Calibration Hardware N

“Fire calibration C1 with frequency B, intensity C and direction D” C1(t,C,D) Validate calibration request Trigger(t,C,D) Trigger(t,C,D) —> Record data from TPC in [t,t+dt] Data from [t,t+dt]

slide-4
SLIDE 4

4

Conceptual operation of DAQ/Calib during a run

Operator Run Control Cal Interface Software Calibration Hardware 1 Trigger Dispatcher Event Builder Stored Calibration Data TPC Data Buffer Calibration Hardware N

“Fire calibration C1 with frequency B, intensity C and direction D” C1(t,C,D) Validate calibration request Trigger(t,C,D) Trigger(t,C,D) —> Record data from TPC in [t,t+dt] Data from [t,t+dt]

slide-5
SLIDE 5

5

Zooming into the boundary between DAQ and Interface

Timing system

Trigger(t,C,D)

Calibration Hardware 1 Motors Filters Trigger input Timing interface Sensors

  • Several components to control from a single command received from the timing

system

  • Most of these components are controlled independently
slide-6
SLIDE 6

Calibration Hardware 1 Motors Filters Trigger input Sensors CIB 6

CIB (calibration interface board)

Timing system

Trigger(t,C,D)

  • Act as interface layer between the DAQ and the calibration systems (as a whole)
  • Receive DAQ commands through the timing system
  • Translate commands into low level actions in the hardware (or respective

interfaces)

  • Drive calibration firing (synchronous with timing)
  • Receive information from the hardware (sensor data)

Timing interface Hardware control

slide-7
SLIDE 7
  • Timing system interface
  • The only connection to the DAQ currently foreseen
  • (optional) Data interface to the DAQ (still an open discussion point)
  • Eg.: Get accurate mirror position by checking laser firing time with DAQ
  • CPU + network interface
  • (optional) Data interface to monitoring/slow control/database
  • CPU + network interface
  • Translate timing commands into low level hardware commands
  • Easily done with an FPGA
  • Alternatively network interface to pass software commands
  • Live in the same ground as the calibration hardware
  • Simpler than overly complicated ground isolation over hardware interfaces
  • Capability to digitise sensor data

7

(Some) requirements

slide-8
SLIDE 8
  • Timing system interface
  • The only connection to the DAQ currently foreseen
  • (optional) Data interface to the DAQ (still an open discussion point)
  • Eg.: Get accurate mirror position by checking laser firing time with DAQ
  • CPU + network interface
  • (optional) Data interface to monitoring/slow control/database
  • CPU + network interface
  • Translate timing commands into low level hardware commands
  • Easily done with an FPGA
  • Alternatively network interface to pass software commands
  • Live in the same ground as the calibration hardware
  • Simpler than overly complicated ground isolation over hardware interfaces
  • Capability to digitise sensor data

8

(Some) requirements

…if only we had such a system around…

slide-9
SLIDE 9

9

ProtoDUNE CTB

The Central Trigger Board (CTB)

  • Hardware electronics with an embedded system

with FPGA and CPU for trigger decision and data streaming

  • Motherboard implements hardware interface

with different systems

  • FPGA implements trigger logic, interface with

timing

  • CPU/Software manages FPGA configuration and

communication with DAQ software

  • trigger

timing trigger distribution artdaq hardware

1

slide-10
SLIDE 10
  • Consists of a motherboard that provides (mostly) logic conversion and I/O
  • Uses a MicroZed as the main processing and decision unit
  • FPGA implements timing interface logic, low level logic
  • CPU implements multiple network connection slots, configuration management,

monitoring, communication with DAQ software (slow control, monitoring, etc)

  • Multiple network slots
  • Control and configuration
  • Data stream
  • Monitoring / data statistics
  • Remote management through ssh
  • The board runs a linux system on the CPU
  • Generic configuration through software (JSON configuration file)
  • Fast data throughput (DMA + GB ethernet) - capable of handling ~10 MHz

data rates

10

CTB @ ProtoDUNE

slide-11
SLIDE 11
  • Timing system interface
  • (needs upgrade to use CDR chip + fiber instead of copper)
  • (optional) Data interface to the DAQ
  • CPU + network interface
  • (optional) Data interface to monitoring/slow control/database
  • CPU + network interface
  • Translate timing commands into low level hardware commands
  • Contains both FPGA and CPU
  • Live in the same ground as the calibration hardware
  • 3U rack mount footprint (likely need to be revised)
  • Capability to digitise sensor data
  • ADC in MicroZed not fast enough (good for monitoring slow signals, though)

11

(Some) requirements

slide-12
SLIDE 12

12

Conceptual design

Calibration Hardware 1 Network interface (SFP) Hardware I/O SOC (uZed, picoZed, UltraScale, …) Timing interface (CDR + SFP+) ADC

  • Reuse as much design from CTB as possible
  • Hardware, FPGA IPs and software (both hardware and DAQ side)
  • Learn from the past : replace copper timing interface by CDR+SFP+

Clock out (buffered)

slide-13
SLIDE 13
  • The issue the CIB addresses is common to both DUNE and PD
  • The difference is the number and type of calibration interfaces to manage
  • First step is to implement the CIB in ProtoDUNE
  • Ideal testing ground
  • Use PD experience to optimize design for DUNE
  • Have requested funding to build 2 prototypes for PD
  • DUNE will possibly require larger number (need accurate I/O count)

13

DUNE vs ProtoDUNE

slide-14
SLIDE 14
  • How many I/O ports are needed per calibration system?
  • Do we need to provide event data to the DAQ?
  • Eg. cross the hardware firing time with the DAQ request for accurate

knowledge of mirror position

  • Where should the calibration hardware data go?
  • Monitoring infrastructure, database, secondary output file?
  • What’s the granularity of calibration configuration?
  • Event configuration, run configuration, etc
  • Interface to monitoring. Via CIB or other way?

14

Open Questions

slide-15
SLIDE 15
  • This is an initial proposal to create a flexible interface between DAQ and

calibration

  • Allows more flexibility in the design of the calibration hardware by

aggregating the DAQ specific bits

  • Could be used also as interface for monitoring infrastructure
  • Would need clear requirements
  • Based on existing system that has successfully proven its reliability and

flexibility

  • Currently being used as the hardware trigger of PD-SP
  • Low maintenance, possible for remote management, on-the-fly updates

15

Summary
