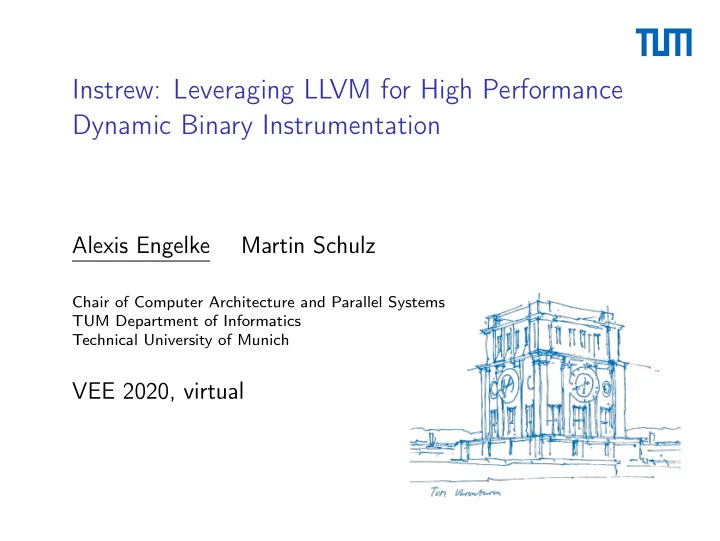

Instrew: Leveraging LLVM for High Performance Dynamic Binary Instrumentation

Alexis Engelke Martin Schulz

Chair of Computer Architecture and Parallel Systems TUM Department of Informatics Technical University of Munich

VEE 2020, virtual

2 Alexis Engelke 2020

Program Instrumentation

◮ Enhance program with additional code ◮ Use-cases: analysis, debugging, optimization, portability ◮ Dynamic Binary Instrumentation (DBI)

◮ Binary code instrumented/modified at run-time ◮ Works without recompiling program and libraries ◮ Very popular approach = ⇒ many frameworks available

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

3 Alexis Engelke 2020

DBI Frameworks

◮ Most popular framework: Valgrind

◮ Program behavior can be extended and modified ◮ Allows for extensive code transformations

◮ Usual focus: low rewriting time, not overall performance

◮ Few optimizations, instrumented code has low quality

Solution: use standard compiler back-end

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

4 Alexis Engelke 2020

LLVM for DBI

◮ LLVM features high quality optimizer/code generator

◮ Built-in JIT-compiler allows use at run-time

◮ DBILL uses LLVM JIT-compiler for code generation

◮ Machine code → TCG IR → LLVM-IR + Easy to support several architectures − No (efficient) floating-point/SIMD support − Optimizations limited to basic blocks

Solution: lift machine code directly to LLVM-IR

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

5 Alexis Engelke 2020

Classical DBI Architecture

Instrumenter Process Guest Code Code Cache Execution Manager Decode Lift to IR

(Instrument Code)

Optimize IR Code Gen. main loop

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

6 Alexis Engelke 2020

Architecture Using LLVM-IR

Instrumenter Process Guest Code Code Cache Execution Manager Decode

Lift to LLVM-IR

• Opt. LLVM-IR

LLVM JIT main loop

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

7 Alexis Engelke 2020

Lifting x86-64 Code to LLVM-IR

◮ Focus on most common x86-64 architecture ◮ Requirements:

• 1. LLVM-IR must be handled well by optimizer/code gen.

run-time performance

• 2. Avoid unnecessary transformations

reduced rewriting time

• 3. Only use architecture-independent LLVM-IR constructs

retargetability (assuming same pointer size)

Implemented in our lifting library: Rellume

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

8 Alexis Engelke 2020

Lifting Stages

• 1. Decode & Recover Control Flow

◮ Decode machine code, following jump targets ◮ Stops on indirect branches, calls, returns ◮ Split into basic blocks

• 2. Lift Instructions Individually

◮ Create skeleton LLVM-IR function ◮ Generate LLVM-IR for each instruction

• 3. Create Epilogue & Fixup Branches

◮ Add branches between basic blocks, map data flow

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

9 Alexis Engelke 2020

Register Facets

◮ Facet: typed view on a register (part) ◮ Store and propagate multiple facets for registers

◮ Relevant for partial access and different data types ◮ Avoids many insert/extract/cast ops better code

◮ Benefit: better optimizations across basic blocks ◮ General Purpose registers: scalar facets only

rax 64-bit int eax 32-bit int ax 16-bit int

ah

8-bit int (high)

. . . ◮ Vector registers: scalar and vector facets

4×32-bit float 8×16-bit int

. . .

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

10 Alexis Engelke 2020

Example

define void @func_40061e(i8* %cpu) { prologue: ; ... bb_40061e: ; ... epilogue: ; ... }

Single parameter: CPU struct ◮ Instruction Ptr. ◮ Registers ◮ Status Flags ◮ . . .

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

11 Alexis Engelke 2020

Example

define void @func_40061e(i8* %cpu) { prologue: %rip_p_i8 = gep i8, i8* %cpu, i64 0 %rip_p = bitcast i8* %rip_p_i8 to i64* %rsp_p_i8 = gep i8, i8* %cpu, i64 40 %rsp_p = bitcast i8* %rsp_p_i8 to i64* %rsp = load i64, i64* %rsp_p ; ... load other registers ... br label %bb_40061e bb_40061e: ; ... epilogue: ; ... }

Construct ptrs. into CPU struct Load registers into SSA variables

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

12 Alexis Engelke 2020

Example

define void @func_40061e(i8* %cpu) { prologue: ; ... bb_40061e: %rsp_2 = phi i64 [%rsp, %prologue] ; sub rsp, 176 %rsp_3 = sub i64 %rsp_2, 176 ; ... compute flags ... br label %epilogue epilogue: ; ... }

Lift instruction semantics

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

13 Alexis Engelke 2020

Example

define void @func_40061e(i8* %cpu) { prologue: ; ... bb_40061e: ; ... epilogue: %rsp_4 = phi i64 [%rsp_3, %bb_40061e] store i64 %rsp_4, i64* %rsp_p ; ... store flags ... store i64 0x400625, i64* %rip_p ret void }

Store new values Store new RIP

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

14 Alexis Engelke 2020

Instrew Architecture

Client Process Server Process Guest Code Code Cache Execution Manager Decode Rellume

• Opt. LLVM-IR

LLVM JIT main loop

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

15 Alexis Engelke 2020

Client-Server Architecture

◮ Instrew Server

◮ Rewrites code chunks on client request ◮ Returns an ELF object file containing rewritten code

◮ Instrew Client

◮ Manages execution and local code cache ◮ Sends request with program code to server process ◮ Relocates and links ELF files

◮ Communication: custom IPC protocol

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

16 Alexis Engelke 2020

Translation Details

◮ Translate code chunks with function granularity

◮ Decode until call/ret/indirect jump ◮ Enables power of LLVM’s whole-function optimizations ◮ Reduces number of rewrite requests

◮ Use special calling convention

◮ Reduces number of memory accesses to CPU structure

◮ Don’t compute flags before call/ret

◮ Flags extremely rarely used to pass args/return vals

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

17 Alexis Engelke 2020

Evaluation

◮ Run on SPEC CPU2017 benchmarks ◮ Comparison with Valgrind

◮ Most popular tool with similar set of use-cases

◮ No comparison with DBILL (no sources) and Pin (different scope of code modifications)

System: 2×Intel Xeon CPU E5-2697 v3 (Haswell) @ 2.6 GHz (3.6 GHz Turbo), 17 MiB L3 cache; 64 GiB main memory; SUSE Linux 12; Linux kernel 4.12.14-95.32; 64-bit mode. Compiler: GCC 9.2.0 with -O3 -march=x86-64, implies SSE/SSE2 but no SSE3+/AVX. Libraries: glibc 2.22; LLVM 9.0. SPEC CPU2017 intspeed+fpspeed benchmarks, ref workload, single thread. Comparison: Valgrind 3.15.0. Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

18 Alexis Engelke 2020

SPEC CPU2017 Results

6 2 . g c c 6 5 . m c f 6 2 .

• m

n e t p p 6 2 3 . x a l a n c b m k 6 2 5 . x 2 6 4 6 3 1 . d e e p s j e n g 6 4 1 . l e e l a 6 4 8 . e x c h a n g e 2 6 5 7 . x z 6 3 . b w a v e s 6 7 . c a c t u B S S N 6 1 9 . l b m 6 2 1 . w r f 6 2 7 . c a m 4 6 2 8 . p

• p

2 6 3 8 . i m a g i c k 6 4 4 . n a b 6 4 9 . f

• t
• n

i k 3 d 6 5 4 . r

• m

s g e

• m

e a n

2 4 6 8 10 12 14

Normalized run-time Native Valgrind Instrew

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

19 Alexis Engelke 2020

SPEC CPU2017 Results

6 2 . g c c 6 5 . m c f 6 2 .

• m

n e t p p 6 2 3 . x a l a n c b m k 6 2 5 . x 2 6 4 6 3 1 . d e e p s j e n g 6 4 1 . l e e l a 6 4 8 . e x c h a n g e 2 6 5 7 . x z 6 3 . b w a v e s 6 7 . c a c t u B S S N 6 1 9 . l b m 6 2 1 . w r f 6 2 7 . c a m 4 6 2 8 . p

• p

2 6 3 8 . i m a g i c k 6 4 4 . n a b 6 4 9 . f

• t
• n

i k 3 d 6 5 4 . r

• m

s g e

• m

e a n

2 4 6 8 10 12 14

Overhead 1/5 of Valgrind

Instrew: 1.7x ( 72% overhead) Valgrind: 4.7x (367% overhead) Normalized run-time Native Valgrind Instrew

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

20 Alexis Engelke 2020

SPEC CPU2017 Results

6 2 . g c c 6 5 . m c f 6 2 .

• m

n e t p p 6 2 3 . x a l a n c b m k 6 2 5 . x 2 6 4 6 3 1 . d e e p s j e n g 6 4 1 . l e e l a 6 4 8 . e x c h a n g e 2 6 5 7 . x z 6 3 . b w a v e s 6 7 . c a c t u B S S N 6 1 9 . l b m 6 2 1 . w r f 6 2 7 . c a m 4 6 2 8 . p

• p

2 6 3 8 . i m a g i c k 6 4 4 . n a b 6 4 9 . f

• t
• n

i k 3 d 6 5 4 . r

• m

s g e

• m

e a n

2 4 6 8 10 12 14

Instrew Best Case

Instrew: 1.1x; Valgrind: 3.0x Normalized run-time Native Valgrind Instrew

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

21 Alexis Engelke 2020

SPEC CPU2017 Results

6 2 . g c c 6 5 . m c f 6 2 .

• m

n e t p p 6 2 3 . x a l a n c b m k 6 2 5 . x 2 6 4 6 3 1 . d e e p s j e n g 6 4 1 . l e e l a 6 4 8 . e x c h a n g e 2 6 5 7 . x z 6 3 . b w a v e s 6 7 . c a c t u B S S N 6 1 9 . l b m 6 2 1 . w r f 6 2 7 . c a m 4 6 2 8 . p

• p

2 6 3 8 . i m a g i c k 6 4 4 . n a b 6 4 9 . f

• t
• n

i k 3 d 6 5 4 . r

• m

s g e

• m

e a n

2 4 6 8 10 12 14

Some Benchmarks are Slow

Instrew: 3.1x; Valgrind: 3.4x Many function calls Normalized run-time Native Valgrind Instrew

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

22 Alexis Engelke 2020

SPEC CPU2017 Results

6 2 . g c c 6 5 . m c f 6 2 .

• m

n e t p p 6 2 3 . x a l a n c b m k 6 2 5 . x 2 6 4 6 3 1 . d e e p s j e n g 6 4 1 . l e e l a 6 4 8 . e x c h a n g e 2 6 5 7 . x z 6 3 . b w a v e s 6 7 . c a c t u B S S N 6 1 9 . l b m 6 2 1 . w r f 6 2 7 . c a m 4 6 2 8 . p

• p

2 6 3 8 . i m a g i c k 6 4 4 . n a b 6 4 9 . f

• t
• n

i k 3 d 6 5 4 . r

• m

s g e

• m

e a n

2 4 6 8 10 12 14

Rewriting Time Matters

Instrew: 4.0x; Valgrind: 4.5x High rewriting time: 31% Normalized run-time Native Valgrind Instrew

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

23 Alexis Engelke 2020

Rewriting Overhead

◮ Mean Rewriting Time: 0.94%

◮ Notable exception: 602.gcc with 31%

◮ Mean Rewriting Time Breakdown:

◮ Most time spent for machine code generation ◮ SelectionDAG instruction selector known to be slow ◮ Replacement GlobalISel not yet ready Lift (12%) Optimize (22%) Code Gen. (65%) Link (<1%)

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

24 Alexis Engelke 2020

Discussion

◮ Clear performance improvement over Valgrind

◮ More and better optimizations ◮ High-quality code generator

◮ Expected to be faster than DBILL

◮ Instrew: 109% overhead on SPEC CPU2017 INT ◮ DBILL: 240% overhead on SPEC CINT2006

◮ Biggest drawback: rewriting time

◮ Needs to amortize over run of program ◮ Ongoing developments in LLVM will reduce this issue

Introduction Lifting x86-64 to LLVM-IR Instrumentation Framework Evaluation

25 Alexis Engelke 2020

Instrew: LLVM-based DBI

◮ Dynamic Binary Instrumentation based on LLVM ◮ First to lift whole functions directly to LLVM-IR, use LLVM’s high-quality optimizer/JIT code generator ◮ Client-server approach enabling further optimizations ◮ Reduction of overhead by 80% compared to Valgrind

Instrew is Free Software!

https://github.com/aengelke/instrew
