Information Flow Tracking Andrei Sabelfeld Chalmers https://www.cse.chalmers.se/~andrei EWSCS 2019 Language c ::= skip | x:=exp | c;c | if exp then c else c | while exp do c 2 Explicit flows high (secret) l:=h insecure low (public)

slide-1
SLIDE 1

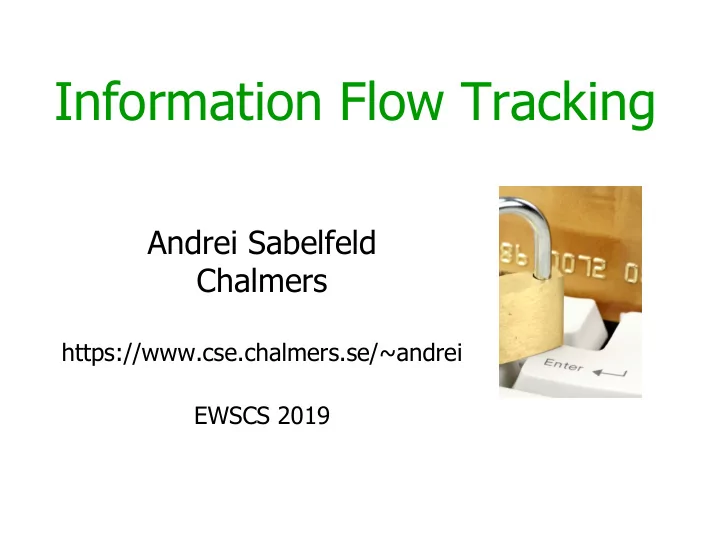

Information Flow Tracking

Andrei Sabelfeld Chalmers

https://www.cse.chalmers.se/~andrei EWSCS 2019

slide-2
SLIDE 2

2

Language

c ::= skip | x:=exp | c;c | if exp then c else c | while exp do c

slide-3
SLIDE 3

3

Explicit flows

l:=h insecure l:=h; l:=0 secure h:=l; l:=h secure low (public) high (secret)

slide-4
SLIDE 4

4

Implicit flows

Problem: insecure even when nothing is assigned to l inside the if!

h:=…; l:=false; if h then l:=true else skip;

  • ut(l)

implicit flow from h to l low (public) high (secret)

slide-5
SLIDE 5

5

Confidentiality

  • Noninterference [Goguen & Meseguer]: as high

input varied, low-level outputs unchanged h1 l h2 l l’ h1’ l’ h2’

slide-6
SLIDE 6

6

Confidentiality for sequential programs: noninterference

  • How do we formalize noninterference in

terms of program semantics? <c,m> ⇓ m’

initial memory command final memory

m: Vars → Vals

slide-7
SLIDE 7

Low equivalence

7

  • Indistinguishability by attackers

low projection

m=L m’ ⟺ m|L =m’|L

slide-8
SLIDE 8

8

Noninterference

  • As high input varied, low-level behavior

unchanged

∀m1,m2. m1=L m2 & <c, m1> ⇓ m’1 ⟹ m’1=L m’2 & <c, m2> ⇓ m’2

c is secure if

slide-9
SLIDE 9

9

Security type system

  • Prevents explicit flows:
  • Prevents implicit flows; no public side

effects when branching on secrets:

l:=…

may not use high variables

if e then …

may not assign to low

while e do …

may not assign to low

slide-10
SLIDE 10
  • Order: low ⊑ high
  • Security lattice

– high ⊔ low = high

Security structure

10

high:{h,…} low:{l,…}

public secret

Γ:Vars → {low,high}

slide-11
SLIDE 11

Security type system: expressions

11

exp : high ∀x ∈ Vars(exp). Γ(x)=low exp : low

slide-12
SLIDE 12

12

Security-type system: commands 1

pc ⊢ skip Atomic commands context exp:ℓ ℓ ⊔ pc ⊑ Γ(x) pc ⊢ x:=exp

slide-13
SLIDE 13

13

exp:ℓ ℓ ⊔ pc ⊢c1 ℓ ⊔ pc ⊢ c2 pc ⊢ if exp then c1 else c2 exp:ℓ ℓ ⊔ pc ⊢c pc ⊢ while exp do c pc ⊢c1 pc ⊢ c2 pc ⊢ c1; c2

implicit flows: branches

  • f a high

if must be typable in a high context

Security-type system: commands 2

slide-14
SLIDE 14

14

A security-type system: Examples

low ⊢ h:=l+4; l:=l-5 pc ⊢ if h then h:=h+7 else skip low ⊢ while l<34 do l:=l+1 pc ⊢ while h<4 do l:=l+1

slide-15
SLIDE 15

15

Type Inference: Example

3 : low 5 : low [low] ⊢ h:=h+1; if l=0 then l:=5 else l:=3 l=0: low [low] ⊢ l:=5 [low] ⊢ l:=3 [low] ⊢ if l=0 then l:=5 else l:=3 [low] ⊢ h:=h+1

slide-16
SLIDE 16

16

What does the type system guarantee?

Soundness theorem: pc ⊢ c ⟹ c is secure

slide-17
SLIDE 17

Proof

  • Confinement

– high ⊢ c & <c,m> ⇓ m’ ⟹ m =L m’

  • Security

– pc ⊢ c ⟹ c is secure

  • Induction on the structure of c

17

slide-18
SLIDE 18

18

Confidentiality: Examples

l:=h insecure (direct) untypable l:=h; l:=0 secure untypable h:=l; l:=h secure untypable if h=0 then l:=0 else l:=1 insecure (implicit flow) untypable while h=0 do skip secure (up to termination) typable if h=0 then sleep(1000) secure (up to timing) typable

slide-19
SLIDE 19

19

Covert channels: Termination

  • Covert channels are mechanisms not

intended for information transfer

  • So far, our definition has been termination-

insensitive Is while h>0 do h:=h+1 secure?

slide-20
SLIDE 20

Termination-sensitive noninterference

20

∀m1,m2. m1=L m2 & <c, m1> ⇓ m’1 ⟹ <c, m2> ⇓ m’2 & m’1=L m’2

c is secure if

slide-21
SLIDE 21

21

Covert channels: Timing

(if h then sleep(1000)); l:=1 || sleep(500); l:=0

  • Timing-sensitive noninterference
slide-22
SLIDE 22

22

Example: Mk mod n

s = 1; for (i=0; i<w; i++){ if (k[i]) C = (s*M) mod n; else C = s; s = C*C; }

No information flow to low variables, but entire key can be revealed by measuring timing

[Kocher96]

slide-23
SLIDE 23

23

Transforming out timing leaks

Branching on high causes leaks k[i] C = (s*M) mod n C = s

slide-24
SLIDE 24

24

Transforming out timing leaks

Cross-copy low slices k[i] C = (s*M) mod n C = s C /= s C /= (s*M) mod n

Non-assignment

slide-25
SLIDE 25

25

Covert channels: Probabilistic

  • Possibilistically but not probabilistically secure

program:

l:=PIN |9/10 l:=rand(9999)

  • Probabilistic noninterference
slide-26
SLIDE 26

Information flow challenge

  • Attack the system to learn the secret
  • Type systems to break

1. No restriction 2. Explicit flows 3. Implicit flows 4. Termination 5. Declassification 6. Exceptions 7. Let 8. Procedures 9. References 10. Arrays

  • First to complete: send me an email J

26

http://ifc-challenge.appspot.com/

slide-27
SLIDE 27

27

References

  • Language-based information-flow

security

[Sabelfeld & Myers, IEEE JSAC, 2003]
