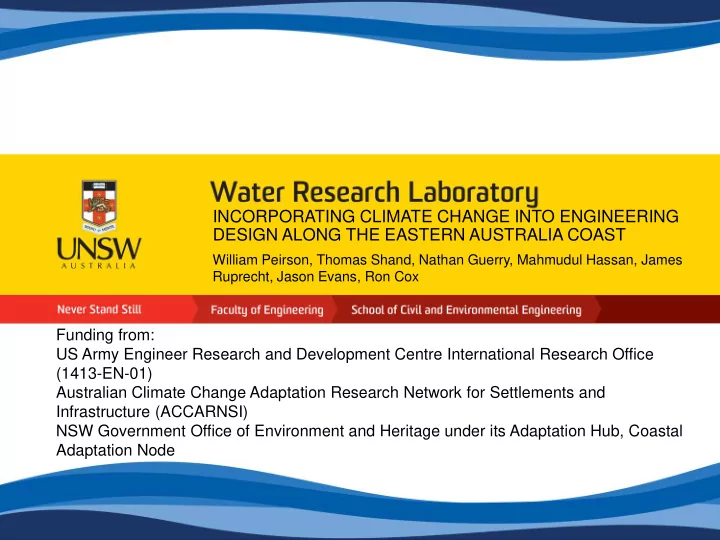

INCORPORATING CLIMATE CHANGE INTO ENGINEERING DESIGN ALONG THE EASTERN AUSTRALIA COAST

William Peirson, Thomas Shand, Nathan Guerry, Mahmudul Hassan, James Ruprecht, Jason Evans, Ron Cox

Funding from: US Army Engineer Research and Development Centre International Research Office (1413-EN-01) Australian Climate Change Adaptation Research Network for Settlements and Infrastructure (ACCARNSI) NSW Government Office of Environment and Heritage under its Adaptation Hub, Coastal Adaptation Node

FLOODS → ←STORMS

PROBLEM

PRESENT MEAN SEA LEVEL WHERE PEOPLE LIVE AND SERVICES ARE NOW NSW PRESENT COASTAL PLANNING PROCESS 100 YEAR ARI STORM 100 YEAR ARI FLOOD + REALITY FUTURE PLANNING?

10s TO 100s OF $ BILLIONS IN ADAPTATION

SEA LEVEL RISE

Opportunity

• Big storms of concern in more temperate zones can be identified in

climate models

• Temperate coastal zones are big population centres in USA and

Australia

• Big storms are a major contributor to large scale flooding and storm

surge

• This information is not being used in any practical sense to assess

adaptive capacity

• Cost of overadaptation is potentially crippling

STORM DESIGN CONTRIBUTIONS

Water levels

• Mean sea level – approximately static for the last 4000 years
• Atmospheric tide – analysis of historical data yields reliable
• predictions. Numerical models???
• Barometric set up – driven by atmospheric pressure – negligible lag

in most Australian coastal waters

• Wind set up – wind-induced – greatest in shallow waters
• Wave set up (down) – due to breaking of storm waves are generated

by wind

• Backwater – due to rain-induced runoff
• (Runup – vertical extent of wave movement at shoreline)

GLOBAL CIRCULATION MODELS

GCMs and IPCC

• Complex numerical models (tools )
• Three dimensional grid over the globe (typical horizontal resolution of

400 km, 15 layers in the atmosphere and 20 layers in the oceans).

• Small scale processes (e.g. clouds, boundary layers) cannot be

properly modelled, therefore averaged

• Include feedback mechanisms for water vapour and warming, clouds

and radiation, ocean circulation and ice and snow albedo.

• Different parametric approaches yield different results.

http://www.ipcc-data.org/ddc_gcm_guide.html

www.sas.usace.army.mil/.../images/drought.jpg

GCMs and IPCC

GCM types

• Reanalysis models

–

• bserved data are assimilated into the models

– hindcast of observed climate history – no forecast capability – NCEP-NCAR 20th Century Reanalysis V2 – ECMWF Reanalysis 40 – (NOT THE SUBJECT OF THIS PRESENT PRESENTATION)

• Predictive-type models

– initiated with ‘spin-up’ conditions – propagate according to their internal physics – should yield statistical distributions of atmospheric behaviour that are consistent with measured data. – predictive capability for future climates when configured with a corresponding emission scenario.

Predictive GCM objectives

1. Consistency with global projections (1.4°C to 5.8°C by 2100) 2. Physical plausible. 3. Applicable to impact assessments. 4. Representative of the potential range of future regional climate change. 5. Accessible for impact assessment.

Present Project

• A first pass assessment of the ability of GCM performance in

temperate zones: surface pressures, winds, rain

• Suite of reanalysis and predictive GCMs
• A collaborative study of WRL, USACE and UNSWCCRC

www.sas.usace.army.mil/.../images/drought.jpg

Model ID Sponsor, Country CSIRO-Mk3.0 Commonwealth Scientific Industrial and Research Organisation, Australia CSIRO-Mk3.5 Commonwealth Scientific Industrial and Research Organisation, Australia GFDL-CM2.0 Geophysical Fluid Dynamics Laboratory, United States of America GFDL-CM2.1 Geophysical Fluid Dynamics Laboratory, United States of America GISS-ER NASA/ Goddard Institute for Space Studies, United States of America NCAR-CCSM3 National Centre for Atmospheric Research, United States of America MIUBEG ECHO-G Meteorological Institute of the University of Bonn, Meteorological Research Institute of KMA, and Model & Data Group, Germany/ Korea

What this study did not do

1. Downscale – Statistical – Numerical 2. Resolve short duration events – GCMs use 24 hour time step

Statistical comparison between model surface predictions and high quality coastal observations

earthobservatory.nasa.gov

3 key questions

earthobservatory.nasa.gov

• 1. Do GCMs show signs of numerical saturation – that is, do extreme

pressures, winds, precipitation reach ceiling levels that are not exceeded due to resolution or physics?

• 2. To what degree do GCMs replicate observed latitudinal variation in

extreme values?

• 3. What changes in extreme values can be observed between climate of

the 20th century (c30m) and plausible future climates (SRES A2)?

Q1: Do GCMs show signs of numerical saturation?

earthobservatory.nasa.gov

Q2: Do GCMs replicate observed latitudinal variation in extremes?

• Extreme mean sea level pressures are well predicted. (solid line

shows measured data, other line styles are models)

Q2: Do GCMs replicate observed latitudinal variation in extremes?

• Extreme winds are remarkable. (Dashed line shows 24 hour 20year ARI design

from AS1170 + CEM EM 1110-2-1100 (Part 2) Figure II-2-1, symbols are models)

2 4 6 8 10 12 14 16 18 20 ONSHORE WIND VELOCITY (m/s)

• 44
• 42
• 40
• 38
• 36
• 34
• 32
• 30
• 28
• 26
• 24

LATITUDE

NOTE: winds over

• cean are ~ 5 to 8m/s

higher than over land. Figure shows ocean values.

Q2: Do GCMs replicate observed latitudinal variation in extremes?

• Significant latitudinal gradient in 20 year ARI precipitations.(solid line

shows measured data, other line styles are models)

How well can downscaling improve these estimates?

Q3: What changes in extremes are predicted 20thC to future?

• No statistically significant change in 20 year ARI mean sea level

pressure from 20th century climate up to 2100 A2 emission scenario can be discerned.

• No statistically significant variation in 20 year ARI precipitation

can be discerned up to 2100 horizon under an A2 emission scenario.

• No statistically significant change in 20 year ARI mean winds

under A2 emission scenario can be discerned to 2050.

Q3: What changes in extremes are predicted 20thC to future?

• Over a 100 year time horizon, a decrease in the onshore component
• f wind velocity between 0 and 4ms-1 is predicted at the 20 year ARI.
• 5
• 4
• 3
• 2
• 1

1 2 3 4 5 CHANGE IN WIND VELOCITY (m/s)

• 44
• 42
• 40
• 38
• 36
• 34
• 32
• 30
• 28
• 26
• 24

LATITUDE

Corresponding reductions in set up and coastal breaking wave heights are anticipated.

Conclusions and Recommendations

• Coastal storm attack has both marine and inland contributions.
• GCM skill in representing 20 year ARI mean sea level pressure, wind and precipitation

has been quantified.

• Clear extreme distributions of the state variable relevant to larger-scale coastal storm

attack are available.

• Changes for the A2 scenario are predicted to be negligible except a slight decrease in

wind is predicted.

• More intense storms less frequently means little change at a given design ARI.
• This study has not investigated changes in wind direction but robust determinations are

likely to be elusive.

• Defining the joint probabilities of the individual contributions and adaptive capacity are

now being assessed.
