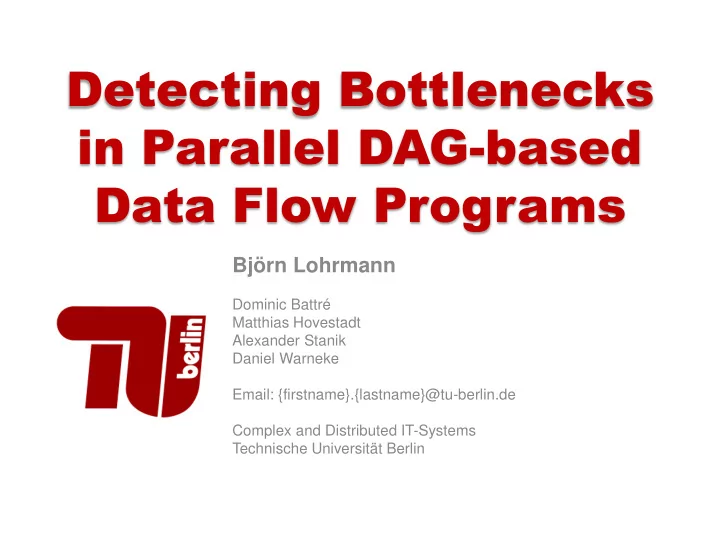

Detecting Bottlenecks in Parallel DAG-based Data Flow Programs

Björn Lohrmann

Dominic Battré Matthias Hovestadt Alexander Stanik Daniel Warneke Email: {firstname}.{lastname}@tu-berlin.de Complex and Distributed IT-Systems Technische Universität Berlin

Introduction (1)

IaaS clouds offer virtual machines on-demand Why use clouds for data processing?

■ Fast and unlimited** scale-out ■ Pricing Model

♦ Pay-as-you-go ♦ 10 nodes for 1 day = 1 node for 10 days

■ No long-term obligations

**almost

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 2

Introduction (2)

Frameworks are required for effective use of clouds

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 3

VM Management Job Deployment Job Modelling Job Monitoring Parallelization Job Scheduling

?

Eucalyptus Hadoop Nephele etc.

Prerequisites

• Jobs modelled as directed

acyclic graphs

■ Vertices are tasks ■ Edges are communication channels

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 4

Task 1 Task 2 Task 3 Task 4

• Each task has 1..n parallel

task instances

• Unidirectional and blocking

communication

Overview

Key question of this talk:

• Given a DAG-shaped job,

how many task instances should I assign to each task?

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 5

Task 1 Task 5 Task 2 Task 4 Task 3 Task 5

Our approach

• Begin with 1 instance for

each task

• Iteratively detect bottlenecks

and add instances where necessary

Bottlenecks

Negative effects of bottlenecks:

■ Input starvation ■ Output blockage

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 6

Low throughput of workflow Low resource utilization Time and money wasted

Task 1 Task 5 Task 2 Task 4 Task 3 Task 5

Bottlenecks

Types:

• CPU

■ Enough input available ■ Throughput limited by CPU ■ Lack of input for subsequent tasks

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 7

Task 1 Task 2 Task 3 CPU CPU CPU Task 1 Task 2 CPU CPU

• I/O

■ Transport infrastructure is

• verloaded (NICs, switches,

etc) ■ Forces tasks to wait

Bottleneck Detection

• Monitor job at runtime:
• Continuously measure CPU load and I/O wait on task

instances

• Aggregate to task statistics
• Continuously analyze task statistics:

■ Traverse task nodes in reverse topological order and check for CPU bottlenecks ■ If none found traverse edges in reverse topological

• rder and check for I/O bottlenecks

■ If bottleneck found: Report it!

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 8

Implementation

• Based on Nephele framework

■ Java framework ■ 1 master, n workers ■ Task instance = Java thread

• Analysis of thread state statistics:

■ Threshold for CPU bottleneck:

♦ USR + SYS + BLK >= 90% time

■ Threshold for I/O bottleneck

♦ WAIT caused by sending on channel >= 90% time

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 9

Evaluation

Demo Job

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 10

File Reader PDF Writer OCR Inverted Index PDF Creator Index Writer

Setup:

• Private compute cloud
• Hosts with two Intel Xeon

2,66Ghz, 32 GB RAM and 1GB Ethernet

• KVM guests with one virtual

CPU and 2GB RAM

• Eucalyptus framework for VM

allocation/deallocation

Evaluation (2)

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 11

Phase 1: Fine tuning

Evaluation (1)

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 12

Phase 2: Scale-out

Conclusion

• Bottleneck detection is useful to scale out jobs in the

cloud, while maintaining high resource utilization

• We presented a simple approach to gather and

analyze relevant statistics

• Right now, manual adaptation and job re-runs are

necessary to eliminate bottlenecks

• Future work:

■ Dynamically and automatically adjust parallelization at runtime

15.11.2010 Björn Lohrmann- Detecting Bottlenecks in Parallel Dag-based Data Flow Programs 13
