Improving tracking performance by learning from past data Angela P. Schoellig Doctoral examina on July 30, 2012 Advisor: Prof. Raffaello DAndrea // Co advisor: Prof. Andrew Alleyne 1 Improving tracking performance by learning from

slide-1
SLIDE 1

1

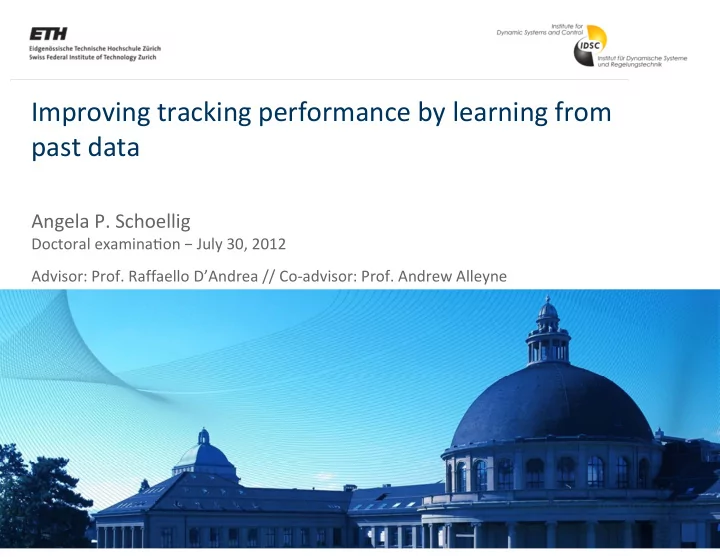

Improving tracking performance by learning from past data

Angela P. Schoellig

Doctoral examinaon − July 30, 2012 Advisor: Prof. Raffaello D’Andrea // Co‐advisor: Prof. Andrew Alleyne

slide-2
SLIDE 2

2

Improving tracking performance by learning from past data

Angela P. Schoellig

Doctoral examinaon − July 30, 2012 Advisor: Prof. Raffaello D’Andrea // Co‐advisor: Prof. Andrew Alleyne

slide-3
SLIDE 3

3

MOTIVATION

HUMANS learn from experience.

We constantly adapt to changing environments. We learn from mistakes and get better through practice.

slide-4
SLIDE 4

4

MOTIVATION

AUTOMATED SYSTEMS typically make the same mistakes over

and over again when performing a task repeatedly.

Robots of a car assembly line.

Why?

slide-5
SLIDE 5

5

AUTOMATED SYSTEMS are typically operated using feedback

control:

Performance limitations:

  • Causality of disturbance correction: “first detect error, then react”.
  • Model‐based controller design; model ≠ real system.

Disturbance

MOTIVATION

Output

PLANT CONTROLLER

Input

slide-6
SLIDE 6

6

GOAL

Improve the performance over causal, feedback control by learning from previous experiments. SYSTEM

Input Disturbance Output

LEARNING

slide-7
SLIDE 7

7

Learning task: Following a predefined trajectory. Approach:

  • Model‐based learning based on a priori knowledge of the system

dynamics.

  • Adaptation of the input.

Potential:

Acausal action, anticipating repetitive disturbances.

SCOPE OF WORK

Input Output LEARNING

slide-8
SLIDE 8

8

OVERVIEW

I. Introduction

a. Testbed: The Flying Machine Arena b. Motivation for learning

II. Project A. Iterative learning for precise trajectory following: single‐agent and multi‐agent results. III. Project B. Learning of feed‐forward parameters for rhythmic flight performances

  • IV. Summary
slide-9
SLIDE 9

9

TESTBED, see www.flyingmachinearena.org

slide-10
SLIDE 10

10

THE TEAM

Sergei Lupashin Markus Hehn Mark Müller Federico Augugliaro

slide-11
SLIDE 11

11

THE FLYING MACHINE ARENA

Vehicle position and attitude

Control Algorithms

Collective thrust and turn rates (wireless) wireless

slide-12
SLIDE 12

12

OPERATION

Trajectory‐following controller (TFC)

Measured position and attitude Collective thrust and turn rates Desired position

Output Input

slide-13
SLIDE 13

13

MOTIVATION: PROJECT A

Desired motion.

slide-14
SLIDE 14

14

MOTIVATION: PROJECT A

Performance with trajectory‐following controller.

Large repetitive error Different trials

slide-15
SLIDE 15

15

OVERVIEW

I. Introduction II. Project A. Iterative learning for precise trajectory following

a. Learning approach b. Results

III. Project B. Learning of feed‐forward parameters for rhythmic flight performances

  • IV. Summary
slide-16
SLIDE 16

16

A | PUBLICATIONS

Peer‐reviewed publications

Schoellig, A. P. and R. D’Andrea (2009): “Optimization‐based iterative learning control for trajectory tracking.” In Proceedings of the European Control Conference (ECC). Schoellig, A. P., F. L. Mueller, and R. D’Andrea (2012): “Optimization‐based iterative learning for precise quadrocopter trajectory tracking.” Auton‐

  • mous Robots.

Mueller, F.L., A. P. Schoellig, and R. D’Andrea (2012): “Iterative learning of feed‐forward corrections for high‐performance tracking.” To appear in Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS).

Joint work with Fabian L. Mueller (Master student).

slide-17
SLIDE 17

17

A | LEARNING APPROACH

Features: Learning through a repeated operation, updating full input trajectory after each trial.

SYSTEM

Input trajectory Output trajectory

DISTURBANCE ESTIMATION

Estimated disturbance Updated input

INPUT UPDATE

LEARNING

slide-18
SLIDE 18

18

PREREQUISITES

  • Dynamics model of system

(i) in analytical form or (ii) in form of a numerical dynamics simulation

  • Desired output trajectory

and corresponding nominal input trajectory  must satisfy the model equations.

RESULT

  • Learned input
  • Estimated disturbance vector

A | LEARNING APPROACH

slide-19
SLIDE 19

19

A | LIFTED‐DOMAIN REPRESENTATION

Dynamics model of the physical system: Consider small deviations from nominal trajectory. Linearize and discretize. Linear, time‐varying difference equation. Static mapping. Representing one trial.

With , and .

slide-20
SLIDE 20

20

For each trial Recurring disturbance .

  • Unknown. Only small changes between iterations:

Noise .

  • Unknown. Changing from iteration to iteration.

A | ITERATION‐DOMAIN MODEL

From trial to trial our knowledge about improves.

trial‐uncorrelated, zero‐mean Gaussian noise

slide-21
SLIDE 21

21

UPDATE OF DISTURBANCE ESTIMATE

via Kalman filter in the iteration domain:

estimates the repetitve disturbance by taking into account all past measurements. Prediction step: Measurement update step: Obtain .

A | STEP 1: ESTIMATION

EXECUTE ESTIMATE UPDATE

slide-22
SLIDE 22

22

EXECUTE UPDATE ESTIMATE

A | STEP 2: UPDATE

INPUT UPDATE via convex optimization:

minimizes the tracking error in the next trial:

subject to

Obtain .

slide-23
SLIDE 23

23

A | TWO EXPERIMENTAL SCENARIOS

SCENARIO 1 SCENARIO 2

  • No feedback from motion capture

cameras during task execution

  • Camera information is used.
  • Analytical model
  • Model via numerical simulation
  • 2D quadrocopter model
  • 3D quadrocopter model
  • Constraints on single motor thrusts and turn rates.

Collective thrust and turn rates Position, attitude Position Position, attitude

TFC

slide-24
SLIDE 24

24

S‐shaped trajectory.

A | SCENARIO 1: state trajectories

slide-25
SLIDE 25

25

S‐shaped trajectory.

A | SCENARIO 1: input trajectories

slide-26
SLIDE 26

26

S‐shaped trajectory.

A | SCENARIO 1: state trajectories

slide-27
SLIDE 27

27

A | TWO EXPERIMENTAL SCENARIOS

SCENARIO 1 SCENARIO 2

  • No feedback from motion capture

cameras during task execution

  • Camera information is used.
  • Analytical model
  • Model via numerical simulation
  • 2D quadrocopter model
  • 3D quadrocopter model
  • Constraints on single motor thrusts and turn rates.

Collective thrust and turn rates Position, attitude Position Position, attitude

TFC

slide-28
SLIDE 28

28

S‐shaped trajectory.

A | SCENARIO 2: state trajectories

slide-29
SLIDE 29

29

S‐shaped trajectory.

A | SCENARIO 2: state trajectories

slide-30
SLIDE 30

30

S‐shaped trajectory.

A | SCENARIO 2: state trajectories

slide-31
SLIDE 31

31

S‐shaped trajectory.

A | SCENARIO 2: state trajectories

slide-32
SLIDE 32

32

A | SCENARIO 2: error convergence

slide-33
SLIDE 33

33

  • Prerequisites: approximate model of system dynamics.
  • Efficient learning algorithm: convergence in around 5‐10 iterations.
  • Acausal compensation: outperforms pure feedback control.

Scenario 2: without learning with learning

A | SUMMARY

Powerful combination Learning applied to feedback‐control systems: compensation for repetitive and non‐repetitive disturbances.

slide-34
SLIDE 34

34

VIDEO: http://tiny.cc/SlalomLearning

slide-35
SLIDE 35

35

OVERVIEW

I. Introduction II. Project A. Iterative learning for precise trajectory following III. Project B. Learning of feed‐forward parameters for rhythmic flight performances

a. Learning approach b. Results

I. Summary

slide-36
SLIDE 36

36

B | PUBLICATIONS

Peer‐reviewed publications

Schoellig, A. P., F. Augugliaro, and R. D’Andrea (2009): “Synchronizing the motion of a quadrocopter to music.” In Proceedings of IEEE International Conference on Robotics and Automation (ICRA). Schoellig, A. P., F. Augugliaro, and R. D’Andrea (2010): “A platform for dance performances with multiple quadrocopters.” In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS)–Workshop on Robots and Musical Expressions. Schoellig, A. P., M. Hehn, S. Lupashin, and R. D’Andrea (2011): “Feasibility of motion primitives for choreographed quadrocopter flight.” In Proceedings of the American Control Conference (ACC). Schoellig, A. P., C. Wiltsche, and R. D’Andrea (2012): “Feed‐forward parameter identification for precise periodic quadrocopter motions.” In Proceedings of the American Control Conference (ACC).

Joint work with Federico Augugliaro (Bachelor/Master student) and Clemens Wiltsche (semester project).

slide-37
SLIDE 37

37

VIDEO: http://tiny.cc/DanceWith3

slide-38
SLIDE 38

38

Task: Precise tracking of periodic motions. Features:

  • Learning through a dedicated identification routine performed prior to

flight performance.

  • Adaptation of only a few input parameters.

B | LEARNING APPROACH

Position Position, attitude

TFC

slide-39
SLIDE 39

39

Amplitude and phase error

For each directional motion component and frequency, we learn: (1) amplitude correction factor, (2) additive phase correction.

B | LEARNING APPROACH

PURE FEEDBACK WITH LEARNED CORRECTION FACTORS

slide-40
SLIDE 40

40

VIDEO: http://tiny.cc/Armageddon

Angela Schoellig ‐ ETH Zurich

slide-41
SLIDE 41

41

OVERVIEW

I. Introduction II. Project A. Iterative learning for precise trajectory following III. Project B. Learning of feed‐forward parameters for rhythmic flight performances

  • IV. Summary
slide-42
SLIDE 42

42

SUMMARY

SYSTEM

Input Disturbance Output

LEARNING

Repetitive error components can be effectively compensated for by learning from past data. Result is an improved tracking performance.

slide-43
SLIDE 43

43

Carolina Flores Igor Thommen Marc Corzillius Hans Ulrich Honegger

RESEARCH SUPPORT STAFF

slide-44
SLIDE 44

44

IT FOLLOWS...

Live demonstration in the Flying Machine Arena

slide-45
SLIDE 45

45

Improving tracking performance by learning from past data

Angela P. Schoellig

Doctoral examinaon − July 30, 2012 Advisor: Prof. Raffaello D’Andrea // Co‐advisor: Prof. Andrew Alleyne
