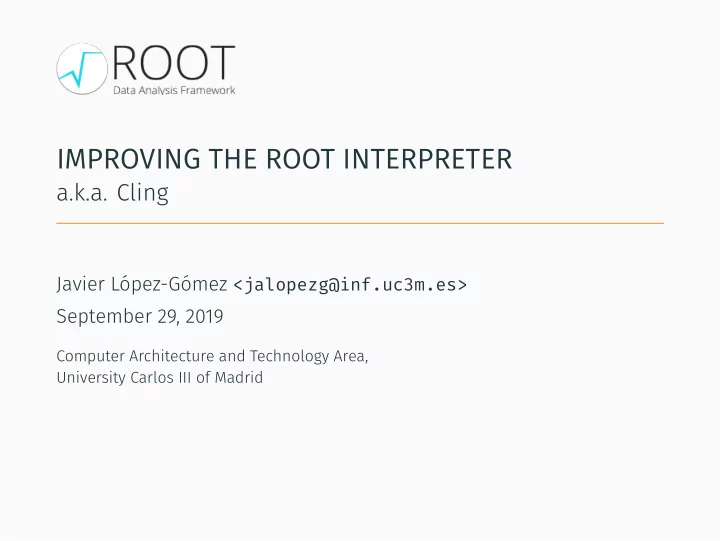

IMPROVING THE ROOT INTERPRETER

a.k.a. Cling

Javier López-Gómez <jalopezg@inf.uc3m.es> September 29, 2019

Computer Architecture and Technology Area, University Carlos III of Madrid

Who am I?

A CS PhD. student @ARCOS UC3M (Computer Architecture and Technology Area, University Carlos III of Madrid). Focus on low-level stufg, e.g. Linux kernel, embedded software, compilers, electronics… 2017—2018: (partial) implementation of P0542R5 (C++ contracts) in Clang.

jalopezg-uc3m 0xd3c4fb4d <jalopezg@inf.uc3m.es>

1/19

Agenda

1

Introduction

2

Adding support for redefjnitions

3

Other stufg I worked on

4

Conclusion

2/19

Introduction

Introduction

At the core of ROOT: Cling (a C++ Clang-based interpreter) ALICE: What is Clang? BOB: A C++ compiler. ALICE: I know what a compiler is! BOB: Sure?

3/19

Introduction

At the core of ROOT: Cling (a C++ Clang-based interpreter) ALICE: What is Clang? BOB: A C++ compiler. ALICE: I know what a compiler is! BOB: Sure?

3/19

Introduction

At the core of ROOT: Cling (a C++ Clang-based interpreter) ALICE: What is Clang? BOB: A C++ compiler. ALICE: I know what a compiler is! BOB: Sure?

3/19

I know what a compiler is! Sure? (1/6)

Translates valid input (source) into output (object code), e.g. C++ into Intel x86

• assembly. A compiler accepts valid strings

in a language. Several stages: lexical analysis (scanner), syntactic analysis (parser), semantic analysis, etc.

Source code Scanner (Lex) Parser (Parse) Semantic analysis (Sema) AST IR generation (CodeGen) … Object code 4/19

I know what a compiler is! Sure? (2/6)

Languages are described in terms of grammars. Formal grammars described using the Backus-Naur Form (BNF), e.g.

equation ::= expr '=' expr ; expr ::= '(' expr ')' | expr '+' expr | expr '^' expr | NUMBER | IDENTIFIER ;

Then, given ‘a2 = (b2 + c2)’ we may decompose it as…

5/19

I know what a compiler is! Sure? (3/6)

equation expr '=' expr expr 'a' ^ expr 2 ( expr expr '+' expr ) expr 'b' ^ expr 2 expr 'c' ^ expr 2

We call this decomposition Abstract Syntax Tree (AST).

6/19

I know what a compiler is! Sure? (4/6)

Grammars of programming languages are much more complex than this. Take another naïve example:

declaration-list ::= declaration-list declaration | declaration ; declaration ::= type IDENTIFIER ';' | type IDENTIFIER '=' expr ';' ; type ::= 'int' | 'double' ; expr ::= '(' expr ')' | ...

Then, the AST for the input ‘int j = 3; int i = j;’ is…

7/19

I know what a compiler is! Sure? (5/6)

declaration-list |- declaration `j' type=int | `- initial value 3 `- declaration `i' type=int `- initial value j

At some point, we might also want to do semantic analysis, e.g. “Is j already defjned before the fjrst declaration?” or “May i (int) be initialized to the value of j (int)?”

8/19

I know what a compiler is! Sure? (6/6)

A real one (Clang) for the C++ input ‘int f(int x = 0) { return x + 1; }’:

`-FunctionDecl 0xf317a0 </tmp/in.cpp:1:1, col:34> col:5 f 'int (int)' |-ParmVarDecl 0xf316c0 <col:7, col:15> col:11 used x 'int' cinit | `-IntegerLiteral 0xf31720 <col:15> 'int' 0 `-CompoundStmt 0xf31908 <col:18, col:34> `-ReturnStmt 0xf318f8 <col:20, col:31> `-BinaryOperator 0xf318d8 <col:27, col:31> 'int' '+' |-ImplicitCastExpr 0xf318c0 <col:27> 'int' <LValueToRValue> | `-DeclRefExpr 0xf31880 <col:27> 'int' lvalue | ParmVar 0xf316c0 'x' 'int' `-IntegerLiteral 0xf318a0 <col:31> 'int' 1

Most diagnostics are emitted as part of the semantic analysis. If OK, proceed to code generation.

9/19

The main problem we had (1/2)

Turning C++ into an interpreted language is calling for problems :-) ODR (One-Defjnition Rule): no more than one defjnition per translation unit, but may have more than one (compatible) redeclaration, e.g.

int f(int x); int f(int x) { return 0; } // OK, no previous definition 10/19

The main problem we had (2/2)

Therefore, the following is ill-formed according to ISO C++…

int foo = 0; double foo; // Can't redefine 'foo' in this scope int f(int x) { return 0; } int f(int x) { return x + 1; } // Ditto

…but our Jupyter-notebook users would certainly appreciate this!

11/19

Adding support for redefjnitions

Adding support for redefjnitions (1/5)

Some discussion around this at

https://github.com/root-project/cling/issue/259.

SHORT STORY: Chandler Carruth/Axel Naumann proposed to transform user input (nesting declarations into namespaces), so that C++ lookup rules resolve an reference to the most recent defjnition. Cling is based on (1) parsing input, (2) applying transformations (ASTTransformers), and (3) emitting code, so we can certainly do that!

12/19

Adding support for redefjnitions (1/5)

Some discussion around this at

https://github.com/root-project/cling/issue/259.

SHORT STORY: Chandler Carruth/Axel Naumann proposed to transform user input (nesting declarations into namespaces), so that C++ lookup rules resolve an reference to the most recent defjnition. Cling is based on (1) parsing input, (2) applying transformations (ASTTransformers), and (3) emitting code, so we can certainly do that!

12/19

Adding support for redefjnitions (2/5)

Issue #259 proposed two difgerent approaches: Listing 1: Nested namespaces

namespace { unsigned int i = 0; // line 1 namespace { double i = 1.0; // line 2 namespace { … } } }

Listing 2: Chained namespaces

namespace __cling_1 { unsigned int i = 0; // line 1 } namespace __cling_2 { using namespace __cling_1; double i = 1.0; // line 2 } …

Chaining seems better, but it doesn’t work (at least in that form) —unqualifjed reference to i is ambiguous!

13/19

Adding support for redefjnitions (3/5)

The current implementation transforms top-level declarations and nests them onto inline namespaces (so that their names are available in the TU), i.e.

inline namespace __cling_N50 { int foo = 0; /* input line 1 */ } inline namespace __cling_N51 { double foo; /* input line 2 */ } …

This allows “redefjnition” from the user’s perspective, although they are difgerent declarations, i.e. __cling_N50::foo and __cling_N51::foo. Referring to unqualifjed foo IS still ambiguous. We patch the enclosing scope (TU) lookup table to hide any former defjnition.

14/19

Adding support for redefjnitions (4/5)

LOTS OF PITFALLS: function overload, class/function templates, etc. —But you got the idea! Support for all of this included in PR #4214. Merged into master! Beware of TCling! We also had to patch it to invalidate any cached information about former defjnitions of the same symbol (PR #4446).

15/19

Adding support for redefjnitions (5/5)

DEMO

16/19

Other stufg I worked on

Improving unloading, i.e. ‘.L’ and ‘.x’

Cling was able to unload (revert) transactions. Therefore, it can parse a fjle more than once with `.x' without complaining that a symbol is already defjned… …but it didn’t work for some macro fjles. BUG: it tried to unload template instantiations whose point of instantiation was in the PCH. Fixed in PR #4447. Also, we avoid the unload+load cycle if the fjle hasn’t changed (PR #??).

17/19

Bug fjxing

During these 3 months, I also found time to fjx bugs in ROOT: ROOT-9934: typing `.stats decl' at the prompt aborted execution (Segmentation violation). ROOT-10285: DEL key causes the ROOT prompt to exit if line is empty.

18/19

Conclusion

Conclusion

Cling now supports redefjnitions —possibly of a difgerent type— (PRs #4214 and #4446).

root [0] int f(int x) { return 0; } root [1] int f(int x) { return (x << 1); } root [2] f(4) (int) 8

#4214 already merged into master. Improved `.x' (PRs #4447 and #??). Some ROOT bugs fjxed (PRs #4213 and #4420) —also, merged into master.

19/19
