Improving the Resilience of Mutualistic Networks Varun Rao December - PowerPoint PPT Presentation

Improving the Resilience of Mutualistic Networks Varun Rao December 3, 2018 1 / 34 Overview Introduction to Research Motivation What is Resilience? Modeling the Problem Theoretical Basis Modifying existing equation Strategies to improve

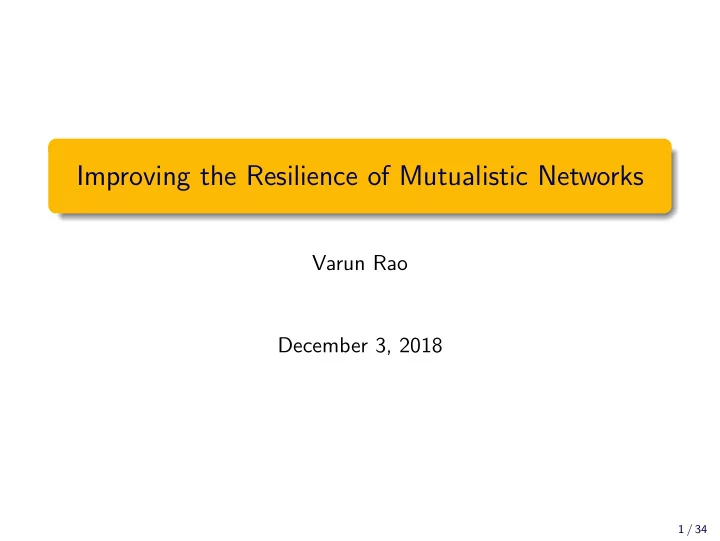

  1. Improving the Resilience of Mutualistic Networks Varun Rao December 3, 2018 1 / 34

  2. Overview Introduction to Research Motivation What is Resilience? Modeling the Problem Theoretical Basis Modifying existing equation Strategies to improve resilience Projected stats that will improve Current Results Change in β eff Degree Distributions Bifurcations Overall graphs Future Work 2 / 34

  3. Motivation Research focuses on improving a pollination network’s resilience via node additions To qualify and find resilience, heavily draw upon work done by Gao,Barzel, and Barabasi [1] Current research uses much of the derived framework One aspect of the research focused on mutualistic networks; my research uses those dynamics! Work focuses on positive side-effects of node addition 3 / 34

  4. Network Dataset How we will be modeling the network! 4 / 34

  5. Network Dataset How we will be modeling the network! We will be modifying the main network, which will change the resilience of the projection networks. 4 / 34

  6. What is Resilience? Resilience Defintion Resilience is ability of a system to adjust its activty to retain its basic functionality when errors, failures, or disruptions occur. It is a dynamical property. Networks can be more or less resilient to node or link perturbations depending on their dynamics. 5 / 34

  7. What is Resilience? Resilience Defintion Resilience is ability of a system to adjust its activty to retain its basic functionality when errors, failures, or disruptions occur. It is a dynamical property. Networks can be more or less resilient to node or link perturbations depending on their dynamics. Can capture resilience using a 1-d function: dx dt = f ( β, x ) 5 / 34

  8. What is Resilience? Resilience Defintion Resilience is ability of a system to adjust its activty to retain its basic functionality when errors, failures, or disruptions occur. It is a dynamical property. Networks can be more or less resilient to node or link perturbations depending on their dynamics. Can capture resilience using a 1-d function: dx dt = f ( β, x ) More complex problems is a multi-dimensional system: d x dt = f ( A ij , x ) 5 / 34

  9. Modeling Multi-Dimensionality is hard... 6 / 34

  10. Modeling Mutli-Dimensional Dynamics N dx i � dt = F ( x i ) + A ij G ( x i , x j ) j =1 x i → time dependent activities of all N nodes F ( x i ) , G ( x i , x j ) → dynamics of systems interactions A ij → rate at which j impacts i 7 / 34

  11. Modeling Mutli-Dimensional Dynamics N dx i � dt = F ( x i ) + A ij G ( x i , x j ) j =1 x i → time dependent activities of all N nodes F ( x i ) , G ( x i , x j ) → dynamics of systems interactions A ij → rate at which j impacts i But...can we reduce this equation even further? 7 / 34

  12. Reduced Equation dx i dt = F ( x i ) + β eff G ( x i , x j ) 8 / 34

  13. Reduced Equation dx i dt = F ( x i ) + β eff G ( x i , x j ) β eff = < s out >< s in > s With this, we can get rid of the adjacency matrix! 8 / 34

  14. Reduced Equation dx i dt = F ( x i ) + β eff G ( x i , x j ) β eff = < s out >< s in > s With this, we can get rid of the adjacency matrix! Also defining new variable x eff x eff = < s out > x < s > 8 / 34

  15. Mutualistic Network Dynamics Mutualistic networks have specific dynamical equations N dx i dt = B i + x i (1 − x i )( x i x i x j � − 1) + A ij D i + E i x i + H j x j K i C i j =1 Term on left replaces F , while term on right G deals with the dynamics 9 / 34

  16. Mutualistic Network Dynamics Mutualistic networks have specific dynamical equations N dx i dt = B i + x i (1 − x i )( x i x i x j � − 1) + A ij D i + E i x i + H j x j K i C i j =1 Term on left replaces F , while term on right G deals with the dynamics Now...let’s apply the new formalism to the above equation! 9 / 34

  17. Mutualistic Network Dynamics Mutualistic networks have specific dynamical equations N dx i dt = B i + x i (1 − x i )( x i x i x j � − 1) + A ij D i + E i x i + H j x j K i C i j =1 Term on left replaces F , while term on right G deals with the dynamics Now...let’s apply the new formalism to the above equation! x 2 dx eff = B + x eff (1 − x eff K )( x eff eff − 1) + β eff dt C D + ( E + H ) x eff 9 / 34

  18. Model Used β eff is what we care about! x eff relates to overall low/high state of system Can adapt above equation to any dynamic; β eff will change depending on system Want to have β eff be greater than 7! 10 / 34

  19. Modeling in β eff space 11 / 34

  20. Quick Summary! Taking M bi-partite matrix matrix and separating it into projection networks A and B. 12 / 34

  21. Quick Summary! Taking M bi-partite matrix matrix and separating it into projection networks A and B. Then find β eff of each projection Can then understand resilience! 12 / 34

  22. Okay....we have this cool framework, what does this have to do with your research? 13 / 34

  23. Main research question! How will modifying the A ij matrix affect the bipartite networks? 13 / 34

  24. Now, have to understand how A ij is formulated to keep going! 13 / 34

  25. Modifying A ij m M ik M jk � A ij = � N s =1 M sk k =1 m σ ( M ik M jk )( M ik + M jk ) � A ij = � N s =1 M sk k =1 � 0 M ik � = M jk σ = 1 M ik + M jk = 2 Now, what occurs when adding species? M ∗ = � � M λ � M � M ∗ = λ 14 / 34

  26. Modifying A ij Remember, A ij is the projection matrix! M → A , B A ∗ = A 0 + f ( λ ) B ∗ = B 0 + f ( λ ) When adding pollinator � � f ( λ ) = a b c d When adding flower   . .   f ( λ ) =   .   . 15 / 34

  27. Steps for Implementation 1 Classify locations 2 Adding pollinator 3 Adding flower 4 Analyzing effects of additions 16 / 34

  28. Location Analysis Analyzed 143 locations About 50 unique locations Classified location by size Compiled tables of all species interactions as well as all each location’s interactions 17 / 34

  29. Locations and Species 18 / 34

  30. Intial β eff Distributions Figure 1: Projection Network Distributions 19 / 34

  31. β eff Distribution-Flower β eff = D + H 20 / 34

  32. β eff Distribution-Flower β eff = D + H 20 / 34

  33. Adding Species-Small Figure 2: Top, Adding Flower. Bottom, Adding Pollinator 21 / 34

  34. Adding Species-Medium Figure 3: Top, Adding Flower. Bottom, Adding Pollinator 22 / 34

  35. Adding Species-Large Figure 4: Top, Adding Flower. Bottom, Adding Pollinator 23 / 34

  36. Overall Changes Figure 5: Top, Overall Changes for Small Locations. Botthom, Overall Changes for Medium Locations 24 / 34

  37. Current Summary of Results Adding species benefits opposite projection network. Improvement of β eff varies depending on location size Analyze how degree affects ∆ beta eff 25 / 34

  38. Bifurcations-Small Locations Figure 6: Top, Bifurcating Flower. Bottom, Bifurcating Pollinator 26 / 34

  39. Bifurcations-Medium Locations Figure 7: Top, Bifurcating Flower. Bottom, Bifurcating Pollinator 27 / 34

  40. Why do these bifurcations occur? 28 / 34

  41. Why do these bifurcations occur? Maybe nearest neighbor degree has something to do with it? 28 / 34

  42. Nearest Neighbor Degree From bifurcation graph, we saw that a bifurcation of some type was occuring Graphed three degrees k NN → degree of all nearest neighbors k Proj → degree in projection network k deg → normal degree For now, only have graphed these degrees after adding a flower 29 / 34

  43. Nearest Neighbor Degrees - Small Locations Figure 8: Small Degrees 30 / 34

  44. Nearest Neighbor Degrees - Medium Locations Figure 9: Medium Degrees 31 / 34

  45. Future Work 1 Fixing input errors in the code 2 Analyzing why bifurcations occur 3 Graphing how changing β eff affects H , D 4 Finding optimal species, optimal k 5 Generating theoretical framework 32 / 34

  46. Questions? Thank you! 33 / 34

  47. References 1. Gao,J.,Barzel,B.and Barbasi,A.”Universal resilience patterns in complex networks”. Nature , 530 ,307-312 (2016). 34 / 34
