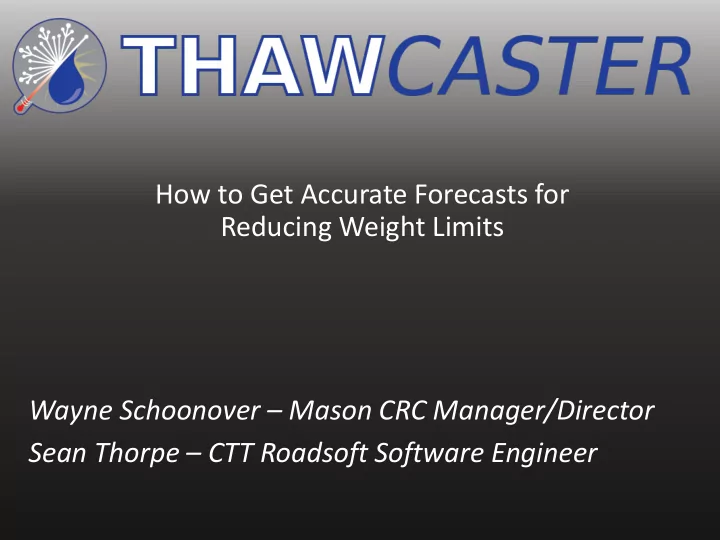

How to Get Accurate Forecasts for Reducing Weight Limits Wayne Schoonover – Mason CRC Manager/Director Sean Thorpe – CTT Roadsoft Software Engineer

slide-2
SLIDE 2

Agenda

  • Thaw weakening
  • Thawcaster origin
  • Walk through
  • Questions
slide-3
SLIDE 3

Why Spring Load Restrictions?

slide-4
SLIDE 4

Thaw Weakening!

Strength Winter Summer Fall Spring Restrict Load

From FHWA Guidelines for Spring Highway Use Restrictions

slide-5
SLIDE 5
slide-6
SLIDE 6

Terms

Freezing Index (FI) Thawing Index (TI) Thawing Index using Minnesota Method (TI*)

slide-7
SLIDE 7

Start Counting FI

slide-8
SLIDE 8

When to Put Restriction on

Table 2

Thawing Index (oF-days) Pavement Structure BST/Asphalt Concrete Thickness (inches) Base Course Thickness (inches) Should Level Must Level

  • Thin

2” or less 6” or less 10 40

  • Thick

Greater than 2” Greater than 6” 25 50

From FHWA Guidelines for Spring Highway Use Restrictions

slide-9
SLIDE 9

When to Take Restrictions Off

Guidelines state when TI = 0.3 X FI 0.3 X FI is approximately when it is thawed

slide-10
SLIDE 10

Start Counting TI

slide-11
SLIDE 11

0.3 X FI

Is Not when it stops bleeding and settled back down! Use visual judgement and experience

slide-12
SLIDE 12

WEATHER FORECASTING: IN THE BEGINNING…

slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21

Origin Program Overview Data collection Tools User setup Upcoming plans

slide-22
SLIDE 22

How did LTAP get involved?

slide-23
SLIDE 23

Thawcaster Basic

Historic data and forecasts FI, TI, TI* web based tracking tool Data stored in cloud Desktop and mobile ready

slide-24
SLIDE 24

Thawcaster Advanced

Worst case forecast scenarios Forecast site error rates Data exports for custom analysis

slide-25
SLIDE 25

What Thawcaster does Not Not do

A perfect fit for all soil types Replace engineering judgement Replace experience

slide-26
SLIDE 26

Thawcaster Potential Data Sources

Weather Underground Weather Unlocked NOAA Forecast IO Open Weather Map APIXU

slide-27
SLIDE 27

Thawcaster Data Collection

Data initially collected from a single provider Eventually collected from multiple providers Collected via weather web API Stored in database

slide-28
SLIDE 28

Tools

Thawcast Historical annual Thawcast Weather station error analysis

slide-29
SLIDE 29

Thawcast

slide-30
SLIDE 30

Thawcast Tracker

slide-31
SLIDE 31

Historical Annual Thawcast

slide-32
SLIDE 32

Weather Station Error Rate

slide-33
SLIDE 33

Weather Station Error Rate

slide-34
SLIDE 34

Weather Station Error Rate

slide-35
SLIDE 35

User Setup

slide-36
SLIDE 36

Station List

slide-37
SLIDE 37

Station Map

slide-38
SLIDE 38

Weather Stations

  • Create account
  • Request weather station by zip code
  • Data will automatically be gathered using available

data providers (initially a single provider)

slide-39
SLIDE 39

Thawcaster Initial Release 2/20/17

  • Request station by zip code
  • Thawcast for current weather forecast
  • FI/TI data for the current season
  • Data export
  • Add comments
slide-40
SLIDE 40

Additional Release Plans

  • Multiple data providers
  • Editable Thawcast or making custom projections
  • Annual historical Thawcast for years past
  • Comprehensive weather station error analysis
slide-41
SLIDE 41

Questions and Ideas?

ctt@mtu.edu Phone: (906) 487-2102
