SLIDE 1

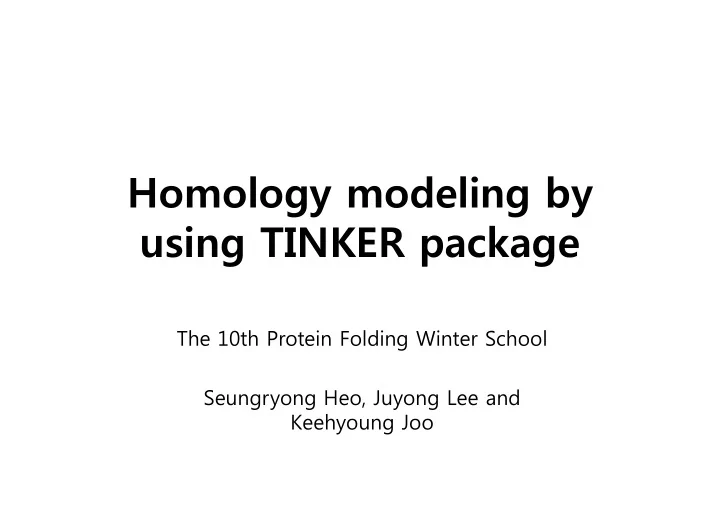

Homology modeling by using TINKER package
The 10th Protein Folding Winter School Seungryong Heo, Juyong Lee and Keehyoung Joo
Homology Modeling Procedure
Homology modeling by using TINKER package The 10th Protein Folding - - PowerPoint PPT Presentation
Homology modeling by using TINKER package The 10th Protein Folding - - PowerPoint PPT Presentation
Homology modeling by using TINKER package The 10th Protein Folding Winter School Seungryong Heo, Juyong Lee and Keehyoung Joo Homology Modeling Procedure Query & Template sequence Alignment 1fdx CA-CA distance restrain from alignment
SLIDE 2
SLIDE 3
Query & Template sequence Alignment
1fdx
SLIDE 4
CA-CA distance restrain from alignment
Native CA-CA distance template CA-CA distance
SLIDE 5
http://dasher.wustl.edu/tinker/
SLIDE 6
Essential files before running minimization ■ sample.pdb à sample.xyz ■ sample.key à parameter file path, keyword… ■ parameter file à amber02.prm, charmm22.prm,oplsaal.prm…
SLIDE 7
Sample.key & Parameter file
… … …
SLIDE 8
Comparison between modeller & tinker structure
1fdx (modeller) 1fdx (tinker) superpose TM-Score : 0.9633
SLIDE 9
Main work of our group project ■ Energy = Ester + Erst + Edfire ■ Minimization ■ initial structure study
LBFGS (limited memory BFGS) algorithm is a member of the broad family
- f quasi-Newton optimization method
bond, angle, dihedral, van der waals….. Ca-Ca dist, torsion…. Extended structure & Modeller structure
SLIDE 10
What is DFIRE ? ■ statistical pair potential energy function ■ developed by Zhou (University of New York, USA)
Nexp(i,j,r) = (r/rcut)a(△r/△rcut)Nabs(i,j,rcut)
■ Nexp : expected number of non-interacting atomic pair ■ rcut : cutoff distance in the reference state ■ Nabs(i,j,r) : observed number of the same atomic pairs ■ a : given constant
SLIDE 11
A problem with dfire energy function
■ We used cubic spline algorithm to get a consecutive value.
SLIDE 12
E = Ester + Erst
Extended structure Minimized structure Modeller structure
E = Ester + Erst
Minimized structure Modeller structure
E = Ester + Erst + Edfire
Minimized structure
① ③ ②
Initial structure & Energy function test
SLIDE 13
TM-score : 0.8687
E = Ester + Erst
Extended structure Minimized structure
①
SLIDE 14
TM-score : 0.8823 Modeller structure
E = Ester + Erst
Minimized structure
②
SLIDE 15
Modeller structure
E = Ester + Erst + Edfire
Minimized structure
③
TM-score : 0.8836
SLIDE 16
Conclusions & Discussions
- 1. Introduce more restraint energy terms
- N-O, Angle, Torsion, Side chain, etc.
- 2. Use more powerful optimization method
- Global optimization
- 3. Consider gap regions
- Physics and Statistical potentials
1. CA-CA restraints generated by using alignment and template provide reliable energy term to fold native like structure. 2. Tinker provides many useful functions for making structure prediction tool.
SLIDE 17
