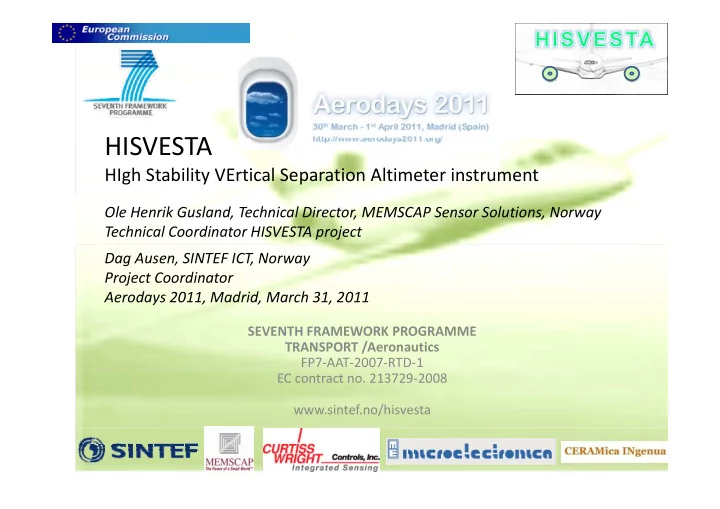

HISVESTA HISVESTA HIgh Stability VErtical Separation Altimeter instrument Ole Henrik Gusland, Technical Director, MEMSCAP Sensor Solutions, Norway Technical Coordinator HISVESTA project D Dag Ausen, SINTEF ICT, Norway A SINTEF ICT N Project

slide-1
SLIDE 1

HISVESTA HISVESTA

HIgh Stability VErtical Separation Altimeter instrument

Ole Henrik Gusland, Technical Director, MEMSCAP Sensor Solutions, Norway Technical Coordinator HISVESTA project D A SINTEF ICT N Dag Ausen, SINTEF ICT, Norway Project Coordinator Aerodays 2011, Madrid, March 31, 2011

SEVENTH FRAMEWORK PROGRAMME TRANSPORT /Aeronautics FP7‐AAT‐2007‐RTD‐1 EC contract no. 213729‐2008 www.sintef.no/hisvesta

slide-2
SLIDE 2

HISVESTA

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 2

slide-3
SLIDE 3

HISVESTA

Project consortium

HISVESTA

HIgh Stability VErtical Separation Altimeter instrument

Project consortium

SINTEF, Research Institute, Oslo Norway Memscap Sensor solutions, Horten, Norway Memscap Sensor solutions, Horten, Norway Penny&Giles Aerospace, Christchurch, UK Ceramica, Ilfov, Romania Micro Electronica, Bucarest, Romania

SEVENTH FRAMEWORK PROGRAMME TRANSPORT /Aeronautics FP7 AAT 2007 RTD 1 FP7‐AAT‐2007‐RTD‐1 EC contract no. 213729‐2008 www.sintef.no/hisvesta

slide-4
SLIDE 4

Motivation for HISVESTA f

  • After introduction of RVSM (Reduced Vertical Separation Minimum) to 1000ft altitude

separating aircrafts flight levels a number of incidents are reported were passenger separating aircrafts flight levels, a number of incidents are reported were passenger aircrafts are violating the tolerances of altitude accuracy.

  • The specific Altimetry conference held in Brussels August 2010 by EuroControl,

“Altimetry System Error, The invisible Risk” clearly showed that improved procedures and more accurate altitude equipment are needed to secure safe flight operation

  • HISVESTA project concentrates on Research and Development of altimetry sensors with

higher accuracy and better long term stability performance than what is currently available

  • Additional Motivation: To utilize the R&D results from Altimetry sensor project to develop

pressure sensing products suitable for Jet Engine FADECs (Full Authority Digital Engine pressure sensing products suitable for Jet Engine FADECs (Full Authority Digital Engine Control) for high temperature operation, to reduce fuel consumption, reduce emission of CO2 and NOx

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 4

slide-5
SLIDE 5

Motivation

FL360

358 359

RVSM Separation

356 357 353 354 355 351 352 353

FL350

351 HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport-Aeronautics 5

slide-6
SLIDE 6

Altitude System Error

Altitude System Error

FL360 as measured by the Aircraft Altimetry System

Actual

System

ASE Pressure Altitude e.g. FL360 FL360

EUROCAE WG68, altimetry operating procedures

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 6 6

, y p g p

slide-7
SLIDE 7

Observed ASE of GLF3: 2005-2009

(Time-line)

Observed ASE of GLF3: 2005 2009 (Time-line)

GLF3 ASE time-series

– ADC errors

200 400

  • Sensor, temp, drift,
  • Leaks in plumbing

– Display/Baro setting

  • 200

ft)

p y g – Static port/plate condition

  • Step height, smoothness, paint

– Skin waviness

  • 600
  • 400

ASE (

  • 800

600

  • 1000

9/15/05 3/14/06 9/10/06 3/9/07 9/5/07 3/3/08 8/30/08 2/26/09 8/25/09 Date

S FAA t ti B l t 2010

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 7

Source FAA presentation, Brussels sept 2010

slide-8
SLIDE 8

Complex elements of Total Vertical Error

Actual Altitude

Altimetry System Error Total Vertical Error (TVE) System Error (ASE)

Displayed Altitude

Flight Technical Error (FTE) Correspondence Error

Transponded Altitude

Assigned Altitude Deviation (AAD)

p Assigned Altitude HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 8

slide-9
SLIDE 9

Where Industry is today

  • Altimetry System Error

– Crew will not see it – ATC will not see it – TCAS will be misinformed

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 9

slide-10
SLIDE 10

Research results for new altimetry sensors

The HISVESTA project was officially started in January 2009 and has 30 months duration.

HISVESTA is targeting better altimetry pressure sensors for altimeters, Air Data Computers and Auto Pilot systems Sea level 1013,25 mbar A 18,000 ft 500mbar A 29,000 ft 315mbar A 29,000 ft 315mbar A 41,000 ft 178mbar A

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 10

slide-11
SLIDE 11

Project overview j

Success criteria’s for the project:

  • Demonstrate improved performance for a new Air Data Unit including

new pressure transducers

  • Demonstrate transducers with multi pressure range sensors, heated mode

transducers and transducers with a frequency output transducers and transducers with a frequency output

  • Pushing the technology platform (sensor die, sensor package and pressure

transducer) towards high temperature applications up to 200 °C.

HISVESTA is carried out with support from European Commission Framework 7 - Theme 7 Transport- Aeronautics 11

slide-12
SLIDE 12

HISVESTA developments relevant for aircraft industry MEMS activities:

  • New SP83 sensor die
  • 8 pressure ranges,

from 0,25 bar to 60 bar

  • Extreme long term

stability performance (< 100ppm/year FS)

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 12

slide-13
SLIDE 13

HISVESTA developments relevant for aircraft industry industry

  • New altimetry

barometric pressure sensor

  • TP4000 altimetry

pressure pressure transducer

HISVESTA is carried out with support from European Commission Framework 7 - Theme 7 Transport- Aeronautics 13

slide-14
SLIDE 14

TP4000 Evaluation kit 000 a ua o

Test the transducer performance in our p HISVESTA booth!

More info at: www sintef no/hisvesta www.sintef.no/hisvesta

  • r contact:

@ sensors@memscap.com

HISVESTA is carried out with support from European Commission Framework 7 - Theme 7 Transport- Aeronautics 14

slide-15
SLIDE 15

HISVESTA developments relevant for aircraft industry aircraft industry

  • New RVSM compatible

Di it l Ai D t Digital Air Data Computer (prototype)

  • Smaler, lighter and

better performance than existing products to a reasonable cost.

15

15

slide-16
SLIDE 16

Sensor Products for Avionic applications

Eurocopter/Sikorsky Air Data/Airspeed indicators Eurofighter Typhoon/Pilot Mask oxy flow Sequencer for ejection seat Ejection Seats Martin Baker Air Data Computers, Pressure transducers for Engine Control Modules

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 16

Cabin Pressure Control Transducers/switches Pt and Ps sensors

slide-17
SLIDE 17

Developments relevant for new generation Jet Engines

FADEC Pressure Tranducer Solution

  • Pressure ranges from

g P0 static barometric up to 900Psia up to 900Psia

  • FADEC mounted or

t t d hi t

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 17

remote mounted hi temp

slide-18
SLIDE 18

Volcanic Ash-testing Volcanic Ash testing

  • f sensors and

transducers to be transducers to be performed during spring 2011 spring 2011

HISVESTA is carried out with support from European Commission Framework 7 - Theme 7 Transport-Aeronautics 18 18

slide-19
SLIDE 19

HISVESTA

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 19 19

slide-20
SLIDE 20

Thank you for your attention Thank you for your attention

More info at www.sintef.no/hisvesta and Sensors@memscap.com

HISVESTA is carried out with support from European Commission Framework 7 Theme 7 - Transport- Aeronautics 20
