July 14 th , 2020 Name of Landmark Building Type of Presentation Month xx, year Public Hearing The current proposal is: Preservation Department Item 6, LPC-20-10444 170 Central Park West New York Historical Society, Borough of Manhattan

slide-1
SLIDE 1

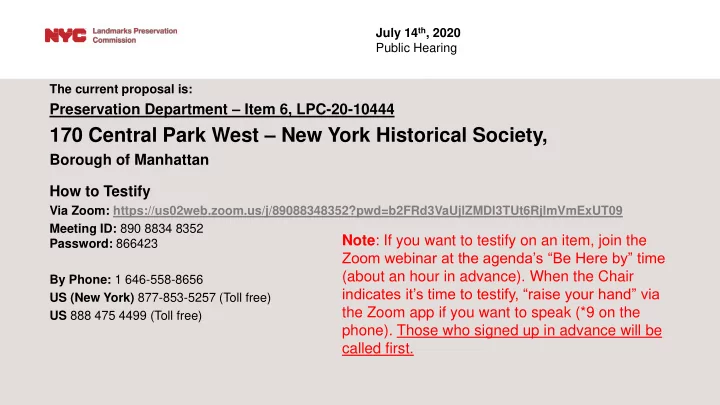

Name of Landmark Building Type of Presentation Month xx, year

July 14th, 2020 Public Hearing The current proposal is:

Preservation Department – Item 6, LPC-20-10444

170 Central Park West – New York Historical Society,

Borough of Manhattan How to Testify

Via Zoom: https://us02web.zoom.us/j/89088348352?pwd=b2FRd3VaUjlZMDl3TUt6RjlmVmExUT09 Meeting ID: 890 8834 8352 Password: 866423 By Phone: 1 646-558-8656 US (New York) 877-853-5257 (Toll free) US 888 475 4499 (Toll free)

Note: If you want to testify on an item, join the Zoom webinar at the agenda’s “Be Here by” time (about an hour in advance). When the Chair indicates it’s time to testify, “raise your hand” via the Zoom app if you want to speak (*9 on the phone). Those who signed up in advance will be called first.

slide-2
SLIDE 2

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN

Window Master Plan

New-York Historical Society

July 14, 2020

slide-3
SLIDE 3

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN CENTRAL PARK WEST & WEST 77th STREET ca. 1938

slide-4
SLIDE 4

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN CENTRAL PARK WEST 2020

slide-5
SLIDE 5

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WEST 77TH STREET

slide-6
SLIDE 6

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WEST 76TH STREET

slide-7
SLIDE 7

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WEST FACADE

slide-8
SLIDE 8

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN 2018 GALLERY WALL CONDENSATION Condensation on gallery wall Condensation on gallery wall

slide-9
SLIDE 9

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN TEMPORARY EXTERIOR STORM WINDOW – WINDOW TYPE D

slide-10
SLIDE 10

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN EXISTING CONDITIONS Condensation, ice and water pooling. Deteriorated putty. Oxidation not allowing proper closing and locking.

slide-11
SLIDE 11

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN EXISTING CONDITIONS Damaged hardware, signs of water run-off, deteriorated putty and pitting. Typical gap between casement and frame.

slide-12
SLIDE 12

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN EXISTING CONDITIONS One type of existing interior storm window. Water pooling and mold at existing interior storm window.

slide-13
SLIDE 13

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN EXISTING CONDITIONS Finish damage and mold at interior storm window. Finish damage and mold at interior storm window.

slide-14
SLIDE 14

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN CENTRAL PARK WEST WINDOW TYPES

slide-15
SLIDE 15

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WEST 77TH STREET WINDOW TYPES

slide-16
SLIDE 16

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WEST 76TH STREET WINDOW TYPES

slide-17
SLIDE 17

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WEST FAÇADE WINDOW TYPES

slide-18
SLIDE 18

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW REPLACEMENT OPTIONS & RECOMMENDATION

slide-19
SLIDE 19

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW REPLACEMENT RECOMMENDATION

Recommendations

  • Aluminum Replacement Windows
  • Double-Glazing
  • Thermally Broken Construction
  • Surround and Mullion Extrusions to Match Existing
  • Kynar 2605 Finish
  • Finish to Match First Floor North Bronze Windows
slide-20
SLIDE 20

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW REPLACEMENT FINISH RECOMMENDATION

TEMPORARY STORM WINDOW FINISH – UMBRA GREY EXISTING FIRST FLOOR 77TH STREET BRONZE WINDOWS

slide-21
SLIDE 21

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW REPLACEMENT FINISH RECOMMENDATION

PROPOSED FINISH – UMBRA GREY

slide-22
SLIDE 22

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN

Proposed Window Details Primary Windows

slide-23
SLIDE 23

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW TYPE D Existing - Bronze Proposed – Aluminum First Floor, West 76th

slide-24
SLIDE 24

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW TYPE F Existing - Bronze Proposed - Aluminum 2nd & 3rd Floors, Central Park West

slide-25
SLIDE 25

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW TYPE F Existing - Bronze Proposed - Aluminum

slide-26
SLIDE 26

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW TYPE G Existing - Bronze Proposed - Aluminum 2nd & 3rd Floors, West 76th & 77th

slide-27
SLIDE 27

PBDW A RC H I T E C T S NEW-YOR ORK HISTOR ORIC ICAL L SOCIET IETY WIND NDOW MASTER PLAN AN WINDOW TYPE G Existing - Bronze Proposed - Aluminum

slide-28
SLIDE 28

Name of Landmark Building Type of Presentation Month xx, year

July 14th, 2020 Public Hearing The current proposal is:

Preservation Department – Item 6, LPC-20-10444

170 Central Park West – New York Historical Society,

Borough of Manhattan How to Testify

Via Zoom: https://us02web.zoom.us/j/89088348352?pwd=b2FRd3VaUjlZMDl3TUt6RjlmVmExUT09 Meeting ID: 890 8834 8352 Password: 866423 By Phone: 1 646-558-8656 US (New York) 877-853-5257 (Toll free) US 888 475 4499 (Toll free)

Note: If you want to testify on an item, join the Zoom webinar at the agenda’s “Be Here by” time (about an hour in advance). When the Chair indicates it’s time to testify, “raise your hand” via the Zoom app if you want to speak (*9 on the phone). Those who signed up in advance will be called first.
