NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar NARI High Temperature Lightweight Self- Healing Ceramic Composites for Aircraft Engine Applications S. V. Raj 1 (PI), M. Singh 2 and R. Bhatt 2 Glenn Research Center,


slide-1
SLIDE 1

NARI

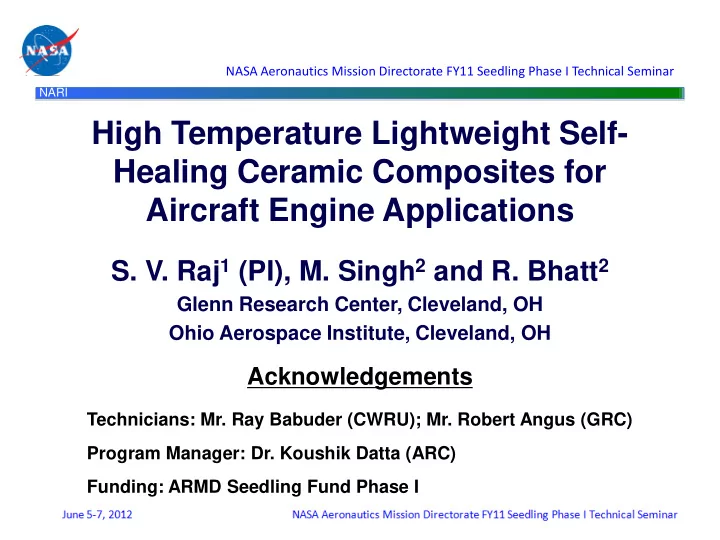

High Temperature Lightweight Self- Healing Ceramic Composites for Aircraft Engine Applications

  • S. V. Raj1 (PI), M. Singh2 and R. Bhatt2

Glenn Research Center, Cleveland, OH Ohio Aerospace Institute, Cleveland, OH

NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar

Acknowledgements

Technicians: Mr. Ray Babuder (CWRU); Mr. Robert Angus (GRC) Program Manager: Dr. Koushik Datta (ARC) Funding: ARMD Seedling Fund Phase I

slide-2
SLIDE 2

NARI

Introduction

  • Advanced aircraft engines require the use of reliable,

lightweight, creep-resistant and environmentally durable materials.

  • Silicon carbide-based ceramic matrix composite (CMC)

technology is being developed to replace nickel-based superalloy blades and vanes.

  • Near term 1589 K (2400 ºF) (cooled).
  • Medium term 1755 K (2700 ºF) (cooled).
  • Long term 1922 K (3000 ºF) (uncooled).

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 2

slide-3
SLIDE 3

NARI

Rule of Mixtures (ROM) Composite Theory

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 3

Pi = Property of the ith component (e.g. strength). Vi = Volume fraction of the ith component .

  • Properties of the composite are determined by the

properties of the fiber and the matrix and their relative volume fractions. P = PfiberVfiber + PmatrixVmatrix Vfiber + Vmatrix = 1

slide-4
SLIDE 4

NARI

Objectives

  • Develop a new class of ceramic composites –

Engineered Matrix Ceramics (EMCs).

  • Design different engineered matrices.
  • Demonstrate thermal strain compatibility with

SiC.

  • Evaluate oxidation and mechanical properties.
  • Fabricate engineered matrix composites.
  • Evaluate self-healing properties.

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 4

slide-5
SLIDE 5

NARI

5

5

SiC Fiber

SiC Fiber

Preform

Reactor

CVI BN

Interface Infiltration

CVI-MI CMC

0/90 Fabric Weaving

CVI Preform

CVI SiC Preform

Slurry Infiltration Si Melt Infiltration

Full CVI CMC

Current SiC/SiC CMC Fabrication Processes

Reactor

CVI SiC

Matrix Infiltration

PIP PIP or CVI- PIP CMC

(courtesy R. Bhatt)

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar

Preform Compression

slide-6
SLIDE 6

NARI

Current Generation of CMCs: Matrix Microstructure

  • Silicon carbide (SiC).
  • Unreacted or free carbon and silicon.
  • Porosity:

~10-25 vol.% for chemical vapor infiltration (CVI). ~10-25 vol.% for polymer infiltration and pyrolysis (PIP). ~3-10 vol.% for Melt Infiltration (MI).

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 6

slide-7
SLIDE 7

NARI

Typical Microstructure of As-Processed BN-Coated Hi-Nicalon MI SiC Composites

Density ~ 96-97 % fiber SiC

10 µm

Si SiC

40 µm

Porosity

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar

(Courtesy M. Singh)

slide-8
SLIDE 8

NARI

Current SiC/SiC CMC Matrix Capabilities

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 8

  • Brittle at all temperatures.
  • No crack tip blunting – fast crack propagation.
  • No self-healing.
  • Oxygen ingress to fibers shortens fiber life.
  • Free Si in the matrix limits temperature usage

to below 1588 K (2400 ºF).

  • Low matrix cracking strength

(proportional limit - 69 MPa/10 ksi)

  • Matrix fills space and provides a

thermally conductive path.

  • Fracture toughness due to crack

bridging and interface debonding.

SiC fibers SiC matrix Crack Interface debonding

slide-9
SLIDE 9

NARI

Recession of BN and Formation of Glassy Phase in BN-Coated Hi-Nicalon MI SiC Composites

T = 973 K; σ = 250 MPa;1000 h in air 2BN (s) + 3/2 O2 (g) = B2O3 (l) +N2 (g) B2O3 - SiO2: Low eutectic temperature of 372 ºC

Glass

5 mm

BN

10 µm

Glass

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar

(Courtesy M. Singh)

slide-10
SLIDE 10

NARI

Important Question

Can the matrix properties be suitably engineered to ensure certain desirable characteristics?

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 10

slide-11
SLIDE 11

NARI

Present Concept

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 11

slide-12
SLIDE 12

NARI

Crack Tip Blunting and Self-Healing

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 12

SiC fibers Engineered matrix Crack Crack blunting due to matrix plasticity slows crack growth SiC fibers Engineered matrix Crack Self-healing of fine cracks minimizes

  • xygen ingress

to fibers

Increased reliability and load carrying capacity

slide-13
SLIDE 13

NARI

Innovation: Desired Characteristics of the Engineered Matrix (EM)

 Thermal strain compatibility of the matrix with the SiC fibers.  Plastically compliant matrix to blunt cracks.  Self-healing crack capabilities to minimize ingress of oxygen.  Minimize the volume fraction of unreacted silicon to prevent corrosive attack of fibers and incipient melting.  Dense matrix to increase thermal conductivity.

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 13

slide-14
SLIDE 14

NARI

Expected Impact of Innovation

  • Matrix plasticity - increased reliability, compliant matrix.
  • Self-healing matrix - prevents or minimizes oxygen ingress.
  • Low free Si - reduces fiber attack, reduces incipient melting,

increased high temperature capability.

  • Dense matrix - High thermal conductivity.

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 14

slide-15
SLIDE 15

NARI

Fabrication and Testing of Engineered Matrix Composites (EMC)

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 15

slide-16
SLIDE 16

NARI

Hot-Pressed Plate and Optical Micrograph

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 16

50 x 50 x 4 mm

Optical micrograph

CrMoSi-EM

slide-17
SLIDE 17

NARI

Proof-of-Concept: Thermal Strains

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 17

slide-18
SLIDE 18

NARI

Optical Macrographs of MoSi2 Engineered Matrix

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 18

Thermally cycled between room temperature and 1500 K (2240 ºF) three times.

  • Thermal cycling resulted in

cracking.

  • No longer considered in the

program.

slide-19
SLIDE 19

NARI

Isothermal Oxidation Behavior

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 19

slide-20
SLIDE 20

NARI

Bend Stress-Strain Curves for CrMoSi-EM

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 20

slide-21
SLIDE 21

NARI

Bend Stress-Strain Curves for CrSi2-EM

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 21

slide-22
SLIDE 22

NARI

Bend Stress-Strain Curves for WSi2-EM

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 22

Catastrophic oxidation occurred during heat-up to 1473 K.

slide-23
SLIDE 23

NARI

23

23

SiC Fiber

SiC Fiber

SiC fiber Preform Fabrication

Reactor

CVI BN

Interface Infiltration

EMC

0/90 Fabric Weaving

CVI Preform

CVI SiC Preform

Engineered Matrix Infiltration Melt Infiltration

Engineered Matrix Composites Fabrication

Reactor

CVI SiC

Matrix Infiltration

(courtesy R. Bhatt)

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar

Fiber coating

slide-24
SLIDE 24

NARI

Microstructures of Particulate-Infiltrated SiC Fiber Preform

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 24

Particulates Coated Preform Fibers tows Voids

slide-25
SLIDE 25

NARI

CT Scans of Particulate Infiltrated Preform

June 5-7, 2012 25

Particulate Infiltrated As-received Preform Area fraction of porosity ~ 0.9% Area fraction of porosity ~ 21-23%

NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar

The red regions are voids

slide-26
SLIDE 26

NARI

Summary and Conclusions

  • Bend, CTE, isothermal oxidation and thermal cycling tests were

conducted on several engineered silicide/SiC/Si3N4 matrices.

  • Two promising engineered matrix compositions were down-selected

for further development.

  • Trials to infiltrate one of these engineered matrices into SiC-coated

fiber preforms have been completed. Microstructural analysis and CT scans demonstrated almost complete infiltration of the preform.

  • Efforts are underway to produce Engineered Matrix Composites

(EMCs) specimens to determine self-healing capabilities.

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 26

slide-27
SLIDE 27

NARI

Summary of Phase I Accomplishments: TRL 2

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 27

Milestone Status Demonstrate thermal strains for engineered matrices match those of SiC. Completed. Generation of matrix properties and down-selection of promising compositions. Completed. Demonstrate high temperature matrix plasticity. Completed. Develop processing techniques for fabricating EMCs. Particulate infiltration trials completed; melt infiltration trials to be completed. Evaluate mechanical properties

  • f EMCs and demonstrate self-

healing capabilities. To be completed.

slide-28
SLIDE 28

NARI

Next Steps

  • Complete tensile tests of monolithic specimens.
  • Particulate and melt infiltrate bend specimens.
  • Mechanical testing of EMC bend specimens.
  • Evaluate self-healing properties in EMCs.
  • Write and submit final report.
  • Submit Phase II proposal.

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 28

slide-29
SLIDE 29

NARI

Distribution and Dissemination

  • Submitted NF 1679 to GRC patent attorney (LEW-

18964-1).

  • Submit papers to journals/NASA TMs after receiving

approvals.

  • Present papers at conferences after receiving

approvals depending on the availability of travel funds.

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 29
