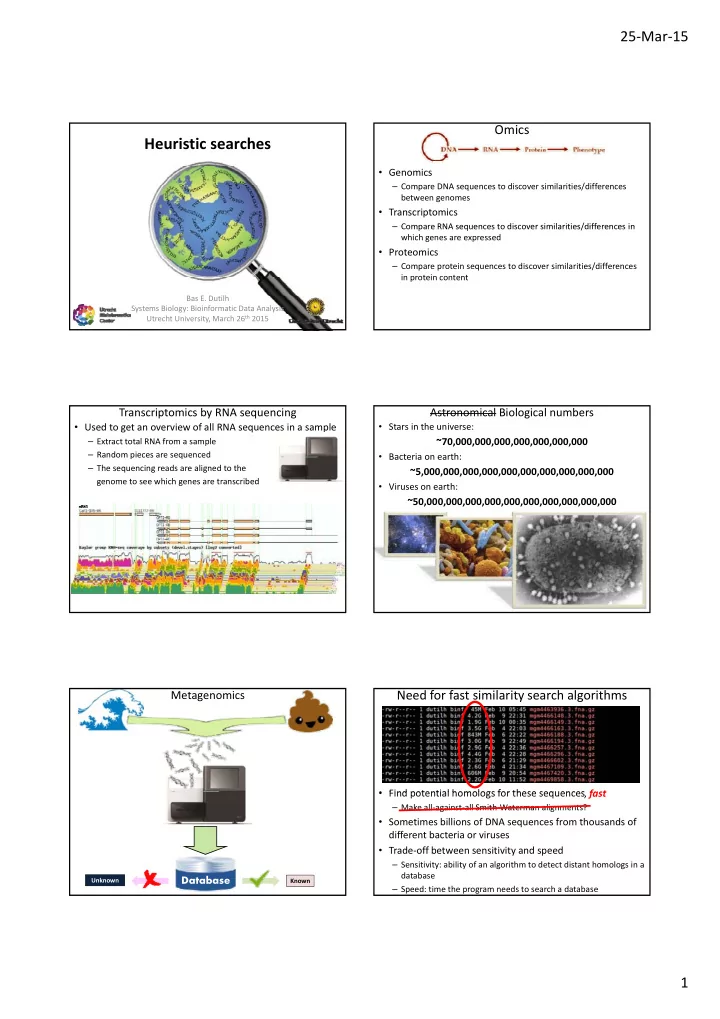

Heuristic searches

Bas E. Dutilh Systems Biology: Bioinformatic Data Analysis Utrecht University, March 26th 2015

Omics

• Genomics

– Compare DNA sequences to discover similarities/differences between genomes

• Transcriptomics

Compare RNA sequences to discover similarities/differences in – Compare RNA sequences to discover similarities/differences in which genes are expressed

• Proteomics

– Compare protein sequences to discover similarities/differences in protein content

Transcriptomics by RNA sequencing

• Used to get an overview of all RNA sequences in a sample

– Extract total RNA from a sample – Random pieces are sequenced – The sequencing reads are aligned to the genome to see which genes are transcribed

Astronomical Biological numbers

• Stars in the universe:

~70,000,000,000,000,000,000,000

• Bacteria on earth:

~5,000,000,000,000,000,000,000,000,000,000

• Viruses on earth:

~50,000,000,000,000,000,000,000,000,000,000

Metagenomics

Database

Known Unknown

Need for fast similarity search algorithms

• Find potential homologs for these sequences fast
• Find potential homologs for these sequences

– Make all‐against‐all Smith‐Waterman alignments?

• Sometimes billions of DNA sequences from thousands of

different bacteria or viruses

• Trade‐off between sensitivity and speed

– Sensitivity: ability of an algorithm to detect distant homologs in a database – Speed: time the program needs to search a database

, fast

25‐Mar‐15 2

k‐mer searches

• k‐mers are “words” consisting of k nucleotides or amino acids

– For k = 5, the amino acid sequence KAWSADV consists of the k‐mers: KAWSA, AWSAD, and WSADV

• Identical words are easy to identify for a computer

– An index of the sequences can be stored in rapidly accessible memory (RAM)

• However, this is not suitable to identify sequences at large

, y q g evolutionary distance (many mutations)

Degeneracy of the genetic code

• Mutations in the 3rd nucleotide of a codon often translate

into the same amino acid (synonymous mutations)

– Discontiguous Megablast searches with spaced words containing two out of every three nucleotides, allowing variations at the third nucleotide of the codon

• Rule of thumb:

– Nucleotide sequences are the least conserved – Protein sequences are more conserved

Sensitivity versus speed

• (Almost) exact hits are easy to identify using fast k‐mer searches

– Not suitable for distant homologs – For example: which genes are expressed in a human cancer?

• Here, the sequences can be matched to the human reference genome
• Highly diverged sequences (distant homologs) require careful,
• ptimal alignment algorithms

– This is slow: many algorithmic steps need to be performed by the central processing unit (CPU) of the computer – For example: which unknown microbes are associated to coral disease?

• Here, the sequences have to be compared with known microbial genomes (distantly related)

Basic Local Alignment Search Tool (BLAST)

• Heuristic search algorithm

– Makes shortcuts that are likely (but not guaranteed) to find the

• ptimal hits
• BLAST finds good potential homologs at reasonable speed

– 10‐50x faster than Smith‐Waterman – More than 100,000 queries per day

• n the NCBI BLAST server
• n the NCBI BLAST server
• Terminology:

– Query: sequence we search the database with – Hit or Subject: similar sequence found in the database

• BLAST is the most used bioinformatics program

– The BLAST article has been cited >54,000 times

BLAST input and output

>p >pro rote tein in_s _seq eque uence_A MTQSSHAVAA FD FDLGA LGAAL ALRQ RQE GL E GLTET TETDY DYSE SEI QR I QRDP DPNR NRAEL AELG TF TFGV GV >p >pro rote tein in_s _seq eque uence_B MLTETDYSEI QR QRRLG RLGRD RDPN PNR AE R AELGM LGMFG FGVM VMN RA N RAEL ELGM GMFGY FGY >p >pro rote tein in_s _seq eque uence_C MHAVAAFDLG AA AALRQ LRQEG EGLT LTE TD E TDYSE YSEIQ IQRR RRL GR L GRAM AMFG FGVMW VMWS EH EHCC CCYR YRNDD NDDA RP RPLL LLRP RPIK IKSP SP F FGAWVVIV

BLAST input (query sequences) BLAST output (hits)

• Identifies potentially high‐scoring words (k‐mers) in the query

– W = 3 for protein, W = 11 for DNA – Based on substitution scores

• Quickly finds similar words in the database

– All words in the database are indexed and stored in RAM, linked to similar “neighborhood words”

The BLAST search algorithm

• Extends seeds in both directions to find HSPs between query and hit

– HSP: region that can be aligned with a score above a certain threshold

25‐Mar‐15 3

BLAST flavors

• Nucleotide‐nucleotide searches

– Nucleotide database, nucleotide query – blastn (default: W = 11 nucleotides)

• Find homologous genes in different species

– Megablast (default: W = 28 nucleotides)

• Designed to efficiently find longer alignments between very similar nucleotide sequences
• Best tool to find highly identical hits for a query sequence
• For example: find sequences from the same species

– Discontiguous Megablast Discontiguous Megablast

• Uses discontiguous words (e.g. W = 11 nucleotides: AT-GT-AC-CG-CG-T)
• For example, this can focus the search on codons (the third nucleotide of codons is less

conserved due to the degeneracy of the genec code → next slide)

• Best tool to find nucleotide‐nucleotide hits at larger evolutionary distances for protein‐

coding query sequences

• Protein‐protein searches

– Protein database, protein query sequences – blastp (default: W = 3 amino acids)

• Find homologous proteins in different species

BLAST flavors: translated searches

• We can exploit the higher

conservation of protein sequences when aligning DNA sequences, by using translated searches

• This allows for more sensitive searches that detect

homology at greater evolutionary distances

– For example: homologous genes in distantly related species – For example: homologous genes in distantly related species

• blastx and tblastx first translate the nucleotide query into

protein before identifying high‐scoring words

• tblastn and tblastx use a database of translated nucleotide

sequences stored as proteins

The alignment bit‐score

• For a given query, we are mostly interested in finding good

hits (highly similar, likely true homologs)

• We could estimate this based on a score derived only from

the alignment like the bit‐score or percent identity

– … but the chance of finding a hit with a high score by random chance increases if you use a larger database – … so we have to correct for that … so we have to correct for that

Expect value (E‐value)

• E‐value: how many times would you expect a hit this good,

by random chance

– Of course, this depends on the alignment score (S), the length of the query sequence (m), and the size of the database (n): – K: constant for search space scaling λ f b i i i i S

Kmne E

 



– λ: constant for substitution matrix correction

Low E‐values are often given as exponents

• In the search below, we expect 10‐149 hits with a score of

≥436 by random chance

– Given the database size and query sequence length we expect

0.00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001

hits by chance (this is not much, so this is a good hit)

Low E‐values are often given as exponents

• In the search below, we expect 9.3 hits with a score of

≥38.9 by random chance

– This is a lot, so this is a bad hit

25‐Mar‐15 4

Distribution of the number of hits found for by random chance in a Large DB

E‐value differs for different databases

• Because the E‐value depends on the size of the DB, the E‐

value for a given query/hit pair is different when the search is done (i.e. the hit is found) in a different DB

More hits expected by random chance in Large DB

5=

Fewer hits expected by random chance in Small DB

Distribution of the number of hits found by random chance in a Small DB

What is a good E‐value?

• This is very difficult to say!
• But as a rule of thumb:

– E‐value <10‐6 for nucleotide blast (blastn, megablast) are good – E‐value <10‐3 for protein blast (blastp, blastx) are good

• If you want to be very sure that your query and hit

sequences are homologs, you should only trust extremely low E‐values

• … but sometimes you really have no other information

about a protein, except a distant homolog with a very bad (= high, like 0.1) E‐value

Weighing the conservation of a position in a search

• If you want to sensitively detect

distant homologs in a search, it helps

...atG AA AT TT C ac... ...ccG AA GT TT C tg... ...agG AA AA TT C aa... tG AA AT TT C

to give conserved positions more weight than non‐conserved positions

• A sequence profile contains this

information

– But how to get a sequence profile when you start with only one query sequence?

...gtG AA AT TT C cg... ...caG AA AT TT C tc... ...tgG AA AT TT C gt...

A 2 1 0 6 6 5 1 0 0 0 2 1 C 2 1 0 0 0 0 0 0 0 6 1 2 G 1 2 6 0 0 1 0 0 0 0 1 2 T 1 2 0 0 0 0 5 6 6 0 2 1

BLAST flavors: profile searches

• Position‐Specific Iterated BLAST (PSI‐BLAST) algorithm

1. Perform initial BLAST search with a query sequence 2. Use the database hits to construct a sequence profile

• (This is also called a position specific scoring matrix, or PSSM)

3. Search database with this sequence profile instead of with the

• riginal query sequence

4. Iterate steps 2‐3

Iterate

Low‐complexity regions

• Low‐complexity regions occur in DNA and protein sequences

– In DNA they can be cause and effect of recombination errors – In proteins they may be functional – In some cases they are used to allow for rapid evolution

• For example in the shematrin protein in pearl oyster shells (see Figure)
• They make sequence alignments and database searches difficult!

– Before performing a similarity search, low‐complexity regions are often masked in the query so that they cannot contribute to the alignment score – This prevents identifying spurious hits

Low‐complexity regions in the output

• Lower case letters in the output show low‐complexity

sequence fragments that were ignored in the search

25‐Mar‐15 5

Which database to use?

• General databases

– nr: the Genbank non‐redundant protein database

• Non‐redundant refers to the identifiers, not to the sequences

– nt: the Genbank non‐redundant nucleotide database

• Non‐redundant refers to the identifiers, not to the sequences

– RefSeq: NCBI’s Reference Sequences

• Curated database, contains only non‐redundant sequences
• Includes genomic DNA transcripts (RNA) and proteins

Includes genomic DNA, transcripts (RNA), and proteins

• Specific databases

– SILVA: ribosomal RNA sequences

• SSU rRNA is a taxonomic marker gene
• Universal in all cellular organisms (… so not in viruses!)

– KEGG: Kyoto Encyclopedia of Genes and Genomes

• Database of enzymes in metabolic pathways
