HARDSPLOIT Framework for Hardware Security Audit a bridge between hardware & a so0ware pentester Who am I ? Julien Moinard - Electronic engineer @opale-security (French company) - Security consultant, Hardware & SoDware pentester -

slide-1
SLIDE 1

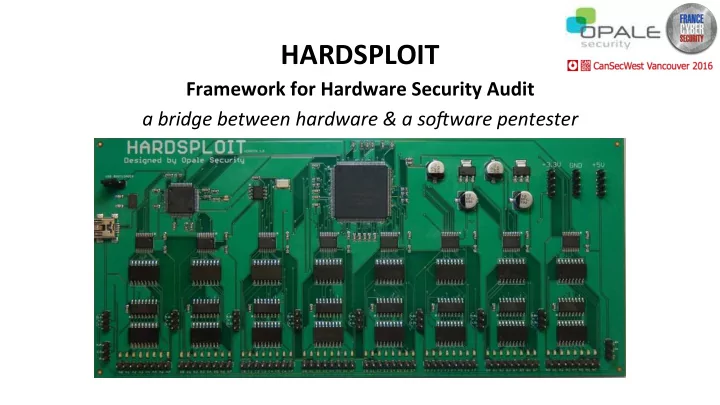

HARDSPLOIT

Framework for Hardware Security Audit a bridge between hardware & a so0ware pentester

slide-2
SLIDE 2

Who am I ?

  • Julien Moinard
  • Electronic engineer @opale-security (French company)
  • Security consultant, Hardware & SoDware pentester
  • Team project leader of Hardsploit
  • DIY enthusiast

16/03/2016

2

slide-3
SLIDE 3

Opale Security in 1 slide

16/03/2016

3

slide-4
SLIDE 4

Internet of Things & Privacy concern ?

  • Any IoT object could reveal informa@on about

individuals

  • Wearable Technology: clothes, watches, contact

lenses with sensors, microphones with cameras embedded and so on

  • Quan@fied Self: pedometers, sleep monitors, and so
  • n
  • Home Automa@on: connected households using smart

fridges, smart ligh<ng and smart security systems, and so on

  • …

16/03/2016

4

slide-5
SLIDE 5

Internet of Things & Privacy concern ?

  • Last news : (you can update this slide every week L)

Firmware can be read without any problem (SPI memory) VTech was hacked in November, exposing millions of accounts. In response, the firm took some essen<al services offline, meaning products could not be registered on Christmas Day. 16/03/2016

5

slide-6
SLIDE 6

Iot Eco-system (20000 feet view)

  • Privacy Risk level : Where?

HF communica<on (ISM Band) + Wifi + 3G-5G , Bluetooth, Sigfox, Lora etc.. Classical wired connec<ons Central servers, User Interface, API, Backoffice etc. IoT devices 16/03/2016

6

slide-7
SLIDE 7

SOFTWARE To secure it:

  • Security products (Firewall, An<virus, IDS,…)
  • Security services (Pentest, Audit, …)
  • Tools (Uncountable number of them)

HARDWARE To secure it:

  • Few or unimplemented solu<ons (Encryp<on

with key in a secure area, an<-replay mechanisms, readout protec<on, …)

Security speaking, hardware is the new soDware ?

16/03/2016

7

slide-8
SLIDE 8
  • 1/ Open it
  • 2/ Fingerprint all the component if you can else automa@c brute forcing
  • 3/ Use those that may contain data (Online / Offline analysis ?)
  • 4/ Perform read | write opera@on on them
  • 5/ Reverse engineering, find vulnerabili<es and exploit them

Hardsploit & hardware hacking basic procedure

16/03/2016

8

slide-9
SLIDE 9

Global Purpose

16/03/2016

9

slide-10
SLIDE 10

Why ?

  • Because chips contain interes<ng / private data
  • Passwords
  • File systems
  • Firmware
  • …

16/03/2016

10

slide-11
SLIDE 11

How ?

  • A hardware pentester need to know electronic buses and he need to be

able to interact with them 1-Wire JTAG / SWD UART CAN PARALLEL Custom

16/03/2016

11

slide-12
SLIDE 12

Hardsploit framework

Same hardware but a sofware update is needed to add a new protocols

Hardsploit IoT target Input / Output database Module (SWD, SMBus, I2C, SPI, etc..)

16/03/2016

12

slide-13
SLIDE 13

Hardsploit bus indenSficaSon & scanner

(in progress, not published yet)

Hardsploit IoT target Input / Output Database of pagerns Database of components Module (I2C, SPI, etc..) IO hardware mixer

Scanner 16/03/2016

13

slide-14
SLIDE 14

Tool of trade

FUNCTIONALITIES BUSPIRATE JTAGULATOR GOODFET HARDSPLOIT UART Bus iden<fica<on SPI PARALLEL I2C JTAG / SWD

Bus iden<fica<on

MODULARITY Microcontroller Microcontroller Microcontroller uC / FPGA EASE OF USE

Cmd line + datasheet Command line Command line Official GUI / API / DB

I/O NUMBER < 10 24 < 14 64 (plus power) WIRING TEXT (but MOSI = SDA J) TEXT / AUTOMATIC iden<fica<on TEXT LED / TEXT/ AUTOMATIC iden<fica<on 16/03/2016

14

slide-15
SLIDE 15

Hardsploit: CommunicaSon

16/03/2016

15

slide-16
SLIDE 16

Prototype making

  • Applying soldering paste (low budget style)

16/03/2016

16

slide-17
SLIDE 17

Prototype making

  • Manual reflow oven (DIY style)

16/03/2016

17

slide-18
SLIDE 18

Prototype V0.1 aka The Green Goblin J

16/03/2016

18

slide-19
SLIDE 19

Prototype making (with a budget)

  • The rebirth

16/03/2016

19

slide-20
SLIDE 20

The board – Final version

  • 64 I/O channels
  • ESD Protec<on
  • Target voltage: 3.3 & 5V
  • Use a Cyclone II FPGA
  • USB 2.0
  • 20cm x 9cm

16/03/2016

20

slide-21
SLIDE 21

Hardsploit organizaSon

16/03/2016

21

slide-22
SLIDE 22

Chip management

  • Search
  • Create
  • Modify
  • Interact

16/03/2016

22

slide-23
SLIDE 23

Wiring helper

Datasheet representa<on Hardsploit Wiring module representa<on GUI <–> Board interac<on 16/03/2016

23

slide-24
SLIDE 24

Se[ngs

16/03/2016

24

slide-25
SLIDE 25

Command editor

16/03/2016

25

slide-26
SLIDE 26

What are available on github (Open) ?

  • Microcontroller (c)
  • API (ruby)
  • GUI (ruby)
  • Create your own Hardsploit module : VHDL & API (ruby)

16/03/2016

26

slide-27
SLIDE 27

Already available (github)

Parallel non mul<plexed memory dump

  • 32 bits for address
  • 8/16 bits for data

Helping wiring I2C 100Khz 400Khz and 1 Mhz

  • Addresses scan
  • Read, write, automa<c full and par<al dump

SPI mode 0,1,2,3 up to 25 Mhz

  • Read, write, automa<c full and par<al dump

SWD interface (like JTAG but for ARM core)

  • Dump and write firmware of most ARM CPU

GPIO interact / bitbanging (API only for the moment)

  • Low speed < 500Hz read & write opera<ons on 64 bits

16/03/2016

27

slide-28
SLIDE 28

More to come (see online roadmap)…

  • Automa<c bus inden<fica<on & Scanner (@30%)
  • Component & commands sharing platorm (@90%)
  • TTL UART Module with automa<c detec<on speed (@80%)
  • Parallel communica<on with mul<plexed memory
  • I2C sniffing (shot of 4000 bytes up to 1 Mhz)
  • SPI sniffing (shot of 8000 / 4000 byte half / full up to 25Mhz)
  • RF Wireless transmission training plateform (Nordic NRF24, 433Mhz, 868Mhz transcievers)
  • Metasploit integra<on (module) ??
  • JTAG
  • 1 Wire
  • CanBUS (with hardware level adapter)
  • …

16/03/2016

28

slide-29
SLIDE 29

Concrete case

  • An electronic lock system
  • 4 characters pin code A – B – C – D
  • Good combinaison – Door opens, green L.E.D turn on
  • Wrong combinaison – Door closes, red L.E.D turn on

16/03/2016

29

slide-30
SLIDE 30

Concrete case: Open it

16/03/2016

30

slide-31
SLIDE 31

Concrete case: Fingerprint

I2C MEMORIES 24LC64 STM32F103RBT6 SPI MEMORY 25LC08

16/03/2016

31

slide-32
SLIDE 32

Concrete case: Online / Offline analysis ?

16/03/2016

32

slide-33
SLIDE 33

Concrete case: hardsploit scenario

  • 1. Open Hardsploit to create the component (if not exist)
  • 2. Connect the component to Hardsploit (wiring helping)
  • 3. Enter and save the component seungs (if not exist)
  • 4. Dump the content of the memories (1 click)
  • 5. Change the door password by using commands (few clicks)
  • 6. Try the new password on the lock system (enjoy)

16/03/2016

33

slide-34
SLIDE 34

Concrete case: Read | Write operaSon, I2C, SPI, SWD …

  • Time for a live demo ?

16/03/2016

34

slide-35
SLIDE 35

Parallel bus memory

16/03/2016

35

slide-36
SLIDE 36

Concrete case: Fingerprint

16/03/2016

36

slide-37
SLIDE 37

Concrete case: Offline analysis

16/03/2016

37

slide-38
SLIDE 38

Concrete case: Ready to dump the content

16/03/2016

38

slide-39
SLIDE 39

Conclusion

  • IoT Device are (also) prone to vulnerabili<es help you to find them
  • Security policy need to be adpated, nowadays, it is not so difficult to

extract data on IoT

  • Designers need to design with security in mind
  • Skills related to pentest a hardware device is mandatory for Security

Experts (but training exist)

  • Industry need to take care about device security

16/03/2016

39

slide-40
SLIDE 40

Thank you !

Hardsploit board is available at shop-hardsploit.com (250 € / 277 USD / 370 CAD excluding VAT) To learn more about Hardsploit and follow the development

Hardsploit.io & Opale-Security.com

  • Yann ALLAIN (CEO)
  • yann.allain@opale-security.com
  • +33 6 45 45 33 81

Hardware & Sofware, Pentest, Audit, Training

  • Julien MOINARD (Project leader of Hardsploit)
  • julien.moinard@opale-security.com
  • +33 9 72 43 87 07

16/03/2016

40
