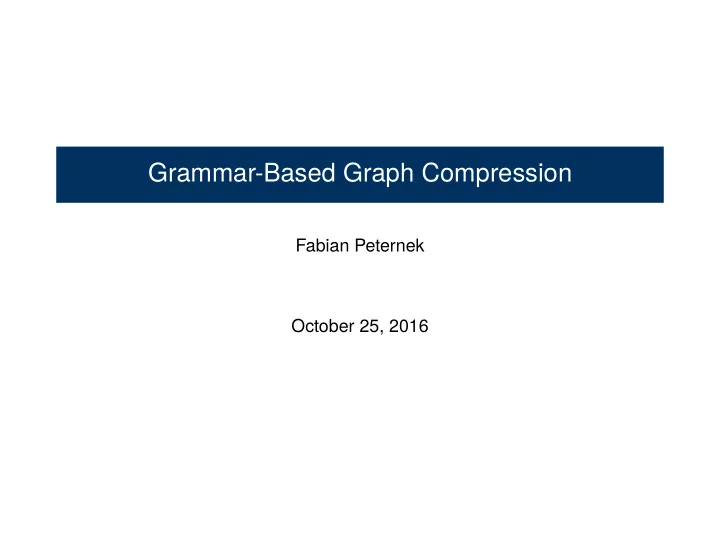

Grammar-Based Graph Compression

Fabian Peternek October 25, 2016

slide-2
SLIDE 2

Use of Grammar-Based Compression: Speed-up Algorithms

Some queries can be answered in polynomial time on a grammar, e.g., Strings

◮ Equality

(O(n2 log∗ n), see also [Lohrey, 2012])

◮ NFA membership

(O(n|A|3), [Plandowski and Rytter, 1999])

◮ Pattern matching

(O(n2 log n), [Jez, 2012]) Trees

◮ Equality

(PTIME, [Busatto, Maneth, Lohrey, 2008])

◮ TA membership

(PTIME, [Lohrey, Maneth, Schmidt-Schauß, 2012])

◮ Isomorphism

(PTIME, [Lohrey, Maneth, P, 2015]) Speed-up proportional to compression ratio

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 2 / 28

slide-3
SLIDE 3

Use of Grammar-Based Compression: Speed-up Algorithms

Some queries can be answered in polynomial time on a grammar, e.g., Strings

◮ Equality

(O(n2 log∗ n), see also [Lohrey, 2012])

◮ NFA membership

(O(n|A|3), [Plandowski and Rytter, 1999])

◮ Pattern matching

(O(n2 log n), [Jez, 2012]) Trees

◮ Equality

(PTIME, [Busatto, Maneth, Lohrey, 2008])

◮ TA membership

(PTIME, [Lohrey, Maneth, Schmidt-Schauß, 2012])

◮ Isomorphism

(PTIME, [Lohrey, Maneth, P, 2015]) Speed-up proportional to compression ratio For graph grammars?

◮ Reachability

(O(|G|), [Maneth and P, 2016])

◮ Regular Path Queries

(O(|G||A|), [Maneth and P, 2016])

◮ Others?

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 2 / 28

slide-4
SLIDE 4

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-5
SLIDE 5

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

abcabcabc

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-6
SLIDE 6

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-7
SLIDE 7

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-8
SLIDE 8

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

1 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-9
SLIDE 9

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

1 times

b c

1 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-10
SLIDE 10

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

1 times

b c

1 times

c a

1 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-11
SLIDE 11

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

2 times

b c

1 times

c a

1 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-12
SLIDE 12

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

2 times

b c

2 times

c a

1 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-13
SLIDE 13

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

2 times

b c

2 times

c a

2 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-14
SLIDE 14

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

3 times

b c

2 times

c a

2 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-15
SLIDE 15

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

3 times

b c

3 times

c a

2 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-16
SLIDE 16

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

a b c a b c a b c

Digrams:

a b

3 times

b c

3 times

c a

2 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-17
SLIDE 17

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

c a b c a b c

Digrams:

a b

2 times

b c

2 times

c a

2 times

A

A →

a b A c

1 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-18
SLIDE 18

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

c c a b c

Digrams:

a b

1 times

b c

1 times

c a

1 times

A A

A →

a b A c

2 times

c A

1 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-19
SLIDE 19

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

c c c A A A

A →

a b A c

3 times

c A

2 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-20
SLIDE 20

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

c c c A A A

A →

1 2 a b A c

3 times

c A

2 times

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-21
SLIDE 21

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

c c A A B

A →

1 2 a b A c

2 times

c A

1 times B →

1 2 a b

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-22
SLIDE 22

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

c A B B

A →

1 2 a b A c

1 times B →

1 2 a b

  • F. Peternek

Grammar-Based Graph Compression October 25, 2016 3 / 28

slide-23
SLIDE 23

Computing Small Grammars

Finding a smallest grammar is NP-complete [Charikar et al., 2005].

⇒ Approximations

One Approximation: RePair compression for Strings

B B B

A →

1 2 a b

B →

1 2 a b

Size: Original string: 9 edges, 10 nodes Grammar: 7 edges, 10 nodes
