GNU Emacs for All Sachin Patil (psachin) Red Hat EmacsConf 2019 - - PowerPoint PPT Presentation

Dec 12, 2023 471 likes •797 views

GNU Emacs for All Sachin Patil (psachin) Red Hat EmacsConf 2019 Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 1 / 32 ERC config: User configuration (setq erc-user-full-name user-full-name erc-nick user-login-name

slide-1

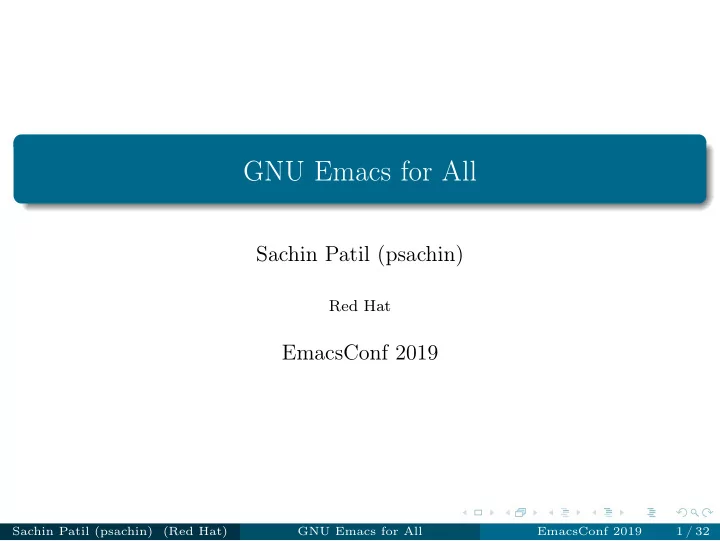

SLIDE 1

GNU Emacs for All

Sachin Patil (psachin)

Red Hat

EmacsConf 2019

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 1 / 32

slide-2
SLIDE 2

ERC config: User configuration

(setq erc-user-full-name user-full-name erc-nick user-login-name erc-keywords (quote("training" "swift" "emacs")) erc-current-nick-highlight-type 'all erc-notify-list erc-pals erc-autojoin-enable t erc-autojoin-channels-alist

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 2 / 32

slide-3
SLIDE 3

ERC config: Channels

... erc-autojoin-enable t erc-autojoin-channels-alist (quote (("oftc" "#tor" "#kernelnewbies" "#kernel-outreachy") ("freenode.net" "#emacs" "#emacs-beginners" "#linuxjournal") ("GIMPNet" "#outreachy")))

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 3 / 32

slide-4
SLIDE 4

ERC config: Modules

erc-modules (quote (autojoin smiley notify))

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 4 / 32

slide-5
SLIDE 5

ERC config: Logging

;; Logging erc-enable-logging t erc-log-mode t erc-log-channels-directory "~/.erc/logs/" ;; Timestamp position erc-insert-timestamp-function 'erc-insert-timestamp-left ;; Show channel name in the notification. ;; Please apply: https://gitlab.com/snippets/1790218 erc-notifications-show-channel t)

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 5 / 32

slide-6
SLIDE 6

ERC config: Extra config

;; Turn off linum for ERC buffer (defun psachin/turn-off-linum () "Turn off linum for ERC buffers." (interactive) (display-line-numbers-mode 0)) (add-hook 'erc-mode-hook 'psachin/turn-off-linum)

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 6 / 32

slide-7
SLIDE 7

ERC config: Start server

(defun erc-start() "Start ERC." (interactive) (erc :server "irc.freenode.net") (erc :server "irc.oftc.net") (erc :server "irc.gnome.org")) https://gitlab.com/psachin/emacs.d/blob/master/irc.org

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 7 / 32

slide-8
SLIDE 8

Documents: L

AT

EX

Figure: L

AT

EX Document

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 8 / 32

slide-9
SLIDE 9

Documents: Image

Figure: Logo

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 9 / 32

slide-10
SLIDE 10

Documents: Table

Table: Swift Partition table

Replica # 3 Replica # 2 Replica # 11 Partition # 1 D #2 D #3 D #4 Partition # 2 D #3 D #4 D #5 Partition # 3 D #4 D #5 D #6 Partition # 4 D #5 D #6 D #7 Partition # 5 D #6 D #7 D #8 Partition # 6 D #7 D #8 D #1 Partition # 7 D #8 D #1 D #2 Partition # 8 D #1 D #2 D #3

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 10 / 32

slide-11
SLIDE 11

Documents: Source code

#+BEGIN_SRC python -n import os def foo(os): pass #+END_SRC

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 11 / 32

slide-12
SLIDE 12

Documents: Flow diagram(ditaa)

. +--------+ +-------+ +-------+ . | | --+ ditaa +--> | | . | Text | +-------+ |diagram| . |Document| |!magic!| | | . | {d}| | cFF3 | | cGRE | . +---+----+ +-------+ +-------+ . : ^ . | Lots of work | . +-------------------------+

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 12 / 32

slide-13
SLIDE 13

Documents: Flow diagram(ditaa)

Figure: Image imported using ditaa

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 13 / 32

slide-14
SLIDE 14

Trello

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 14 / 32

slide-15
SLIDE 15
  • rg-trello

http://org-trello.github.io/trello-setup.html Example: ;; ~/.emacs.d/.trello/USERNAME.el (setq org-trello-consumer-key "abc..."

  • rg-trello-access-token "def...")

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 15 / 32

slide-16
SLIDE 16

Connect to the Trello board

(use-package org-trello :ensure t :config (custom-set-variables '(org-trello-files '("~/trello/myboard.org"))))

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 16 / 32

slide-17
SLIDE 17

Presentation: L

AT

EX Beamer

Figure: Beamer Presentation

https://opensource.com/article/18/4/ how-create-latex-documents-emacs

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 17 / 32

slide-18
SLIDE 18

Presentation: Reveal.js

https://github.com/yjwen/org-reveal https://opensource.com/article/18/2/ how-create-slides-emacs-org-mode-and-revealjs

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 18 / 32

slide-19
SLIDE 19

Presentation: org-tree-slide

https://github.com/takaxp/org-tree-slide

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 19 / 32

slide-20
SLIDE 20

Version control: magit

https://magit.vc/ https://opensource.com/article/19/1/how-use-magit

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 20 / 32

slide-21
SLIDE 21

Version control: git-timemachine

https://gitlab.com/pidu/git-timemachine

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 21 / 32

slide-22
SLIDE 22

Agenda: org-agenda

(setq org-agenda-files '("~/agenda/work/work.org" "~/agenda/todo/read.org" "~/agenda/todo/todo.org"))

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 22 / 32

slide-23
SLIDE 23

Agenda: org-agenda

(setq org-capture-templates '(("t" "Todo" entry (file+headline "~/agenda/todo/todo.org" "Tasks") "* TODO %i%?\n %U\n %a") ("n" "Notes" entry (file+headline "~/agenda/notes.org" "Notes") "* %A%?\n %U") ("i" "Insights" entry (file+headline "~/agenda/work/work.org" "Insights") "* %u%?")))

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 23 / 32

slide-24
SLIDE 24

Agenda: org-agenda

https: //gitlab.com/psachin/emacs.d/blob/master/mytime.org https://emacs.cafe/emacs/orgmode/gtd/2017/06/30/

  • rgmode-gtd.html

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 24 / 32

slide-25
SLIDE 25

The Diary file

Friday 20:10 to 20:30 Meeting with Rey 21:30 to 24:30 FSF IRC meeting

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 25 / 32

slide-26
SLIDE 26

Desktop Notification

https: //psachin.gitlab.io/emacs_diary_desktop_notification.html

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 26 / 32

slide-27
SLIDE 27

System

Man pages: M-x man Terminal: M-x eshell File browser: Dired mode grep: M-x grep

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 27 / 32

slide-28
SLIDE 28

Blogging: org-jekyll

https://orgmode.org/worg/org-tutorials/org-jekyll.html

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 28 / 32

slide-29
SLIDE 29
  • rg-publish

(require 'ox-publish) (setq org-publish-project-alist '( ;; ... add all the components here (see below)... )) https://orgmode.org/worg/org-tutorials/

  • rg-publish-html-tutorial.html

https://gitlab.com/psachin/psachin.gitlab.io/blob/ master/publish.el

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 29 / 32

slide-30
SLIDE 30

Games

M-x snake M-x tetris M-x doctor . . .

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 30 / 32

slide-31
SLIDE 31

Programming?

Support to all major programming languages Syntax coloring etc.

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 31 / 32

slide-32
SLIDE 32

Thank You

Questions? https://psachin.gitlab.io psachin@redhat.com Made with Love, GNU Emacs & Orgmode

Sachin Patil (psachin) (Red Hat) GNU Emacs for All EmacsConf 2019 32 / 32
