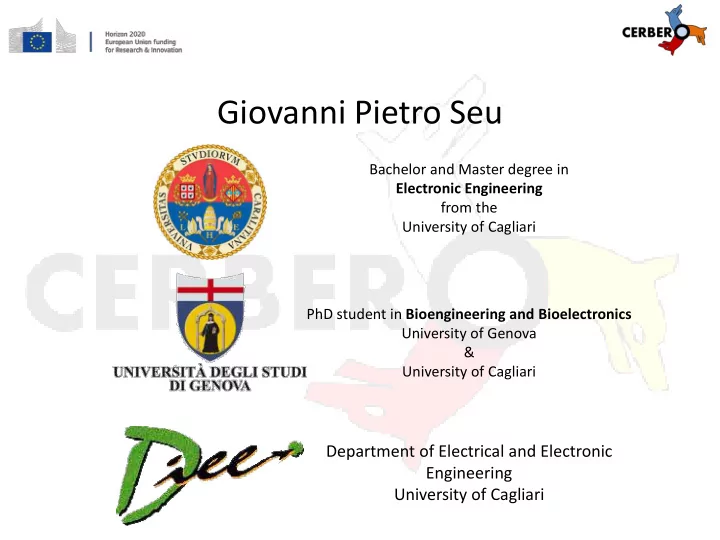

Giovanni Pietro Seu

Bachelor and Master degree in Electronic Engineering from the University of Cagliari PhD student in Bioengineering and Bioelectronics University of Genova & University of Cagliari

Department of Electrical and Electronic Engineering University of Cagliari

SLIDE 2

Design of a Closed-loop System for Neural Networks Analysis through High Density MEAs

Department of Neuroscience and Brain Technologies Istituto Italiano di Tecnologia

SLIDE 3

Design a new elaboration tool for neuroscience studies:

Biological Neural Networks analysis
Exploiting High-Density Microelectrode Arrays (HDMEAs
Focus on acquisition-stimulation closed loop application

Data Stimuli Elaboration System

Objective:

SLIDE 4

RAW data Filtered data Spike detected BPF Spike Detection

Application description:

Extract fast action potential components Amplitude threshold to detect peaks

SLIDE 5

Proposed closed-loop system:

Data (CameraLink) Stimuli (TTL)

[1] “3Brain BioCam X,” http://www.3brain.com/biocam-system, accessed: 2017-02-07. [2] “Zynq-7000 all programmable soc,” http://www.xilinx.com/products/silicon-devices/soc/zynq-7000.html, accessed: 2017-02-07. [3] “3Brain BrainWave X,” http://www.3brain.com/biocam-system, accessed: 2017-02-07.

Data (CameraLink)

[1] [2] [3]

SLIDE 6

Prototype:

SLIDE 7

Analysis of neural activity in a mouse retina Detected spikes from 4 different channels at run-time

Prototype: Real Spikes

SLIDE 8

G. P. Seu, G. N. Angotzi, G. Tuveri, L. Raffo, L. Berdondini, A. Maccione, and P. Meloni, “On-FPGA

real-time processing of biological signals from high-density MEAs: a design space exploration,” in 2017 IEEE International Parallel and Distributed Processing Symposium Workshops (IPDPSW), May 2017, pp. 175–183. URL:http://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=7965040&isnumber=7965008

G. P. Seu, G. N. Angotzi, G. Tuveri, L. Raffo, L. Berdondini, A. Maccione, and P. Meloni, “A closed-

loop system for neural networks analysis through high density MEAs,” in 2017 13th Conference

n Ph.D. Research in Microelectronics and Electronics (PRIME), June 2017, pp. 321–324. URL:

http://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=7974172&isnumber=7974086
