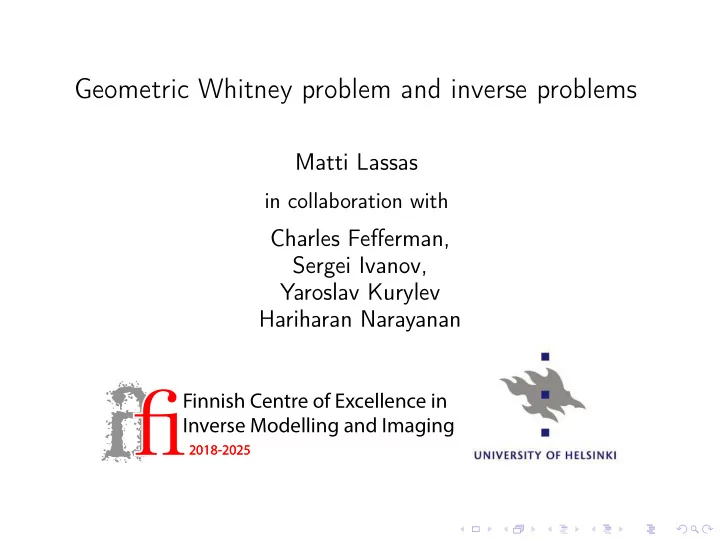

Geometric Whitney problem and inverse problems

Matti Lassas

in collaboration with

Charles Fefferman, Sergei Ivanov, Yaroslav Kurylev Hariharan Narayanan

Finnish Centre of Excellence in Inverse Modelling and Imaging

2018-2025 2018-2025

Outline:

◮ Classical and geometric Whitney problems ◮ Surface interpolation ◮ Riemannian manifolds in inverse problems and other

applications

◮ Manifold interpolation: Construction of a manifold from

distances with small errors

◮ Learning a manifold from distances with large random noise

Whitney problem with errors

Let K ⊂ Rn be an arbitrary set, h : K → R, m ∈ Z+, and ε > 0. Does there exists a function F ∈ C m(Rn) such that sup

x∈K

|F(x) − h(x)| ≤ ε ? If such extension F exists, what is its optimal C m-norm?

Problem A: Construction of a surface in Rd from a point cloud.

Assume that we are given a set X ⊂ Rd and n < d. When one can construct a smooth n-dimensional surface M ⊂ Rd that approximates X? How can the surface M can be constructed when X is given? Figures by Matlab and M. Rouhani.

Problem B: Construction of a manifold from a discrete metric space.

Let (X, dX) be a metric space. We ask when there exists a Riemannian manifold (M, g) such that

◮ the curvature and injectivity radius of M are bounded, and ◮ X approximates well M in the Gromov-Hausdorff topology.

How can the manifold (M, g) be constructed when X is given?

Unsolved extension problems

In the above problems a neighbourhood of the data points “covers” the whole manifold M (there are no holes). The following extension problem for metric space is unsolved: Let (X, dX) be a metric space. Is there a Riemannian manifold (M, g) such that X can be embedded isometricly in M? A special case is the boundary rigidity problem: Let ∂M be the boundary of a compact manifold and f : ∂M × ∂M → R. When we can construct a Riemannian metric g on M such that dist(M,g)(y1, y2) = f (y1, y2) for all y1, y2 ∈ ∂M?

Example: Imaging of the interior of the Earth

Let M ⊂ R3 and

• Fig. by Bozdag and Pugmire,

dg(x, y) = travel time of waves from x to y, x, y ∈ M. Inverse problem: Can we determine the metric g in M when we know dg(z1, z2) for z1, z2 ∈ ∂M, that is, the travel times of the earthquakes between the points on the surface of the Earth? When g = c(x)−2δjk and c(x) is close to 1, these data determine g uniquely (Burago-Ivanov 2010).

Outline:

◮ Classical and geometric Whitney problems ◮ Surface interpolation ◮ Riemannian manifolds in inverse problems and other

applications

◮ Manifold interpolation: Construction of a manifold from

distances with small errors

◮ Learning a manifold from distances with large random noise

Example: Manifold learning from point cloud data

Consider a data set X = {xj}N

j=1 ⊂ Rd.

The ISOMAP face data set contains N = 2370 images of faces with d = 2914 pixels. Question: Define dX (xj, xk) = |xj − xk|Rd using the Euclidean

• distance. Can we find a submanifold of Rd that approximates X?

Distance of two subsets

For a metric space Y and A ⊂ Y , the ε-neighborhood Uε(A) of A is Uε(A) = {y ∈ Y ; d(y, A) < ε}, ε > 0. We say that A is ε-dense in Y if Uε(A) = Y . For a metric space Y and sets A, B ⊂ Y , the Hausdorff distance between A and B in Y is dH(A, B) = max

• sup

x∈A

d(x, B), sup

y∈B

d(y, A)

• .

Let E = Rd and BE

r (x) be the ball in E with center x and radius r.

Definition Let X ⊂ E, n ∈ Z+, and r, δ > 0. We say that X is δ-close to n-flats at scale r if for any x ∈ X, there exists an n-dimensional affine space Ax ⊂ E through x such that dH

• X ∩ BE

r (x), Ax ∩ BE r (x)

• ≤ δ.

Note: A bounded smooth n-surface in Rd is (Cr2)-close to n-flats in scale r.

Surface interpolation

Theorem Let E be a separable Hilbert space, n ∈ Z+, r > 0, and δ < δ0(r, n). Suppose that X ⊂ E is δ-close to n-flats at scale r. Then there exists a closed (or complete) n-dimensional smooth submanifold M ⊂ E such that:

• 1. dH(X, M) ≤ 5δ.
• 2. The second fundamental form of M at every point is bounded

by Cnδr−2.

• 3. The normal injectivity radius of M is at least r/3.

In particular, if δ < Cr2, the surface M has bounded curvature.

Algorithm SurfaceInterpolation: We consider the case r = 1 and assume that X ⊂ E = Rd is finite. We suppose that X is δ-close to n-flats at scale r. We implement the following steps:

• 1. Construct a maximal

1 100-separated set X0 = {qi}k i=1 ⊂ X.

• 2. For every point qi ∈ X0, let Ai ⊂ E be an affine subspace that

approximates X ∩ B1(qi) near qi. Let Pi : E → E be

• rthogonal projectors onto Ai.
• 3. Let ψ ∈ C ∞

0 ([− 1 2, 1 2]) be 1 in [0, 1 3] and ϕi : E → E be

ϕi(x) = µi(x)Pi(x) + (1 − µi(x))x, µi(x) = ψ(|x − qi|). Define f : E → E by f = ϕk ◦ ϕk−1 ◦ . . . ◦ ϕ1.

• 4. Construct the image M = f (Uδ(X)).

The output is the n-dimensional surface M ⊂ E.

Outline:

◮ Classical and geometric Whitney problems ◮ Surface interpolation ◮ Riemannian manifolds in inverse problems and other

applications

◮ Manifold interpolation: Construction of a manifold from

distances with small errors

◮ Learning a manifold from distances with large random noise

Some earlier methods for manifold learning

Let {xj}J

j=1 ⊂ Rd be points on submanifold M ⊂ Rd, d > n. ◮ ‘Multi Dimensional Scaling’ (MDS) finds an embedding of

data points into Rm, n < m < d by minimising a cost function min

y1,...,yJ∈Rm J

• j,k=1
• yj − ykRm − djk
• 2

, djk = xj − xkRd

◮ ‘Isomap’ makes a graph of the K nearest neighbours and

computes graph distances dG

jk that approximate distances

dM(xj, xk) along the surface. Then MDS is applied. Note that if there is F : M → Rm such that |F(x) − F(x′)| = dM(x, x′), then the curvature of M is zero.

Figure by Tenenbaum et al., Science 2000

Construction of a manifold from discrete data.

Let (X, dX ) be a (discrete) metric space. We want to approximate it by a Riemannian manifold (M∗, g∗) so that

◮ (X, dX ) and (M∗, dg∗) are almost isometric, ◮ the curvature and the injectivity radius of M∗ are bounded.

Note that X is an “abstract metric space” and not a set of points in Rd, and we want to learn the intrinsic metric of the manifold.

Distance of two metric spaces

Let (X, dX) and (Y , dY ) be (compact) metric spaces. Their Gromov-Hausdorff distance is dGH(X, Y ) = inf

Z {dH(X, Y ); (Z, dZ) is a metric space, X ⊂ Z, Y ⊂ Z}.

More practical definition: dGH(X, Y ) is the infimum of all ε > 0 for which there are ε-dense sequences (xj)J

j=1 ⊂ X and (yj)J j=1 ⊂ Y

such that |dX(xj, xk) − dY (yj, yk)| ≤ ε, for all j, k = 1, 2 . . . , J.

Example 1: Non-Euclidean metric in data sets

Consider a data set X = {xj}N

j=1 ⊂ Rd.

The ISOMAP face data set contains N = 2370 images of faces with d = 2914 pixels. Question: Define dX (xj, xk) using Wasserstein distance related to

• ptimal transport. Does (X, dX ) approximate a manifold and how

this manifold can be constructed?

Example 2: Travel time distances of points

Surface waves produced by earthquakes travel near the boundary of the Earth. The observations of several earthquakes give information

• n travel times dT(x, y) between the points x, y ∈ S2.

Question: Can one determine the Riemannian metric associated to surface waves from the travel times with measurement errors? Figure by Su-Woodward-Dziewonski, 1994

Example 3: An inverse problem for a manifold

Consider a physical D ⊂ R3 with an unknown wave speed c(x). We can use boundary measurements to construct the distances dg(xj, xk) in a discrete set X = {xj ∈ M : j = 1, 2, . . . , N} (Belishev-Kurylev 1992, Bingham-Kurylev-L.-Siltanen 2008). The solution for Problem B gives a construction of a smooth Riemannian manifold from (X, dX). This Riemannian metric is close to the travel time metric g determined by c(x).

Outline:

◮ Classical and geometric Whitney problems ◮ Surface interpolation ◮ Riemannian manifolds in inverse problems and other

applications

◮ Manifold interpolation: Construction of a manifold from

distances with small errors

◮ Ideas of the proofs and applications in geometry ◮ Learning a manifold from distances with large random noise

Construction of a manifold from discrete data.

Let (X, dX ) be a (discrete) metric space. We aim to answer the question if there exists a Riemannian manifold (M∗, g∗) that approximates X so that

◮ dGH( (X , dX ), (M∗, dg∗) ) < ε, ◮ the curvature and the injectivity radius of M∗ are bounded.

Note that X is an “abstract metric space” and not a set of points in Rd, and we want to learn the intrinsic metric of the manifold.

A local condition

Let BX

r (x) denote the ball of the metric space X and BRn r (0)

denote the ball of Rn. Definition Let X be a metric space, r > δ > 0, n ∈ Z+. We say that X is δ-close to Rn at scale r if, for any x ∈ X, dGH

• BX

r (x) , BRn r (0)

• < δ.

Note: A compact smooth n-manifold is (Cr3)-close Rn at scale r.

A global condition

Definition Let X = (X, d) be a metric space and δ > 0. A δ-chain in X is a sequence x1, x2, . . . , xN ∈ X such that d(xj, xj+1) < δ for all j. A sequence x1, x2, . . . , xN ∈ X is said to be δ-straight if d(xi, xj) + d(xj, xk) < d(xi, xk) + δ for all 1 ≤ i < j < k ≤ N. We say that X is δ-intrinsic if for every pair of points x, y ∈ X there is a δ-straight δ-chain x1, . . . , xN with x1 = x and xN = y.

Manifold learning

Theorem Let X be a metric space with a bounded diameter, n ∈ Z+, r > 0, and 0 < δ < δ0(r, n). Suppose that X is δ-intrinsic and δ-close to Rn at scale r. Then there exists a compact n-dimensional Riemannian manifold M such that

• 1. X and M satisfy

dGH(X, M) < Cδr−1diam (X).

• 2. The sectional curvature Sec(M) of M satisfies

| Sec(M)| ≤ Cδr−3.

• 3. The injectivity radius of M is bounded below by r/2.

In particular, if δ < Cr3, the constructed manifold M has bounded curvature.

Manifold learning

Theorem Let X be a metric space with a bounded diameter, n ∈ Z+, r > 0, and 0 < δ < δ0(r, n). Suppose that X is δ-intrinsic and δ-close to Rn at scale r. Then there exists a compact n-dimensional Riemannian manifold M such that

• 1. X and M satisfy

dGH(X, M) < Cδr−1diam (X).

• 2. The sectional curvature Sec(M) of M satisfies

| Sec(M)| ≤ Cδr−3.

• 3. The injectivity radius of M is bounded below by r/2.

In particular, if δ < Cr3, the constructed manifold M has bounded curvature.

Rough idea of the proof of manifold interpolation

Assume that we are given a finite metric space (X, d). We do the following steps:

• 1. Select a maximal

r 100-separated set X0 = {qi}J i=1 ⊂ X.

• 2. Choose disjoint balls Di = Br(pi) ⊂ Rn for i = 1, 2, . . . , J and

construct a δ-isometry fi : BX

r (qi) → Di.

• 3. For all qi, qj ∈ X0 such that d(qi, qj) < r, find affine transition

maps Aij : Rn → Rn, such that |Aij(fi(x)) − fj(x)| < Cδ, for x ∈ BX

r (qi) ∩ BX r (qj).

When i = j, we define Ajj = Id.

• 4. Let Φ ∈ C ∞

0 (Rn) be 1 near zero, and Ω = i Di.

Define smooth indicator functions ψij(x) = Φ(Aij(x) − pj). Define a map Fj : Ω → Rn+1 as follows: For x ∈ Di = Br(pi), put Fj(x) =

• ψij(x) · (Aij(x) − pj) , ψij(x)
• ,

if d(qi, qj) < r, 0,

• therwise.
• 5. Denote E = Rm, m = (n + 1)J and define

F : Ω → E, F(x) = (Fj(x))J

j=1.

• 6. Construct the local patches Σi = F(Di) ⊂ E.
• 7. Apply algorithm SurfaceInterpolation for the set

i Σi to

construct a surface M ⊂ E.

• 8. Let PM be the normal projection on M.
• 9. Construct a metric tensor g on M by pushing forward the

Euclidean metric ge on Di in the maps PM ◦ F and computing a weighted average of the obtained metric tensors. The output is the surface M ⊂ E and the metric g on it. Next we consider applications of the above theorem in reconstruction of an unknown manifold.

Theorem (Fefferman, Ivanov, Kurylev, L., Narayanan 2015) Let 0 < δ < c1(n, K) and M be a compact n-dimensional manifold with | Sec(M)| ≤ K and inj(M) > 2(δ/K)1/3. Let X = {xj}N

j=1 be

δ-dense in M and d : X × X → R+ ∪ {0} satisfy | d(x, y) − dM(x, y)| ≤ δ, x, y ∈ X. Given the values d(xj, xk), j, k = 1, . . . , N, one can construct a compact n-dimensional Riemannian manifold (M∗, g∗) such that:

• 1. There is a diffeomorphism F : M∗ → M satisfying

1 L ≤ dM(F(x), F(y)) dM∗(x, y) ≤ L, for x, y ∈ M∗, L = 1 + CnK 1/3δ 2/3.

• 2. | Sec(M∗)| ≤ CnK.
• 3. inj(M∗) ≥ min{(CnK)−1/2, (1 − CnK 1/3δ 2/3) inj(M)} .

Outline:

◮ Classical and geometric Whitney problems ◮ Surface interpolation ◮ Riemannian manifolds in inverse problems and other

applications

◮ Manifold interpolation: Construction of a manifold from

distances with small errors

◮ Learning a manifold from distances with large random noise

Random sample points and random errors

Manifolds with bounded geometry: Let n ≥ 2 be an integer, K > 0, D > 0, i0 > 0. Let (M, g) be a compact Riemannian manifold of dimension n such that i) SecML∞(M) ≤ K, (1) ii) diam (M) ≤ D, iii) inj (M) ≥ i0, We consider measurements in randomly sampled points: Let Xj, j = 1, 2, . . . , N be independently samples from probability distribution µ on M satisfying 0 < cmin ≤ dµ dVolg ≤ cmax.

Definition Let Xj, j = 1, 2, . . . , N be independent, identically distributed (i.i.d.) random variables having distribution µ. Let σ > 0, β > 1 and ηjk be i.i.d. random variables satisfying Eηjk = 0, E(η2

jk) = σ2,

Ee|ηjk| = β. In particular, Gaussian noise satisfies these conditions. We assume that all random variables ηjk and Xj are independent. We consider noisy measurements Djk = dM(Xj, Xk) + ηjk.

Definition Let Xj, j = 1, 2, . . . , N be independent, identically distributed (i.i.d.) random variables having distribution µ. Let σ > 0, β > 1 and ηjk be i.i.d. random variables satisfying Eηjk = 0, E(η2

jk) = σ2,

Ee|ηjk| = β. In particular, Gaussian noise satisfies these conditions. We assume that all random variables ηjk and Xj are independent. We consider noisy measurements Djk = dM(Xj, Xk) + ηjk.

s

Definition Let Xj, j = 1, 2, . . . , N be independent, identically distributed (i.i.d.) random variables having distribution µ. Let σ > 0, β > 1 and ηjk be i.i.d. random variables satisfying Eηjk = 0, E(η2

jk) = σ2,

Ee|ηjk| = β. In particular, Gaussian noise satisfies these conditions. We assume that all random variables ηjk and Xj are independent. We consider noisy measurements Djk = dM(Xj, Xk) + ηjk.

s s

Definition Let Xj, j = 1, 2, . . . , N be independent, identically distributed (i.i.d.) random variables having distribution µ. Let σ > 0, β > 1 and ηjk be i.i.d. random variables satisfying Eηjk = 0, E(η2

jk) = σ2,

Ee|ηjk| = β. In particular, Gaussian noise satisfies these conditions. We assume that all random variables ηjk and Xj are independent. We consider noisy measurements Djk = dM(Xj, Xk) + ηjk.

s s s

Definition Let Xj, j = 1, 2, . . . , N be independent, identically distributed (i.i.d.) random variables having distribution µ. Let σ > 0, β > 1 and ηjk be i.i.d. random variables satisfying Eηjk = 0, E(η2

jk) = σ2,

Ee|ηjk| = β. In particular, Gaussian noise satisfies these conditions. We assume that all random variables ηjk and Xj are independent. We consider noisy measurements Djk = dM(Xj, Xk) + ηjk.

s s s s

Definition Let Xj, j = 1, 2, . . . , N be independent, identically distributed (i.i.d.) random variables having distribution µ. Let σ > 0, β > 1 and ηjk be i.i.d. random variables satisfying Eηjk = 0, E(η2

jk) = σ2,

Ee|ηjk| = β. In particular, Gaussian noise satisfies these conditions. We assume that all random variables ηjk and Xj are independent. We consider noisy measurements Djk = dM(Xj, Xk) + ηjk.

s s s s s

Theorem (Fefferman, Ivanov, L., Narayanan 2019) Let n ≥ 3, D, K, i0, cmin, cmax, σ, β > 0 be given. Then there are δ0, C0 and C1 such that the following holds: Let δ ∈ (0, δ0), θ ∈ (0, 1

2) and (M, g) be a compact manifold satisfying bounds (1).

Then with a probability 1 − θ, σ2 and the noisy distances Djk = dM(Xj, Xk) + ηjk, j, k ≤ N of N randomly chosen points, where N ≥ C0 1 δ3n

• log(1

θ) + log(1 δ )

• ,

determine a Riemannian manifold (M∗, g∗) such that

• 1. There is a diffeomorphism F : M∗ → M satisfying

1 L ≤ dM(F(x), F(y)) dM∗(x, y) ≤ L, for all x, y ∈ M∗, where L = 1 + C1δ.

• 2. The sectional curvature SecM∗ of M∗ satisfies |SecM∗| ≤ C1K.
• 3. The injectivity radius inj(M∗) of M∗ is close to inj(M).

Theorem (Fefferman, Ivanov, L., Narayanan 2019) Let n ≥ 3, D, K, i0, cmin, cmax, σ, β > 0 be given. Then there are δ0, C0 and C1 such that the following holds: Let δ ∈ (0, δ0), θ ∈ (0, 1

2) and (M, g) be a compact manifold satisfying bounds (1).

Then with a probability 1 − θ, σ2 and the noisy distances Djk = dM(Xj, Xk) + ηjk, j, k ≤ N of N randomly chosen points, where N ≥ C0 1 δ3n

• log(1

θ) + log(1 δ )

• ,

determine a Riemannian manifold (M∗, g∗) such that

• 1. There is a diffeomorphism F : M∗ → M satisfying

1 L ≤ dM(F(x), F(y)) dM∗(x, y) ≤ L, for all x, y ∈ M∗, where L = 1 + C1δ.

• 2. The sectional curvature SecM∗ of M∗ satisfies |SecM∗| ≤ C1K.
• 3. The injectivity radius inj(M∗) of M∗ is close to inj(M).

For z ∈ M, let rz : M → R be the distance function from z, rz(x) = dM(z, x), x ∈ M. For y, z ∈ M, we consider the “rough distance function” κ(y, z) = ry − rz2

L2(M) =

• M

|dM(y, x) − dM(z, x)|2dµ(x). Lemma There is a constant c0 ∈ (0, 1) such that c2

0dM(y, z)2 ≤ ry − rz2 L2(M,dµ) ≤ dM(y, z)2,

y, z ∈ M. That is, the map R : z → rz is a bi-Lipschitz embedding R : M → R(M) ⊂ L2(M). y

s

z

s

x s

Lemma (Hoeffding’s inequality) Let Z1, . . . , ZN be N independent, identically distributed copies of the random variable Z whose range is [0, 1]. Then, for ε > 0, we have P

• 1

N (

N

• j=1

Zj) − EZ

• ≤ ε
• ≥ 1 − 2 exp(−2Nε2).

We consider three sets S1, S2, S3 ⊂ {Xj}, where Ni = #Si satisfy N1 > N2 > N3. We call S1 = {X1, . . . , XN1} the densest net, S2 the medium dense net and S3 the coarse net. We give an algorithm to construct (M∗, g∗) from noisy data. Step 1: For Xj, Xk ∈ S2 are in the “medium dense net”, we compute κapp(Xj, Xk) = 1 N1

N1

• ℓ=1

|Djℓ − Dkℓ|2 − 2σ2, where we take a sum over the “densest net” S1. Xj Xk Xℓ

r

Denote κ(Xj, Xk) = rXj − rXk2

L2(M). A simple calculation shows

E

• |Djℓ − Dkℓ|2
• Xj, Xk
• = rXj − rXk2

L2(M) + 2σ2.

We recall that for Xj, Xk ∈ S2, κapp(Xj, Xk) = 1 N1

N1

• ℓ=1

|Djℓ − Dkℓ|2 − 2σ2 Thus Hoeffding’s inequality yields the following: Lemma Let L > D + 1 and ε > 0. If |ηjk| < L almost surely, then P

• κapp(Xj, Xk) − κ(Xj, Xk)
• ≤ ε
• ≥ 1 − 2 exp(−1

8N1L−4ε2).

Recall that function κ(y, z) = ry − rz2

L2(M) ≈ κapp(y, z) is a

rough distance function: c2

0dM(y, z)2 ≤ κ(y, z) ≤ dM(y, z)2.

Let W (y, ρ) and Wapp(y, ρ) be the sets W (y, ρ) = {z ∈ M : κ(y, z) < ρ2}, Wapp(y, ρ) = {z ∈ M : κapp(y, z) < ρ2}. We have BM(y, 1

c0 ρ) ⊂ W (y, ρ) ⊂ BM(y, ρ).

For y1, y2 ∈ M, we define the averaged distances dρ(y1, y2) = 1 µ(W (y1, ρ))

• W (y1,ρ)

dM(z, y2) dµ(z). Step 2: For Xj, Xj′ ∈ S3, where S3 is the coarse net, compute dapp

ρ

(Xj, Xj′) = 1 #(S2 ∩ Wapp(Xj, ρ))

• Xk∈S2∩Wapp(Xj,ρ)

Dkj′. There is δ1 = δ1(ρ, θ) such that P[ ∀Xj, Xj′ ∈ S3 : |dapp

ρ

(Xj, Xj′) − dM(Xj, Xj′)| < δ1] ≥ 1 − θ.

Summarizing, for points S3 = {y1, y2, . . . , yN3} we find dapp

ρ

(yj, yj′) such that |dapp

ρ

(yj, yj′) − dM(yj, yj′)| < δ1 with a large probability. Step 3: Using the deterministic results with small errors we find a smooth manifold (M∗, g∗) using the net S3 and the approximate distance dapp

ρ

(y1, y2) of y1, y2 ∈ S3.

Generalization with missing data

Recall that Djk = dM(Xj, Xk) + ηjk. We can assume that we are given D

(partial data)

jk

=

• Djk

if Yjk = 1, ‘missing’ if Yjk = 0, where Yjk ∈ {0, 1} are independent random variables, P(Yjk = 1 | Xj, Xk) = Φ(Xj, Xk) and Φ : M × M → R is some (unknown) function such that there is a smooth non-increasing function h : [0, ∞) → [0, 1] so that c1 h(dM(x, y)) ≤ Φ(x, y) ≤ c2 h(dM(x, y)).

Thank you for your attention!
