Freight Transportation Advisory Committee (FTAC) November 14, 2012 - - PowerPoint PPT Presentation

1

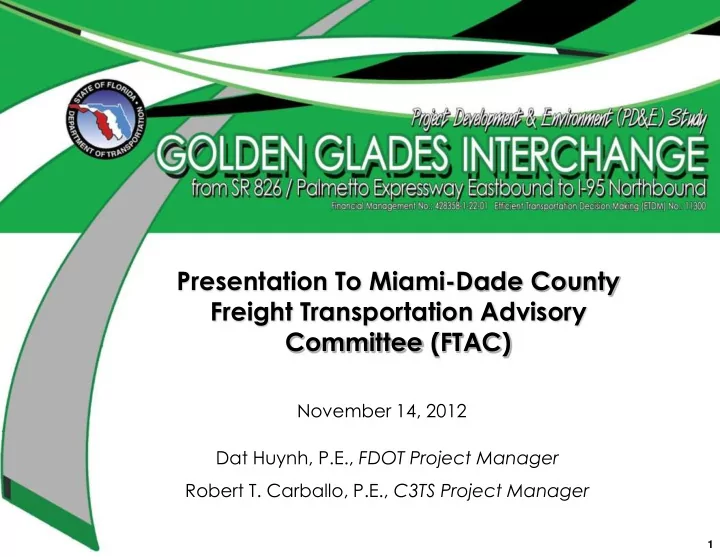

Dat Huynh, P.E., FDOT Project Manager Robert T. Carballo, P.E., C3TS Project Manager

Presentation To Miami-Dade County Freight Transportation Advisory Committee (FTAC)

November 14, 2012

2

PROJECT LOCATION



Located in northern Miami-Dade County



Adjacent to City of Miami Gardens, North Miami Beach, North Miami and the Golden Glades Community

3

BACKGROUND



Serves as a regional hub for transportation in northeast Miami-Dade County



Connects local and regional travel between three south Florida counties: Miami-Dade, Broward and Palm Beach



Provides access to:

• Interstate 95 (I-95)
• SR 826 (Palmetto Expressway)
• Florida’s Turnpike
• SR 9, and
• SR 7/US 441
• SR 826/NW 167th Street



Connects to the Park & Ride and provides access to regional transit

THE GOLDEN GLADES INTERCHANGE

4



Golden Glades Interchange currently carries is over 400,000 vehicles per day with direct impacts on regional travel within the tri-county area



Travel demand within the interchange is projected to increase by approximately 50% by the 2040 year



Critical movements experiencing heavy congestion with insufficient capacity include:

1. SR 826 EB to I-95 NB 2. Turnpike SB to I-95 SB

NEED FOR PROJECT

TRAVEL DEMAND & CAPACITY

5



3,239 total crashes between 2006 to 2010



20 fatalities



1,496 injury crashes



Predominant Crashes

• Rear End

– 44%

• Side Swipe

– 18%

• Fixed Object – 12%
• Angle

– 10%



Economic Loss Estimated at approx. $93 million

NEED FOR PROJECT

SAFETY

Fatal Crash Locations

6

STUDY PURPOSE AND OBJECTIVES

INTERIM IMPROVEMENTS (NEAR TERM CONSTRUCTION)



Provide a direct connection for SR 826 (Palmetto Expressway) eastbound to I-95 northbound



Improve the Turnpike southbound to I-95 southbound connection



Develop interim improvements within the Golden Glades Interchange to enhance safety, mobility and circulation ULTIMATE IMPROVEMENTS (CONSTRUCTED WITH SR 826 E-W PROJECT)



Accommodate potential express lanes system and transit enhancements connection to Golden Glades Interchange



Addition of express lanes from SR 826 connecting to I-95 to and from the north



Enhance Turnpike Connector southbound to I-95 with possible express lanes direct connection



Establish an Ultimate Master Plan for the Golden Glades Interchange

EXISTING CONDITIONS

7

EXISTING SR 826 EB TO I-95 NB MOVEMENT

Legend SR-826 EB to I-95 NB (Signed Movement) SR-826 EB to I-95 NB (Alternative Route) Turnpike SB to I-95 SB Traffic Signal

PROPOSED IMPROVEMENTS INTERIM

8

.

E



SR 826 EB to I-95 NB direct connection ramp



Turnpike SB to I-95 SB at-grade widening

PROPOSED IMPROVEMENTS ULTIMATE

9

.

E



SR 826 express lanes to and from I-95 North



Turnpike SB to I-95 SB express lane connection

10



No-Build Alternative



Preliminary Interim Build Alternatives:

• Presented at the initial Alternatives Public Workshop held on

May 03, 2012



Refined Interim Build Alternatives:

• Presented at the Alternatives Public Workshop Update held
• n August 21, 2012



Ultimate Build Alternatives:

• Represents the Ultimate Master Plan for Golden Glades

Interchange

• Presented at both Alternatives Public Workshop
• Documented as part of SR 826 PD&E Study

ALTERNATIVES CONSIDERED

PROPOSED IMPROVEMENTS

Interim Build Alternative 3A

11

Key Features

1. Provide a direct connection from SR 826 EB to I-95 NB that consists of a reverse S-curve alignment 2. Widen the Turnpike Connector to provide two lanes from the Turnpike SB merging with the SR 826 EB to I-95 SB traffic 3. Replace the SR 826/NW 167th Street WB to I-95 SB ramp bridge to accommodate direct flyover connection ramp and SR7/US 441 NB lanes 4. Replace the SR 826 Connector Bridge over the direct flyover connection ramp and SR 7/US 441 NB lanes 5. Provide signalized dual left turn lanes from SR 826 EB to Turnpike NB 6. Widen I-95 SB from interchange to NW 151st Street to accommodate additional lane from Turnpike Connector 7. Provide connection from NW 163rd Street to NW 17th Avenue and widen NW 17th Avenue from NW 161st Street to SR 826. Access to SR 826 at NW 12th Avenue and NW 167th Street is removed 8. Right of way impacts to 2 commercial properties and 3 vacant parcels west of I-95 north of Biscayne Canal

12 SR 826/Palmetto Expressway Mainline and Off-Ramp to I-95 NB & SB

PROPOSED IMPROVEMENTS

Interim Build Alternative 3A

Turnpike Connector Between SR 826/Palmetto Expressway and I-95

13

ENVIRONMENTAL

MINIMAL IMPACTS

• Contamination
• 9 High Risk and 6 Medium Risk sites
• Anodyne Superfund Site
• Socio-Economic Resources
• Land Use
• Relocation
• Natural Resources
• Visual & Aesthetics
• Water Quality
• Wildlife & Habitat
• Woodstork
• Eastern Indigo Snake
• West Indian Manatee
• Burrowing Owl
• Wetlands & Other Surface Waters
• Biscayne Canal
• NW17th Avenue Canal
• Traffic Noise
• Reconstruct Noise Wall

NO IMPACTS

• Air Quality
• Historical Resources

Noise measurement tool

PUBLIC INVOLVEMENT

14

This study will provide several opportunities for the public to provide comments and input:

 Agency Kick-Off Meeting

August 25, 2011

 Public Kick-Off Meeting

August 25, 2011

 MPO Meetings

April 2012

 Alternatives Public Workshop #1

May 3, 2012

 Alternatives Public Workshop #2

August 21, 2012

 MPO Meetings

Fall 2012

 Public Hearing

February 2013 (tentative)

PRELIMINARY COST ESTIMATE

15

Cost Component Recommended Alternative Construction Cost $85,850,000 Preliminary Engineering $14,083,000 Right of Way Cost $5,634,000 Total Project Cost $105,567,000

16

PROJECT SCHEDULE

ACTIVITY 2011 2012 2013

Winter Spring Summer Fall Winter Spring Summer Fall Winter Spring Summer Fall

Notice to Proceed Data Collection Agency and Public Kick-Off Develop and Analyze Alternatives Environmental Studies Alternatives Public Workshop #1 Interchange Modification Report Alternatives Public Workshop #2 Develop Preferred Alternative Public Hearing Develop Final PD&E and Environmental Documents Location and Design Concept Acceptance Public Involvement 3 .

CONTACTS

17

Florida Department of Transportation – District Six 1000 NW 111 Avenue, Room 6251 Miami, Florida 33172 Dat Huynh, P.E. – FDOT Project Manager Email: dat.huynh@dot.state.fl.us Telephone: (305) 470-5217 Project Website: www.fdotmiamidade.com/goldengladesstudy

Questions?

18

THANK YOU

19

NW NW 10 AVE

Provide 3 lane exit for SR 826 EB to I-95 NB & SB Connection of NW 12th Avenue On-ramp under Evaluation Provide signalized dual left turns to Turnpike NB

ACCESS & ROW IMPACTS

Interim Build

20

NW NW 163 ST ST

Provide connection from NW 163rd St to NW 17th Ave

NW NW 167 ST ST NW NW 2 AVE

Remove SB lane along NW 2nd Ave Widen NW 17th Ave at Intersections

NW NW 17 AVE

Convert from two-way to one- way EB road

ACCESS & ROW IMPACTS

Interim Build

Provide Texas U- turn at NW 17th Ave

21

NW NW 159 ST ST NW NW 157 ST ST BISC SCAYNE NE CANA NAL NW NW 7 AVE

Potential Right

• f Way Impact

(2 Commercial 3 Vacant)

ACCESS & ROW IMPACTS

Interim Build

Along Southbound I-95

Potential Right

• f Way Impact

(FDOT Property)

Park and Ride East Lot

Go Golden Glad Glades Pa Park rk & & Ride

Potential Impact to Canopy and Parking Spaces

22



Travel Time Comparison (AM Peak Period)

TRAFFIC ANALYSIS

Travel Time Results

# Location Travel Time (Minutes) No-Build Interim Build Ultimate Build 2030 2040 2030 % Change 2040 % Change 1 SR 826 EB to I-95 NB1 5.9 3.72 1.85 69% 1.3 65% 2 SR 826 EB to NW 2nd Avenue 6.1 6.6 4.0 34% 3.1 53% 3 Turnpike SB Connector to I-95 SB 16.6 17.3 7.0 58% 4.3 75% 4 Turnpike SB to NW 2nd Avenue 21.1 22.5 7.6 64% 4.4 80% 5 Turnpike SB to I-95 SB (Express Ramp)

• 3.0

83% Notes: 1. The No-Build route refers to the existing signed route while the Build Alternatives route refers to the new flyover ramp connection 2. Constrained condition with traffic held at the entry node causing the operation to appear more favorable

23

TRAFFIC ANALYSIS

Travel Time Results

# Location Travel Time (Minutes) No-Build Interim Build Ultimate Build 2030 2040 2030 % Change 2040 % Change 1 SR 826 EB to I-95 NB1 3.7 7.9 1.7 54% 1.4 82% 2 SR 826 EB to NW 2nd Avenue 7.1 7.9 3.5 51% 3.7 53% 3 Turnpike SB Connector to I-95 SB 18.4 20.4 4.0 78% 3.8 81% 4 Turnpike SB to NW 2nd Avenue 24.2 26.5 3.7 85% 3.4 87% 5 Turnpike SB to I-95 SB (Express Ramp)

• 2.7

87%



Travel Time Comparison (PM Peak Period)

Notes: 1. The No-Build route refers to the existing signed route while the Build Alternatives route refers to the new flyover ramp connection
