Georges Ephrem MD, MSc, FACP, FACC Adult Congenital Heart Disease & Structural Heart Interventional Fellow @drephrem PERCUTANEOUS OPTIONS FOR THE MITRAL VALVE No disclosures Outline Epidemiology of MV disease Established

slide-1
SLIDE 1

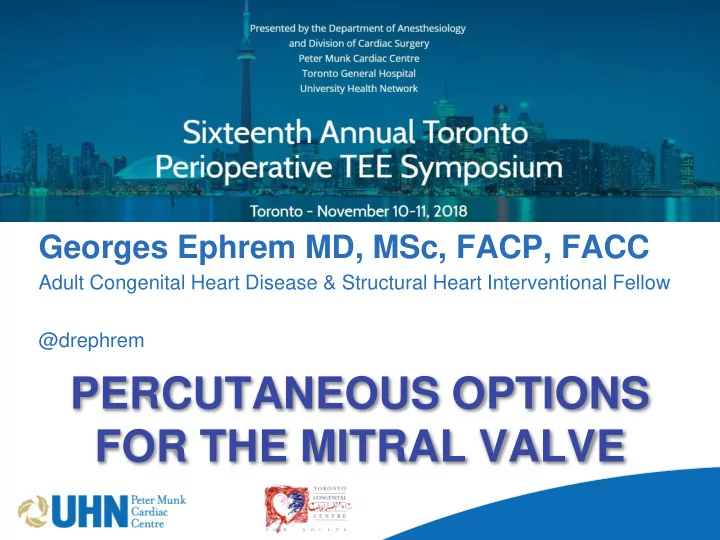

PERCUTANEOUS OPTIONS FOR THE MITRAL VALVE

Georges Ephrem MD, MSc, FACP, FACC

Adult Congenital Heart Disease & Structural Heart Interventional Fellow @drephrem

slide-2
SLIDE 2

No disclosures

slide-3
SLIDE 3

Outline

  • Epidemiology of MV disease
  • Established percutaneous interventions

– Native MV – Artificial MV

  • Prospects/future directions in interventions
  • Current and prospective milestones for

peri-procedural echocardiography

slide-4
SLIDE 4

Epidemiology of MV disease

Coffey S, et al. Heart 2016;102:75–85. doi:10.1136/heartjnl-2014-307020

slide-5
SLIDE 5

Native MV

ESTABLISHED PERCUTANEOUS INTERVENTIONS

slide-6
SLIDE 6

PBMV

  • Severe MS (MVA <1.5 cm2), favorable morphology and no

contraindications (e.g. LA thrombus or significant MR) (Class I)

  • Asymptomatic patients with MVA <1.5 cm2, pHTN (PASP>50

mm Hg at rest or >60 mm Hg with exercise), and favorable morphology (Class I)

  • Calcific MS + high risk for surgical commissurotomy IF NYHA

FC III-IV and severe MS (MVA <1.5 cm2) (Class IIa)

  • Consider if lower risk for surgical commissurotomy (Class IIb)
  • NYHA FC II-IV with MVA >1.5 cm2 and pHTN (Class IIb)
  • Asymptomatic with MVA<1.5 cm2 & new A fib (Class IIb)

Nishimura et al. J Am Coll Cardiol. 2017 Jul 11;70(2):252-289. doi: 10.1016/j.jacc.2017.03.011.

slide-7
SLIDE 7

PBMV

slide-8
SLIDE 8

PBMV

slide-9
SLIDE 9

MitraClip

Feldman T, et al. N Engl J Med. 2011 Apr 14;364(15):1395-406. doi: 10.1056/NEJMoa1009355.

slide-10
SLIDE 10

MitraClip

J Obadia et al. N Engl J Med 2018. DOI: 10.1056/NEJMoa1805374

slide-11
SLIDE 11

MitraClip

GW Stone et al. N Engl J Med 2018. DOI: 10.1056/NEJMoa1806640

slide-12
SLIDE 12

MitraClip

slide-13
SLIDE 13

MitraClip

slide-14
SLIDE 14

MitraClip

slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17

Artificial MV

ESTABLISHED PERCUTANEOUS INTERVENTIONS

slide-18
SLIDE 18

Valve in Valve

Yoon SH et al. Eur Heart J. 2018 Oct 23. doi: 10.1093/eurheartj/ehy590. Guerrero M et al. Circulation. 2018;136:A23085

slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21
slide-22
SLIDE 22

Paravalvular leak closure

  • 141 defects,115 patients,

78% MV

– 93% CHF, 37% hemolytic anemia – Technical success rate 89% – 72% of survivors free of severe symptoms or need for surgery at 3-yr follow-up

Rihal CS et al. JACC Cardiovasc Interv. 2012 Feb;5(2):121-30.

slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26

PROSPECTS/FUTURE DIRECTIONS IN INTERVENTIONS

slide-27
SLIDE 27

Valve in valve

slide-28
SLIDE 28

Valve in ring

Yoon SH et al. Eur Heart J. 2018 Oct 23. doi: 10.1093/eurheartj/ehy590. Guerrero M et al. Circulation. 2018;136:A23085

slide-29
SLIDE 29

Valve in ring

  • MITRAL-ViR arm

– 30 patients, all transseptal access

  • Technical success 70%

– Second valve in 6 patients with good outcomes

  • 2 in-hospital deaths

– Procedural success at 30 days 62% – 7 ASA to increase likelihood of procedural success

Guerrero M et al. Abstract presentation at TCT 2017

slide-30
SLIDE 30

Valve in ring

slide-31
SLIDE 31

Valve in MAC

Guerrero M et al. JACC Cardiovasc Interv. 2016 Jul 11;9(13):1361-71. doi: 10.1016/j.jcin.2016.04.022.

slide-32
SLIDE 32

Valve in MAC

slide-33
SLIDE 33

LAMPOON

slide-34
SLIDE 34

New devices

Ruiz CE et al. J Am Coll Cardiol. 2015 Jul 14;66(2):169-83. doi: 10.1016/j.jacc.2015.05.034.

slide-35
SLIDE 35

PASCAL

Praz F et al. Lancet. 2017 Aug 19;390(10096):773-780. doi: 10.1016/S0140-6736(17)31600-8.

slide-36
SLIDE 36

Tendyne

Duncan A et al. EuroIntervention. 2017 Oct 13;13(9):e1047-e1057. doi: 10.4244/EIJ-D-17-00154.

slide-37
SLIDE 37

TIARA

Cheung A et al. JACC Cardiovasc Interv. 2017 Oct 9;10(19):2012-2014. doi: 10.1016/j.jcin.2017.08.019.

slide-38
SLIDE 38

,Pascal

Ruiz CE et al. J Am Coll Cardiol. 2015 Jul 14;66(2):169-83. doi: 10.1016/j.jacc.2015.05.034.

slide-39
SLIDE 39

CURRENT AND PROSPECTIVE MILESTONES FOR PERI- PROCEDURAL ECHOCARDIOGRAPHY

slide-40
SLIDE 40

CURRENT

  • Mastery of

procedure-specific TEE requirements

  • Mastery of modified

angles and/or axes to accommodate for atypical anatomy

  • Comfort with 3D

TEE

slide-41
SLIDE 41

Illumination or pseudo-colorization

Going forward

slide-42
SLIDE 42
slide-43
SLIDE 43

Ruiz CE et al. J Am Coll Cardiol. 2015 Jul 14;66(2):169-83. doi: 10.1016/j.jacc.2015.05.034.

F U S I O N I M A G I N G

slide-44
SLIDE 44

Ruiz CE et al. J Am Coll Cardiol. 2015 Jul 14;66(2):169-83. doi: 10.1016/j.jacc.2015.05.034.

slide-45
SLIDE 45

Thank you for your attention
