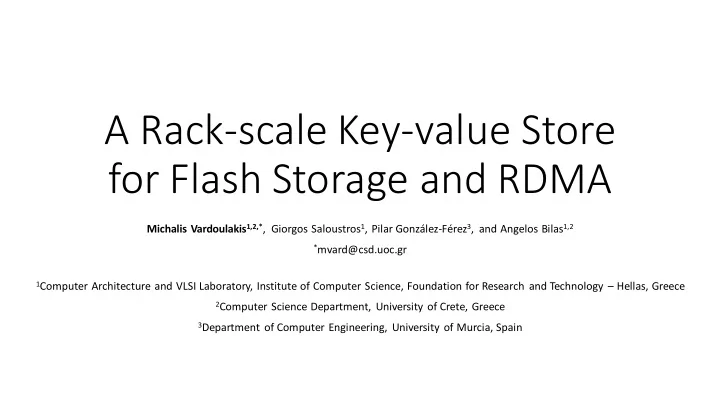

A Rack-scale Key-value Store for Flash Storage and RDMA

Michalis Vardoulakis1,2,*, Giorgos Saloustros1, Pilar González-Férez3, and Angelos Bilas1,2

*mvard@csd.uoc.gr 1Computer Architecture and VLSI Laboratory, Institute of Computer Science, Foundation for Research and Technology – Hellas, Greece 2Computer Science Department, University of Crete, Greece 3Department of Computer Engineering, University of Murcia, Spain

Motivation

• Data doubles every ~2years
• Datacenter processing capacity limited by energy
• Datacenter power limited by current technology
• Conclusion -> Have to process increasing amounts of data with the

same infrastructure

Who uses key-value stores?

• Facebook uses RocksDB to store user information
• Amazon uses Dynamo to store each user's shopping cart
• Stack Overflow uses Redis as a cache for their datacenters
• Netflix uses EVCache to cache frequently used data on AWS EC2
• Also used in machine learning pipelines, big data analytics and web

application backends

Why do they use key-value stores?

• Consistency
• Availability
• Scalability

What is a key-value store?

• Think of it as a hash table
• Data are represented as key-value pairs
• Data are unstructured
• Keys and values do not have set types
• get(k), put(k, v), update(k, v), delete(k)

SSD Memory L1 L0 Design of Kreon, the key-value storage used in this work KV KV KV KV KV KV KV

Design

• We design for SSDs – don't have to sort key-value pairs to achieve

sequential access patterns for I/O

• We use RDMA to reduce CPU cycles spent on client – server

communication and replication

Remote Direct Memory Access (RDMA)

• Allows a process on one computer to access the memory of the other
• All communication is user-space (no context switching)
• One-sided communication, the other computer doesn't spend CPU

cycles

• TCP/IP -> Send/Receive
• RDMA -> Read/Write remote memory

RDMA Hardware & Software

Data movement in RDMA vs socket-based protocols Network stack in Linux

Challenges

• Scaling RDMA Write to support hundreds of active clients
• Replication with low performance overhead

Scaling RDMA Write

Constraints:

• Memory used for RDMA operations is pinned to physical pages
• Have to work within physical memory constraints

Solution:

• Each server allocates a limited number of memory buffers
• A server splits single buffers between clients if he runs out of

available memory buffers

Replication

• Primary-backup replication scheme
• Append key-values to a log, without adding them to the tree index
• Use RDMA write to append them to the log
• The replica only has to periodically flush the last part of the log to

ensure fault tolerance

• Efficient L1 index construction in backup using hints from primary

Thank yo you for yo your attentio ion! Any y ques estio ions?
