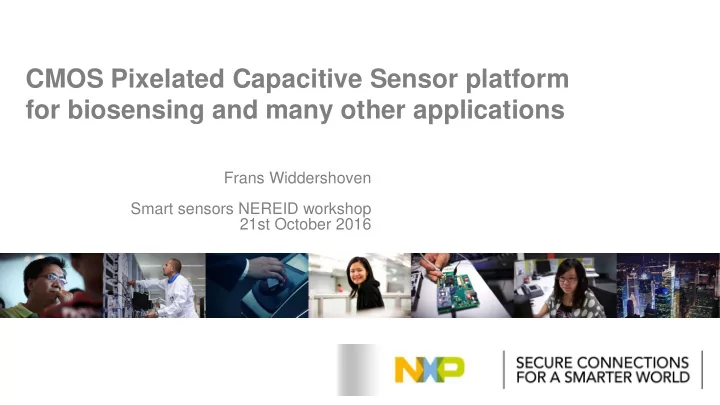

CMOS Pixelated Capacitive Sensor platform for biosensing and many other applications Frans Widdershoven Smart sensors NEREID workshop 21st October 2016 COVER PAGE SUBTITLE PLACEHOLDER COMPANY CONFIDENTIAL CMOS integration victory: radio


slide-1
SLIDE 1

COVER PAGE SUBTITLE PLACEHOLDER

COMPANY CONFIDENTIAL

CMOS Pixelated Capacitive Sensor platform for biosensing and many other applications

Frans Widdershoven Smart sensors NEREID workshop 21st October 2016

slide-2
SLIDE 2

CMOS integration victory: radio

2.

Vacuum tubes Transistors Bipolar analog radio IC CMOS digital radio IC (software-defined radio)

COMPANY PUBLIC October 21, 2016

slide-3
SLIDE 3

CMOS integration victory: camera

3.

Vacuum tube (Vidicon) Film Charge-coupled device (CCD) CMOS image sensor (CIS)

COMPANY PUBLIC October 21, 2016

slide-4
SLIDE 4

CMOS integration victory: storage

4.

Ticker tape Magnetic tape Hard disk CMOS-based solid- state drive (SSD)

COMPANY PUBLIC October 21, 2016

slide-5
SLIDE 5

Widdershoven’s 3 laws of IoT

COMPANY PUBLIC

5.

October 21, 2016

1) Only non-trivial data need be transmitted 2) Autonomous devices need sensors to generate non-trivial data 3) What can be sensed by CMOS will be sensed by CMOS Examples:

Voltage, current, power, temperature, RF spectrum, ambient light, magnetic field, images, radar, information, uniqueness (Physically Unclonable Functions), … … and this trend continues!

slide-6
SLIDE 6

Extend the CMOS integration victory to biosensing?

COMPANY PUBLIC

6.

October 21, 2016

Maybe, but only if we stay close to “standard” CMOS

  • It’s the result of a multi-B$ world-wide aligned development effort, so don’t mess

it up!

  • Exploit its strengths:
  • Small feature sizes
  • High speed & low power
  • Embedded signal conditioning, A/D conversion, programmability,…
  • Low-cost and high-yield volume production
slide-7
SLIDE 7

Biological length scales

CMOS technology nodes in production (October 2016)

7.

October 21, 2016 COMPANY PUBLIC

slide-8
SLIDE 8

IgG antibody compared to 14-nm finFET

TEM cross-section through 2 fins (Intel)

8.

COMPANY PUBLIC October 21, 2016

slide-9
SLIDE 9

October 21, 2016 COMPANY PUBLIC

9.

“Capacitive” sense electrode

Electrolyte Double layer SAM Electrode

Captured target Probe Linker 𝑎𝐸𝑀 𝑎𝐹 𝐷𝑇 𝜇𝐸

𝜇𝐸: Debye length (~0.8 nm at 150 mM salt concentration) Cross-section: Equivalent circuit:

slide-10
SLIDE 10

COMPANY PUBLIC

10.

Disturbs

October 21, 2016

Electrolyte Double layer SAM Electrode

Configurations of probes and captured targets Non-specific binding and molecular charge

+ −

SAM defects and relaxation

− −

Intrinsic disturbs Extrinsic disturbs

slide-11
SLIDE 11

Sensitivity scaling

COMPANY PUBLIC

11.

𝑊

1

𝑊

2

𝑊 𝑎1 𝑎2 𝐽 𝑎1 = ℎ1 𝐵1𝜏1 ℎ1, 𝐵1, 𝜏1: height, area and complex conductivity of element 1 𝑎 = 𝑎𝑇 + 𝑎𝐶 = 𝑊 𝐽 = 𝑊 𝐵1𝐾1 = 𝑊 𝐵1𝜏1𝐹1 𝑍 = 1 𝑎 ∆𝑍 ≈ ∆𝜏1 𝜖𝑍 𝜖𝜏1 = Ω1∆𝜏1 𝐹1 𝑊

2

Ω1 = ℎ1𝐵1 (volume of element 1)  Sensitivity is proportional to the square of the local electric field strength!

October 21, 2016

slide-12
SLIDE 12

COMPANY PUBLIC

12.

Model system: semi-spherical metal nanoelectrode

October 21, 2016

Relative sensitivity =

𝑠0𝐹𝑠 𝑊 2

𝑠

Electrolyte Electrode

𝐹𝑠

𝑠0 = 85 nm

A B C

𝜇𝐸

Distance above electrode (nm)

slide-13
SLIDE 13

Frequency ranges

COMPANY PUBLIC

13.

Frequency range Bulk sensitivity Surface sensitivity A (< 3.3 MHz) Low (“blocking” double layer) High (saturated at low-frequency level) B (3.3 – 360 MHz) Nominal (“transparent” double layer) High (still exceeding bulk sensitivity) C (> 360 MHz) Nominal (“vanished” double layer) Nominal (same as bulk sensitivity)

𝑔

2 = 𝜏𝐹,𝐸𝐷

2𝜌𝜗𝐹 𝑔

1 ≈

𝑔

2

1 + 𝑠0 𝜇𝐸 Semi-spherical nano electrode (𝑠

0 = 85 nm)

and 150 mM salt concentration: 𝑔

1 ≈ 3.3 MHz, 𝑔 2 = 360 MHz

𝑔

1

𝑔

2

𝑠0 = 85 nm 150 mM

October 21, 2016

slide-14
SLIDE 14

COMPANY PUBLIC

14.

Validation by numerical simulations

Inside double layer Touching SAM surface Above double layer

SAM: 2.5 nm thick; PNA/DNA: 13.2 nm long (40-bp)

Federico Pittino, Federico Passerini, Luca Selmi, Frans Widdershoven, Microelectronics Journal 45 (12), December 2014

October 21, 2016

slide-15
SLIDE 15

Probe molecules

  • Typically much larger than 𝜇𝐸 (e.g. largely extending above double layer)
  • Should not stick directly to SAM surface (to avoid denaturing and to keep capturing sites accessible for

target molecules)

Other molecules

  • May stick directly to SAM surface (non-specific binding)

Issue

  • At frequencies below 𝑔

2 the sensitivity for non-target molecules and/or SAM surface damage is much

higher than for target molecules

Solution

  • Use modulation frequencies ≥ 𝑔

2 (or at least as high as possible)*

* You won’t find this experimentally by searching for the frequency that gives the highest response

Issues

COMPANY PUBLIC

15.

October 21, 2016

slide-16
SLIDE 16

NXP’s CMOS Pixelated Capacitive sensor chip

ΦT ΦD t2 t1 t ΦT ΦD VD C VT t = t1 VL VN ΦT ΦD VD C VT t = t2 VL VN

𝑅 = 𝑀0 𝑊𝑈 − 𝑊

𝐸

𝐷 + 𝐷𝑄 ∆𝑅 = 𝑀0 𝑊𝑈 − 𝑊

𝐸 ∆𝐷

𝑀0: number of charge/discharge cycles 𝐷𝑄: parasitic capacitance (~0.4 fF) Typically operated at 1 – 50 MHz (runs up to 320 MHz)

16.

COMPANY PUBLIC October 21, 2016

slide-17
SLIDE 17

Cumulative reset noise 2 switch transistors: 𝜏𝑅2 = 2𝑂𝑙𝐶𝑈 𝐷 + 𝐷𝑄

… and no 1/f noise (at least in principle)

Intrinsic signal/noise ratio (SNR): 𝑇𝑂𝑆0 = Δ𝑅 2 𝜏𝑅2 = 𝑂 𝑊𝑈 − 𝑊

𝐸 2 ∆𝐷 2

2𝑙𝐶𝑈 𝐷 + 𝐷𝑄

Intrinsic SNR of single sensor cell

COMPANY PUBLIC

17.

October 21, 2016

Reason for using nanoelectrodes Reason for using advanced CMOS

slide-18
SLIDE 18

Cross-section (90-nm CMOS)

p-well poly-gate source/drain VT ΦT nano-electrode moisture barrier metal-2 metal-3 metal-1 via-1 via-2 contact via-4 metal-4 via-3 VD ΦD ΦD ΦT ΦT ΦD ΦD ΦT ΦT ΦT VT VD VT

18.

Contrast layers Nanoelectrode Early example with e-less Au nanoelectrodes (not used anymore) M1 M2 M3 M4 Cu E-less Au TaN/Ta

COMPANY PUBLIC October 21, 2016

slide-19
SLIDE 19

NXP’s CMOS Pixelated Capacitive sensor chip (2)

Chip features:

1) 256×256 (= 65,536) nanoelectrodes 2) 4 temperature sensors 3) 8 A/D converters 4) 256 digital data accumulators

Flip

  • ver

Fluidic seal patch

Fluid ports

Modified CSP test socket

(Aries Electronics part number A1924-314-23)

3.2 mm × 2.1 mm in 90-nm CMOS (TSMC) Current process: Au-rich AuCu nanoelectrodes, made “the CMOS way”

Spring pins

Thermal interface via backside

  • f chip (not shown)

19.

COMPANY PUBLIC October 21, 2016

slide-20
SLIDE 20

Reconfigurable counter electrode

Active row Counter electrode

20.

COMPANY PUBLIC October 21, 2016

slide-21
SLIDE 21

Reconfigurable counter electrode

Active row Counter electrode Counter electrode

21.

COMPANY PUBLIC October 21, 2016

slide-22
SLIDE 22

Reconfigurable counter electrode

Counter electrode Active row Counter electrode

22.

COMPANY PUBLIC October 21, 2016

slide-23
SLIDE 23

Reconfigurable counter electrode

Counter electrode Active row Counter electrode

23.

COMPANY PUBLIC October 21, 2016

slide-24
SLIDE 24

Lower cut-off frequency (region A  B)

24.

COMPANY PUBLIC October 21, 2016

slide-25
SLIDE 25

Quantitative agreement with simulations

25.

COMPANY PUBLIC October 21, 2016

Measured Simulated

slide-26
SLIDE 26

Detection of particle conduction type

26.

Conducting Insulating

COMPANY PUBLIC October 21, 2016

slide-27
SLIDE 27

Detection of nanoparticle binding

27.

  • Nanoparticles captured by BSA layer on chip surface
  • Independent verification with AFM

COMPANY PUBLIC October 21, 2016

Unpublished pictures removed

slide-28
SLIDE 28

Detection of … virus (one of the smallest viruses)

28.

COMPANY PUBLIC October 21, 2016

Unpublished pictures removed

slide-29
SLIDE 29

Collecting statistics of captured nanoparticles

29.

COMPANY PUBLIC October 21, 2016

Unpublished pictures removed

slide-30
SLIDE 30

Counting of particles and imaging of living cells

30.

COMPANY PUBLIC October 21, 2016

1-µm dielectric particles in water (pH = 3) MCF7 breast tumor cells in growth medium

slide-31
SLIDE 31

Imaging of droplets in water-based emulsions

31.

COMPANY PUBLIC October 21, 2016

Unpublished pictures removed

slide-32
SLIDE 32

Adding smartness: automatic particle tracking

32.

COMPANY PUBLIC October 21, 2016

Unpublished pictures removed

slide-33
SLIDE 33

The future: surfing Moore’s Law?

COMPANY PUBLIC

33.

October 21, 2016

40-nm CMOS design exercise

  • 3 times cell area shrink
  • Resolution comparable to

that of optical microscopes

And what about 14-nm CMOS?

slide-34
SLIDE 34

Udine University (I)

  • Luca Selmi, Federico Pittino, Federico Passerini, Pierpaolo Palestri, Andrea Bandiziol,

Paolo Scarbolo, Andrea Cossettini University of Twente (NL)

  • Serge Lemay, Cecilia Laborde, Christophe Renault, Vincent de Boer, Regine van der Hee,

Jeroen Cornelissen Wageningen University & Research (NL)

  • Maarten Jongsma, Harrie Verhoeven

Thanks to my great collaborators!

COMPANY PUBLIC

34.

October 21, 2016

slide-35
