Fatigue & Other Properties Basic Test Types Routine - PDF document

Sep 07, 2022 •358 likes •409 views

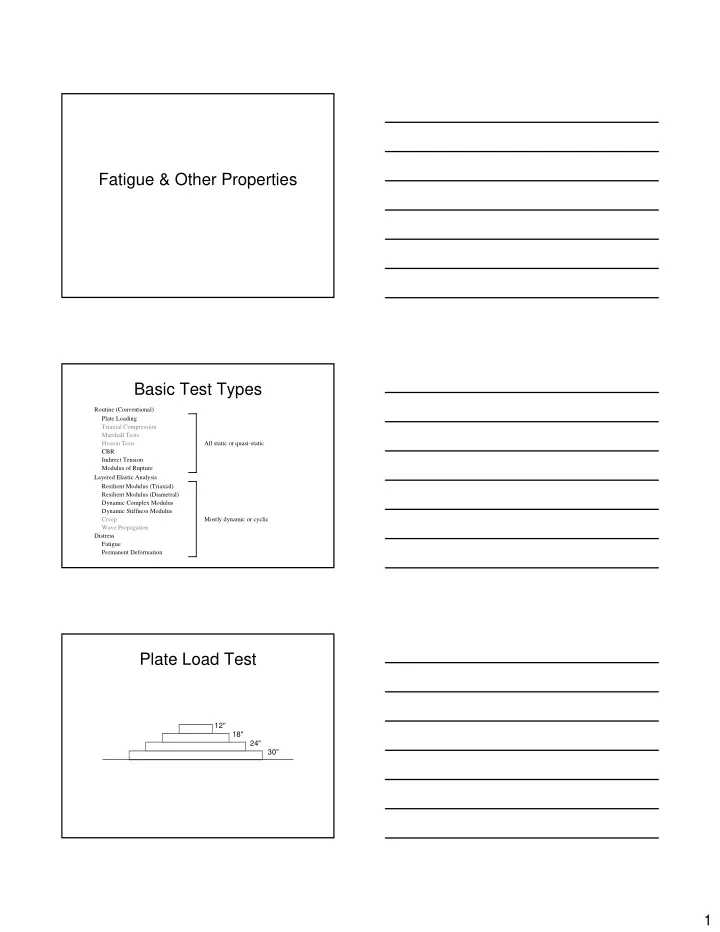

Fatigue & Other Properties Basic Test Types Routine (Conventional) Plate Loading Triaxial Compression Marshall Tests Hveem Tests All static or quasi-static CBR Indirect Tension Modulus of Rupture Layered Elastic Analysis Resilient

  1. Fatigue & Other Properties Basic Test Types Routine (Conventional) Plate Loading Triaxial Compression Marshall Tests Hveem Tests All static or quasi-static CBR Indirect Tension Modulus of Rupture Layered Elastic Analysis Resilient Modulus (Triaxial) Resilient Modulus (Diametral) Dynamic Complex Modulus Dynamic Stiffness Modulus Creep Mostly dynamic or cyclic Wave Propagation Distress Fatigue Permanent Deformation Plate Load Test 12" 18" 24" 30" 1

  2. Plate Load Test Field CBR Test CBR p, psi 135 125 110 90 60 Δ , in 0.0 0.1 0.2 0.3 0.4 0.5 2

  3. CBR Penetration: 0.1 0.2 0.3 0.4 0.5 in Actual Load: 60 90 110 125 135 psi Ideal Load: 1000 1500 1900 2300 2600 psi CBR: % Indirect Tension Test P σ 1 / σ min -4 0 4 8 12 16 -4 0 4 8 12 16 f t ´ = σ min = (2P)/( π LD) P Indirect Tension Test 3

  4. Modulus of Rupture P d L/3 L/3 L/3 Beam Flexure Test PL = MOR 2 bd Beam Flexure Test PL = MOR 2 bd 4
