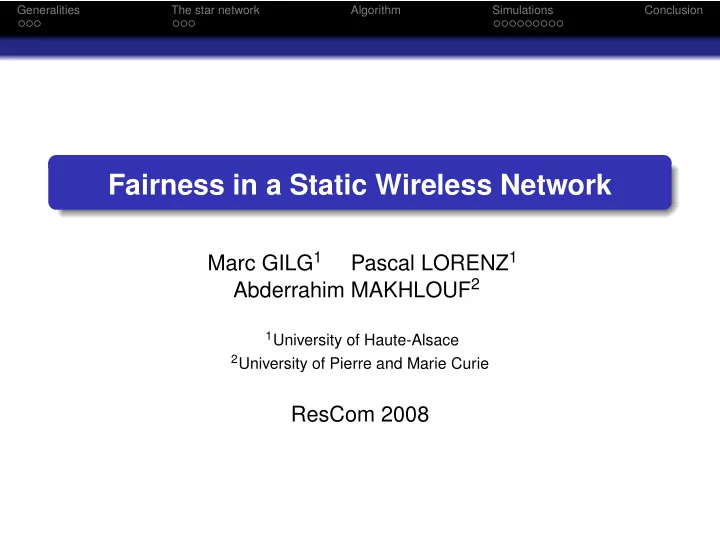

Fairness in a Static Wireless Network

Marc GILG1 Pascal LORENZ1 Abderrahim MAKHLOUF2

1University of Haute-Alsace 2University of Pierre and Marie Curie

ResCom 2008

Generalities The star network Algorithm Simulations Conclusion

Outline

1

Generalities Network model Fairness

2

The star network Definition Fairness in a star network

3

Algorithm

4

Simulations The 8 star network A no-star network

5

Conclusion
