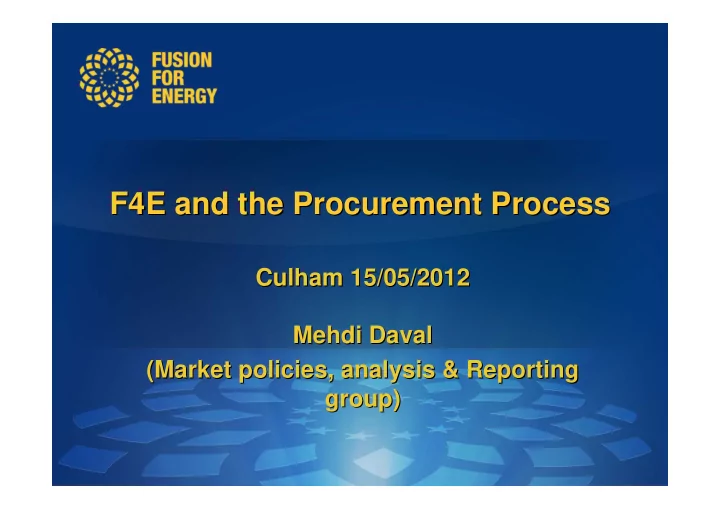

F4E and the Procurement Process F4E and the Procurement Process - - PowerPoint PPT Presentation

F4E and the Procurement Process F4E and the Procurement Process

Culham 15/05/2012 Culham 15/05/2012 Mehdi Daval Mehdi Daval (Market policies, analysis & Reporting (Market policies, analysis & Reporting group) group)

Agenda Agenda

1. Fusion Energy 2. ITER 3. Europe in ITER: F4E – Fusion for Energy 4. F4E Contractual Process 5. F4E Industrial Policy and Tools 6. Achievements and Next Steps

2 F4E & Industry- Culham

• Hydrogen nuclei fuse and

release large amounts of energy

• Fusion powers the sun and the

stars

• On earth, the most efficient

process is a D-T reaction

• Requires a plasma

at 150 000 000 ℃

Plasma inside JET Plasma inside JET

1. 1. Fusion Energy Fusion Energy Principles Principles

3 F4E & Industry- Culham

1. 1. Fusion Energy Fusion Energy Advantages Advantages

Environmental: No CO2 emissions

There is very low global impact on the environment. There is no long-lasting radioactive waste to create a burden on future generations.

Safety: No possibility of “meltdown” or “runaway reactions”

4 16th ILO Meeting - Barcelona 4 F4E & Industry- Culham

Agenda Agenda

1. Fusion Energy 2. ITER 3. Europe in ITER: F4E – Fusion for Energy 4. F4E Contractual Process 5. F4E Industrial Policy and Tools 6. Achievements and Next Steps

5 F4E & Industry- Culham

2. 2. ITER ITER Genesis Genesis

“For the benefit of mankind ”

The idea for ITER originated from the Geneva Superpower Summit in 1985 where Gorbachev and Reagan proposed international effort to develop fusion energy… …“as an inexhaustible source of energy for the benefit

• f mankind”.

6 F4E & Industry- Culham

November 21, 2006: China, Europe, India, Japan, Korea, Russian Federation and the USA sign the ITER Agreement

2. 2. ITER ITER Aims Aims

Demonstrate the scientific and technological viability of controlled fusion for power production. It means:

• Study and optimise plasma (heated gas) behaviour
• Produce about 500 MW of fusion power (Q>10)
• Demonstrate the technologies required for
• fusion for power stations
• Operate for about 20 years

7 F4E & Industry- Culham

2. 2. ITER ITER Perspectives Perspectives ITER is a milestone

towards an industrial Tokamak

8 F4E & Industry- Culham

2. 2. ITER ITER The Machine The Machine

9 F4E & Industry- Culham

2. 2. ITER ITER Participants Participants

World’s biggest fusion energy research project & world’s largest S&T cooperation endeavor Objective: to demonstrate the scientific and technological feasibility of fusion power. Being built in Europe in Cadarache, France

10 F4E & Industry- Culham

7 parties:

2. 2. ITER ITER Project Organization Project Organization

ITER Organization (IO), Cadarache, undertakes Planning/Design, reactor assembly (with QA, safety, licensing & schedule), & operational start (Testing+ Commissioning) of ITER device. + few components (ex: He refrigerators) ITER France agency, Cadarache, is in charge of ground preparation, safety related questions on behalf of IO, & on-site staff welcoming. 7 Domestic Agencies manage the operational procurements and budget relative to their contribution. The DAs deliver in-kind contribution to IO in the form of components, works & services.

Fusion for Energy (F4E) is the European Domestic Agency

11 F4E & Industry- Culham

Agenda Agenda

1. Fusion Energy 2. ITER 3. Europe in ITER: F4E – Fusion for Energy 4. F4E Contractual Process 5. F4E Industrial Policy and Tools 6. Achievements and Next Steps

12 F4E & Industry- Culham

3. 3. Fusion for Energy (F4E) Fusion for Energy (F4E) Commitments Commitments

1. Europe’s contribution / commitment to ITER which represents 45 % of the cost / value of ITER construction. Total capped budget : M€ 6 600 (€ 2008) EU + CH (Euratom) are involved on most of the 85 procurement packages shared with the 6 other parties +IO 2. Implementation of the Broader Approach Agreement between Europe and Japan. 3. Preparation of demonstration fusion reactors (DEMO)

13 F4E & Industry- Culham

3. 3. Fusion for Energy (F4E) Fusion for Energy (F4E) Main Facts and Figures Main Facts and Figures

Joint Undertaking established in April 2007 for a period of 35 years Industrial & procurement agency 29 members: European Union states + Switzerland+ Euratom Headcount of roughly 300 people today Based in Barcelona – Spain but also with an antenna in Garching (D) and in Cadarache (F).

14 F4E & Industry- Culham

F4E manages 6,6G€ (€ 2008) on behalf of EU

3. 3. Fusion for Energy (F4E) Fusion for Energy (F4E) Main Facts and Figures Main Facts and Figures

15 F4E & Industry- Culham

Agenda Agenda

1. Fusion Energy 2. ITER 3. Europe in ITER: F4E – Fusion for Energy 4. F4E Contractual Process 5. F4E Industrial Policy and Tools 6. Achievements and Next Steps

16 F4E & Industry- Culham

4. 4. F4E Contractual Process F4E Contractual Process Contracting Principles Contracting Principles

Contracts have to comply with the principles of: transparency, proportionality, equal treatment and non-

• discrimination. No ‘juste retour’.

Best value for money is our policy => “Design must follow budget” with a strong cost and quality awareness with pragmatic risk assessment Tenders are opened to all European economic operators through fair competition but we may go worldwide if necessary. We connect with other Domestic Agencies in order to share information on best practices and suppliers. Strong cooperation between F4E and IO (and some Joint Tenders)

17 F4E & Industry- Culham

4. 4. F4E Contractual Process F4E Contractual Process Procurement Procedures Procurement Procedures

F4E contracts with organisations via:

Grants through Calls for proposals Procurement contracts through calls for tender

Grants support R&D at 40% through specific contracts or Framework Partnership Agreements (FPA) Procurement contracts provide goods, works or services through:

• Open procedure : All interested economic operators can submit a full tender
• Restricted procedure 2 phases

1: Pre-selection following a Call for Expression of Interest 2: Call for Tender: only pre-selected companies may submit a tender.

• Competitive dialogue: For particularly complex contracts, collaboration with

industry to clarify technical specifications

• Negotiated procedure : Only for contracts below 250.000 Euro and in

exceptional cases (justification required)

18 F4E & Industry- Culham

4. 4. F4E Contractual Process F4E Contractual Process Procurement Procedure Procurement Procedure Application Rationale Application Rationale

19 F4E & Industry- Culham

Technical risk Commercial risk

Low Medium High Low Medium High

4. 4. F4E Contractual Process F4E Contractual Process Joint Teams Joint Teams

Organization

• Each procedure is managed by a Technical Responsible Officer

(TRO) and a Procurement Responsible Officer (PRO)

• Actions and information are jointly managed.

The Joint Teams have the support of specialized group

• Legal and Budget officers
• Business Intelligence officers
• Quality officers

20 F4E & Industry- Culham

Agenda Agenda

1. Fusion Energy 2. ITER 3. Europe in ITER: F4E – Fusion for Energy 4. F4E Contractual Process 5. F4E Industrial Policy and Tools 6. Achievements and Next Steps

21 F4E & Industry- Culham

5. 5. F4E Industrial Policy and Tools F4E Industrial Policy and Tools Industrial Policy Industrial Policy

Spread information for better cooperation Publication of our Work Programme on our Industry Portal Dedicated Information days (per country or per subject) Mappings = identification of required competences for CFTs Take industry’s considerations on contractual conditions Terms of payment Insurance and Liabilities Intellectual Property Rights (GB decision in March 2012) Support SMEs Specific networking tools in New f4E Portal

22 F4E & Industry- Culham

5. 5. F4E Industrial Policy and Tools F4E Industrial Policy and Tools Tools Tools

F4E website and Industry Portal Announcements & mappings Supplier database See Portal: https://industryportal.f4e.europa.eu/default.aspx Information days General Thematic (ex: remote handling, or first wall) Close cooperation with ILOs Regular ILOs meetings Market surveys required competences for CFTs) for Consortia Subcontracting (opportunities for SMEs) ILOs’ network and databases

23 F4E & Industry- Culham

5. 5. F4E Industrial Policy and Tools F4E Industrial Policy and Tools Intellectual Property: Revised Approach Intellectual Property: Revised Approach

24 F4E & Industry- Culham

GRANTS PROCUREMENT (Up to now) PROCUREMENT (New; Submitted to 27/03/12 GB) Ownership of IP Beneficiaries are full owners

• f Background and

Foreground F4E is exclusive owner of any Foreground To be decided on ad-hoc basis:

• 100% Contractor
• Shared ownership
• 100 % F4E

Access rights to IP F4E has full access to Background & Foreground. F4E can sub-licence Foreground for any purpose F4E is owner of Foreground + full access to Background if needed. Contractor has access to Foreground under conditions to be agreed with F4E F4E has full access to Background & Foreground When contractor is not full

• wner it will have access

to foreground for specific uses to be agreed Protection of IP Assets Beneficiaries are fully responsible for protecting foreground – If they do not protect we will do it (on our behalf) F4E protects foreground resulting from the activities carried out by the contractor If contractor is owner, it is

• bliged to protect under

patent, otherwise F4E will do it. Cost of protection borne by owner

Agenda Agenda

1. Fusion Energy 2. ITER 3. Europe in ITER: F4E – Fusion for Energy 4. F4E Contractual Process 5. F4E Industrial Policy and Tools 6. Achievements and Next Steps

25 F4E & Industry- Culham

6. 6. Major Achievements and Next Steps Major Achievements and Next Steps Procurement Arrangements Procurement Arrangements

Procurement Arrangements status (11/2011) 60 PA were signed between IO and DAs, representing 45% of the total number of PAs But 72% of the total procurement value for the construction of ITER

PA breakdown per DA (kIUA (ITER Unit of Account) and share of signed PAs

26 F4E & Industry- Culham

6.

• 6. Major Achievements and Next Steps

Major Achievements and Next Steps 2008 2008-

• 2011 Major Achievements

2011 Major Achievements (contracts awarded) (contracts awarded)

Buildings

• PF Coils building 12/2009
• Architect Engineer; Health and Safety 03/2010
• Anti seismic isolation pit 04/2010
• Anti Seismic Bearings ; Support to the owner 06/2010

Heating and Current Drive

• Experiment on a Large RF Ion Source with Extraction (ELISE) 09/2009
• Supply of Ion Source and Extraction Power Supplies (ISEPS) 04/2010

Magnets

• TF Coil winding Pack 07/2010
• Cabling and Jacketing 11/2010

In Vessel Vacuum Vessel 09/2010 etc. Total > 1 G€ injected in Fusion Industry through >100 contracts

27 F4E & Industry- Culham

6. 6. Major Achievements and Next Steps Major Achievements and Next Steps Publication of Calls Publication of Calls

1. TED: http://ted.europa.eu/TED/browse/browseByBO.do (check on SPAIN) 2. F4E: https://industryportal.f4e.europa.eu/EXT_IP_APPLICATION_PAGES/CallSearch.aspx

28 F4E & Industry- Culham

6.

• 6. Major Achievements and Next Steps

Major Achievements and Next Steps Forthcoming big contracts Forthcoming big contracts

Forthcoming big contracts: On-going & forthcoming procedures

29 F4E & Industry- Culham

• TB02-Lift and cranes (OPE-285) & TB03-

Nuclear tokamak building/assembly hall/doors (OPE-286) &; TB04- Mechanical & Electrical System (OPE-301) on-going dialogues

• TB05- Design & Build package (OPE-378):
• n-going (deadline 18/06/12)
• TB06- HV electrical equipment: under

preparation (released soon)

• TB08-site infrastructure (OPE-374): under

evaluation (Restricted procedure)

• TB Alpha -galleries and drainage (OPE-

406): under evaluation (Restricted procedure) Buildings strategy presentation online updated

• 6. Buildings (and site adaptation)
• 6. Buildings (and site adaptation)

30 F4E & Industry- Culham

Magnets:

• Under evaluation: (OPE-355)

radial plate series production (competitive dialogue with 4, that could end up in September- October)

• On-going: (OPE-086) PF Coils

Pre-compression rings:

• Negotiation on-going with 3

selected candidates (end of nego foreseen in end May)

• 6. Magnets
• 6. Magnets

31 F4E & Industry- Culham F4E & the industry- Culham

Divertor

• Ongoing : (OPE-423) High Heat Flux

testing on W and CFC proto (Negotiated)

• Under preparation: Divertor Cassette

bodies (target: July) First Wall:

• Under evaluation: (OPE-319) HHF test

facility for in-vessel components (dialogue to be started soon)

• Just launched: (OPE-394) 3rd semi-proto
• Under preparation (soon): OPE-400

(worldwide) HHF testing >5MW/m2

• Under preparation OPE-422: HHF testing

(2 MW/m2)

• 6. In Vessel
• 6. In Vessel

32 F4E & Industry- Culham F4E & the industry- Culham

Remote Handling:

• On-going: CFEI for 3 packages

launched (Deadline expired on 16/03/2012)

– Neutral beam RH – Divertor RH – Transfer cask A fully satisfactory number of strong candidatures for each lot has been received. – Competitive dialogue on Legal aspects expected to start in June

• 2012. Awarding of the first package

(Divertor RH) foreseen in Q4 2012 – Q1 2013 at the latest.

• 6. Machine System
• 6. Machine System

In vessel Viewing System: CFEI to be launched before the summer break. The relating procurement strategy in line with the one of the other RH packages has been approved by Ex-Co.

33 F4E & Industry- Culham

Cryoplant:

• Under

preparation

(target summer 2012)

Vacuum Pumping and Fuelling:

• On-going: (OPE-387)

Cryopumps (prototype) – 3 lots

(open procedure)

Tritium Plant:

• Water Detritiation tanks:

procurement activity postponed. Electrolyzer

• Pre-procurement activities on-

going.

Plant System Plant System

34 F4E & Industry- Culham

NBTF (Mitica/Prima/Spider):

• On-going: (OPE-279) Prima Vacuum

and Gas Injection Plant (deadline 08/06)

• Under evaluation : Spider vessel and

beam source.

• Under evaluation: Cooling Plant
• Imminent: Spider HVD and TL (re-

tendered)

• Under preparation: Mitica Vessel

(Mapping in preparation; Open or Competitive dialogue). Target end 2012-early 2013

• 6. Neutral Beam Test Facility
• 6. Neutral Beam Test Facility

Padua Cryoplant: Consultations with industries have started. Tender (most likely a competitive dialogue) expected to be launched towards the end of the current year. beginning of 2013 at the latest.

35 F4E & Industry- Culham

ECPS:

• Electron

Cyclotron system: Consultations with industries in preparation of the PA signature (foreseen for May/June 2012) have been carried out.

• ngoing market survey (available on
• ur Industry Portal): in preparation

for the relevant tendering procedure which should be launched towards the end of the year. Deadline 25/05/2012

• 6. Neutral Beam and Gyrotron
• 6. Neutral Beam and Gyrotron

36 F4E & Industry- Culham

CODAC (Control Data Access and Communication)

• Imminent: Framework contract (out-sourced Engineering support).

Diagnostics (bolometers, infrared tech, optical, reflectometers, dust measurement etc.) :

• Under validation: (OFC 322) Integration Port
• Imminent: (May-June): Irradiation & post irradiation testing services
• Under discussion with IO: Rogowski coils (14th March Info session):
• Under preparation: FPA for bolometers
• 6. CODAC and Diagnostics
• 6. CODAC and Diagnostics

37 F4E & Industry- Culham

TBMs:

• Under evaluation: (OMF-331)

Engineering Support in the area of Test Blanket Module (TBM) Systems Design and Technological Demonstration (Award foreseen by July 2012) Engineering Support:

• Under evaluation: (OMF-357) CAD

Design support

• 6. TBM, Materials development
• 6. TBM, Materials development

and Engineering Support and Engineering Support

Ancillary system

38 F4E & Industry- Culham

Conclusion Conclusion

ITER is a unique and major industrial project worldwide. F4E is the main entry gate for European companies working for Fusion (and associated technologies). F4E tenders can help companies to gain know how for other applications. F4E can help companies to find partners if necessary.

39 F4E & Industry- Culham

Media Media

Recent pictures of ITER site:

http://www.fusionforenergy.europa.eu/mediacorner/imagegallery.aspx

Recent Videos:

http://f4e.europa.eu/mediacorner/multimediaVid28.aspx

40 F4E & Industry- Culham

ITER Site ITER Site How it will look in 10 years How it will look in 10 years

41 F4E & Industry- Culham

ITER Project Site Layout ITER Project Site Layout 3 3-

• D graphics view

D graphics view

42 F4E & Industry- Culham

Tokamak Building: Tokamak Building: Rentention walls, 493 Rentention walls, 493 plinths and antisismic bearings on top of it plinths and antisismic bearings on top of it

43 F4E & Industry- Culham

Poloidal Field Coil Winding Facility Delivery Poloidal Field Coil Winding Facility Delivery

44 F4E & Industry- Culham

F4E and the Procurement Process F4E and the Procurement Process Thank you

45 F4E & Industry- Culham
