Extreme Transients in the Multimessenger Era Philipp Msta Einstein fellow @ UC Berkeley pmoesta@berkeley.edu BlueWBlueWaters Symposium 2018 Sunriver Resort Core-collapse supernovae neutrinos turbulence (Binary) black holes accretion

slide-1
SLIDE 1

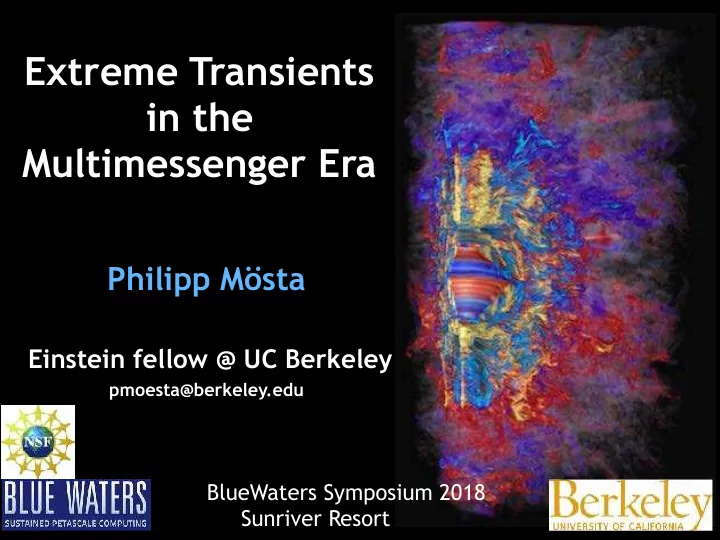

Philipp Mösta

Einstein fellow @ UC Berkeley

pmoesta@berkeley.edu

BlueWBlueWaters Symposium 2018 Sunriver Resort

Extreme Transients in the Multimessenger Era

slide-2
SLIDE 2

2

~

(Binary) black holes

accretion disks EM counterparts

Core-collapse supernovae

neutrinos turbulence

Extreme core-collapse

hyperenergetic/superluminous lGRBs heavy elements

Binary neutron stars

gravitational waves +EM sGRBs heavy elements

Extreme transients

slide-3
SLIDE 3

3

~

Extreme core-collapse

hyperenergetic/superluminous lGRBs heavy elements

Core-collapse supernovae

neutrinos turbulence

(Binary) black holes

accretion disks EM counterparts

Binary neutron stars

gravitational waves +EM sGRBs heavy elements

Extreme transients

slide-4
SLIDE 4

4

magnetic fields: lifetime, winds, outflows, jets nuclear EOS: EOS, nucleosynthesis, optical/EM signal neutrino transport: composition, heating/cooling, winds

Unique relativistic nuclear astrophysics laboratories

relativity gravitational waves, mergers, jets

slide-5
SLIDE 5

5

~

Astrophysics of extreme transients

Galaxy evolution

M82/Chandra/NASA

Heavy element nucleosynthesis Birth sites of black holes / neutron stars Neutrinos Gravitational waves

slide-6
SLIDE 6

6

New era of transient science

Image: PTF/ZTF/COO Image: LSST

  • Current (PTF

, DeCAM, ASAS-SN) and upcoming wide-field time domain astronomy (ZTF , LSST , …) -> wealth of data

  • adv LIGO / gravitational waves detected
  • Computational tools at dawn of new exascale era
slide-7
SLIDE 7

7

New era of transient science

Image: PTF/ZTF/COO Image: LSST

Transformative years ahead for our understanding of these events

  • Current (PTF

, DeCAM, ASAS-SN) and upcoming wide-field time domain astronomy (ZTF , LSST , …) -> wealth of data

  • adv LIGO / gravitational waves detected
  • Computational tools at dawn of new exascale era
slide-8
SLIDE 8

8

  • But not all stripped-envelope supernovae come with GRBs
  • Trace low metallicity environments
  • Some SLSNe share same characteristics
  • 11 long GRB – core-collapse supernova associations.
  • All GRB-SNe are stripped envelope, show outflows v~0.1c

Extreme Supernovae and GRBs

slide-9
SLIDE 9

9

  • Remnant lifetime and fate
  • sGRB engine: black hole vs magnetar, structure of the jet
  • Dynamical ejecta and disk outflows: composition and

amount of ejecta -> EM observations

Neutron star mergers, kilonovae and sGRBs

slide-10
SLIDE 10

Engine?

10

Superluminous Hyperenergetic SNe lGRBs sGRBs? Kilonova

The engine(s) driving these transients

slide-11
SLIDE 11

Common engine?

11

Common? Engine?

slide-12
SLIDE 12

Common engine?

12

Progenitor

Engine?

slide-13
SLIDE 13

Common engine?

13

Observations

Progenitor

Engine?

slide-14
SLIDE 14

Common engine?

14

Observations

Progenitor

Engine?

slide-15
SLIDE 15

Common engine?

15

Observations

Progenitor

Engine? MPRG objective: Establish mapping progenitor -> engine -> observations

slide-16
SLIDE 16

16

2000km Protoneutron star r~30km Iron core

Nuclear equation of state stiffens at nuclear density Inner core (~0.5 )


  • > protoneutron star +

shockwave M

2000km

Core collapse basics

slide-17
SLIDE 17

17

2000km

Outer core accretes onto
 shock & protoneutron star with O(1) /s Shock stalls at ~ 100 km

Reviews:
 Bethe’90 Janka+‘12

Protoneutron star r~30km Iron core

M

2000km

Nuclear equation of state stiffens at nuclear density Inner core (~0.5 )


  • > protoneutron star +

shockwave M

Core collapse basics

accretion

Lν

shock

slide-18
SLIDE 18

18

2000km

Core-collapse supernova problem: How to revive the shockwave?

Reviews:
 Bethe’90 Janka+‘12

accretion

Lν

shock Protoneutron star r~30km Iron core 2000km

Nuclear equation of state stiffens at nuclear density Inner core (~0.5 )


  • > protoneutron star +

shockwave M

Core collapse basics

slide-19
SLIDE 19

19

2000km accretion

Lν

shock 2000km

Core collapse basics

Neutrino mechanism

slide-20
SLIDE 20

20

2000km 2000km Roberts+16 3D Volume
 Visualization of

Entropy

Core collapse basics

slide-21
SLIDE 21

Magnetorotational mechanism

21

[LeBlanc & Wilson ‘70, Bisnovatyi-Kogan ’70, Obergaulinger+’06, Burrows+ ‘07, Takiwaki & Kotake ‘11, Winteler+ 12]

Rapid Rotation + B-field amplification
 (need magnetorotational instability [MRI];
 difficult to resolve, but see, e.g, Obergaulinger+’09, PM+15) 2D: Energetic bipolar explosions Energy in rotation up to 1052 erg Results in ms-period proto-magnetar


Burrows+’07

slide-22
SLIDE 22

22

Gas/plasma dynamics Magneto-Hydrodynamics

A multiphysics challenge

slide-23
SLIDE 23

23

Gas/plasma dynamics Gravity Magneto-Hydrodynamics

General Relativity

A multiphysics challenge

slide-24
SLIDE 24

24

Gas/plasma dynamics

Nuclear EOS, nuclear
 reactions & ν interactions

Gravity Magneto-Hydrodynamics

Nuclear and Neutrino Physics General Relativity

A multiphysics challenge

slide-25
SLIDE 25

25

Gas/plasma dynamics

Nuclear EOS, nuclear
 reactions & ν interactions

Gravity

Neutrino transport

Magneto-Hydrodynamics

Nuclear and Neutrino Physics General Relativity Boltzmann Transport Theory

A multiphysics challenge

slide-26
SLIDE 26

26

Gas/plasma dynamics

Nuclear EOS, nuclear
 reactions & ν interactions

Gravity

Neutrino transport

Fully coupled!

Magneto-Hydrodynamics

Nuclear and Neutrino Physics General Relativity Boltzmann Transport Theory

All four forces!

A multiphysics challenge

slide-27
SLIDE 27

27

Magneto-Hydrodynamics

Nuclear and Neutrino Physics General Relativity Boltzmann Transport Theory

Nuclear EOS, nuclear
 reactions & ν interactions Neutrino transport

Fully coupled!

Additional Complication: Core-Collapse Supernovae are 3D

  • rotation
  • fluid and MHD instabilities, multi-D structure, spatial scales

Need 21st century tools:

  • cutting edge numerical algorithms
  • sophisticated open-source software infrastructure
  • peta/exa scale computers

All four forces!

A multiphysics challenge

Gas/plasma dynamics Gravity

slide-28
SLIDE 28

28

http://einsteintoolkit.org

slide-29
SLIDE 29

R-process nucleosynthesis in magnetar-driven explosions

slide-30
SLIDE 30

3D Volume
 Visualization of

30

Entropy

PM, Richers+ 14

slide-31
SLIDE 31

Jet-driven explosions proposed as site for r- process

31

Neutron-rich nucleosynthesis in supernovae

Creating the heaviest elements

  • Low electron

fraction

  • Medium entropy
  • Low density
  • High

temperature

Sneden+ 08

slide-32
SLIDE 32

32

Making the heaviest elements

PM+ 17 Halevi, PM+ 18

slide-33
SLIDE 33

33

R-process in jet-driven supernovae

Halevi, PM 18+

B = 1013 G

with Goni Halevi

slide-34
SLIDE 34

34

3D dynamics open up diverse outcomes!

PM+14, PM+ 17, Halevi, PM+18

Heaviest elements reduced by factor 100

50 100 150 200

mass number A

10−8 10−6 10−4 10−2 100

Abundance

solar B13 B12-sym B12

Continued accretion -> Black hole GRB engine possible

slide-35
SLIDE 35

35

Radice, Bernuzzi, PM 16

Neutron star mergers

slide-36
SLIDE 36

36

stable neutron star:

  • low mass

prompt collapse to black hole:

  • soft EOS + high mass

3 outcomes

hypermassive neutron star + torus - delayed collapse to black hole:

  • everything in between?
slide-37
SLIDE 37

37

MC Mi Mo

Key for angular momentum transport:

Magnetorotational instability

slide-38
SLIDE 38

38

Stability criterion Wavelength of FGM

Situation after merger:

blue unstable B0 ~ 5x1014 G

slide-39
SLIDE 39

39

Merger remnant evolution

PM+ 18 (in prep.)

Replace plot

5 10 15 20 25 30 35 40 45 0.30 0.35 0.40 0.45 0.50 0.55 0.60 0.65

t − tmerger [ms] αmin

Original hydro MHD B = 0 MHD B = 5 × 1014 G low MHD B = 5 × 1014 G medium Original hydro MHD B = 0 MHD B = 5 × 1014 G low MHD B = 5 × 1014 G medium

slide-40
SLIDE 40

40

advanced LIGO - EM follow up

Image:PanSTARRS Aasi+ 2016, LIGO

GW + EM counterpart = detailed engine observations

slide-41
SLIDE 41

41

Summary

New (hyperenergetic/superluminous) transients challenge our engine models Need detailed massively parallel 3D GRMHD simulations to interpret observational data Magnetoturbulence and large-scale dynamo action create conditions for magnetar engine Robust r-process elements only from iron cores that were magnetized strongly precollapse High-performance computing and BlueWaters key to solving these puzzles

slide-42
SLIDE 42

3) From simulations to observations

slide-43
SLIDE 43

43

From simulations to observations

State of the art now: Current frontier:

Detailed simulations full physics 0.1-1s inner core ~10000km PM, Tchekhovskoy 17 (in prep)

Full 3D, full physics Full star

1) Engine model from full-physics simulations 2) Simplified simulations with engine model to shock breakout

slide-44
SLIDE 44

44

From simulations to observations

State of the art now:

Future:

Full-star simulations full physics shock breakout detailed light curves detailed spectra connect observations and engines map progenitor params

Detailed simulations full physics 0.1-1s inner core ~10000km

Current frontier:

1) Engine model from full-physics simulations 2) Simplified simulations with engine model to shock breakout

slide-45
SLIDE 45

How do we form magnetars?

slide-46
SLIDE 46

46

First global 3D MHD turbulence simulations

Does the MRI efficiently build up dynamically relevant global field?

  • 10 billion grid points (Millenium

simulation used 10 billion particles)

  • 130 thousand cores on Blue Waters
  • 2 weeks wall time
  • 60 million compute hours
  • 10000x more expensive than any

previous simulations

PM+ 15 Nature

slide-47
SLIDE 47

47

3D magnetic field structure

dx=500m dx=50m dx=200m dx=100m

PM+ 15 Nature

slide-48
SLIDE 48

48

PM+ 15 Nature

slide-49
SLIDE 49

49

Growth at Large Scales

saturation within 60ms

5 10 1 2 3 4 5 6 7

t − tmap [ms] Ek,mag(t) [1033 erg] (−2.05 + 0.75 ms−1 · (t − tmap)) · 1033

5 · 1032 e(t−tmap)/τ, τ = 3.5 ms k = 4 k = 6 k = 8 k = 10 k = 20 k = 50 k = 100

(−2.05 + 0.75 ms−1 · (t − tmap)) · 1033

5 · 1032 e(t−tmap)/τ, τ = 3.5 ms k = 4 k = 6 k = 8 k = 10 k = 20 k = 50 k = 100

PM+ 15 Nature

slide-50
SLIDE 50

50

Global Field Structure

t=0ms dx=500m dx=50m t=10ms t=10ms

PM+ 15 Nature PM+ 15 Nature

slide-51
SLIDE 51

51

Global Field Structure

t=0ms dx=500m dx=50m t=10ms t=10ms

PM+ 15 Nature

Magnetar formation?

PM+ 15 Nature

slide-52
SLIDE 52

52

~

(Binary) black holes

accretion disks EM counterparts

Extreme core-collapse

hyperenergetic superluminous lGRBs

Binary neutron stars

gravitational waves EM counterparts sGRBs

Core-collapse supernovae

neutrinos turbulence

Magnetic fields in high-energy astro

slide-53
SLIDE 53

53

~

Extreme core-collapse

hyperenergetic superluminous lGRBs

Binary neutron stars

gravitational waves EM counterparts sGRBs

Core-collapse supernovae

neutrinos turbulence

Magnetic fields in high-energy astro

(Binary) black holes

accretion disks EM counterparts

slide-54
SLIDE 54

54

MRI

slide-55
SLIDE 55

55

MRI Basics

MC Mi Mo

slide-56
SLIDE 56

56

  • Weak field instability
  • Requires negative angular velocity gradient
  • Can build up magnetic field exponentially fast
  • Extensively researched in accretion disks: ability to

modulate angular momentum transport and grow large scale field

MRI Basics

slide-57
SLIDE 57

57

Stability criterion:

[Balbus&Hawley 91,98, Akiyama+03, Obergaulinger+09]

What’s the situation in core-collapse?

−8Ω2 < ω2

BV + rdΩ2

dr < 0

slide-58
SLIDE 58

Magnetorotational Mechanism

58

  • MRI works locally

Akiyama+03, Shibata+06

  • shearing box

simulations

But what about global field?

Obergaulinger+09

Burrows+’07

slide-59
SLIDE 59

59

From simulations to observations

State of the art now: Current frontier:

Detailed simulations full physics 0.1-1s inner core ~10000km Squire, PM, Lecoanet 16 (in prep) 1) Engine model from full-physics simulations 2) Simplified simulations with engine model to shock breakout

Bi bi ui U i

~ j ×~ b

...

Get mean fields from 3D sim

slide-60
SLIDE 60

60

From simulations to observations

State of the art now: Current frontier:

Detailed simulations full physics 0.1-1s inner core ~10000km Squire, PM, Lecoanet 16 (in prep) 1) Engine model from full-physics simulations 2) Simplified simulations with engine model to shock breakout

5 10 15 20 25
  • 20
  • 10
10 20
  • 5.0×10-7
5.0×10-7 1.5×10-6 2.5×10-6

Daedalus simulation Get mean fields from 3D sim

slide-61
SLIDE 61

61

Magnetic field amplification: A 2D view

dx=500m dx=50m dx=200m dx=100m

slide-62
SLIDE 62

62

Energy Spectra

1 10 100 1028 1029 1030 1031 1032 1033 1034 1035 1036 k E(k) [erg]

a

t − tmap = 10 ms Emag 500 m Emag 200 m Emag 100 m Emag 50 m Emag 50 m (t − tmap = 0 ms) Ekin 50 m 5 · 1036 erg · k−5/3 Ekin 50 m 5 · 1036 erg · k−5/3

slide-63
SLIDE 63

63

  • Turbulent saturated state after 3ms
  • inverse cascade afterwards

1 10 100 1028 1029 1030 1031 1032 1033 1034 1035 1036

b

k E(k) [erg] Emag(k) t = 0 ms t = 1 ms t = 2 ms t = 4 ms t = 6 ms t = 8 ms t = 10 ms 5 · 1036 erg · k−5/3 Ekin(k) t = 7 ms 5 · 1036 erg · k−5/3 Ekin(k) t = 7 ms

Energy Spectra
