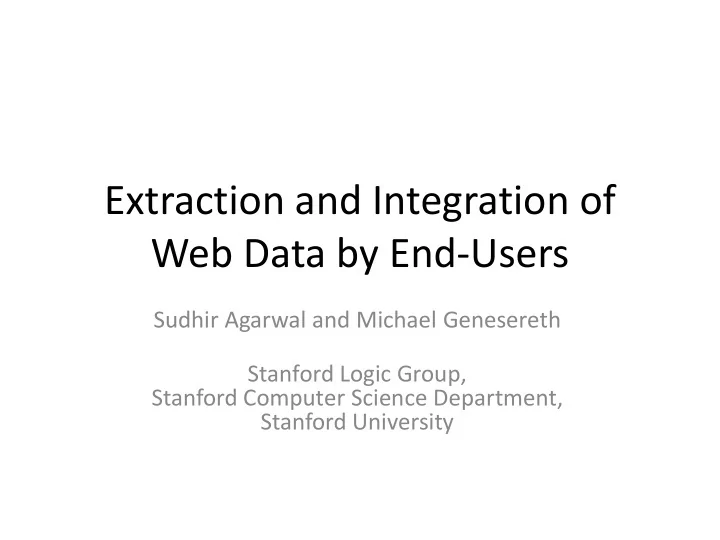

Extraction and Integration of Web Data by End-Users

Sudhir Agarwal and Michael Genesereth Stanford Logic Group, Stanford Computer Science Department, Stanford University

Introduction

• End users often need to quickly find and analyze information from

many web sites

• Search engines:

– (+) good at finding individual documents – (-) not good at fulfilling a complex information requirement

• End users have new ideas as soon as some information is easily

available  Web aggregators only shift but don’t solve the problem

• We propose an approach that empowers end-users to

– easily extract information from web pages, – clean, integrate and search extracted information by writing Datalog rules and queries

Extraction of Data from the Web

• While browsing normally, end-users select the

information they want to remember

• Our extraction algorithm automatically creates a table

from user’s selection

– Input: HTML DOM tree D (representing the selection) – D’ compress D by replacing parents

• f lone children by their resp. children

– D’’ remove all nodes of D’ that have no text content – T D’’ create a table from D’’ by interpreting nodes in level 1 as rows and that in level 2 as column values – Output T

D’’k D’’1

…

|D’’1| |D’’k|

T k

max( |D’’i| ) 1<=i<=k

Extraction from HTML tables illustrated with the DBLP page of Jeffrey Ullman

Extraction from HTML tables illustrated with the DBLP page of Jeffrey Ullman

Extraction from HTML Tables that have DIV elements for layout (illustrated with the Stanford CS faculty web page)

Extraction from HTML Tables that have DIV elements for layout (illustrated with the Stanford CS faculty web page)

Extraction from arbitrary HTML elements (illustrated with the MIT CS faculty page)

Extraction from arbitrary HTML elements (illustrated with the MIT CS faculty page)

Extraction of text paragraphs (illustrated with the New York Times front page)

Extraction of text paragraphs (illustrated with the New York Times front page)

Extraction of non-adjacent elements that may even be on different web pages with the help of a clipboard (illustrated by the amazon web page)

Extraction of non-adjacent elements that may even be on different web pages with the help of a clipboard (illustrated by the amazon web page)

Rule based Cleaning

ct3(A,C,E,F):-t3(A,B) & distinct(B,"") & matches(B,"[^:]+","0,1",C) & matches(B,"[^:]+","1",D) & matches(D,"[^.]+","0,1",E) & matches(D,"[^.]+","1",F) t3 ct3

Rule-based Integration

• End users write simple Datalog rules to

integrate (clean) tables in GAV fashion

• Multiple rules with the same head define a

view as a union

• Body can contain multiple tables and views

pubOf("Jeffrey Ullman",A,B,C,D):-ct3(A,B,C,D) csPubs(A,B,C,D):-ct3(A,B,C,D) csPubs(A,B,C,D):-ct4(A,B,C,D) Assume table ct2 contains names of faculty members in column A faculty(A):-ct2(A,B,C,D,E,F) facPubs(B,C,D,E):-pubOf(A,B,C,D,E)&faculty(A)

Conclusion

• We presented an end-user driven web data extraction,

integration and search approach

• The approach is implemented as a browser plugin (pls.

refer to http://seamail.ksri.kit.edu/swb/ for details)

• Our approach can suggest cleaning and integration

rules that could be reused for tables of same arity and

• rigin (not part of this presentation, pls. refer to paper)
• As a next step we plan to derive reusable extraction

scripts from users’ browsing logs and extraction actions

Thank you !

Cleaning Extracted Data

• Extracted data often need to be cleaned

before it can be integrated with other data

• Simplest way of allowing end users to freely

edit the extracted tables can quickly become very tedious if similar steps need to be performed repetitively for multiple tables

• We propose rule based cleaning since cleaning

rules are reusable and thus save time

D’’k D’’1

…

|D’’1| |D’’k|

T k

max( |D’’i| ) 1<=i<=k
