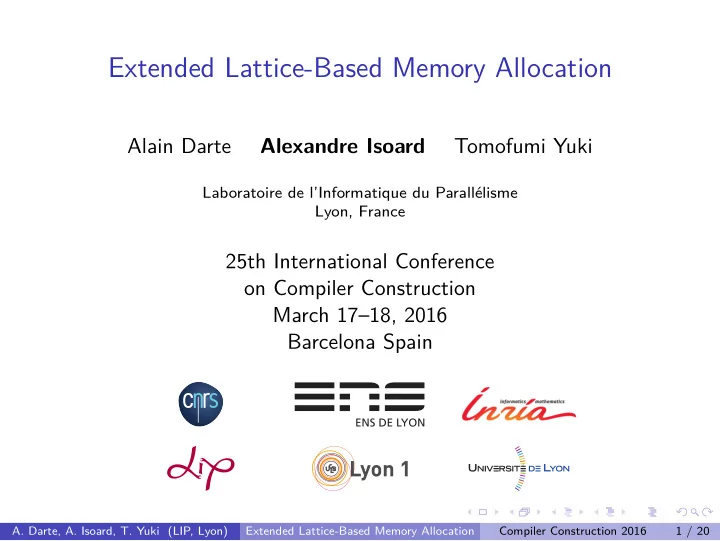

Extended Lattice-Based Memory Allocation

Alain Darte Alexandre Isoard Tomofumi Yuki

Laboratoire de l’Informatique du Parallélisme Lyon, France

25th International Conference

• n Compiler Construction

March 17–18, 2016 Barcelona Spain

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 1 / 20

Motivation

We want to automatically find compact memory allocations. Because: domain specific languages (DSL) abstract away memory allocation:

◮ Alpha ◮ Single Assignment C ◮ . . .

array expansion increases parallelism but also memory footprint

◮ Parallelizing/optimizing compilers

useful for programming memory hierarchy

◮ Kernel offloading to GPU ◮ High level synthesis for FPGA ◮ Flat-mode of Xeon Phi

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 2 / 20

Static intra-array optimization

Principle: Reuse memory locations (values without overlapping lifetimes) Reuse within a given array (element wise) Reduce memory of temporary arrays Static optimization (at compile time)

for(int t = 0; t < n-1; ++t) for(int i = 0; i < n; ++i) A[t+1][i] = f(A[t][i-1], A[t][i], A[t][i+1]);

Uses n2 storage.

for(int t = 0; t < n-1; ++t) for(int i = 0; i < n; ++i) A[(t+1)%2][i] = f(A[t%2][i-1], A[t%2][i], A[t%2][i+1]);

Uses 2n storage.

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 3 / 20

Static intra-array optimization

Principle: Reuse memory locations (values without overlapping lifetimes) Reuse within a given array (element wise) Reduce memory of temporary arrays Static optimization (at compile time)

for(int t = 0; t < n-1; ++t) for(int i = 0; i < n; ++i) A[t+1][i] = f(A[t][i-1], A[t][i], A[t][i+1]);

Uses n2 storage.

for(int t = 0; t < n-1; ++t) for(int i = 0; i < n; ++i) int x = i-t; int b = n+1; A[x%b] = f(A[x%b], A[(x+1)%b], A[(x+2)%b]);

Uses n + 1 storage!

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 3 / 20

History: shift in approach

Schedule-based approaches: Wilde & Rajopadhye (1996) De Greef, Cathoor & al. (1997) Lefebvre-Feautrier (1998) Quilleré & Rajopadhye (2000) Thies, Amarasinghe, & al. (2007) Separation of concerns (live-range conflict vs. modular mapping search) Universal Occupancy Vectors, Strout & al. (1998) Lattice-based, Darte & al. (2005) SMO, Bhaskaracharya & al. (2015) Extended Lattice-based, Darte & al. (this paper)

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 4 / 20

Our contribution Basis selection heuristic driven by reuse vectors

Provides: Support for wide range of languages (cf. our paper at IMPACT’16) Method to optimize mapping for size Natural treatment of non-convex union of polyhedra Parametric analysis and parametric modular mapping Simple to use (only requires conflict difference set) Scope: Intra-array optimization ☛ Inter-array? Size focused ☛ Locality? Affine mapping ☛ Redundant storage, live-range splitting?

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 5 / 20

Successive modulo

for(int t = 0; t < n; ++t) for(int i = 0; i < n; ++i) A[t][i] = A[t-1][i-1] + A[t-1][i] + A[t-1][i+1];

t i Canonical basis: (Lefebvre-Feautrier) A[t][i] → A[t % 2][i % n]

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 6 / 20

Successive modulo

for(int t = 0; t < n; ++t) for(int i = 0; i < n; ++i) A[t][i] = A[t-1][i-1] + A[t-1][i] + A[t-1][i+1];

t i Canonical basis: (Lefebvre-Feautrier) A[t][i] → A[t % 2][i % n]

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 6 / 20

Successive modulo

for(int t = 0; t < n; ++t) for(int i = 0; i < n; ++i) A[t][i] = A[t-1][i-1] + A[t-1][i] + A[t-1][i+1];

t i Canonical basis: (Lefebvre-Feautrier) A[t][i] → A[t % 2][i % n]

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 6 / 20

Successive modulo

for(int t = 0; t < n; ++t) for(int i = 0; i < n; ++i) A[t][i] = A[t-1][i-1] + A[t-1][i] + A[t-1][i+1];

t i Canonical basis: (Lefebvre-Feautrier) A[t][i] → A[t % 2][i % n] Skewed basis: A[t][i] → A[(i-t) % (n+1)]

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 6 / 20

Successive modulo

for(int t = 0; t < n; ++t) for(int i = 0; i < n; ++i) A[t][i] = A[t-1][i-1] + A[t-1][i] + A[t-1][i+1];

t i Canonical basis: (Lefebvre-Feautrier) A[t][i] → A[t % 2][i % n] Skewed basis: A[t][i] → A[(i-t) % (n+1)]

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 6 / 20

Tiling case

We usually get this kind of conflicts (live-out set) after tiling: t i

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 7 / 20

Tiling case

We usually get this kind of conflicts (live-out set) after tiling: t i Canonical basis:

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 7 / 20

Tiling case

We usually get this kind of conflicts (live-out set) after tiling: t i Canonical basis: A[t][i] → A[t % n][i % n]

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 7 / 20

Tiling case

We usually get this kind of conflicts (live-out set) after tiling: t i Canonical basis: A[t][i] → A[t % n][i % n] Skewed basis:

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 7 / 20

Tiling case

We usually get this kind of conflicts (live-out set) after tiling: t i Canonical basis: A[t][i] → A[t % n][i % n] Skewed basis: A[t][i] → A[(i-t) % (2n-1)] Bhaskaracharya & al.: Looks for hyperplanes interecting at most one point

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 7 / 20

Tiling in general (with longer dependences)

We also get this kind of conflicts (live-out set) after tiling: t i Bhaskaracharya & al.: Looks for hyperplanes interecting at most one point

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 8 / 20

Tiling in general (with longer dependences)

We also get this kind of conflicts (live-out set) after tiling: t i Bhaskaracharya & al. basis: A[t][i] → A[(i-2t) % (5n-4)] Bhaskaracharya & al.: Looks for hyperplanes interecting at most one point

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 8 / 20

Tiling in general (with longer dependences)

We also get this kind of conflicts (live-out set) after tiling: t i Bhaskaracharya & al. basis: A[t][i] → A[(i-2t) % (5n-4)] Best basis: A[t][i] → A[t%2][(i-t)%(2n-1)] Bhaskaracharya & al.: Looks for hyperplanes interecting at most one point Ours: Finds the basis that minimizes reuse distance

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 8 / 20

Running example

t i A[t][i] → A[t%2][i]

for(int t = 0; t < n; ++t) for(int i = 0; i < n; ++i) A[t][i] = A[t-1][i-1] + A[t-1][i] + A[t-1][i+1] + A[t-2][i];

֒ →

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 9 / 20

Running example (skewed)

t i

for(int t = 0; t < n; ++t) for(int i = t; i < n+t; ++i) int j = i-t; A[t][j] = A[t-1][j-1] + A[t-1][j] + A[t-1][j+1] + A[t-2][j];

֒ →

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 10 / 20

Running example (tiled)

t i

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 11 / 20

Running example (tiled)

t i

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 11 / 20

Running example (tiled)

t i

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 11 / 20

Conflict set to conflict differences (visualization)

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 12 / 20

t i δt δi

Running example (successive modulo)

δt δi m0 Canonical basis:

• 1

1

• x mod
• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 13 / 20

Running example (successive modulo)

δt δi m0 n − 1 Canonical basis:

• 1

1

• x mod
• n
• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 13 / 20

Running example (successive modulo)

δt δi m0 n − 1 slice Canonical basis:

• 1

1

• x mod
• n
• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 13 / 20

Running example (successive modulo)

δt δi m1 n − 1 Canonical basis:

• 1

1

• x mod
• n

n

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 13 / 20

Running example (successive modulo)

δt δi m0 Canonical basis:

• 1

1

• x mod
• n

n

• Best basis:
• 1

−1 1

• x mod
• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 13 / 20

Running example (successive modulo)

δt δi m0

2n − 2

Canonical basis:

• 1

1

• x mod
• n

n

• Best basis:
• 1

−1 1

• x mod
• 2n − 1
• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 13 / 20

Running example (successive modulo)

δt δi m0

2n − 2

slice Canonical basis:

• 1

1

• x mod
• n

n

• Best basis:
• 1

−1 1

• x mod
• 2n − 1
• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 13 / 20

Running example (successive modulo)

δt δi m1

1

Canonical basis:

• 1

1

• x mod
• n

n

• Best basis:
• 1

−1 1

• x mod
• 2n − 1

2

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 13 / 20

Heuristic 1: Mapping space

Idea: a greedy algorithm Find the direction m0 that minimizes b0; Slice orthogonally to m0; Then continue with m1 not colinear to m0; ...

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 14 / 20

Heuristic 1: Mapping space

Idea: a greedy algorithm Find the direction m0 that minimizes b0; Slice orthogonally to m0; Then continue with m1 not colinear to m0; ... Pros: The first modulo is always better than the one of Lefebvre-Feautrier Implementable with Farkas’ lemma Naturally gives a unimodular basis

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 14 / 20

Heuristic 1: Mapping space

Idea: a greedy algorithm Find the direction m0 that minimizes b0; Slice orthogonally to m0; Then continue with m1 not colinear to m0; ... Pros: The first modulo is always better than the one of Lefebvre-Feautrier Implementable with Farkas’ lemma Naturally gives a unimodular basis Cons: No guarantee on next moduli, slicing not taken into account Give bad results on most tiled codes: e.g.: (n, n) has a smaller first modulo than (2n − 1, 2)

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 14 / 20

Running example (admissible lattice)

An admissible lattice corresponds to a valid storage δt δi a0 a1 Canonical basis: A =

• n

n

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 15 / 20

Running example (admissible lattice)

An admissible lattice corresponds to a valid storage δt δi a0 a1 Canonical basis: A =

• n

n

• Best basis:

A =

• 2

2 − n 2 n

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 15 / 20

Running example (admissible lattice)

An admissible lattice corresponds to a valid storage δt δi a0 a1 extrude Canonical basis: A =

• n

n

• Good basis:

A =

• 2

1 − n 2 n

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 15 / 20

Heuristic 2: Lattice space

Determinant of lattice = size of mapping: Find first lattice vector a0 with minimal norm; Extrude along a0; Find second lattice vector a1 with minimal norm; ...

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 16 / 20

Heuristic 2: Lattice space

Determinant of lattice = size of mapping: Find first lattice vector a0 with minimal norm; Extrude along a0; Find second lattice vector a1 with minimal norm; ... Pros: Find most constant reuse vectors Give a unimodular basis (if enforced)

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 16 / 20

Heuristic 2: Lattice space

Determinant of lattice = size of mapping: Find first lattice vector a0 with minimal norm; Extrude along a0; Find second lattice vector a1 with minimal norm; ... Pros: Find most constant reuse vectors Give a unimodular basis (if enforced) Cons: Requires star-shaping (and complement might be costly) Depends on the norm and basis description Cannot go back to mapping space if parametric

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 16 / 20

From lattice space back to mapping space

The lattice is the kernel of the mapping ☛ we need to “invert” it

• 2

1 − 2n 2

• =
• 1

−1 1 2n − 1 2

• ⇐

⇒

• 1

−1 1

• mod
• 2n − 1

2

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 17 / 20

From lattice space back to mapping space

The lattice is the kernel of the mapping ☛ we need to “invert” it

• n

2 1 − n 2

• =

?

• 2n − 1

2

• ⇐

⇒

?

mod

• 2n − 1

2

• Problem:

Heuristic 2 might give parametric axis “Inverting” a parametric lattice is hard!

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 17 / 20

From lattice space back to mapping space

The lattice is the kernel of the mapping ☛ we need to “invert” it

• n

2 1 − n 2

• =

?

• 2n − 1

2

• ⇐

⇒

?

mod

• 2n − 1

2

• Problem:

Heuristic 2 might give parametric axis “Inverting” a parametric lattice is hard! Fix: (Heuristic 3) Apply Heuristic 2 as long as we get constant (reuse) vectors “Invert” the partial lattice (back to mapping) Complete basis with Heuristic 1 (restricting to the orthogonal)

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 17 / 20

Running example (Bhaskaracharya & al.)

Actually work on asymmetric conflict relation: Find hyperplane that does not intersect any point Or find hyperplane that intersects the minimum number of polyhedra Depends on the representation:

δx δy

Gives canonical axis: (1, 0)

δx δy

Gives a skewed diagonal: (3, −2)

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 18 / 20

Results

Example Algorithm Reuse Vector Mapping Reduction LBM-D2Q9 LeFe (t, i, j) → (t, i, j) mod (2, N, N) 1 BBC (t, i, j) → (i − 2t, j) mod (N + 2, N) 2 Lattice (1, 1, 1) (t, i, j) → (i − t, j − t) mod (N + 1, N + 1) 2 LBM-D3Q27 LeFe (t, i, j, k) → (t, i, j, k) mod (2, N, N, N) 1 BBC (t, i, j, k) → (i − 2t, j, k) mod (N + 2, N, N) 2 Lattice (1, 1, 1, 1) (t, i, j, k) → (k − t, i − t, j − t) mod (N, N + 1, N + 1) 2 diamond-tile LeFe (t, i) → (t, i) mod (B, 2B − 1) 1 BBC (t, i) → (t − 3i) mod (6B − 5) B/3 Lattice (2, 0) (t, i) → (i, t) mod (2B − 1, 2) B/2 Running example LeFe/BBC (x, y) → (x, y) mod (N, N) 1 Lattice (2, 2) (x, y) → (x − y, y) mod (2N − 1, 2) N/4 heat-2d-tiled LeFe/BBC (t, i, j) → (t, i, j) mod (B, B, B) 1 Lattice (1, 1, 1) (t, i, j) → (i − j, j − t) mod (2B − 1, 3B − 2) B/6

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 19 / 20

Conclusion

Internal improvements: Heuristic 2 finding parametric vectors but of constant direction Parametric star-shaping Future works: Optimizing the partial constant lattice in a global way? Optimizing all moduli in a global way? Locality awareness / redundant storage Inter-array optimization More examples, more languages, and more applications Thank you for your attention!

• A. Darte, A. Isoard, T. Yuki (LIP, Lyon)

Extended Lattice-Based Memory Allocation Compiler Construction 2016 20 / 20
