Extended and generalized weight enumerators Relinde Jurrius Ruud Pellikaan Eindhoven University of Technology, The Netherlands International Workshop on Coding and Cryptography, 2009 1/23 Outline Previous work Codes, weights and weight


slide-1
SLIDE 1

1/23

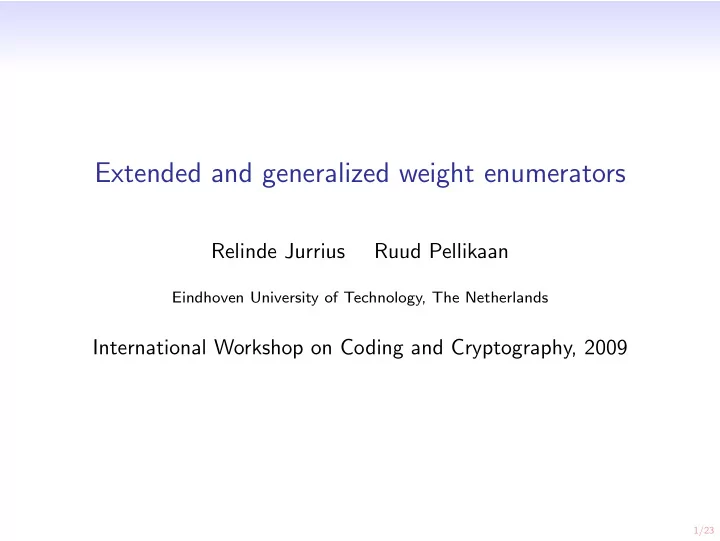

Extended and generalized weight enumerators

Relinde Jurrius Ruud Pellikaan

Eindhoven University of Technology, The Netherlands

International Workshop on Coding and Cryptography, 2009

slide-2
SLIDE 2

2/23

Outline

Previous work Codes, weights and weight enumerators Generalized weight enumerator Extended weight enumerator Matroids and the Tutte polynomial Overview of connections Application: MacWilliams relations Coset leader and list weight enumerator Further work

slide-3
SLIDE 3

3/23

Previous work

  • A. Barg

Codes and matroids, generalized WE

  • T. Britz

Codes and matroids, Tutte polynomial

  • C. Greene

Connection Tutte polynomial and weight enumerator

  • T. Helleseth

Extended WE, coset leader WE

  • G. Katsman and M. Tsfasman

Determination of WE

  • T. Kløve

Extended WE, generalized WE, MacWilliams relations

  • J. Simonis

Generalized WE, MacWilliams relations

slide-4
SLIDE 4

4/23

Codes, weights and weight enumerators

Linear [n, k] code Linear subspace C ⊆ Fn

q of dimension k.

Elements are called (code)words, n is called the length. Generator matrix The rows of this k ×n matrix form a basis for C. Support The coordinates of a word which are nonzero. Weight The number of nonzero coordinates of a word, i.e. the size of the support.

slide-5
SLIDE 5

4/23

Codes, weights and weight enumerators

Linear [n, k] code Linear subspace C ⊆ Fn

q of dimension k.

Elements are called (code)words, n is called the length. Generator matrix The rows of this k ×n matrix form a basis for C. Support The coordinates of a word which are nonzero. Weight The number of nonzero coordinates of a word, i.e. the size of the support.

Weight enumerator

The homogeneous polynomial counting the number of words of a given weight, notation: WC(X, Y ) =

n

  • w=0

AwXn−wY w.

slide-6
SLIDE 6

5/23

Codes, weights and weight enumerators

Example

The [7, 4] Hamming code over F2 has generator matrix G =     1 1 1 1 1 1 1 1 1 1 1 1 1     . The weight enumerator is equal to WC(X, Y ) = X7 + 7X4Y 3 + 7X3Y 4 + Y 7.

slide-7
SLIDE 7

6/23

Generalized weight enumerator

For a subcode D ⊆ C we define Support Union of the support of all words in D, i.e. all coordinates which are not always zero. Weight Size of the support.

slide-8
SLIDE 8

6/23

Generalized weight enumerator

For a subcode D ⊆ C we define Support Union of the support of all words in D, i.e. all coordinates which are not always zero. Weight Size of the support.

Generalized weight enumerators

The homogeneous polynomials counting for each dimension r = 0, . . . , k the number of subcodes of a given weight, notation: W r

C(X, Y ) = n

  • w=0

Ar

wXn−wY w

slide-9
SLIDE 9

7/23

Generalized weight enumerator

Example

The [7, 4] Hamming code has generalized weight enumerators W 0

C(X, Y )

= X7 W 1

C(X, Y )

= 7X4Y 3 + 7X3Y 4 + Y 7 W 2

C(X, Y )

= 21X2Y 5 + 7XY 6 + 7Y 7 W 3

C(X, Y )

= 7XY 6 + 8Y 7 W 4

C(X, Y )

= Y 7

slide-10
SLIDE 10

8/23

Extended weight enumerator

Extension code [n, k] code over some extensionfield Fqm generated by the words of C, notation: C ⊗ Fqm.

slide-11
SLIDE 11

8/23

Extended weight enumerator

Extension code [n, k] code over some extensionfield Fqm generated by the words of C, notation: C ⊗ Fqm.

Extended weight enumerator

The polynomial “counting the number of words in an extension code”, notation: WC(X, Y, T) =

n

  • w=0

Aw(T)Xn−wY w. Note that with T = qm we have WC(X, Y, qm) = WC⊗Fqm(X, Y ).

slide-12
SLIDE 12

9/23

Extended weight enumerator

For all subsets J ⊆ [n] define C(J) = {c ∈ C : cj = 0 for all j ∈ J} l(J) = dim C(J) BJ(T) = T l(J) − 1 Bt(T) =

  • |J|=t

Br

J

So C(J) is equivalent to the code C shortened on J.

slide-13
SLIDE 13

9/23

Extended weight enumerator

For all subsets J ⊆ [n] define C(J) = {c ∈ C : cj = 0 for all j ∈ J} l(J) = dim C(J) BJ(T) = T l(J) − 1 Bt(T) =

  • |J|=t

Br

J

So C(J) is equivalent to the code C shortened on J.

Extended weight enumerator

The extended weight enumerator can be written as WC(X, Y, T) = Xn +

n

  • t=0

Bt(T)(X − Y )tY n−t.

slide-14
SLIDE 14

10/23

Extended weight enumerator

Example

The [7, 4] Hamming code has extended weight enumerator WC(X, Y, T) = X7 + 7(T − 1)X4Y 3 + 7(T − 1)X3Y 4 + 21(T − 1)(T − 2)X2Y 5 + 7(T − 1)(T − 2)(T − 3)XY 6 + (T − 1)(T 3 − 6T 2 + 15T − 13)Y 7

slide-15
SLIDE 15

11/23

Extended weight enumerator

We considered three ways to determine the extended weight enumerator:

  • Brute force and Lagrange interpolation

Look at all words of k + 1 extension codes. Terribly slow.

  • Geometric approach

Using l(J) and Bt(T), also applicable for generalized WE. Much faster for WC(X, Y, T) instead of WC(X, Y ).

  • Deletion/contraction algorithm

Recursive algorithm, also used for matroids. Good for classifying codes up to a certain length.

slide-16
SLIDE 16

12/23

Connections (1)

We can write the extended weight enumerator in terms of the generalized weight enumerator: WC(X, Y, T) =

k

  • r=0

 

r−1

  • j=0

(T − qj)   W r

C(X, Y ).

slide-17
SLIDE 17

12/23

Connections (1)

We can write the extended weight enumerator in terms of the generalized weight enumerator: WC(X, Y, T) =

k

  • r=0

 

r−1

  • j=0

(T − qj)   W r

C(X, Y ).

Because we use WC(X, Y, T) instead of WC⊗Fqm(X, Y ) we also find the inverse: W r

C(X, Y ) =

1 r−1

i=0 (qr − qi) r

  • j=0

r j

  • (−1)r−jq(r

j) WC(X, Y, qj).

slide-18
SLIDE 18

13/23

Matroids

Matroid theory generalizes the notion of “linear independence”.

  • Vector space: linear independent vectors, basis
  • Graph: tree, minimal spanning tree
  • Matroid: independent set, basis

A matroid consist of a finite set E and a set of independent sets from 2E having some defining properties.

slide-19
SLIDE 19

13/23

Matroids

Matroid theory generalizes the notion of “linear independence”.

  • Vector space: linear independent vectors, basis
  • Graph: tree, minimal spanning tree
  • Matroid: independent set, basis

A matroid consist of a finite set E and a set of independent sets from 2E having some defining properties.

Example

A code can be viewed as a matroid by considering the columns of a generator matrix and their dependance in Fk

q.

slide-20
SLIDE 20

14/23

Tutte polynomial

A matroid has a rank function, notation r(A), associating a non-negative integer to every subset A of E.

Example

For matroid from a generator matrix G of a code, r(A) is the rank

  • f the submatrix formed by the columns of G indexed by A.

Furthermore, r(E) = k.

slide-21
SLIDE 21

14/23

Tutte polynomial

A matroid has a rank function, notation r(A), associating a non-negative integer to every subset A of E.

Example

For matroid from a generator matrix G of a code, r(A) is the rank

  • f the submatrix formed by the columns of G indexed by A.

Furthermore, r(E) = k.

Tutte polynomial

The Tutte polynomial is defined by tG(X, Y ) =

  • A⊆E

(X − 1)r(E)−r(A)(Y − 1)|A|−r(A).

slide-22
SLIDE 22

15/23

Connections (2)

The extended weight enumerator can be given in terms of the Tutte polynomial: WC(X, Y, T) = (X − Y )kY n−k tG X + (T − 1)Y X − Y , X Y

  • .

Due to the earlier connection, we have similar formulas for W r

C(X, Y ) and tG(X, Y ).

slide-23
SLIDE 23

16/23

Overview of connections

WC(X, Y ) WC(X, Y, T)

  • {W r

C(X, Y )}k r=0

  • tG(X, Y )
  • {W r

C(X, Y, T)}k r=0

slide-24
SLIDE 24

17/23

Application: MacWilliams relations

Duality for matroids

For a matroid G and its dual G∗ we have tG(X, Y ) = tG∗(Y, X).

slide-25
SLIDE 25

17/23

Application: MacWilliams relations

Duality for matroids

For a matroid G and its dual G∗ we have tG(X, Y ) = tG∗(Y, X). With this and the connections, the proofs of the MacWilliams relations for WC(X, Y, T) and W r

C(X, Y ) reduce to rewriting.

MacWilliams relations

For a code C and its dual C⊥ we have WC⊥(X, Y, T) = T −kWC(X + (T − 1)Y, X − Y, T).

slide-26
SLIDE 26

18/23

Cosets en weights

Coset Translation of the code by some vector y ∈ Fn

q .

Weight The minimum weight of all vectors in the coset. Coset leader A vector of minimum weight in the coset. Covering radius The maximum possible weight for a coset.

slide-27
SLIDE 27

18/23

Cosets en weights

Coset Translation of the code by some vector y ∈ Fn

q .

Weight The minimum weight of all vectors in the coset. Coset leader A vector of minimum weight in the coset. Covering radius The maximum possible weight for a coset. αi The number of cosets of weight i. λi The number of vectors of weight i which are of minimal weight in their coset, i.e. the number of possible coset leaders of weight i.

slide-28
SLIDE 28

19/23

Coset leader and list weight enumerator

Extended coset leader weight enumerator

αC(X, Y, T) =

n

  • i=0

αi(T)Xn−iY i.

Extended list weight enumerator

λC(X, Y, T) =

n

  • i=0

λi(T)Xn−iY i.

slide-29
SLIDE 29

20/23

Coset leader and list weight enumerator

Example

The [7, 4] Hamming code has extended coset leader and extended list weight enumerator αC(X, Y, T) = X7 + 7(T − 1)X6Y + 7(T − 1)(T − 2)X5Y 2 + (T − 1)(T − 2)(T − 4)X4Y 3, λC(X, Y, T) = X7 + 7(T − 1)X6Y + 21(T − 1)(T − 2)X5Y 2 + 28(T − 1)(T − 2)(T − 4)X4Y 3.

slide-30
SLIDE 30

21/23

Connections (3)

The extended coset leader weight enumerator αC(X, Y, T) does NOT determine

  • the extended coset leader weight enumerator αC⊥(X, Y, T)
  • f the dual code;
  • the extended list weight enumerator λC(X, Y, T);
  • the extended weight enumerator WC(X, Y, T).

This can be shown by counterexamples. Open question: does the extended list weight enumerator λC(X, Y, T) determine one of the above?

slide-31
SLIDE 31

22/23

Further work

  • Determination of αC(X, Y, T) and λC(X, Y, T) via

arrangements of hyperplanes and their characteristic polynomial

  • Generalized coset leader weight enumerator?
  • Connection with zeta-functions of codes and arrangements of

hyperplanes

  • Extend known theory to extended weight enumerator
  • Concrete computations for special classes of codes
  • Characterization of the various weight enumerators
  • Complexity issues / implementation
  • . . .
slide-32
SLIDE 32

23/23
