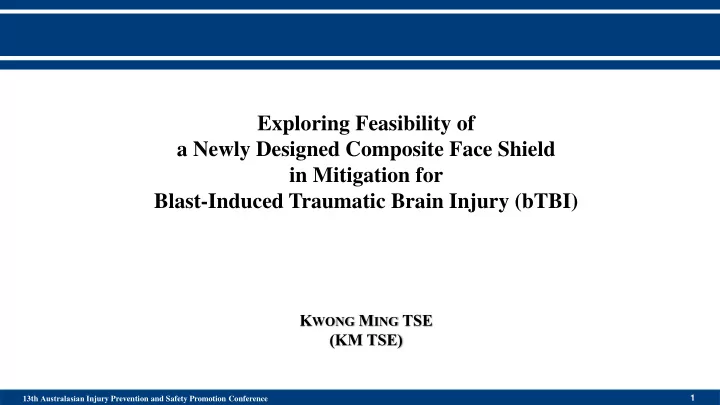

Exploring Feasibility of a Newly Designed Composite Face Shield in Mitigation for Blast-Induced Traumatic Brain Injury (bTBI)

KWONG MING TSE (KM TSE)

13th Australasian Injury Prevention and Safety Promotion Conference

• Blast-Induced Injuries

➢ “signature injury of modern wars” ➢ 43% of the wounded in international conflicts.

Source: the Defence and Veterans Brain Injury Centre (DVBIC))

2

Introduction

13th Australasian Injury Prevention and Safety Promotion Conference

Introduction

• Primary Blast Injury (induced by shock wave)

3

13th Australasian Injury Prevention and Safety Promotion Conference

Introduction

• Primary Blast Injury (induced by shock wave)

4

Blast Overpressure (Shock wave)

13th Australasian Injury Prevention and Safety Promotion Conference

• Aims:

➢ To investigate the effectiveness of a sandwich-structured polycarbonate- aerogel faceshield in mitigating bTBI. ➢ To provide insight in the design of a facial protective gear that can potentially be useful to military personnel.

• Hypothesis:

➢ High acoustic impedance of aerogel would result in large acoustic mismatch between its neighbouring laminate layers,  reducing the amount of blast wave transmission to the head.

Aims & Hypothesis

5

13th Australasian Injury Prevention and Safety Promotion Conference

• Different Faceshield Designs

Method

6

Singapore, A*Star, Institute of High Performing Computing (IHPC) Head Model

13th Australasian Injury Prevention and Safety Promotion Conference

• Coupled Eulerian-Lagrangian (CEL) Method

➢ Eulerian: Air ➢ Lagrangian: Head, Helmet & other solid materials.

Method

7

Blast waveform characteristic: Friedlander’s waveform

Applied Blast Loading Non-reflective & Free Outflow BC

13th Australasian Injury Prevention and Safety Promotion Conference

Results & Discussion

8

13th Australasian Injury Prevention and Safety Promotion Conference

Results & Discussion

9

13th Australasian Injury Prevention and Safety Promotion Conference

Results & Discussion

10

Tse, K. M.*, Tan, L, B., Sappinggi, M. A. B., Franklyn, M., Lee, P.V.S., Tan, V. B. C. and Lee, H. P.* (2017). The role of a composite polycarbonate- aerogel face shield in protecting the human brain from blast-induced injury: A fluid–structure interaction (FSI) study. Journal of Sandwich Structures &

• Materials. (In Press)

Tan, L. B.*, Chew, F. S., Tse, K. M., Tan, V. B. C. and Lee, H. P. (2014). Impact of complex blast waves on the human head – a computational study. Int J Numer Method Biomed Eng, 30 (12): pp. 1476-1505.

➢Sandwiched structured face shield of polycarbonate and aerogel had significantly reduced ICP.  PC exterior shell casing (structural integrity)  Aerogel (high acoustic impedance to blast wave)

13th Australasian Injury Prevention and Safety Promotion Conference

11

• National University of Singapore (NUS)

➢ Prof. Heow Pueh Lee ➢ Prof. Vincent Beng Chye Tan ➢ Dr. Long Bin Tan

• The University of Melbourne

➢ Prof Peter Vee Sin Lee ➢ Dr. Melanie Franklyn

Acknowledgement

13th Australasian Injury Prevention and Safety Promotion Conference

Ballistic Threat Gas Gun

Kwong Ming TSE

tsekm.research@yahoo.com

Applied Blast Loading

Blast Threat Sports-related TBI Tse’s Computer Head Model

13th Australasian Injury Prevention and Safety Promotion Conference

13

The End

Email: tsekm.research@yahoo.com Google Scholar: http://scholar.google.com.sg/citations?user=EMERS88AAAAJ&hl=en Researcher ID: http://www.researcherid.com/rid/D-8669-2011 ORCID: http://orcid.org/0000-0002-8170-0775

PhD, National University of Singapore (2014) Citations: 284 h-index: 8 i10-index: 7
