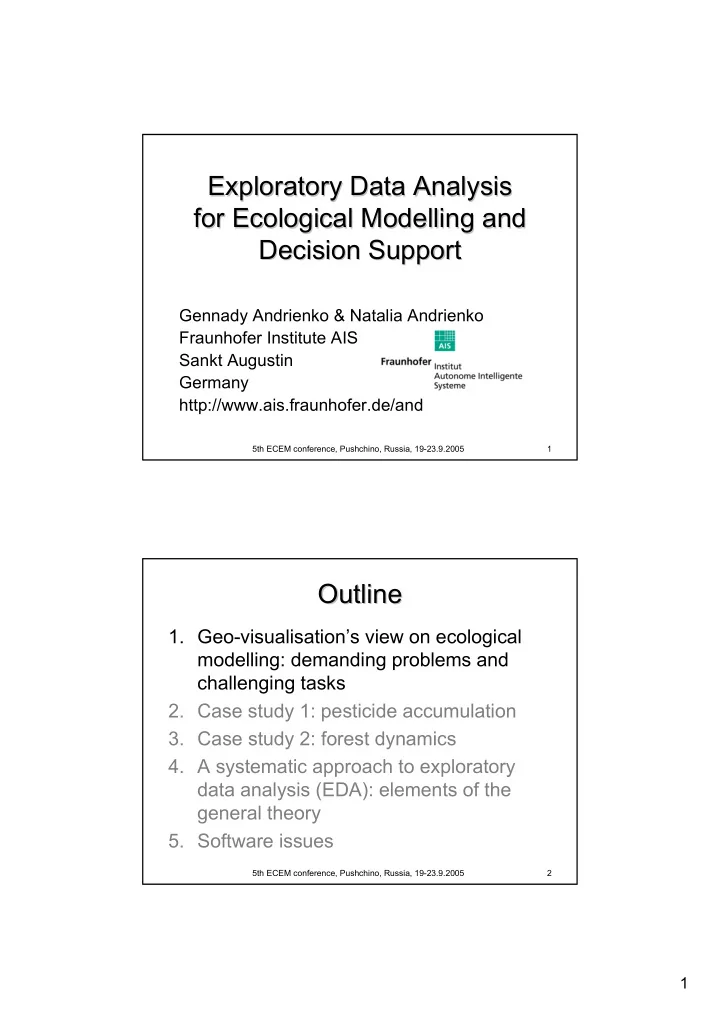

Exploratory Data Analysis Exploratory Data Analysis for Ecological Modelling and for Ecological Modelling and Decision Support Decision Support

Gennady Andrienko & Natalia Andrienko Fraunhofer Institute AIS Sankt Augustin Germany http://www.ais.fraunhofer.de/and

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 2

Outline Outline

  • 1. Geo-visualisation’s view on ecological

modelling: demanding problems and challenging tasks

  • 2. Case study 1: pesticide accumulation
  • 3. Case study 2: forest dynamics
  • 4. A systematic approach to exploratory

data analysis (EDA): elements of the general theory

  • 5. Software issues
slide-2
SLIDE 2

2

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 3

A View on Ecological Modelling A View on Ecological Modelling

Model Input data Output data

May have many parameters; May contain errors Need to be interpreted; To be used for informed decision making Complex and multidimensional; May contain errors Data Complexity: 1) Space, 2) Time, 3) Multiple attributes & dimensions, 4) Variability

  • f values,

abrupt changes

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 4

Outputs of simulations Outputs of simulations

  • Multiple attributes referring to

– Simulation scenarios; – Spatial locations (objects); – Time moments; – … (e.g. species, age groups etc.)

slide-3
SLIDE 3

3

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 5

Complexities Complexities

  • Number of attributes
  • Length of time series
  • Number of spatial objects
  • High dimensionality => huge number of

combinations (normally 105-108)!

  • Abrupt temporal changes
  • Great variability of values

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 6

Complexities: example 1 Complexities: example 1

slide-4
SLIDE 4

4

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 7

Complexities: example 2 Complexities: example 2

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 8

Our goals Our goals

Support analysts and decision makers in: Preparing and harmonizing input data; Tuning models and their parameters; Interpreting outputs of simulation; Exploring alternatives for decision making; Justifying and communicating the resulting decisions. Instruments: interactive visualisation enhanced by intelligent aggregation tools and other tools for exploratory data analysis

slide-5
SLIDE 5

5

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 9

Outline Outline

  • 1. Geo-visualisation’s view on ecological

modelling: demanding problems and challenging tasks

  • 2. Case study 1: pesticide accumulation
  • 3. Case study 2: forest dynamics
  • 4. A systematic approach to exploratory

data analysis (EDA): elements of the general theory

  • 5. Software issues

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 10

GIMMI project GIMMI project

Geographical Information and Mathematic Model Interoperability IST-2001-34245, 2002 – 2004 TXT Italy, EIG Germany, AIS Germany… Multiple simulation

scenarios (different crops and active ingredients) about 1000 plots simulation depth: 10+ years several output variables that characterize various environmental aspects (pesticide accumulation etc.)

slide-6
SLIDE 6

6

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 11

Decisions to be made Decisions to be made

What crop ? What active ingredient ? In what concentration ? … for individual plots … and for the whole territory

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 12

Pesticide accumulation dynamics Pesticide accumulation dynamics

  • In fact, we see the

extreme values only!

  • Zoom?
slide-7
SLIDE 7

7

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 13

Zoomed pesticide accumulation Zoomed pesticide accumulation

  • The extreme values and

the overall view are lost

  • But the details are still not

visible!

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 14

Log10 transformed values Log10 transformed values

  • Let’s transform values

to log10

  • Now we can see

something!

slide-8
SLIDE 8

8

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 15

Only means, medians, and envelopes Only means, medians, and envelopes

  • Remove individual

lines: look only at the dynamics of the general characteristics

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 16

Details of the distribution Details of the distribution

  • And finally add

more details on the overall level!

slide-9
SLIDE 9

9

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 17

Count plots within intervals Count plots within intervals

1. Specify classes according to pesticide concentration 2. Count number of plots within each interval for each year 3. Draw the counts as stacked bars 4. Possible extension: use areas or other amounts instead of the counts

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 18

Compare the accumulation in all Compare the accumulation in all scenarios for the whole territory scenarios for the whole territory

  • Another view on

the overall characteristics of all 5 scenarios

slide-10
SLIDE 10

10

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 19

Look at the individual plots Look at the individual plots

2nd scenario => 7th year

  • Aggregated diagram

representation supports the evaluation of the scenarios for individual plots

Dynamic linking between displays supports selection of “interesting” plots

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 20

Outline Outline

  • 1. Geo-visualisation’s view on ecological

modelling: demanding problems and challenging tasks

  • 2. Case study 1: pesticide accumulation
  • 3. Case study 2: forest dynamics
  • 4. A systematic approach to exploratory

data analysis (EDA): elements of the general theory

  • 5. Software issues
slide-11
SLIDE 11

11

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 21

Silvics Silvics project project

SILVICS - Silvicultural Systems for Sustainable Forest Resources Management

  • Univ. Wageningen (NL), EFI (FI), AIS (DE), RAS (RU)

INTAS, 2002-2005 104 forest compartments 4 scenarios of development: NATural Selective CUtting Legal RUssian ILLegal Simulation results for 200 years (41 time moments) 6 species 13 age groups 104*4*41*6*13=1,000,000 combinations For these combinations: 20 attributes!

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 22

Compare biomass in two scenarios Compare biomass in two scenarios

SCU: rather stable number of forest compartments in all classes; LRU: high temporal variability

slide-12
SLIDE 12

12

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 23

Look at biodiversity: Look at biodiversity:

Dominant Species/Age classification Dominant Species/Age classification

Two interactively specified thresholds 1. Presence 2. Dominance level

Oak, 7th age group dominates in some compartments Tilia, 5th age group is present in some compartments

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 24

Dominant Species and Age Class (1) Dominant Species and Age Class (1)

natural selective Russian illegal

slide-13
SLIDE 13

13

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 25

Dominant Species and Age Class (2) Dominant Species and Age Class (2)

natural selective Russian illegal

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 26

Species Structure (1) Species Structure (1)

slide-14
SLIDE 14

14

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 27

Species Structure (2) Species Structure (2)

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 28

Age Structure (1) Age Structure (1)

slide-15
SLIDE 15

15

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 29

Age Structure (2) Age Structure (2)

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 30

Outline Outline

  • 1. Geo-visualisation’s view on ecological

modelling: demanding problems and challenging tasks

  • 2. Case study 1: pesticide accumulation
  • 3. Case study 2: forest dynamics
  • 4. A systematic approach to exploratory

data analysis (EDA): elements of the general theory

  • 5. Software issues
slide-16
SLIDE 16

16

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 31

Recap: aggregation tools Recap: aggregation tools

  • 1. Several variants of time series

aggregation

  • 2. Aggregation of multiple attributes via

selection of the dominant attribute both in a spatial context closely integrated with interactive visualisation and data transformation

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 32

  • Aggregation supports grasping the overall

characteristics on the processes / scenarios

  • To be instrumental, aggregation tools should

be interactive and dynamic for:

1. Flexible and powerful data transformation 2. Immediate feedback on visual displays 3. Analysis of sensitivity to the aggregation parameters 4. Selection of interesting data instances, access to them

  • Intelligent aggregation is important for decision

support as a tool for the exploration and evaluation of alternatives

Roles of aggregation tools in EDA Roles of aggregation tools in EDA

slide-17
SLIDE 17

17

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 33

What Is EDA? What Is EDA?

  • Emerged in statistics in 1970ies; originator: John

Tukey

  • A philosophy and discipline of unbiased looking

at data: “What can data tell me?” rather than “Do they agree with my expectations?”

– Similar to the work of a detective (J.Tukey)

  • Need to look at data ⇒ focus on visualisation

and user interaction with data displays

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 34

Purposes of EDA Purposes of EDA

  • Uncover peculiarities of the data and, on

this basis, understand how the data should be further processed (e.g. filtered, transformed, split into parts, fused, …)

  • Generate hypotheses for further testing

(e.g. using statistical methods)

  • Choose proper methods for in-depth

analysis (possibly, domain-specific)

slide-18
SLIDE 18

18

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 35

EDA vs. other analyses EDA vs. other analyses

  • EDA does not substitute rigor methods of numerical

analysis, either general or domain-specific, but should give the understanding what methods and how to apply

Original data

  • 1. EDA

Understanding

  • f the data

(mental model)

  • 2. Data

processing Processed data

  • 3. In-depth

analysis Conclusions, theories, decisions, …

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 36

EDA vs. information presentation EDA vs. information presentation

  • EDA makes intensive use of graphics
  • However, “nice” presentation and reporting are

not EDA purposes

  • Primary goal of presentation: convey certain

idea or set of ideas to others

– Understandably – Convincingly – Aesthetically attractively

  • This requires different visual means than

exploration

slide-19
SLIDE 19

19

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 37

Case study 3: EDA for the Case study 3: EDA for the exploration of forest defoliations exploration of forest defoliations

  • Large volume: 6169

spatially-referenced time series

  • Two dimensions: S&T
  • Many missing values
  • No full compatibility

across countries, species, time etc. Data from NEFIS project

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 38

General procedure of the EDA General procedure of the EDA

1. See the whole

– Space + Time → 2 complementary views

1) Evolution of spatial patterns in time 2) Distribution of temporal behaviours in space

2. Divide and focus

– Data are complex → Have to be explored by slices and subsets (species, age groups, countries, years, …)

3. Attend to particulars

– Detect outliers, strange behaviours, unexpected patterns, …

slide-20
SLIDE 20

20

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 39

See the whole: See the whole: Handle large data volumes Handle large data volumes

  • General approach: Data

aggregation

  • Task 1: Explore evolution of

spatial patterns

  • Appropriate data

transformation: aggregate by small space compartments (regular grid with 4025 cells); separately for different species; various aggregates (mean, max) Gain: no symbol overlapping

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 40

Explore evolution of spatial patterns Explore evolution of spatial patterns

a) Animated map b) Map sequence Observations:

  • Persistently high

values in Poland

  • Improvement in

Belarus

  • Mosaic distribution in

most countries: great differences between close locations

  • Outliers
slide-21
SLIDE 21

21

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 41

Divide and Focus: Exploration on Divide and Focus: Exploration on country level country level

  • Recommendable due to inconsistencies

between countries

  • Observation: abrupt changes between locations

→ spatial smoothing methods are not appropriate

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 42

Explore spatial distribution of Explore spatial distribution of temporal behaviours temporal behaviours

  • Are behaviours in

neighbouring places similar?

  • Step 1. Smoothing

supports revealing general patterns and disregarding fluctuations and outliers (we shall look

at outliers later)

slide-22
SLIDE 22

22

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 43

Explore spatial distribution of Explore spatial distribution of temporal behaviours temporal behaviours

  • Are behaviours in

neighbouring places similar?

  • Step 2. Temporal

comparison (e.g. with particular year, mean for a period) helps to disregard absolute differences in values and thus focus on behaviours

Observation: no strong similarity between neighbouring places

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 44

Compare behaviours in plots with Compare behaviours in plots with different main species different main species

  • Mosaic signs:

– 6 rows for species; – 14 columns for years 1990-2003; – Colours encode defoliation values

Observation: behaviours differ for different main species

slide-23
SLIDE 23

23

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 45

Explore overall temporal trends Explore overall temporal trends

Line overlapping obstructs data analysis → apply aggregation

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 46

Aggregation method 1: by Aggregation method 1: by quantiles quantiles

slide-24
SLIDE 24

24

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 47

Aggregation method 2: by intervals Aggregation method 2: by intervals

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 48

Divide and Focus: Germany Divide and Focus: Germany

slide-25
SLIDE 25

25

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 49

Divide and Focus: age groups 1,3 Divide and Focus: age groups 1,3

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 50

Attend to particulars Attend to particulars

Types of particulars (examples): – Extreme values – Extreme changes – High variability – … Questions: – When? – Where? – What is around? – Why?

(a question for further, in-depth analysis)

Domain knowledge is essential

slide-26
SLIDE 26

26

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 51

Attend to particulars: extreme values Attend to particulars: extreme values

1. Click on a segment corresponding to extreme values 2. The behaviour(s) is(are) highlighted on the time graph 3. The location(s) is(are) highlighted on the map

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 52

Attend to particulars: what is around? Attend to particulars: what is around?

  • In some neighbouring places the

behaviours during the period 2000

  • 2003 are somewhat similar
slide-27
SLIDE 27

27

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 53

Attend to particulars: extreme changes Attend to particulars: extreme changes

1. Transform the time graph to show changes 2. Select extreme changes in a specific year (here 2003)

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 54

Attend to particulars: high variation Attend to particulars: high variation

1. Aggregate time graph by quantiles 2. Save counts 3. Visualise e.g. on a scatter plot 4. Select items with high variation

slide-28
SLIDE 28

28

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 55

Attend to particulars: high fluctuation Attend to particulars: high fluctuation

  • Select items with maximal

number of jumps between quantiles

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 56

Attend to particulars: stable extremes Attend to particulars: stable extremes

  • Select items being always in the

topmost 10%

slide-29
SLIDE 29

29

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 57

Attend to particulars: stable increase Attend to particulars: stable increase

1. Turn the time graph in the segmentation mode 2. Choose “increase” and set minimum difference 3. Select a sequence of years by clicking 4. Check sensitivity to the time period!

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 58

Recap: Exploration procedure Recap: Exploration procedure

  • See the whole

– Evolution of spatial patterns in time – Distribution of temporal behaviours in space

  • Divide and focus

– Data were explored by slices and subsets (species, age groups, countries, years, …)

  • Attend to particulars

– Extreme values, extreme changes, high variation, high fluctuations, stable growth …

slide-30
SLIDE 30

30

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 59

Recap: Tools Recap: Tools

  • Visualisation on thematic maps, time graphs,
  • ther aspatial displays
  • Aggregation: reduce data volume & symbol
  • verlapping
  • Filtering: divide and focus (select subsets)
  • Marking: see corresponding data on several

displays

  • Data transformation: smoothing, computing

changes, normalisation etc. It is important to use the tools in combination

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 60

Elements of the theory of EDA Elements of the theory of EDA

Data

Observations, findings, conclusions, decisions

Tasks Tools

Have structure and properties Task = Target + Constraints defined by properties of the data Are suitable for specific types of data and tasks Principles Principles

slide-31
SLIDE 31

31

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 61

Notes for designers of new tools Notes for designers of new tools

Tool design (in particular, map design) should base on task analysis!

Data Data structure Potential tasks Tool requirements Assessment

  • f existing

tools Combining existing tools and inventing new ones

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 62

Outline Outline

  • 1. Geo-visualisation’s view on ecological

modelling: demanding problems and challenging tasks

  • 2. Case study 1: pesticide accumulation
  • 3. Case study 2: forest dynamics
  • 4. A systematic approach to exploratory

data analysis (EDA): elements of the general theory

  • 5. Software issues
slide-32
SLIDE 32

32

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 63

Requirements to EDA software Requirements to EDA software

  • Space- and Time-awareness
  • Work with complex multidimensional data
  • Support for uncertain and missing data
  • Scalability
  • Support and encouraging of several

complementary views on the same data

  • Dynamic linking and coordination of several data

displays

  • From the overall view to particulars of interest
  • From idea generation to hypothesis testing using

statistical methods, followed by reporting

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 64

GIS for EDA: major problems GIS for EDA: major problems

  • Time-awareness
  • Work with complex and multidimensional

data

  • Processing uncertain and missing data
  • Scalability
  • Interactivity of visualisations
  • Dynamic linking of multiple displays
  • Idea processing
slide-33
SLIDE 33

33

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 65

Potentially useful tools for EDA Potentially useful tools for EDA

Information visualisation tools, for example, HCE & TimeSearcher from HCIL, Univ. Maryland Geovisualisation tools, for example GeoVistaStudio (Penn State Univ.) and Descartes/CommonGIS (Fraunhofer Institute AIS) Graphical statistics tools, for example, Manet & Mondrian (Augsburg Univ.)

Usually such systems are research prototypes that implement innovative ideas, but provide restricted functionality and limited user support

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 66

CommonGIS CommonGIS (not a “common GIS”) (not a “common GIS”)

A variety of well-integrated tools for EDA

– Time-aware maps + statistical graphics; several mechanisms of display coordination – Designed to gain synergy of

Visualisation Display manipulation Data manipulation Querying Computational techniques, including aggregation and data mining

Quick demo?

slide-34
SLIDE 34

34

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 67

Still open issues (for all tools!) Still open issues (for all tools!)

Work with qualitative (non-numeric) data Work with fuzzy, uncertain, and missing data Continue scalability efforts Intelligent guidance through the overall process

  • f data analysis, avoiding cognitive complexity

Adaptability to user, data, tasks, and hardware Support in processing and management of

  • bservations: recording, structuring, browsing,

searching, checking, combining, interpreting… Help in visual communication of derived data, constructed knowledge, and recommended decisions

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 68

Conclusions Conclusions

1. EDA is essential in ecological modelling for preparation of data, verification and tuning of models, interpretation of results, and evaluation of decision alternatives 2. Systematic application of EDA requires careful consideration of characteristics of data, relevant analytical tasks, properties of tools 3. EDA tools should combine interactive visualisation with data transformation, dynamic query, and sophisticated computations 4. Still there are many things to do… for scientists and for software developers

slide-35
SLIDE 35

35

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 69

To Learn More: To Learn More:

Software: http://www.commongis.com Papers, tutorials, on-line demos: http://www.ais.fraunhofer.de/and Book to appear: Natalia and Gennady Andrienko “Exploratory Analysis of Spatial and Temporal data. A Systematic Approach”

(Springer-Verlag, ≈ end 2005)

A theoretical framework for linking tasks, tools, and principles of data analysis

5th ECEM conference, Pushchino, Russia, 19-23.9.2005 70

In press, to appear ≈ end 2005 http://www.ais.fraunhofer.de/and
