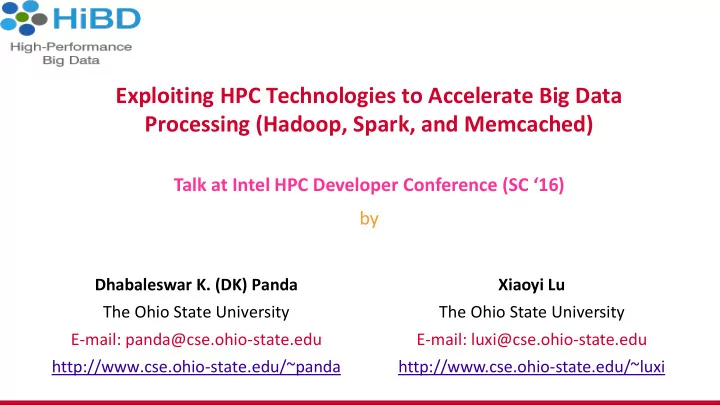

Exploiting HPC Technologies to Accelerate Big Data Processing (Hadoop, Spark, and Memcached)

Dhabaleswar K. (DK) Panda The Ohio State University E-mail: panda@cse.ohio-state.edu http://www.cse.ohio-state.edu/~panda

Talk at Intel HPC Developer Conference (SC ‘16) by

Xiaoyi Lu The Ohio State University E-mail: luxi@cse.ohio-state.edu http://www.cse.ohio-state.edu/~luxi

SLIDE 2

Intel HPC Dev Conf (SC ‘16) 2 Network Based Computing Laboratory

Big Data has become the one of the most

important elements of business analytics

Provides groundbreaking opportunities for

enterprise information management and decision making

The amount of data is exploding; companies

are capturing and digitizing more information than ever

The rate of information growth appears to be

exceeding Moore’s Law

Introduction to Big Data Applications and Analytics

SLIDE 3

Intel HPC Dev Conf (SC ‘16) 3 Network Based Computing Laboratory

Substantial impact on designing and utilizing data management and processing systems in multiple tiers

– Front-end data accessing and serving (Online)

Memcached + DB (e.g. MySQL), HBase

– Back-end data analytics (Offline)

HDFS, MapReduce, Spark

Data Management and Processing on Modern Clusters

SLIDE 4

Intel HPC Dev Conf (SC ‘16) 4 Network Based Computing Laboratory

10 20 30 40 50 60 70 80 90 100 50 100 150 200 250 300 350 400 450 500 Percentage of Clusters Number of Clusters Timeline Percentage of Clusters Number of Clusters

Trends for Commodity Computing Clusters in the Top 500 List (http://www.top500.org)

85%

SLIDE 5

Intel HPC Dev Conf (SC ‘16) 5 Network Based Computing Laboratory

Drivers of Modern HPC Cluster Architectures

Tianhe – 2 Titan Stampede Tianhe – 1A

Multi-core/many-core technologies
Remote Direct Memory Access (RDMA)-enabled networking (InfiniBand and RoCE)
Solid State Drives (SSDs), Non-Volatile Random-Access Memory (NVRAM), NVMe-SSD
Accelerators (NVIDIA GPGPUs and Intel Xeon Phi)

Accelerators / Coprocessors high compute density, high performance/watt >1 TFlop DP on a chip High Performance Interconnects - InfiniBand <1usec latency, 100Gbps Bandwidth> Multi-core Processors SSD, NVMe-SSD, NVRAM

SLIDE 6

Intel HPC Dev Conf (SC ‘16) 6 Network Based Computing Laboratory

Advanced Interconnects and RDMA protocols

– InfiniBand – 10-40 Gigabit Ethernet/iWARP – RDMA over Converged Enhanced Ethernet (RoCE)

Delivering excellent performance (Latency, Bandwidth and CPU Utilization)
Has influenced re-designs of enhanced HPC middleware

– Message Passing Interface (MPI) and PGAS – Parallel File Systems (Lustre, GPFS, ..)

SSDs (SATA and NVMe)
NVRAM and Burst Buffer

Trends in HPC Technologies

SLIDE 7

Intel HPC Dev Conf (SC ‘16) 7 Network Based Computing Laboratory

Interconnects and Protocols in OpenFabrics Stack for HPC (http://openfabrics.org)

Kernel Space

Application / Middleware Verbs Ethernet Adapter Ethernet Switch Ethernet Driver TCP/IP

1/10/40/100 GigE

InfiniBand Adapter InfiniBand Switch IPoIB

IPoIB

Ethernet Adapter Ethernet Switch Hardware Offload TCP/IP

10/40 GigE- TOE

InfiniBand Adapter InfiniBand Switch User Space RSockets

RSockets

iWARP Adapter Ethernet Switch TCP/IP User Space

iWARP

RoCE Adapter Ethernet Switch RDMA User Space

RoCE

InfiniBand Switch InfiniBand Adapter RDMA User Space

IB Native

Sockets

Application / Middleware Interface Protocol Adapter Switch

InfiniBand Adapter InfiniBand Switch RDMA SDP

SDP

SLIDE 8

Intel HPC Dev Conf (SC ‘16) 8 Network Based Computing Laboratory

205 IB Clusters (41%) in the Jun’16 Top500 list

– (http://www.top500.org)

Installations in the Top 50 (21 systems):

Large-scale InfiniBand Installations

220,800 cores (Pangea) in France (11th) 74,520 cores (Tsubame 2.5) at Japan/GSIC (31st) 462,462 cores (Stampede) at TACC (12th) 88,992 cores (Mistral) at DKRZ Germany (33rd) 185,344 cores (Pleiades) at NASA/Ames (15th) 194,616 cores (Cascade) at PNNL (34th) 72,800 cores Cray CS-Storm in US (19th) 76,032 cores (Makman-2) at Saudi Aramco (39th) 72,800 cores Cray CS-Storm in US (20th) 72,000 cores (Prolix) at Meteo France, France (40th) 124,200 cores (Topaz) SGI ICE at ERDC DSRC in US (21st ) 42,688 cores (Lomonosov-2) at Russia/MSU (41st) 72,000 cores (HPC2) in Italy (22nd) 60,240 cores SGI ICE X at JAEA Japan (43rd) 152,692 cores (Thunder) at AFRL/USA (25th) 70,272 cores (Tera-1000-1) at CEA France (44th) 147,456 cores (SuperMUC) in Germany (27th) 54,432 cores (Marconi) at CINECA Italy (46th) 86,016 cores (SuperMUC Phase 2) in Germany (28th) and many more!

SLIDE 9

Intel HPC Dev Conf (SC ‘16) 9 Network Based Computing Laboratory

Introduced in Oct 2000
High Performance Data Transfer

– Interprocessor communication and I/O – Low latency (<1.0 microsec), High bandwidth (up to 12.5 GigaBytes/sec -> 100Gbps), and low CPU utilization (5-10%)

Multiple Operations

– Send/Recv – RDMA Read/Write – Atomic Operations (very unique)

high performance and scalable implementations of distributed locks, semaphores, collective

communication operations

Leading to big changes in designing

– HPC clusters – File systems – Cloud computing systems – Grid computing systems

Open Standard InfiniBand Networking Technology

SLIDE 10

Intel HPC Dev Conf (SC ‘16) 10 Network Based Computing Laboratory

How Can HPC Clusters with High-Performance Interconnect and Storage Architectures Benefit Big Data Applications?

Bring HPC and Big Data processing into a “convergent trajectory”!

What are the major bottlenecks in current Big Data processing middleware (e.g. Hadoop, Spark, and Memcached)? Can the bottlenecks be alleviated with new designs by taking advantage of HPC technologies? Can RDMA-enabled high-performance interconnects benefit Big Data processing?

Can HPC Clusters with high-performance storage systems (e.g. SSD, parallel file systems) benefit Big Data applications? How much performance benefits can be achieved through enhanced designs? How to design benchmarks for evaluating the performance of Big Data middleware on HPC clusters?

SLIDE 11

Intel HPC Dev Conf (SC ‘16) 11 Network Based Computing Laboratory

Designing Communication and I/O Libraries for Big Data Systems: Challenges

Big Data Middleware (HDFS, MapReduce, HBase, Spark and Memcached)

Networking Technologies (InfiniBand, 1/10/40/100 GigE and Intelligent NICs) Storage Technologies (HDD, SSD, and NVMe-SSD)

Programming Models (Sockets)

Applications

Commodity Computing System Architectures (Multi- and Many-core architectures and accelerators)

Other Protocols? Communication and I/O Library

Point-to-Point Communication

QoS

Threaded Models and Synchronization

Fault-Tolerance I/O and File Systems Virtualization

Benchmarks Upper level Changes?

SLIDE 12

Intel HPC Dev Conf (SC ‘16) 12 Network Based Computing Laboratory

Sockets not designed for high-performance

– Stream semantics often mismatch for upper layers – Zero-copy not available for non-blocking sockets

Can Big Data Processing Systems be Designed with High- Performance Networks and Protocols?

Current Design

Application Sockets 1/10/40/100 GigE Network

Our Approach

Application OSU Design 10/40/100 GigE or InfiniBand Verbs Interface

SLIDE 13

Intel HPC Dev Conf (SC ‘16) 13 Network Based Computing Laboratory

RDMA for Apache Spark
RDMA for Apache Hadoop 2.x (RDMA-Hadoop-2.x)

– Plugins for Apache, Hortonworks (HDP) and Cloudera (CDH) Hadoop distributions

RDMA for Apache HBase
RDMA for Memcached (RDMA-Memcached)
RDMA for Apache Hadoop 1.x (RDMA-Hadoop)
OSU HiBD-Benchmarks (OHB)

– HDFS, Memcached, and HBase Micro-benchmarks

http://hibd.cse.ohio-state.edu
Users Base: 195 organizations from 27 countries
More than 18,500 downloads from the project site
RDMA for Impala (upcoming)

The High-Performance Big Data (HiBD) Project

Available for InfiniBand and RoCE

SLIDE 14

Intel HPC Dev Conf (SC ‘16) 14 Network Based Computing Laboratory

High-Performance Design of Hadoop over RDMA-enabled Interconnects

– High performance RDMA-enhanced design with native InfiniBand and RoCE support at the verbs-level for HDFS, MapReduce, and RPC components – Enhanced HDFS with in-memory and heterogeneous storage – High performance design of MapReduce over Lustre – Memcached-based burst buffer for MapReduce over Lustre-integrated HDFS (HHH-L-BB mode) – Plugin-based architecture supporting RDMA-based designs for Apache Hadoop, CDH and HDP – Easily configurable for different running modes (HHH, HHH-M, HHH-L, HHH-L-BB, and MapReduce over Lustre) and different protocols (native InfiniBand, RoCE, and IPoIB)

Current release: 1.1.0

– Based on Apache Hadoop 2.7.3 – Compliant with Apache Hadoop 2.7.1, HDP 2.5.0.3 and CDH 5.8.2 APIs and applications – Tested with

Mellanox InfiniBand adapters (DDR, QDR, FDR, and EDR)
RoCE support with Mellanox adapters
Various multi-core platforms
Different file systems with disks and SSDs and Lustre

RDMA for Apache Hadoop 2.x Distribution

http://hibd.cse.ohio-state.edu

SLIDE 15

Intel HPC Dev Conf (SC ‘16) 15 Network Based Computing Laboratory

HHH: Heterogeneous storage devices with hybrid replication schemes are supported in this mode of operation to have better fault-tolerance as well

as performance. This mode is enabled by default in the package.

HHH-M: A high-performance in-memory based setup has been introduced in this package that can be utilized to perform all I/O operations in-

memory and obtain as much performance benefit as possible.

HHH-L: With parallel file systems integrated, HHH-L mode can take advantage of the Lustre available in the cluster.
HHH-L-BB: This mode deploys a Memcached-based burst buffer system to reduce the bandwidth bottleneck of shared file system access. The burst

buffer design is hosted by Memcached servers, each of which has a local SSD.

MapReduce over Lustre, with/without local disks: Besides, HDFS based solutions, this package also provides support to run MapReduce jobs on top
f Lustre alone. Here, two different modes are introduced: with local disks and without local disks.
Running with Slurm and PBS: Supports deploying RDMA for Apache Hadoop 2.x with Slurm and PBS in different running modes (HHH, HHH-M, HHH-

L, and MapReduce over Lustre).

Different Modes of RDMA for Apache Hadoop 2.x

SLIDE 16

Intel HPC Dev Conf (SC ‘16) 16 Network Based Computing Laboratory

High-Performance Design of Spark over RDMA-enabled Interconnects

– High performance RDMA-enhanced design with native InfiniBand and RoCE support at the verbs-level for Spark – RDMA-based data shuffle and SEDA-based shuffle architecture – Non-blocking and chunk-based data transfer – Easily configurable for different protocols (native InfiniBand, RoCE, and IPoIB)

Current release: 0.9.1

– Based on Apache Spark 1.5.1 – Tested with

Mellanox InfiniBand adapters (DDR, QDR and FDR)
RoCE support with Mellanox adapters
Various multi-core platforms
RAM disks, SSDs, and HDD

– http://hibd.cse.ohio-state.edu

RDMA for Apache Spark Distribution

SLIDE 17

Intel HPC Dev Conf (SC ‘16) 17 Network Based Computing Laboratory

RDMA for Apache Hadoop 2.x and RDMA for Apache Spark are installed and

available on SDSC Comet.

– Examples for various modes of usage are available in:

RDMA for Apache Hadoop 2.x: /share/apps/examples/HADOOP
RDMA for Apache Spark: /share/apps/examples/SPARK/

– Please email help@xsede.org (reference Comet as the machine, and SDSC as the site) if you have any further questions about usage and configuration.

RDMA for Apache Hadoop is also available on Chameleon Cloud as an

appliance

– https://www.chameleoncloud.org/appliances/17/

HiBD Packages on SDSC Comet and Chameleon Cloud

M. Tatineni, X. Lu, D. J. Choi, A. Majumdar, and D. K. Panda, Experiences and Benefits of Running RDMA Hadoop and Spark on SDSC

Comet, XSEDE’16, July 2016

SLIDE 18

Intel HPC Dev Conf (SC ‘16) 18 Network Based Computing Laboratory

High-Performance Design of HBase over RDMA-enabled Interconnects

– High performance RDMA-enhanced design with native InfiniBand and RoCE support at the verbs-level for HBase – Compliant with Apache HBase 1.1.2 APIs and applications – On-demand connection setup – Easily configurable for different protocols (native InfiniBand, RoCE, and IPoIB)

Current release: 0.9.1

– Based on Apache HBase 1.1.2 – Tested with

Mellanox InfiniBand adapters (DDR, QDR, FDR, and EDR)
RoCE support with Mellanox adapters
Various multi-core platforms

– http://hibd.cse.ohio-state.edu

RDMA for Apache HBase Distribution

SLIDE 19

Intel HPC Dev Conf (SC ‘16) 19 Network Based Computing Laboratory

High-Performance Design of Memcached over RDMA-enabled Interconnects

– High performance RDMA-enhanced design with native InfiniBand and RoCE support at the verbs-level for Memcached and libMemcached components – High performance design of SSD-Assisted Hybrid Memory – Non-Blocking Libmemcached Set/Get API extensions – Support for burst-buffer mode in Lustre-integrated design of HDFS in RDMA for Apache Hadoop-2.x – Easily configurable for native InfiniBand, RoCE and the traditional sockets-based support (Ethernet and InfiniBand with IPoIB)

Current release: 0.9.5

– Based on Memcached 1.4.24 and libMemcached 1.0.18 – Compliant with libMemcached APIs and applications – Tested with

Mellanox InfiniBand adapters (DDR, QDR, FDR, and EDR)
RoCE support with Mellanox adapters
Various multi-core platforms
SSD

– http://hibd.cse.ohio-state.edu

RDMA for Memcached Distribution

SLIDE 20

Intel HPC Dev Conf (SC ‘16) 20 Network Based Computing Laboratory

Micro-benchmarks for Hadoop Distributed File System (HDFS)

– Sequential Write Latency (SWL) Benchmark, Sequential Read Latency (SRL) Benchmark, Random Read Latency (RRL) Benchmark, Sequential Write Throughput (SWT) Benchmark, Sequential Read Throughput (SRT) Benchmark – Support benchmarking of

Apache Hadoop 1.x and 2.x HDFS, Hortonworks Data Platform (HDP) HDFS, Cloudera Distribution of

Hadoop (CDH) HDFS

Micro-benchmarks for Memcached

– Get Benchmark, Set Benchmark, and Mixed Get/Set Benchmark, Non-Blocking API Latency Benchmark, Hybrid Memory Latency Benchmark

Micro-benchmarks for HBase

– Get Latency Benchmark, Put Latency Benchmark

Current release: 0.9.1
http://hibd.cse.ohio-state.edu

OSU HiBD Micro-Benchmark (OHB) Suite – HDFS, Memcached, and HBase

SLIDE 21

Intel HPC Dev Conf (SC ‘16) 21 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 22

Intel HPC Dev Conf (SC ‘16) 22 Network Based Computing Laboratory

Enables high performance RDMA communication, while supporting traditional socket interface
JNI Layer bridges Java based HDFS with communication library written in native code

Design Overview of HDFS with RDMA

HDFS Verbs RDMA Capable Networks (IB, iWARP, RoCE ..) Applications 1/10/40/100 GigE, IPoIB Network Java Socket Interface Java Native Interface (JNI)

Write Others

OSU Design

Design Features

– RDMA-based HDFS write – RDMA-based HDFS replication – Parallel replication support – On-demand connection setup – InfiniBand/RoCE support

N. S. Islam, M. W. Rahman, J. Jose, R. Rajachandrasekar, H. Wang, H. Subramoni, C. Murthy and D. K. Panda , High Performance RDMA-Based Design of HDFS
ver InfiniBand , Supercomputing (SC), Nov 2012
N. Islam, X. Lu, W. Rahman, and D. K. Panda, SOR-HDFS: A SEDA-based Approach to Maximize Overlapping in RDMA-Enhanced HDFS, HPDC '14, June 2014

SLIDE 23

Intel HPC Dev Conf (SC ‘16) 23 Network Based Computing Laboratory

Triple-H Heterogeneous Storage

Design Features

– Three modes

Default (HHH)
In-Memory (HHH-M)
Lustre-Integrated (HHH-L)

– Policies to efficiently utilize the heterogeneous storage devices

RAM, SSD, HDD, Lustre

– Eviction/Promotion based on data usage pattern – Hybrid Replication – Lustre-Integrated mode:

Lustre-based fault-tolerance

Enhanced HDFS with In-Memory and Heterogeneous Storage

Hybrid Replication

Data Placement Policies

Eviction/Promotion

RAM Disk SSD HDD Lustre

N. Islam, X. Lu, M. W. Rahman, D. Shankar, and D. K. Panda, Triple-H: A Hybrid Approach to Accelerate HDFS on HPC Clusters

with Heterogeneous Storage Architecture, CCGrid ’15, May 2015

Applications

SLIDE 24

Intel HPC Dev Conf (SC ‘16) 24 Network Based Computing Laboratory

Design Overview of MapReduce with RDMA

MapReduce Verbs

RDMA Capable Networks

(IB, iWARP, RoCE ..) OSU Design Applications 1/10/40/100 GigE, IPoIB Network Java Socket Interface Java Native Interface (JNI)

Job Tracker Task Tracker Map Reduce

Enables high performance RDMA communication, while supporting traditional socket interface
JNI Layer bridges Java based MapReduce with communication library written in native code
Design Features

– RDMA-based shuffle – Prefetching and caching map output – Efficient Shuffle Algorithms – In-memory merge – On-demand Shuffle Adjustment – Advanced overlapping

map, shuffle, and merge
shuffle, merge, and reduce

– On-demand connection setup – InfiniBand/RoCE support

M. W. Rahman, X. Lu, N. S. Islam, and D. K. Panda, HOMR: A Hybrid Approach to Exploit Maximum Overlapping in

MapReduce over High Performance Interconnects, ICS, June 2014

SLIDE 25

Intel HPC Dev Conf (SC ‘16) 25 Network Based Computing Laboratory 50 100 150 200 250 300 350 400 80 120 160 Execution Time (s) Data Size (GB)

IPoIB (EDR) OSU-IB (EDR)

100 200 300 400 500 600 700 800 80 160 240 Execution Time (s) Data Size (GB)

IPoIB (EDR) OSU-IB (EDR)

Performance Numbers of RDMA for Apache Hadoop 2.x – RandomWriter & TeraGen in OSU-RI2 (EDR)

Cluster with 8 Nodes with a total of 64 maps

RandomWriter

– 3x improvement over IPoIB for 80-160 GB file size

TeraGen

– 4x improvement over IPoIB for 80-240 GB file size

RandomWriter TeraGen Reduced by 3x Reduced by 4x

SLIDE 26

Intel HPC Dev Conf (SC ‘16) 26 Network Based Computing Laboratory 100 200 300 400 500 600 700 800 80 120 160 Execution Time (s) Data Size (GB)

IPoIB (EDR) OSU-IB (EDR)

Performance Numbers of RDMA for Apache Hadoop 2.x – Sort & TeraSort in OSU-RI2 (EDR)

Cluster with 8 Nodes with a total of 64 maps and 32 reduces

Sort

– 61% improvement over IPoIB for 80-160 GB data

TeraSort

– 18% improvement over IPoIB for 80-240 GB data

Reduced by 61% Reduced by 18% Cluster with 8 Nodes with a total of 64 maps and 14 reduces Sort TeraSort

100 200 300 400 500 600 80 160 240 Execution Time (s) Data Size (GB)

IPoIB (EDR) OSU-IB (EDR)

SLIDE 27

Intel HPC Dev Conf (SC ‘16) 27 Network Based Computing Laboratory

Evaluation of HHH and HHH-L with Applications

HDFS (FDR) HHH (FDR)

60.24 s 48.3 s

CloudBurst MR-MSPolyGraph

200 400 600 800 1000 4 6 8

Execution Time (s) Concurrent maps per host HDFS Lustre HHH-L Reduced by 79%

MR-MSPolygraph on OSU RI with

1,000 maps

– HHH-L reduces the execution time by 79% over Lustre, 30% over HDFS

CloudBurst on TACC Stampede

– With HHH: 19% improvement over HDFS

SLIDE 28

Intel HPC Dev Conf (SC ‘16) 28 Network Based Computing Laboratory

Evaluation with Spark on SDSC Gordon (HHH vs. Tachyon/Alluxio)

For 200GB TeraGen on 32 nodes

– Spark-TeraGen: HHH has 2.4x improvement over Tachyon; 2.3x over HDFS-IPoIB (QDR) – Spark-TeraSort: HHH has 25.2% improvement over Tachyon; 17% over HDFS-IPoIB (QDR)

20 40 60 80 100 120 140 160 180 8:50 16:100 32:200

Execution Time (s)

Cluster Size : Data Size (GB)

IPoIB (QDR) Tachyon OSU-IB (QDR)

100 200 300 400 500 600 700 8:50 16:100 32:200

Execution Time (s)

Cluster Size : Data Size (GB)

Reduced by 2.4x Reduced by 25.2% TeraGen TeraSort

N. Islam, M. W. Rahman, X. Lu, D. Shankar, and D. K. Panda, Performance Characterization and Acceleration of In-Memory File

Systems for Hadoop and Spark Applications on HPC Clusters, IEEE BigData ’15, October 2015

SLIDE 29

Intel HPC Dev Conf (SC ‘16) 29 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 30

Intel HPC Dev Conf (SC ‘16) 30 Network Based Computing Laboratory

Performance Numbers of RDMA for Apache HBase – OHB in SDSC-Comet

2000 4000 6000 8000 10000 12000 14000 2 8 32 128 512 2k 8k 32k 128k 512k Latency (us) Message Size

Put

IPoIB RDMA 1000 2000 3000 4000 5000 2 8 32 128 512 2k 8k 32k 128k512k Latency (us) Message Size

Get

IPoIB RDMA

Up to 8.6x improvement over

IPoIB

Reduced by 8.6x

Up to 5.3x improvement over

IPoIB

Reduced by 3.8x Reduced by 5.3x Reduced by 8.6x

Evaluation with OHB Put and Get Micro-Benchmarks (1 Server, 1 Client)

SLIDE 31

Intel HPC Dev Conf (SC ‘16) 31 Network Based Computing Laboratory

Performance Numbers of RDMA for Apache HBase – YCSB in SDSC-Comet

20000 40000 60000 80000 100000 120000 4 8 16 32 64 128 Throughput (Operations/sec) Number of clients

Workload A (50% read, 50% update)

IPoIB RDMA 100000 200000 300000 400000 500000 4 8 16 32 64 128 Throughput (Operations/sec) Number of clients

Workload C (100% read)

IPoIB RDMA

Up to 2.4x improvement over

IPoIB

Increased by 83%

Up to 3.6x improvement over

IPoIB

Increased by 3.6x

Evaluation with YCSB Workloads A and C (4 Servers)

SLIDE 32

Intel HPC Dev Conf (SC ‘16) 32 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 33

Intel HPC Dev Conf (SC ‘16) 33 Network Based Computing Laboratory

Design Features

– RDMA based shuffle plugin – SEDA-based architecture – Dynamic connection management and sharing – Non-blocking data transfer – Off-JVM-heap buffer management – InfiniBand/RoCE support

Design Overview of Spark with RDMA

Enables high performance RDMA communication, while supporting traditional socket interface
JNI Layer bridges Scala based Spark with communication library written in native code
X. Lu, M. W. Rahman, N. Islam, D. Shankar, and D. K. Panda, Accelerating Spark with RDMA for Big Data Processing: Early Experiences, Int'l Symposium on High

Performance Interconnects (HotI'14), August 2014

X. Lu, D. Shankar, S. Gugnani, and D. K. Panda, High-Performance Design of Apache Spark with RDMA and Its Benefits on Various Workloads, IEEE BigData ‘16, Dec. 2016.

Spark Core

RDMA Capable Networks (IB, iWARP, RoCE ..)

Apache Spark Benchmarks/Applications/Libraries/Frameworks

1/10/40/100 GigE, IPoIB Network Java Socket Interface Java Native Interface (JNI)

Native RDMA-based Comm. Engine

Shuffle Manager (Sort, Hash, Tungsten-Sort) Block Transfer Service (Netty, NIO, RDMA-Plugin)

Netty Server NIO Server RDMA Server Netty Client NIO Client RDMA Client

SLIDE 34

Intel HPC Dev Conf (SC ‘16) 34 Network Based Computing Laboratory

InfiniBand FDR, SSD, 64 Worker Nodes, 1536 Cores, (1536M 1536R)
RDMA-based design for Spark 1.5.1
RDMA vs. IPoIB with 1536 concurrent tasks, single SSD per node.

– SortBy: Total time reduced by up to 80% over IPoIB (56Gbps) – GroupBy: Total time reduced by up to 74% over IPoIB (56Gbps)

Performance Evaluation on SDSC Comet – SortBy/GroupBy

64 Worker Nodes, 1536 cores, SortByTest Total Time 64 Worker Nodes, 1536 cores, GroupByTest Total Time

50 100 150 200 250 300 64 128 256

Time (sec) Data Size (GB)

IPoIB RDMA

50 100 150 200 250 64 128 256

Time (sec) Data Size (GB)

IPoIB RDMA

74% 80%

SLIDE 35

Intel HPC Dev Conf (SC ‘16) 35 Network Based Computing Laboratory

InfiniBand FDR, SSD, 32/64 Worker Nodes, 768/1536 Cores, (768/1536M 768/1536R)
RDMA-based design for Spark 1.5.1
RDMA vs. IPoIB with 768/1536 concurrent tasks, single SSD per node.

– 32 nodes/768 cores: Total time reduced by 37% over IPoIB (56Gbps) – 64 nodes/1536 cores: Total time reduced by 43% over IPoIB (56Gbps)

Performance Evaluation on SDSC Comet – HiBench PageRank

32 Worker Nodes, 768 cores, PageRank Total Time 64 Worker Nodes, 1536 cores, PageRank Total Time

50 100 150 200 250 300 350 400 450 Huge BigData Gigantic

Time (sec) Data Size (GB)

IPoIB RDMA

100 200 300 400 500 600 700 800 Huge BigData Gigantic

Time (sec) Data Size (GB)

IPoIB RDMA

43% 37%

SLIDE 36

Intel HPC Dev Conf (SC ‘16) 36 Network Based Computing Laboratory

Performance Evaluation on SDSC Comet: Astronomy Application

Kira Toolkit1: Distributed astronomy image

processing toolkit implemented using Apache Spark.

Source extractor application, using a 65GB dataset

from the SDSS DR2 survey that comprises 11,150 image files.

Compare RDMA Spark performance with the

standard apache implementation using IPoIB.

1. Z. Zhang, K. Barbary, F. A. Nothaft, E.R. Sparks, M.J. Franklin, D.A.

Patterson, S. Perlmutter. Scientific Computing meets Big Data Technology: An Astronomy Use Case. CoRR, vol: abs/1507.03325, Aug 2015.

20 40 60 80 100 120 RDMA Spark Apache Spark (IPoIB)

21 %

Execution times (sec) for Kira SE benchmark using 65 GB dataset, 48 cores.

M. Tatineni, X. Lu, D. J. Choi, A. Majumdar, and D. K. Panda, Experiences and Benefits of Running RDMA Hadoop and Spark on SDSC

Comet, XSEDE’16, July 2016

SLIDE 37

Intel HPC Dev Conf (SC ‘16) 37 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs and Studies

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 38

Intel HPC Dev Conf (SC ‘16) 38 Network Based Computing Laboratory

1 10 100 1000 1 2 4 8 16 32 64 128 256 512 1K 2K 4K Time (us) Message Size OSU-IB (FDR) 200 400 600 800 16 32 64 128 256 512 102420484080 Thousands of Transactions per Second (TPS)

No. of Clients
Memcached Get latency

– 4 bytes OSU-IB: 2.84 us; IPoIB: 75.53 us, 2K bytes OSU-IB: 4.49 us; IPoIB: 123.42 us

Memcached Throughput (4bytes)

– 4080 clients OSU-IB: 556 Kops/sec, IPoIB: 233 Kops/s, Nearly 2X improvement in throughput

Memcached GET Latency Memcached Throughput

Memcached Performance (FDR Interconnect)

Experiments on TACC Stampede (Intel SandyBridge Cluster, IB: FDR)

Latency Reduced by nearly 20X

2X

J. Jose, H. Subramoni, M. Luo, M. Zhang, J. Huang, M. W. Rahman, N. Islam, X. Ouyang, H. Wang, S. Sur and D. K. Panda, Memcached Design on High

Performance RDMA Capable Interconnects, ICPP’11

J. Jose, H. Subramoni, K. Kandalla, M. W. Rahman, H. Wang, S. Narravula, and D. K. Panda, Scalable Memcached design for InfiniBand Clusters using Hybrid

Transport, CCGrid’12

SLIDE 39

Intel HPC Dev Conf (SC ‘16) 39 Network Based Computing Laboratory

Illustration with Read-Cache-Read access pattern using modified mysqlslap load testing

tool

Memcached-RDMA can
improve query latency by up to 66% over IPoIB (32Gbps)
throughput by up to 69% over IPoIB (32Gbps)

Micro-benchmark Evaluation for OLDP workloads

1 2 3 4 5 6 7 8 64 96 128 160 320 400 Latency (sec)

No. of Clients

Memcached-IPoIB (32Gbps) Memcached-RDMA (32Gbps) 1000 2000 3000 4000 64 96 128 160 320 400 Throughput (Kq/s)

No. of Clients

Memcached-IPoIB (32Gbps) Memcached-RDMA (32Gbps)

D. Shankar, X. Lu, J. Jose, M. W. Rahman, N. Islam, and D. K. Panda, Can RDMA Benefit On-Line Data Processing Workloads

with Memcached and MySQL, ISPASS’15

Reduced by 66%

SLIDE 40

Intel HPC Dev Conf (SC ‘16) 40 Network Based Computing Laboratory

RDMA-based Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs and Studies

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 41

Intel HPC Dev Conf (SC ‘16) 41 Network Based Computing Laboratory

The current benchmarks provide some performance behavior
However, do not provide any information to the designer/developer on:

– What is happening at the lower-layer? – Where the benefits are coming from? – Which design is leading to benefits or bottlenecks? – Which component in the design needs to be changed and what will be its impact? – Can performance gain/loss at the lower-layer be correlated to the performance gain/loss observed at the upper layer?

Are the Current Benchmarks Sufficient for Big Data?

SLIDE 42

Intel HPC Dev Conf (SC ‘16) 42 Network Based Computing Laboratory Big Data Middleware (HDFS, MapReduce, HBase, Spark and Memcached)

Networking Technologies (InfiniBand, 1/10/40/100 GigE and Intelligent NICs) Storage Technologies (HDD, SSD, and NVMe-SSD)

Programming Models (Sockets) Applications

Commodity Computing System Architectures (Multi- and Many-core architectures and accelerators)

Other Protocols? Communication and I/O Library

Point-to-Point Communication

QoS

Threaded Models and Synchronization

Fault-Tolerance I/O and File Systems Virtualization Benchmarks RDMA Protocols

Challenges in Benchmarking of RDMA-based Designs

Current Benchmarks

No Benchmarks

Correlation?

SLIDE 43

Intel HPC Dev Conf (SC ‘16) 43 Network Based Computing Laboratory Big Data Middleware (HDFS, MapReduce, HBase, Spark and Memcached)

Networking Technologies (InfiniBand, 1/10/40/100 GigE and Intelligent NICs) Storage Technologies (HDD, SSD, and NVMe-SSD)

Programming Models (Sockets) Applications

Commodity Computing System Architectures (Multi- and Many-core architectures and accelerators)

Other Protocols? Communication and I/O Library

Point-to-Point Communication

QoS

Threaded Models and Synchronization

Fault-Tolerance I/O and File Systems Virtualization Benchmarks RDMA Protocols

Iterative Process – Requires Deeper Investigation and Design for Benchmarking Next Generation Big Data Systems and Applications

Applications-Level Benchmarks

Micro- Benchmarks

SLIDE 44

Intel HPC Dev Conf (SC ‘16) 44 Network Based Computing Laboratory

HDFS Benchmarks

– Sequential Write Latency (SWL) Benchmark – Sequential Read Latency (SRL) Benchmark – Random Read Latency (RRL) Benchmark – Sequential Write Throughput (SWT) Benchmark – Sequential Read Throughput (SRT) Benchmark

Memcached Benchmarks

– Get, Set and Mixed Get/Set Benchmarks – Non-blocking and Hybrid Memory Latency Benchmarks

HBase Benchmarks

– Get and Put Latency Benchmarks

Available as a part of OHB 0.9.1

OSU HiBD Benchmarks (OHB)

N. S. Islam, X. Lu, M. W. Rahman, J. Jose, and D.
K. Panda, A Micro-benchmark Suite for

Evaluating HDFS Operations on Modern Clusters, Int'l Workshop on Big Data Benchmarking (WBDB '12), December 2012

D. Shankar, X. Lu, M. W. Rahman, N. Islam, and
D. K. Panda, A Micro-Benchmark Suite for

Evaluating Hadoop MapReduce on High- Performance Networks, BPOE-5 (2014)

X. Lu, M. W. Rahman, N. Islam, and D. K. Panda,

A Micro-Benchmark Suite for Evaluating Hadoop RPC on High-Performance Networks, Int'l Workshop on Big Data Benchmarking (WBDB '13), July 2013

To be Released

SLIDE 45

Intel HPC Dev Conf (SC ‘16) 45 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 46

Intel HPC Dev Conf (SC ‘16) 46 Network Based Computing Laboratory

Design Features

– Memcached-based burst-buffer system

Hides latency of parallel file

system access

Read from local storage and

Memcached – Data locality achieved by writing data to local storage – Different approaches of integration with parallel file system to guarantee fault-tolerance

Accelerating I/O Performance of Big Data Analytics through RDMA-based Key-Value Store

Application I/O Forwarding Module Map/Reduce Task DataNode Local Disk Data Locality Fault-tolerance Lustre Memcached-based Burst Buffer System

SLIDE 47

Intel HPC Dev Conf (SC ‘16) 47 Network Based Computing Laboratory

Evaluation with PUMA Workloads

Gains on OSU RI with our approach (Mem-bb) on 24 nodes

SequenceCount: 34.5% over Lustre, 40% over HDFS
RankedInvertedIndex: 27.3% over Lustre, 48.3% over HDFS
HistogramRating: 17% over Lustre, 7% over HDFS

500 1000 1500 2000 2500 3000 3500 4000 4500 SeqCount RankedInvIndex HistoRating

Execution Time (s) Workloads HDFS (32Gbps) Lustre (32Gbps) Mem-bb (32Gbps) 48.3% 40% 17%

N. S. Islam, D. Shankar, X. Lu, M.
W. Rahman, and D. K. Panda,

Accelerating I/O Performance of Big Data Analytics with RDMA- based Key-Value Store, ICPP ’15, September 2015

SLIDE 48

Intel HPC Dev Conf (SC ‘16) 48 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 49

Intel HPC Dev Conf (SC ‘16) 49 Network Based Computing Laboratory

hb_memlat & ohb_memthr latency & throughput micro-benchmarks
Memcached-RDMA can
improve query latency by up to 70% over IPoIB (32Gbps)
improve throughput by up to 2X over IPoIB (32Gbps)
No overhead in using hybrid mode when all data can fit in memory

Performance Benefits of Hybrid Memcached (Memory + SSD) on SDSC-Gordon

2 4 6 8 10 64 128 256 512 1024

Throughput (million trans/sec)

No. of Clients

IPoIB (32Gbps) RDMA-Mem (32Gbps) RDMA-Hybrid (32Gbps) 100 200 300 400 500

Average latency (us)

Message Size (Bytes)

2X

SLIDE 50

Intel HPC Dev Conf (SC ‘16) 50 Network Based Computing Laboratory

– Memcached latency test with Zipf distribution, server with 1 GB memory, 32 KB key-value pair size, total size of data accessed is 1 GB (when data fits in memory) and 1.5 GB (when data does not fit in memory) – When data fits in memory: RDMA-Mem/Hybrid gives 5x improvement over IPoIB-Mem – When data does not fit in memory: RDMA-Hybrid gives 2x-2.5x over IPoIB/RDMA-Mem

Performance Evaluation on IB FDR + SATA/NVMe SSDs (Hybrid Memory)

500 1000 1500 2000 2500 Set Get Set Get Set Get Set Get Set Get Set Get Set Get Set Get IPoIB-Mem RDMA-Mem RDMA-Hybrid-SATA RDMA-Hybrid- NVMe IPoIB-Mem RDMA-Mem RDMA-Hybrid-SATA RDMA-Hybrid- NVMe Data Fits In Memory Data Does Not Fit In Memory Latency (us) slab allocation (SSD write) cache check+load (SSD read) cache update server response client wait miss-penalty

SLIDE 51

Intel HPC Dev Conf (SC ‘16) 51 Network Based Computing Laboratory

– Data does not fit in memory: Non-blocking Memcached Set/Get API Extensions can achieve

>16x latency improvement vs. blocking API over RDMA-Hybrid/RDMA-Mem w/ penalty
>2.5x throughput improvement vs. blocking API over default/optimized RDMA-Hybrid

– Data fits in memory: Non-blocking Extensions perform similar to RDMA-Mem/RDMA-Hybrid and >3.6x improvement over IPoIB-Mem

Performance Evaluation with Non-Blocking Memcached API

500 1000 1500 2000 2500 Set Get Set Get Set Get Set Get Set Get Set Get IPoIB-Mem RDMA-Mem H-RDMA-Def H-RDMA-Opt-Block H-RDMA-Opt-NonB- i H-RDMA-Opt-NonB- b

Average Latency (us)

Miss Penalty (Backend DB Access Overhead) Client Wait Server Response Cache Update Cache check+Load (Memory and/or SSD read) Slab Allocation (w/ SSD write on Out-of-Mem) H = Hybrid Memcached over SATA SSD Opt = Adaptive slab manager Block = Default Blocking API NonB-i = Non-blocking iset/iget API NonB-b = Non-blocking bset/bget API w/ buffer re-use guarantee

SLIDE 52

Intel HPC Dev Conf (SC ‘16) 52 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 53

Intel HPC Dev Conf (SC ‘16) 53 Network Based Computing Laboratory

Locality and Storage type-aware data

access

Enhanced data access strategies for

Hadoop and Spark for clusters with heterogeneous storage characteristics

– different nodes have different types of storage devices

Re-design HDFS to incorporate the

proposed strategies

– Upper-level frameworks can transparently leverage the benefits

Efficient Data Access Strategies with Heterogeneous Storage

Hadoop/Spark Workloads

Access Strategy Selector Weight Distributor Locality Detector Storage Type Fetcher DataNode Selector DataNode SSD HDD Storage Monitor Connection Tracker

N. Islam, M. W. Rahman, X. Lu, and D. K. Panda, Efficient Data Access Strategies for Hadoop and Spark on HPC Clusters with

Heterogeneous Storage, accepted at BigData ’16, December 2016

SLIDE 54

Intel HPC Dev Conf (SC ‘16) 54 Network Based Computing Laboratory

Evaluation with Sort Benchmark

OSU RI2 EDR Cluster

Hadoop

– 32% improvement for 320GB data size on 16 nodes

Spark

– 18% improvement for 320GB data size on 16 nodes

Hadoop Sort Spark Sort Reduced by 32% Reduced by 18%

100 200 300 400 500 600 700 4:80 8:160 16:320 Execution Time (s) Cluster Size: Data Size (GB) HDFS OSU-Design 50 100 150 200 250 300 350 400 450 4:80 8:160 16:320 Execution Time (s) Cluster Size: Data Size (GB)

SLIDE 55

Intel HPC Dev Conf (SC ‘16) 55 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 56

Intel HPC Dev Conf (SC ‘16) 56 Network Based Computing Laboratory

Hybrid and resilient key-value store-

based Burst-Buffer system Over Lustre

Overcome limitations of local storage on

HPC cluster nodes

Light-weight transparent interface to

Hadoop/Spark applications

Accelerating I/O-intensive Big Data

workloads

– Non-blocking Memcached APIs to maximize overlap – Client-based replication for resilience – Asynchronous persistence to Lustre parallel file system

Burst-Buffer Over Lustre for Accelerating Big Data I/O (Boldio)

D. Shankar, X. Lu, D. K. Panda, Boldio: A Hybrid and Resilient Burst-Buffer over Lustre for Accelerating Big Data I/O, IEEE Big Data 2016.

Direct over Lustre

Hadoop Applications/Benchmarks (E.g. MapReduce, Spark) Hadoop File System Class Abstraction (LocalFileSystem) Burst-Buffer Memcached Cluster Burst-Buffer Libmemcached Client RDMA-enhanced Communication Engine Non-Blocking API Blocking API

RDMA-enhanced

Comm. Engine

Hyb-Mem Manager (RAM/SSD) Persistence Mgr. RDMA-enhanced

Comm. Engine

Hyb-Mem Manager (RAM/SSD) Persistence Mgr.

Boldio …..

Co-Design BoldioFileSystem Abs.

Lustre Parallel File System

MDS OSS OSS OSS

MDT MDT OST OST OST OST OST OST

Boldio Server Boldio Client

SLIDE 57

Intel HPC Dev Conf (SC ‘16) 57 Network Based Computing Laboratory

Based on RDMA-based Libmemcached/Memcached 0.9.3, Hadoop-2.6.0
InfiniBand QDR, 24GB RAM + PCIe-SSDs, 12 nodes, 32/48 Map/Reduce Tasks, 4-node Memcached cluster
Boldio can improve

– throughput over Lustre by about 3x for write throughput and 7x for read throughput – execution time of Hadoop benchmarks over Lustre, e.g. Wordcount, Cloudburst by >21%

Contrasting with Alluxio (formerly Tachyon)

– Performance degrades about 15x when Alluxio cannot leverage local storage (Alluxio-Local vs. Alluxio-Remote) – Boldio can improve throughput over Alluxio with all remote workers by about 3.5x - 8 .8x (Alluxio-Remote vs. Boldio)

Performance Evaluation with Boldio

Hadoop/Spark Workloads 21%

50 100 150 200 250 300 350 400 450

WordCount InvIndx CloudBurst Spark TeraGen Latency (sec) Lustre-Direct Alluxio-Remote Boldio DFSIO Throughput

0.00 10000.00 20000.00 30000.00 40000.00 50000.00 60000.00 70000.00

20 GB 40 GB 20 GB 40 GB Write Read

Agg. Throughput (MBps)

Lustre-Direct Alluxio-Local Alluxio-Remote Boldio ~3x ~7x

SLIDE 58

Intel HPC Dev Conf (SC ‘16) 58 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 59

Intel HPC Dev Conf (SC ‘16) 59 Network Based Computing Laboratory

Challenges

– Operations on Distributed Ordered Table (DOT) with indexing techniques are network intensive – Additional overhead of creating and maintaining secondary indices – Can RDMA benefit indexing techniques (Apache Phoenix and CCIndex) on HBase?

Results

– Evaluation with Apache Phoenix and CCIndex – Up to 2x improvement in query throughput – Up to 35% reduction in application workload execution time Collaboration with Institute of Computing Technology, Chinese Academy of Sciences

Accelerating Indexing Techniques on HBase with RDMA

S. Gugnani, X. Lu, L. Zha, and D. K. Panda, Characterizing and Accelerating Indexing Techniques on HBase for Distributed Ordered

Table-based Queries and Applications (Under review)

5000 10000 15000 Query1 Query2 THROUGHPUT

TPC-H Query Benchmarks

HBase RDMA-HBase HBase-Phoenix RDMA-HBase-Phoenix HBase-CCIndex RDMA-HBase-CCIndex

Increased by 2x 100 200 300 400 500 600 Workload1 Workload2 Workload3 Workload4 EXECUTION TIME

Ad Master Application Workloads

HBase-Phoenix RDMA-HBase-Phoenix HBase-CCIndex RDMA-HBase-CCIndex

Reduced by 35%

SLIDE 60

Intel HPC Dev Conf (SC ‘16) 60 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 61

Intel HPC Dev Conf (SC ‘16) 61 Network Based Computing Laboratory

Challenges of Tuning and Profiling

MapReduce systems have different

configuration parameters based on the underlying component that uses these

The parameter files vary across

different MapReduce stacks

Proposed a generalized parameter

space for HPC clusters

Two broad dimensions: user space and

system space; existing parameters can be categorized in the proposed spaces

SLIDE 62

Intel HPC Dev Conf (SC ‘16) 62 Network Based Computing Laboratory

MR-Advisor Overview

A generalized framework for

Big Data processing engines to perform tuning, profiling, and prediction

Current framework can work

with Hadoop, Spark, and RDMA MapReduce (OSU-MR)

Can also provide tuning for

different file systems (e.g. HDFS, Lustre, Tachyon), resource managers (e.g. YARN), and applications

SLIDE 63

Intel HPC Dev Conf (SC ‘16) 63 Network Based Computing Laboratory

Execution Details in MR-Advisor

Workload Generator maps the

input parameters to the appropriate configuration and generates workload for each tuning test

Job submitter deploys small

clusters for each experiment and runs the workload on these deployments

Job Tuning Tracker monitors failed

jobs and re-launches, if necessary

Workload Preparation and Deployment Unit Workload Generator Job Submitter Job Tuning Tracker Compute Nodes

Lustre Installation

MDS OSS

InfiniBand/ Ethernet App Master Map/Reduce NM DN RM/Spark Master Tachyon Master/ NN Spark Worker

Tachyon Worker

DN App Master Map/Reduce NM LC

M. W. Rahman , N. S. Islam, X. Lu, D. Shankar, and D. K.

Panda, MR-Advisor: A Comprehensive Tuning Tool for Advising HPC Users to Accelerate MapReduce Applications on Supercomputers, SBAC-PAD, 2016.

SLIDE 64

Intel HPC Dev Conf (SC ‘16) 64 Network Based Computing Laboratory

Tuning Experiments with MR-Advisor (TACC Stampede)

Apache MR over HDFS OSU-MR over HDFS Apache Spark over HDFS Apache MR over Lustre OSU-MR over Lustre Apache Spark over Lustre

23% 17% 34% 46% 58% 28%

Performance improvements compared to current best practice values

SLIDE 65

Intel HPC Dev Conf (SC ‘16) 65 Network Based Computing Laboratory

Basic Designs

– HDFS, MapReduce, and RPC – HBase – Spark – Memcached – OSU HiBD Benchmarks (OHB)

Advanced Designs

– HDFS+Memcached-based Burst-Buffer – Memcached with Hybrid Memory and Non-blocking APIs – Data Access Strategies with Heterogeneous Storage (Hadoop and Spark) – Accelerating Big Data I/O (Lustre + Burst-Buffer) – Efficient Indexing with RDMA-HBase – MR-Advisor

BigData + HPC Cloud

Acceleration Case Studies and Performance Evaluation

SLIDE 66

Intel HPC Dev Conf (SC ‘16) 66 Network Based Computing Laboratory

Motivation

– Performance attributes of Big Data workloads when using SR-IOV are not known – Impact of VM subscription policies, data size, and type of workload on performance of workloads with SR-IOV not evaluated in systematic manner

Results

– Evaluation on Chameleon Cloud with RDMA- Hadoop – Only 0.3 – 13% overhead with SR-IOV compared to native execution – Best VM subscription policy depends on type of workload

Performance Characterization of Hadoop Workloads on SR- IOV-enabled Clouds

S. Gugnani, X. Lu, and D. K. Panda, Performance Characterization of Hadoop Workloads on SR-IOV-enabled Virtualized InfiniBand

Clusters, accepted at BDCAT’16, December 2016

200 400 40 GB 60 GB 40 GB 60 GB EXECUTION TIME

Hadoop Workloads

Native (1 DN, 1 NM) Native (2 DN, 2 NM) VM per node VM per socket TeraGen WordCount

500 1000 Sample Data 1 GB 60 GB 90 GB EXECUTION TIME

Applications

Native (1 DN, 1 NM) Native (2 DN, 2 NM) VM per node VM per socket CloudBurst Self-join

SLIDE 67

Intel HPC Dev Conf (SC ‘16) 67 Network Based Computing Laboratory

Challenges

– Existing designs in Hadoop not virtualization- aware – No support for automatic topology detection

Design

– Automatic Topology Detection using MapReduce-based utility

Requires no user input
Can detect topology changes during

runtime without affecting running jobs – Virtualization and topology-aware communication through map task scheduling and YARN container allocation policy extensions

Virtualization-aware and Automatic Topology Detection Schemes in Hadoop on InfiniBand

S. Gugnani, X. Lu, and D. K. Panda, Designing Virtualization-aware and Automatic Topology Detection Schemes for Accelerating

Hadoop on SR-IOV-enabled Clouds, CloudCom’16, December 2016

2000 4000 6000 40 GB 60 GB 40 GB 60 GB 40 GB 60 GB EXECUTION TIME

Hadoop Benchmarks

RDMA-Hadoop Hadoop-Virt 100 200 300 400 Default Mode Distributed Mode Default Mode Distributed Mode EXECUTION TIME

Hadoop Applications

RDMA-Hadoop Hadoop-Virt CloudBurst Self-join Sort WordCount PageRank Reduced by 55% Reduced by 34%

SLIDE 68

Intel HPC Dev Conf (SC ‘16) 68 Network Based Computing Laboratory

Upcoming Releases of RDMA-enhanced Packages will support

– Upgrades to the latest versions of Hadoop and Spark – Streaming – MR-Advisor – Impala

Upcoming Releases of OSU HiBD Micro-Benchmarks (OHB) will support

– MapReduce, RPC and Spark

Advanced designs with upper-level changes and optimizations

– Boldio – Efficient Indexing

On-going and Future Plans of OSU High Performance Big Data (HiBD) Project

SLIDE 69

Intel HPC Dev Conf (SC ‘16) 69 Network Based Computing Laboratory

Discussed challenges in accelerating Big Data middleware with HPC

technologies

Presented basic and advanced designs to take advantage of InfiniBand/RDMA

for HDFS, MapReduce, RPC, HBase, Memcached, and Spark

Results are promising
Many other open issues need to be solved
Will enable Big Data community to take advantage of modern HPC

technologies to carry out their analytics in a fast and scalable manner

Looking forward to collaboration with the community

Concluding Remarks

SLIDE 70

Intel HPC Dev Conf (SC ‘16) 70 Network Based Computing Laboratory

Funding Acknowledgments

Funding Support by Equipment Support by

SLIDE 71

Intel HPC Dev Conf (SC ‘16) 71 Network Based Computing Laboratory

Personnel Acknowledgments

Current Students

–

A. Awan (Ph.D.)

–

M. Bayatpour (Ph.D.)

–

S. Chakraborthy (Ph.D.)

– C.-H. Chu (Ph.D.)

Past Students

–

A. Augustine (M.S.)

–

P. Balaji (Ph.D.)

–

S. Bhagvat (M.S.)

–

A. Bhat (M.S.)

–

D. Buntinas (Ph.D.)

–

L. Chai (Ph.D.)

–

B. Chandrasekharan (M.S.)

–

N. Dandapanthula (M.S.)

–

V. Dhanraj (M.S.)

–

T. Gangadharappa (M.S.)

–

K. Gopalakrishnan (M.S.)

–

R. Rajachandrasekar (Ph.D.)

–

G. Santhanaraman (Ph.D.)

–

A. Singh (Ph.D.)

–

J. Sridhar (M.S.)

–

S. Sur (Ph.D.)

–

H. Subramoni (Ph.D.)

–

K. Vaidyanathan (Ph.D.)

–

A. Vishnu (Ph.D.)

–

J. Wu (Ph.D.)

–

W. Yu (Ph.D.)

Past Research Scientist

–

S. Sur

Past Post-Docs

–

D. Banerjee

–

X. Besseron

– H.-W. Jin –

W. Huang (Ph.D.)

–

W. Jiang (M.S.)

–

J. Jose (Ph.D.)

–

S. Kini (M.S.)

–

M. Koop (Ph.D.)

–

K. Kulkarni (M.S.)

–

R. Kumar (M.S.)

–

S. Krishnamoorthy (M.S.)

–

K. Kandalla (Ph.D.)

–

P. Lai (M.S.)

–

J. Liu (Ph.D.)

–

M. Luo (Ph.D.)

–

A. Mamidala (Ph.D.)

–

G. Marsh (M.S.)

–

V. Meshram (M.S.)

–

A. Moody (M.S.)

–

S. Naravula (Ph.D.)

–

R. Noronha (Ph.D.)

–

X. Ouyang (Ph.D.)

–

S. Pai (M.S.)

–

S. Potluri (Ph.D.)

–

S. Guganani (Ph.D.)

–

J. Hashmi (Ph.D.)

–

N. Islam (Ph.D.)

–

M. Li (Ph.D.)

–

J. Lin

–

M. Luo

–

E. Mancini

Current Research Scientists

–

K. Hamidouche

–

X. Lu

–

H. Subramoni

Past Programmers

–

D. Bureddy

–

M. Arnold

–

J. Perkins

Current Research Specialist

–

J. Smith

–

M. Rahman (Ph.D.)

–

D. Shankar (Ph.D.)

–

A. Venkatesh (Ph.D.)

–

J. Zhang (Ph.D.)

–

S. Marcarelli

–

J. Vienne

–

H. Wang

SLIDE 72

Intel HPC Dev Conf (SC ‘16) 72 Network Based Computing Laboratory

The 3rd International Workshop on High-Performance Big Data Computing (HPBDC)

HPBDC 2017 will be held with IEEE International Parallel and Distributed Processing Symposium (IPDPS 2017), Orlando, Florida USA, May, 2017

Tentative Submission Deadline Abstract: January 10, 2017 Full Submission: January 17, 2017 HPBDC 2016 was held in conjunction with IPDPS’16 Keynote Talk: Dr. Chaitanya Baru, Senior Advisor for Data Science, National Science Foundation (NSF); Distinguished Scientist, San Diego Supercomputer Center (SDSC) Panel Moderator: Jianfeng Zhan (ICT/CAS) Panel Topic: Merge or Split: Mutual Influence between Big Data and HPC Techniques Six Regular Research Papers and Two Short Research Papers http://web.cse.ohio-state.edu/~luxi/hpbdc2016

SLIDE 73

Intel HPC Dev Conf (SC ‘16) 73 Network Based Computing Laboratory

Three Conference Tutorials (IB+HSE, IB+HSE Advanced, Big Data)
HP-CAST
Technical Papers (SC main conference; Doctoral Showcase; Poster; PDSW-

DISC, PAW, COMHPC, and ESPM2 Workshops)

Booth Presentations (Mellanox, NVIDIA, NRL, PGAS)
HPC Connection Workshop
Will be stationed at Ohio Supercomputer Center/OH-TECH Booth (#1107)

– Multiple presentations and demos

More Details from http://mvapich.cse.ohio-state.edu/talks/

OSU Team Will be Participating in Multiple Events at SC ‘16

SLIDE 74

Intel HPC Dev Conf (SC ‘16) 74 Network Based Computing Laboratory
