SLIDE 1

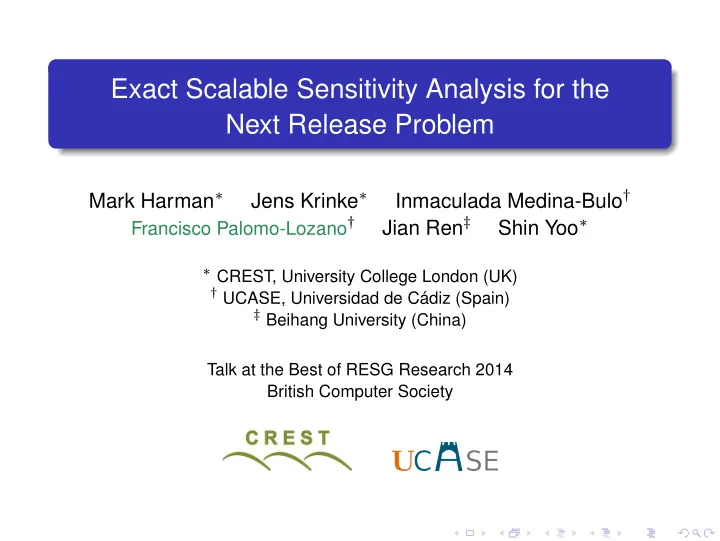

Exact Scalable Sensitivity Analysis for the Next Release Problem

Mark Harman∗ Jens Krinke∗ Inmaculada Medina-Bulo†

Francisco Palomo-Lozano†

Jian Ren‡ Shin Yoo∗

∗ CREST, University College London (UK) † UCASE, Universidad de Cádiz (Spain) ‡ Beihang University (China)

Talk at the Best of RESG Research 2014 British Computer Society

SLIDE 2

The Next Release Problem

1

Companies constantly release new products or versions

2

Requirements for a release can be of different kinds

Mandatory requirements vs. optional requirements Decision-makers only control optional requirements Release success depends on both kinds of requirements

3

Requirements are subject to constrains

Policy Time-to-market Dependencies Budget

4

Requirements have expected estimations

Costs Revenues

5

Which optional requirements to implement?

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 2 / 19

SLIDE 3

Industrial example: Motorola

Motorola identified 40 requirements for a new product A small number of requirements were identified as mandatory

Any release of the product must include at least these A fix amount of budget is devoted to this task

Requirements can become mandatory by different reasons

Core product functionality Dependence to other requirements

Decision-makers faced 35 independent requirements

Costs were estimated Revenues were based in customer assessments

There are 235 possible choices

> 34000 million possibilities > 1000 million possibilities with half the total cost as budget

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 3 / 19

SLIDE 4

Formalisation

The Next Release Problem (NRP)

Several variants defined by Bagnall et al. Simplest NRP is a classical knapsack problem Maximising revenues under budget constrains

Budget is “known” a priori Optimal solutions exist and may not be unique

The Knapsack Problem and the NRP

Knapsack problems first studied in the 1950s Basic variants of these problems are well understood

Most variants are hard computational problems Simplest NRP is hard, but “weaker” than other hard problems Different algorithms have been devised

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 4 / 19

SLIDE 5

Approximation algorithms

Guarantees

1

Different guarantees for errors depending on the algorithm

No guarantee Relative error Absolute error

2

Most heuristic methods are “no guarantee” algorithms

Local search Genetic algorithms Simulated annealing

Facts

1

Guaranteeing absolute error for NRP is as hard as exactness

2

Relative error approximation algorithms exist

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 5 / 19

SLIDE 6

Greedy algorithms

Strategies

ICO

Increasing Cost Order

DRO Decreasing Revenue Order DRD Decreasing Revenue Density

DRO and DRD can suffer from unbounded error DRD with postprocessing is at worst 50% below the optimal

Advantages

1

Very fast and easy to implement

2

Do not impose artificial restrictions to their inputs

3

A natural basis for better algorithms, for example local search

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 6 / 19

SLIDE 7

Sensitivity analysis

1

Estimation is not an exact science

2

Requirements are affected by estimation errors

Costs are invariably underestimated Revenues are usually more predictable

3

Budgets are subjected to cuts (nowadays even more true)

4

Complex products go through different budgeting scenarios

5

Sensitivity analysis helps to identify the hot-spots

The Big Question

Q: How do you make sure that the observed variation stems from inherent sensitivity and not from the optimisation algorithm when you use an approximation algorithm? A: You cannot!

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 7 / 19

SLIDE 8

Sensitivity analysis of the Motorola data

1

21 perturbations (from -50% to +50% with 5% steps)

2

Positive perturbations show the effect of underestimations

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 8 / 19

1 1 5 4 5 5 3 6 7 1 7 1 7 4 1 9 4 1 9 6 3 6 3 7 3 5 7 3 5 8 3 5 9 3 6 3 6 2 3 8 2 4 8 2 4 9 4 5 2 4 5 2 9 5 3 5 3 3 5 4 4 5 6 7 5 7 1 5 8 9 5 9 1 6 6 6 1 2 6 2 2 6 6 2 6 7 6 7 4 Budgets 10 10 10 10 20 20 20 30 40 40 40 50 50 60 70 80 80 100 100 100 110 120 150 180 200 200 230 300 300 400 500 1000 1000 Costs

Approximate Sensitivity Analysis (PIAC = 5%)

3.0 2.7 2.4 2.1 1.8 1.5 1.2 0.9 0.6 0.3 0.0 1 2 2 3 3 1 1 2 3 1 1 3 1 3 3 3 1 3 1 3 3 2 2 2 2 1 3 2 2 3 3 3 3 3 3 Revenues 1 1 5 4 5 5 3 6 7 1 7 1 7 4 1 9 4 1 9 6 3 6 3 7 3 5 7 3 5 8 3 5 9 3 6 3 6 2 3 8 2 4 8 2 4 9 4 5 2 4 5 2 9 5 3 5 3 3 5 4 4 5 6 7 5 7 1 5 8 9 5 9 1 6 6 6 1 2 6 2 2 6 6 2 6 7 6 7 4 Budgets 10 10 10 10 20 20 20 30 40 40 40 50 50 60 70 80 80 100 100 100 110 120 150 180 200 200 230 300 300 400 500 1000 1000 Costs

Exact Sensitivity Analysis (PIAC = 5%)

1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 1 2 2 3 3 1 1 2 3 1 1 3 1 3 3 3 1 3 1 3 3 2 2 2 2 1 3 2 2 3 3 3 3 3 3 Revenues

SLIDE 9

Challenges

Problem

1

Requirements are uncertain

2

Precise sensitivity analysis is key to decision making

3

Approximate solutions disable precise sensitivity analysis

Solution

Exact sensitivity analysis based on exact algorithms

Issues

1

Efficiency

2

Scalability

3

Interactions

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 9 / 19

SLIDE 10

Exact algorithms

Facts

1

Many algorithms have been devised in the last 50 years

2

Advanced algorithms are difficult to implement and test

3

For many algorithms space can be as critical as time

4

The curse of computational complexity on the NRP

No matter how good our exact algorithms are, they will always behave bad for an infinite number of instances, according to the current state of our knowledge (i.e., as long as P = NP)

Approach

1

Focus in “simple” algorithms and data structures

2

Algorithms have to be efficient just for the application domain

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 10 / 19

SLIDE 11

Dynamic programming algorithms

Bellman’s equation for KP

z(n,B) =            if n = 1∧c1 > B r1 if n = 1∧c1 ≤ B z(n−1,B) if n > 1∧cn > B max{z(n−1,B),z(n−1,B −cn)+rn} if n > 1∧cn ≤ B

Nemhauser-Ullmann’s algorithm (NU)

1

As values of z are computed, they are saved for later reuse

2

Solution is recovered from the values of z previously saved

3

In 2003, Beier and Vöcking proved very interesting properties

NU solves a random KP in expected polynomial time This is so under quite general conditions Strongly correlated instances are provably harder for NU

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 11 / 19

SLIDE 12

Correlation

1

Highly-correlated instances are reported hard in the literature

2

We control Pearson’s correlation during instance generation

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 12 / 19

10000 20000 30000 40000 50000 Cost 10000 20000 30000 40000 50000 60000 Revenue

Random requirements (ρ =0.00)

SLIDE 13

Scalability experiments

1

50 different datasets with 315 NRP random instances each

15 problem sizes from 100 to 1500, with steps of 100 21 correlation degrees from 0% to 100%, every 5%

2

Significant # of experiments: 15 750 instances solved

3

Experiments performed in just one core of a 1000 £ machine

Intel Core i7 2.67 GHz CPU with 12 GiB RAM C++ on GNU/Linux

4

Results show that a polynomial model explains well our times

NU behaves polynomially in the number of requirements Except when costs and revenues are very highly correlated

Assumptions

1

High correlations between cost and revenue are uncommon

2

This is particularly true in the case of optional requirements

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 13 / 19

SLIDE 14

Interactions

One at a time

Requirements are perturbed in isolation No interactions are taken into account

k at a time

At most k simultaneous perturbations are considered Interactions are taken into account Very expensive

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 14 / 19

SLIDE 15

Trade-off

Second order interactions

No interactions for a first analysis Interactions between pairs of requirements are then regarded

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 15 / 19

SLIDE 16

Conclusions

1

Exact algorithms enable precise sensitivity analysis (PSA)

Necessary to isolate estimation from approximation errors Approximation errors may trick the decision-maker

2

Scalability is achievable, at least for reasonable cases

3

However, PSA is still expensive

21 perturbations (from -50% to +50% with 5% steps) 21·n instances for a single budget Still, we can complete a PSA without interactions of a project with 500 requirements for one budget proposal in less than one day

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 16 / 19

SLIDE 17

Future work

Multi-objective NRP

Maximising revenues while minimising costs A Holy Grail

Costs and revenues are conflicting objectives Budget may be known a priori or a posteriori Pareto-optimal solutions instead of absolute, optimal solutions

Different approaches

Use multi-objective KP as a model to find the Pareto frontier Produce the Pareto frontier as a byproduct of a KP algorithm

Parallelisation

Different budgets can be analysed at the same time As well as different cost perturbations when a budget is fixed

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 17 / 19

SLIDE 18

Further future work

SBSE for higher-order interactions

SBSE could be used to look for higher-order interactions Especially to chase particularly insidious interactions NU would be used on demand to assess suspicious scenarios

Better visual aids to decision making

Better sensitivity visualisation for very large projects Interactive representations easy to manipulate

F. Palomo-Lozano (UCA)

Exact Scalable SA for the NRP British Computer Society (2014) 18 / 19

SLIDE 19

Thank you for your attention

Source code and experimental data freely available at:

– http://ucase.uca.es/nrp

Open access to the journal paper at:

– http://dl.acm.org/citation.cfm?id=2537853 – http://dx.doi.org/10.1145/2537853 – http://discovery.ucl.ac.uk/1428945
