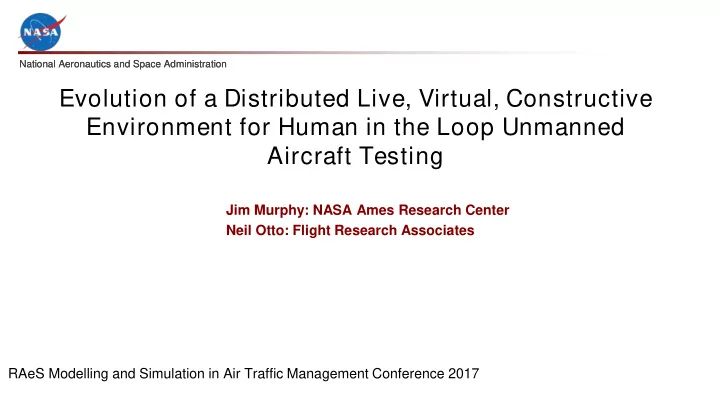

Evolution of a Distributed Live, Virtual, Constructive Environment for Human in the Loop Unmanned Aircraft Testing

Jim Murphy: NASA Ames Research Center Neil Otto: Flight Research Associates RAeS Modelling and Simulation in Air Traffic Management Conference 2017

Human Systems Integration

UAS ground control station Noncooperative aircraft Cooperative aircraft Air traffic services (en route)

Detect and Avoid Command and Control

Air traffic services (Near airport)

UAS-NAS Project Overview

Integrated Test and Evaluation

2

Detect and Avoid Overview

3

Collision Avoidance Threshold

Collision Avoidance

Remain Well Clear

Preventive Alert

Remain Well Clear Detect-and-Avoid Threshold

RWC Alert CA Alert

Detect and Avoid ATC Coordination

Controlled Separation Conflict Alert

UAS use “Detect and Avoid” in place of “see and avoid”

LVC-Distributed Test Environment

UAS Surrogate Live Intruders

Live: Real people operating real assets Virtual: Real people operating simulated assets Constructive: Simulated people operating simulated assets

Unmanned Aircraft 4

LVC-Distributed Test Environment

UAS Pilot Air Traffic Control

Network

Target Generation UAS Surrogate Constructive Intruders Live Intruders

Live: Real people operating real assets Virtual: Real people operating simulated assets Constructive: Simulated people operating simulated assets

Unmanned Aircraft 4

LVC-Distributed Test Environment

UAS Pilot Air Traffic Control

Network

Target Generation UAS Surrogate Constructive Intruders Live Intruders

Live: Real people operating real assets Virtual: Real people operating simulated assets Constructive: Simulated people operating simulated assets

Unmanned Aircraft 4

LVC Architecture Build-Up

GCS

Virtual Assets

HLA – High Level Architecture LVC Gateway

Constructive Assets

LVC GW Toolbox ATC Toolbox Pilot Toolbox Sim Toolbox

Legacy Core LVC

5

DAA System

Integrated HITL

LVC/DAA Simulation and Flight Activities

6

UAS ADS-B Flight LVC Characterization Full Mission Sim

FY12 FY13 FY14 FY15 FY16 FY17

Collision Avoidance Flight Test 1 Terminal Operations Simulation Flight Test 3

Test Bed Architecture

DDS – Data Distribution Service

Test Bed Support Services Test Bed Visualization Services Traffic Generators

Component A

GovCloud UAS Traffic Management (UTM)

External Simulators

Component C Component X Component B

7 ATM Functional Services

Conflict Detection Trajectory Generator Conflict Resolution Scheduler Stakeholder Tools

LVC-DE

LVC Gateway UAS LVC-DE

LVC Enhancement

• Live: Real people operating real assets
• Virtual: Real people operating

simulated assets

• Constructive: Simulated people
• perating simulated assets
• Autonomous: Simulated people
• perating real assets

Real Assets Simulated Assets Real People Live Virtual Simulated People Autonomous Constructive

9

Conclusion and Next Steps

• NASA’s UAS Integration into the NAS project has developed an

LVC architecture to support testing of unmanned Detect and Avoid research

• LVC Distributed Test Environment was built up from legacy

infrastructure and designed to meet DAA test objectives and requirements

• Integrating with NASA’s SMART-NAS Test Bed will enable

continued use of the LVC technologies

10
