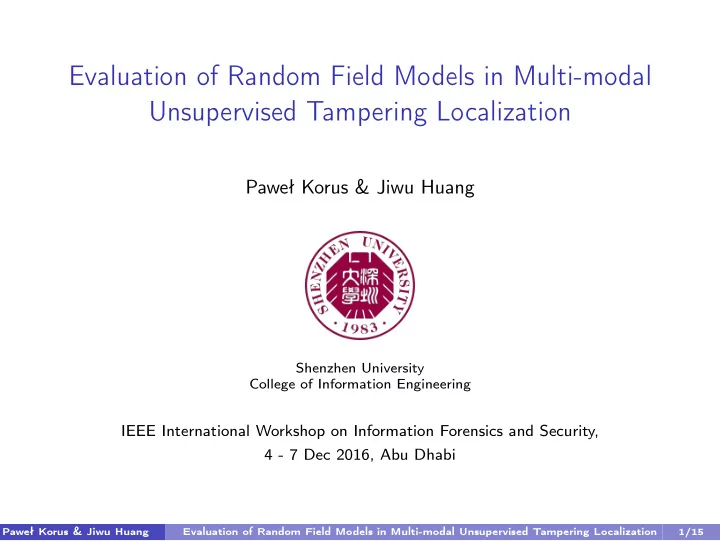

Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization

Paweł Korus & Jiwu Huang

Shenzhen University College of Information Engineering

IEEE International Workshop on Information Forensics and Security, 4 - 7 Dec 2016, Abu Dhabi

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 1/15

Motivation and Goals (I)

Reliable forensics should analyze various traces. Decision fusion studied in detail for tampering detection1.

◮ Fuzzy logic, Dempster-Shafer theory of evidence.

In tampering localization - still an open problem2.

◮ Naive pixel-wise application of (even complicated) combination rules. ◮ The simplest rules (summation / product) actually yield good performance.

This naive approach is clearly sub-optimal - example problem:

◮ Scale discrepancy: e.g., CFA (8 × 8) and PRNU (128 × 128).

tampering probability (CFA, 8 px window) tampering probability (PRNU, 128 window)

1Fontani et al., TIFS 2013; Barni et al., ICASSP 2012 2Ferrara et al., ICMEW 2015; Cozzolino et al. IAP 2013

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 2/15

Motivation and Goals (II)

Solution: cross-reference results with actual objects. Exploiting image content in forensics (before):

◮ Manual image segmentation3. ◮ Guided image filtering4 (feature correlation / structure transfer).

Problems:

◮ How to do reliable image segmentation? How to do it automatically? ◮ How to handle object removal?

Goals of our study:

◮ Consider a scenario with mismatched detectors (scale discrepancy). ◮ Evaluate random field models with content-dependent potentials. ◮ Verify operation for subtle object removal forgeries. ◮ Compare standard grid-based and dense CRF models.

3Barni et al., ISCS 2010; Chierchia et al., ICDSP 2011 4Chierchia et al., ICASSP 2014

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 3/15

Individual Detectors

State-of-the-art CFA detector (small blocks, fine shape)5:

◮ Exploits periodicity of resampling artifacts. ◮ Compares prediction error of acquired vs. interpolated pixels. ◮ GMM-based segmentation into tampered / pristine blocks. ◮ Operates on small non-overlapping blocks (best performance for 8 × 8 px).

Photo-response non-uniformity detector (large windows, coarse shape)6:

◮ Validates (locally) presence of a known noise signature. ◮ Uses a correlation predictor to locally estimate the strength of the signature. ◮ Requires relatively large sample (we used overlapping 64 × 64 px windows). ◮ Tampering probability from Bayesian analysis.

Both detectors set up to yield same-size tampering probability maps:

◮ localization resolution of 8 × 8 px image blocks.

5Ferrara et al., TIFS 2012; http://lesc.det.unifi.it/en/node/187 6Chen et al., TIFS 2008; https://github.com/pkorus/multiscale-prnu

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 4/15

Standard Combination Rules (I)

Naive pixel-wise combination rules (τ - threshold):

◮ Sum fusion:

ti =

• c(cfa)

i

+ c(prnu)

i

• /2 > τ

◮ Product fusion:

ti =

• c(cfa)

i

c(prnu)

i

c(cfa)

i

c(prnu)

i

+ ˜ c(cfa)

i

˜ c(prnu)

i

−1 > τ

◮ Disjunction fusion (two variants of heuristic cleaning):

ti =

• c(cfa)

i

> τ

• ∨
• c(prnu)

i

> τ

• ◮ Empirical fusion: rule learned from data.

Heuristic cleaning:

◮ For fusion result: morphological opening (disk-shaped SE 15 × 15). ◮ For individual detectors: ⋆ CFA - as above; ⋆ PRNU - disk-shaped SE 31 × 31 opening + 19 × 19 dilation Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 5/15

Standard Combination Rules (II)

(0,0) (1,1) (0,0) (1,1) (0,0) (1,1)

product fusion empirical fusion sum fusion

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 6/15

Random Field Models

Optimization of the following energy function: E(t) = 1 |D|

• d∈D

N

• i=1

ψτ(c(d)

i

|ti) +

N

• i=1
• j∈Ξi

φp(ti, tj) where:

◮ ψτ is the unary potential (favors solutions close to observations); ◮ φp is a pairwise interaction potential (favors the same decisions among

neighbors).

The pairwise potential has two components:

◮ β0 - default interaction strength, ◮ β1 - content-dependent interaction strength (based on color similarity).

We consider two versions:

◮ grid CRF - only nearest 8-connected neighborhood, ◮ dense CRF - fully connected pairwise field (Gaussian).

Solvers: graph cuts7 / iterative mean-field approximations8.

7UGM Toolbox, http://www.cs.ubc.ca/~schmidtm/Software/UGM.html 8Krähenbühl et al., NIPS 2011

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 7/15

Evaluation Scenario

Evaluation of localization performance on realistic forgeries:

◮ Challenging realistic data set crafted by hand in modern photo editors. ◮ 120 images (3 cameras, 1920 × 1080 px uncompressed TIFFs). ◮ An extended version is publicly available for research purposes9.

Performance metrics: F1 score, ROC

9http://kt.agh.edu.pl/~korus/downloads/dataset-realistic-tampering/

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 8/15

Evaluation Results

.01 .02 .03 .04 .05 .06 .07 .08 .09 .5 .6 .7 .8 fale positive rate true positive rate 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 .1 .2 .3 .4 .5 .6 .7 decision threshold τ average F1 score 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 .1 .2 .3 .4 .5 .6 .7 .8 .9 peak F1 score (grid CRF fusion) peak F1 score (dense CRF fusion) 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 .1 .2 .3 .4 .5 .6 .7 .8 .9 peak F1 score (product fusion) peak F1 score (grid CRF fusion) 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 .1 .2 .3 .4 .5 .6 .7 .8 .9 peak F1 score (product fusion) peak F1 score (empirical pixel-wise fusion)

average difference -0.003 average difference 0.095 average difference -0.001

style detector max F1 sum 0.57 product 0.61 disjunction (CC) 0.57 disjunction (IC) 0.60 empirical 0.61 grid CRF 0.69 dense CRF 0.68 CFA 0.44 PRNU 0.49

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 9/15

Example Localization Results (best F-score wise)

tampered image CFA PRNU sum fusion product fusion empirical fusion grid CRF dense CRF binary disjunction

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 10/15

Example Localization Results (best F-score wise)

tampered image CFA PRNU sum fusion product fusion empirical fusion grid CRF dense CRF binary disjunction

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 10/15

Example Localization Results (best F-score wise)

tampered image CFA PRNU sum fusion product fusion empirical fusion grid CRF dense CRF binary disjunction

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 10/15

Example Localization Results (best F-score wise)

tampered image CFA PRNU sum fusion product fusion empirical fusion grid CRF dense CRF binary disjunction

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 10/15

Example Localization Results (best F-score wise)

tampered image CFA PRNU sum fusion product fusion empirical fusion grid CRF dense CRF binary disjunction

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 10/15

Example Localization Results (best F-score wise)

tampered image CFA PRNU sum fusion product fusion empirical fusion grid CRF dense CRF binary disjunction

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 10/15

Example Localization Results (best F-score wise)

tampered image CFA PRNU sum fusion product fusion empirical fusion grid CRF dense CRF binary disjunction

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 10/15

Example Localization Results (best F-score wise)

tampered image CFA PRNU sum fusion product fusion empirical fusion grid CRF dense CRF binary disjunction

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 10/15

Object Insertion vs Object Removal

Problems with existing evaluation metrics.

◮ Oblivion to spatial relationships + collateral damage. ◮ Better detection often leads to marginal improvement (bottom) or even

deterioration (top) of measurable performance.

Impact of content guidance on the MRF fusion (see below).

CRF guided by tampered image (F1 = 0.664 / A = 0.749) CRF guided by orignal image (F1 = 0.806 / A = 0.838) CRF with no content guidance (F1 = 0.812 / A = 0.842) pixel-wise product fusion (F1 = 0.844 / A = 0.866) CRF guided by tampered image (F1 = 0.820 / A = 0.851) CRF guided by orignal image (F1 = 0.804 / A = 0.844) CRF with no content guidance (F1 = 0.805 / A = 0.840) pixel-wise product fusion (F1 = 0.799 / A = 0.841)

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 11/15

Conclusions & Future Work (I)

Even naive fusion leads to significant improvement over individual detectors. Disjunction fusion has an advantage of customized post-processing. Product fusion is not an accurate combination model but it seems to be of limited importance in practice. Scale discrepancy in multi-modal analysis makes pixel-wise fusion sub-optimal. Fusion in localization:

◮ not only combination rules matter. ◮ need to cross-reference results with image content. Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 12/15

Conclusions & Future Work (II)

Adoption of neighborhood dependencies further improves performance. Content-dependent interactions are an effective tool to exploit image content - no problems with object removal. No significant quantitative differences between CRF models, but...

◮ ...existing evaluation protocols and metrics are imperfect, ◮ ...important qualitative differences are obvious.

Future work:

◮ Understanding of actual map utility for forensic analysis (humans in general?). ◮ Better evaluation metrics aware of spatial dependencies and collateral

damage.

Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 13/15

Limitations and Possible Extensions of the Framework

Need to test more diverse detectors.

◮ Some may work on even larger blocks (e.g., 256 × 256 px). ◮ Some may not yield tampering probabilities. ◮ Some may not work on square blocks at all (segments / super-pixels).

The current framework does not support compatibility of traces.

◮ Should be feasible with proper definition of unary potentials.

Limited improvement for overconfident detectors.

◮ Common for popular Bayesian formulations. ◮ Valid traces present in tampered area. ◮ To some extent, alleviated by truncated unary potentials.

Training limitations:

◮ Imperfect performance measures. ◮ Parameter generalization in diverse conditions, e.g., for varying image size? ◮ Is it possible to choose the parameters for each case individually? Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 14/15

Thank You

Thank you for your attention. Discussion?

Contact: pkorus@agh.edu.pl

Web: http://kt.agh.edu.pl/∼korus/ Supplement:

◮ more details + additional experiments, ◮ http://kt.agh.edu.pl/∼korus/publications/2016-wifs

Dataset:

◮ 220 images + 3-level GT ◮ http://kt.agh.edu.pl/∼korus/downloads/dataset-

realistic-tampering/

Matlab code:

◮ https://github.com/pkorus/multiscale-prnu Paweł Korus & Jiwu Huang Evaluation of Random Field Models in Multi-modal Unsupervised Tampering Localization 15/15
