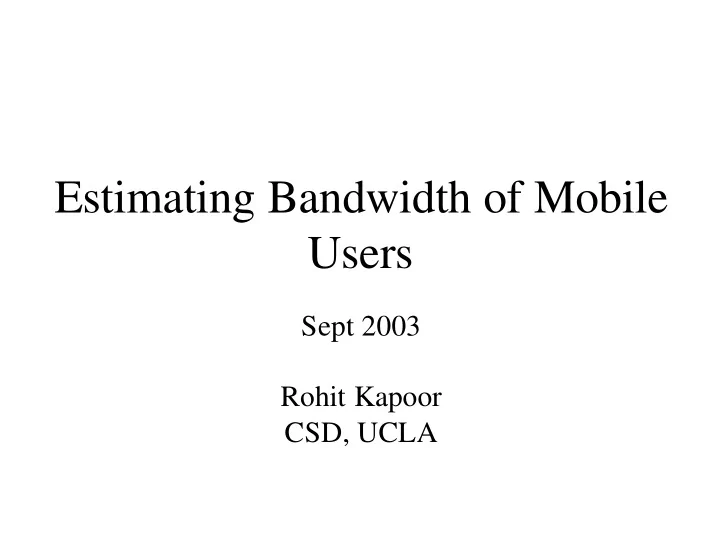

Estimating Bandwidth of Mobile Users

Sept 2003 Rohit Kapoor CSD, UCLA

Estimating Bandwidth of Mobile Users

• Mobile, Wireless User

– Different possible wireless interfaces

• Bluetooth, 802.11, 1xRTT, GPRS etc
• Different bandwidths
• Last hop bandwidth can change with handoff
• Determine bandwidth of mobile user

– Useful to application servers: Video, TCP – Useful to ISPs

Capacity Estimation

• Fundamental Problem: Estimate bottleneck

capacity in an Internet path

– Physical capacity different from available bandwidth

• Estimation should work end-to-end

– Assume no help from routers

Packet Dispersion

• Previous work mostly based on packet

dispersion

• Packet Dispersion (pairs or trains)

Previous Work

• Packet Pairs

– Select highest mode of capacity distribution derived from PP samples (Crovella)

• Assumes that distribution will give capacity in

correspondence to highest mode

– Lai’s potential bandwidth filtering – Both of these techniques assume unimodal distribution

• Paxson showed distribution can be multimodal
• Packet tailgating
• Pathchar

– Calculates capacity for every link

Previous Work

• Dovrolis’ Work

– Explained under/over estimation of capacity

– Methodology

• First send packet pairs
• If multimodal, send packet trains
• Still no satisfactory solution!!!

– Most techniques too complicated, time/bw-consuming, inaccurate and prone to choice of parameters – Never tested on wireless

Problems due to Cross-Traffic

• Cross-traffic (CT) serviced between PP packets

– Smaller CT packet size => More likely

• This leads to under-estimation of Capacity

Narrow Link

Cross Traffic

T T’ > T

Problems (cont)

• Compression of the packet pair

– Larger CT packet size => More likely

• Over-estimation of Capacity

Post Narrow (20Mbps)

Narrow Link

(10Mbps) Packet Queued Packet Not Queued

T T T’ < T

Fundamental Queuing Observation

• Observation

– When PP dispersion over-estimates capacity

• First packet of PP must queue after a bottleneck link
• First packet of PP must experience Cross Traffic

(CT) induced queuing delay

– When PP dispersion under-estimates capacity

• Packets from cross-traffic are serviced between the

two PP packets

• Second packet of PP must experience CT induced

queuing delay

Fundamental Observation

• Observation (also proved)

– When PP dispersion over-estimates capacity

• First packet of PP must queue after a bottleneck link

– When PP dispersion under-estimates capacity

• Packets of cross-traffic are serviced between the two PP

packets

• Second packet of PP must experience CT induced queuing

delay

– Both expansion and compression of dispersion involve queuing

Observation (cont)

• Expansion or Compression

– Sum of delays of PP packets > Minimum sum of delays

• When Minimum sum of delays?

– Both packets do not suffer CT induced queuing

• If we can get one sample with no CT induced

queuing

– Dispersion is not distorted, gives “right” capacity – Sample can easily be identified since the sum of delays is the minimum

Our Methodology: CapProbe

• PP really has two pieces of information

– Dispersion of packets – Delay of packets

• Combines both pieces of information

– Calculate delay sum for each packet pair sample – Dispersion at minimum delay sum reflects capacity Capacity

0.0005 0.001 0.0015 0.002 0.0025 0.003 0.0035 0.004 0.0045 0.005 1.6 3.2 4.8 6.4 8 Bandwidth Estimates (Mbps) Minimum Delay Sum (sec)

Requirements

• Sufficient but not necessary requirement

– At least one PP sample where both packets experience no CT induced queuing delay.

• How realistic is this requirement?

– Internet is reactive (mostly TCP): high chance of some probe packets not being queued – To validate, we performed extensive experiments

• Simulations and measurements
• Only cases where such samples are not obtained is

when cross-traffic is UDP and very intensive (>75%)

CapProbe

• Strength of CapProbe

– Only one sample not affected by queuing is needed

• Simplicity of CapProbe

– Only 2 values (minimum delay sum and dispersion) need storage – One simple comparison operation per sample – Even simplest of earlier schemes (highest mode) requires much more storage and processing

Experiments

• Simulations, Internet, Internet2 (Abilene), Wireless
• Cross-traffic options: TCP (responsive), CBR (non-

responsive), LRD (Pareto)

• Wireless technologies tested: Bluetooth, IEEE

802.11, 1xRTT

• Persistent, non-persistent cross-traffic

(a) (b)

Simulations

• 6-hop path: capacities {10, 7.5, 5.5, 4, 6, 8} Mbps
• PP pkt size = 200 bytes, CT pkt size = 1000 bytes
• Persistent TCP Cross-Traffic

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.6 3.2 4.8 6.4 Bandwidth Estimate (Mbps) Frequency

1Mbps 2Mbps 4Mbps

Over-Estimation

Cross Traffic Rate

Bandwidth Estimate Frequency

0.001 0.002 0.003 0.004 0.005 0.006 0.007 0.008 0.009 0.01 1.6 3.2 4.8 6.4 8 Bandwidth Estimate (Mbps) Min Delay Sums (sec)

1Mbps 2Mbps 4Mbps

Cross Traffic Rate

Minimum Delay Sums

Simulations

• PP pkt size = 500 bytes, CT pkt size = 500 bytes
• Non-Persistent TCP Cross-Traffic

0.0021 0.0042 0.0063 1.6 3.2 4.8 6.4 8 Bandwidth Estimate (Mbps) Min Delay Sum (sec)

1Mbps 3Mbps

Minimum Delay Sums

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.6 3.2 4.8 6.4 Bandwidth Estimate (Mbps) Frequency

1Mbps 3Mbps

Under-Estimation

Bandwidth Estimate Frequency

Simulations

• Non-Persistent UDP CBR Cross-Traffic
• Only case where CapProbe does not work

– UDP (non-responsive), extremely intensive – No correct samples are obtained

0.002 0.004 0.006 0.008 0.01 0.012 0.014 1.6 3.2 4.8 6.4 8 Bandwidth Estimate (Mbps) Min Delay Sums (sec)

1Mbps 2Mbps 3Mbps 4Mbps

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.6 3.2 4.8 6.4 Bandwidth Estimate (Mbps) Frequency

1Mbps 2Mbps 3Mbps 4Mbps

Minimum Delay Sums Bandwidth Estimate Frequency

Internet Measurements

• Each experiment

– 500 PP at 0.5s intervals

• 100 experiments for each

{Internet path, nature of CT, narrow link capacity}

• OS also induces inaccuracy

Laptop3 Dummy Net Laptop1 PING Source/ Destination Internet Laptop2 Cross-Traffic

DummyNet Capacity % Measurements Within 5% of Capacity % Measurements Within 10% of Capacity % Measurements Within 20% of Capacity

500 kbps Yahoo 100 100 100 1 mbps Yahoo 95 95 100 5 mbps Yahoo 100 100 100 10 mbps Yahoo 60 100 100 20 mbps Yahoo 75 100 100 500 kbps Google 100 100 100 1 mbps Google 100 100 100 5 mbps Google 95 100 100 10 mbps Google 80 95 100 20 mbps Google 65 100 100

Wireless Measurements

• Experiments for 802.11b,

Bluetooth, 1xRTT

• Clean, noisy channels

– Bad channel retransmission larger dispersions lower estimated capacity

802.11b Access Point Laptop1 PING Source/ Destination Internet Laptop2 Cross-Traffic 802.11b Connectivity

Experiment No. Capacity Estimated by CapProbe (kbps) Capacity Estimated by strongest mode (kbps)

1

5526.68 4955.02

2

5364.46 462.8

3

5522.26 4631.76

4

5369.15 5046.62

5

5409.85 449.73

• Results for Bluetooth-interfered 802.11b, TCP cross-traffic
• http://www.uninett.no/wlan/throughput.html : IP throughput
• f 802.11b is around 6Mbps

Probability of Obtaining Sample

• Assuming PP samples arrive in a Poisson manner
• Product of probabilities

– No queue in front of first packet: p(0) = 1 – ?/µ – No CT packets enter between the two packets (worst case)

• Only dependent on arrival process
• Analyzed with Poisson Cross-Traffic

– p = p(0) * e- ?L/µ = (1 – ?/µ) * e- ?L/µ

Link

No Cross Traffic Packets First Packet No Queue Second Packet

Sample Frequency

• Average number of Samples required to obtain

the no-queuing sample

– Analytical – Poisson cross traffic is a bad case – Bursty Internet traffic has more “windows”

?/µ

1 2 3 4 5 0.1 1.1 1.2 1.4 1.5 1.7 0.2 1.3 1.6 2.0 2.4 3.1 0.3 1.4 2.0 2.9 4.2 6.0 0.4 1.7 2.8 4.6 7.7 12.9 0.5 2.0 4.0 8.0 16.0 32.1 0.6 2.5 6.3 15.7 39.2 97.9 0.7 3.3 11.1 37.1 123.8 413.0 0.8 5.0 25.0 125.3 627.0 3137.5

Sample Frequency

• Simulations: mix of TCP, UDP, Pareto cross traffic
• Results for number of samples required
• Internet

– In most experiments, first 20 samples contained the minimum delay sample

Load/Links 3 6 0.2 2 2 0.4 6 8 0.6 21 35 0.8 37 144

Conclusion

• CapProbe

– Simple capacity estimation method – Works accurately across a wide range of scenarios – Only cases where it does not estimate accurately

• Non-responsive intensive CT
• This is a failure of the packet dispersion paradigm
• Useful application

– Use a passive version of CapProbe with “modern” TCP versions, such as Westwood
