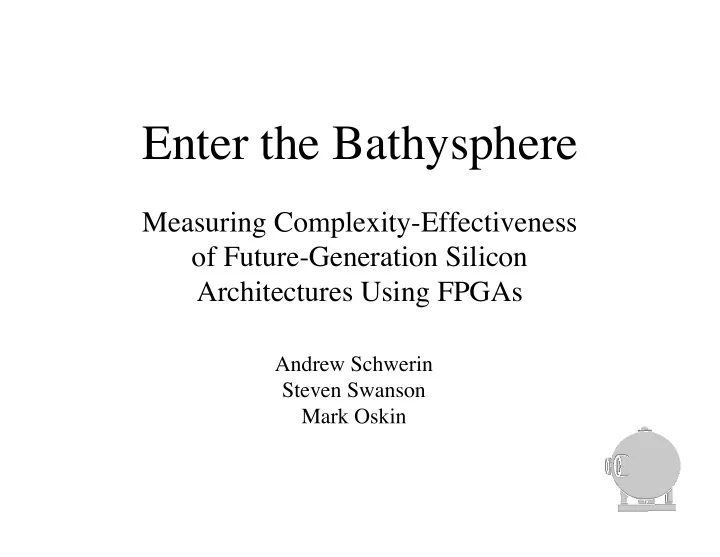

Enter the Bathysphere

Measuring Complexity-Effectiveness

• f Future-Generation Silicon

Architectures Using FPGAs

Andrew Schwerin Steven Swanson Mark Oskin

June 03 2

Simulation Methodology

Have new idea while(not published) Hack simulator Run simulator Refine idea

• Quick to implement
• Short iteration period

June 03 3

Simulation Drawbacks

• Difficult to validate
• Slow to execute

Underestimate delay Choose unrepresentative data Subtle bug

June 03 4

Custom Prototyping

• Validates assumptions
• Expensive
• Time consuming
• Labor intensive

June 03 5

Can we have it all?

• Short iteration period?
• Low incremental cost?
• Fast execution?
• Validation?

June 03 6

The Bathysphere

• Deep submicron

exploration vehicle!

• ASIC model
• FPGA Implementation

Substrate

June 03 7

• 16 nodes / board

Bathysphere

• 4 boards

Each node

• Virtex 1k FPGA
• 2x1MB SDRAM

SDRAM High-density 1M gate FPGA Total

• 64M logic gates
• 128 MB RAM

June 03 8

Design Model

June 03 9

Bathysphere Advantages

• An Architecture Research Methodology

– Brings physical constraints to fore – Faster than software simulation – Cheap: Approx $50k – Lots of iterations

• Not just an emulation system

– Different than a QuickTurn

June 03 10

FPGA-ASIC Mismatch

• Bathysphere is not an ASIC

– Late binding of functionality costs flexibility

• Work around FPGA-unfriendly structures

≠

June 03 11

Challenges for the Bathysphere

• Multiported Memories
• Content-addressable Memories
• Inter-FPGA Bandwidth

June 03 12

Problem: Multiported Memories

• Multiported memories are everywhere
• Silicons provides

– Multiported memories (e.g., register files) – Large memories (e.g., caches)

• FPGAs provide

– Limited onboard memory resources

• 16 KB on Virtex 1000
• Single, or at most dual-ported structures

– Limited bandwidth to external memories

June 03 13

Problem: Multiportedness

How do we use this:

• Single-ported memories

…

Pn P2 P1 n-port RAM To build this?

• n-ported memories

1-port RAM P1

June 03 14

Let the Tools Handle It?

A Memory:

• 7 write ports
• 512 words
• 64-bit words

% of resources to implement

• Red box

– In 35 nm silicon

• Blue box

– In the bathysphere

June 03 15

Memory Ports vs. Area

0.5 1 1.5 2 2.5 3 3.5 4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Ports Percent of Resources FPGA Write Ports FPGA Read Ports ASIC Write Ports ASIC Read Ports Virtex 1000 Capacity

June 03 16

Memory Ports vs Latency

5 10 15 20 25 30 35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Ports Access Latency (ns) FPGA Write Ports FPGA Read Ports ASIC Write Ports ASIC Read Ports

June 03 17

Multiportedness Solution

• Time-multiplexing
• Split logical cycle

– Create 2n+1 µ-cycles – One µ-cycle per read – One µ-cycle for logic – One µ-cycle per write

• More sophisticated

multiplexing possible

1-port RAM

…

Pn P2 P1

*

n-port RAM

June 03 18

Content Addressable Memories

• Common in architectures
• Straightforward to build in silicon
• Require parallel access to memory words

– Extremely resource intensive in FPGAs – But, you can build a small one if you need – Or, use the off-chip RAM to back a hash table

June 03 19

Bathysphere Communication

• 76 I/O pins to 4

nearest neighbors

• Long distance

communication via adjoining FPGAs

• Must confront

communication costs

June 03 20

The Bathysphere Methodology

June 03 21

“This is your bathysphere” What would make it useful to you?
