ADL regime Nematic Liquid Crystals Energy driven systems from Liquid Crystals and Epitaxy Xin Yang Lu Lakehead University BIRS Workshop Topics in the Calculus of Variations: Recent Advances and New Trends Banff, 2018-05-24 1 / 25 ADL

slide-1

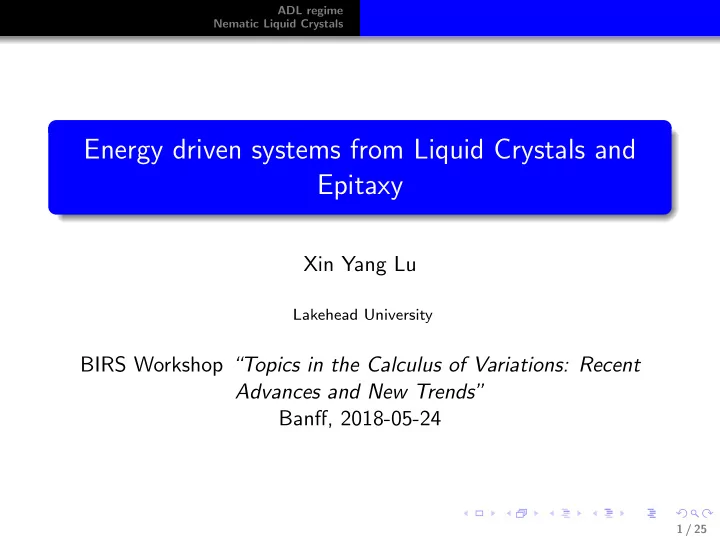

SLIDE 1

ADL regime Nematic Liquid Crystals

Energy driven systems from Liquid Crystals and Epitaxy

Xin Yang Lu

Lakehead University

BIRS Workshop “Topics in the Calculus of Variations: Recent Advances and New Trends” Banff, 2018-05-24

1 / 25

slide-2
SLIDE 2

ADL regime Nematic Liquid Crystals

A nice piece of technology... Lots of silicon Liquid Crystal Display

2 / 25

slide-3
SLIDE 3

ADL regime Nematic Liquid Crystals

Epitaxy models: with elastic forces on vicinal surfaces: the 1 + 1 dimensional case, with elastic forces on vicinal surfaces: the 2 + 1 dimensional case, with wetting, attachment-detachment regime, and many, many others... Nematic Liquid Crystals: Landau-De Gennes model. Q: What do they have in common? A1: All of these are governed by highly irregular PDEs... A2: All these are variational.

3 / 25

slide-4
SLIDE 4

ADL regime Nematic Liquid Crystals

Epitaxy models: with elastic forces on vicinal surfaces: the 1 + 1 dimensional case, with elastic forces on vicinal surfaces: the 2 + 1 dimensional case, with wetting, attachment-detachment regime, and many, many others... Nematic Liquid Crystals: Landau-De Gennes model. Q: What do they have in common? A1: All of these are governed by highly irregular PDEs... A2: All these are variational.

3 / 25

slide-5
SLIDE 5

ADL regime Nematic Liquid Crystals

Epitaxy models: with elastic forces on vicinal surfaces: the 1 + 1 dimensional case, with elastic forces on vicinal surfaces: the 2 + 1 dimensional case, with wetting, attachment-detachment regime, and many, many others... Nematic Liquid Crystals: Landau-De Gennes model. Q: What do they have in common? A1: All of these are governed by highly irregular PDEs... A2: All these are variational.

3 / 25

slide-6
SLIDE 6

ADL regime Nematic Liquid Crystals

Epitaxy models: with elastic forces on vicinal surfaces: the 1 + 1 dimensional case, with elastic forces on vicinal surfaces: the 2 + 1 dimensional case, with wetting, attachment-detachment regime, and many, many others... Nematic Liquid Crystals: Landau-De Gennes model. Q: What do they have in common? A1: All of these are governed by highly irregular PDEs... A2: All these are variational.

3 / 25

slide-7
SLIDE 7

ADL regime Nematic Liquid Crystals

Gradient flows in non reflexive spaces

4 / 25

slide-8
SLIDE 8

ADL regime Nematic Liquid Crystals

Burton-Cabrera-Frank (BCF) type models ˙ xi = D ka2

  • µi+1 − µi

xi+1 − xi + D

k

− µi − µi−1 xi − xi−1 + D

k

  • , for 1 ≤ i ≤ N.

where D is the terrace diffusion constant, k is the hopping rate of an adatom to the upward or downward step, µ is the chemical potential

5 / 25

slide-9
SLIDE 9

ADL regime Nematic Liquid Crystals

Attachment-detachment-limited (ADL) regime the diffusion across the terraces is fast, i.e. D

k ≫ xi+1 − xi, so the

dominated processes are the exchange of atoms at steps edges, i.e., attachment and detachment. The step-flow ODE in ADL regime becomes ˙ xi = 1 a2

  • µi+1 − 2µi + µi−1
  • , for 1 ≤ i ≤ N.

step slope as a new variable is a convenient way to derive the continuum PDE model (Al Hajj Shehadeh, Kohn and Weare, 2011)

6 / 25

slide-10
SLIDE 10

ADL regime Nematic Liquid Crystals

Evolution equation ut = −u2(u3)hhhh, u(0) = u0. If we take whh + c0 = 1/u: wt = (whh + c0)−3

hh ,

with proper, convex, lower semicontinuous energy φ(w) := 1 2 1 (whh + c0)−2dh. So far, so good... except???

7 / 25

slide-11
SLIDE 11

ADL regime Nematic Liquid Crystals

Evolution equation ut = −u2(u3)hhhh, u(0) = u0. If we take whh + c0 = 1/u: wt = (whh + c0)−3

hh ,

with proper, convex, lower semicontinuous energy φ(w) := 1 2 1 (whh + c0)−2dh. So far, so good... except???

7 / 25

slide-12
SLIDE 12

ADL regime Nematic Liquid Crystals

the “natural” functional space is W 2,1(0, 1)′′... not H2(0, 1) (or any W 2,p(0, 1) with p ≥ 1)... otherwise lack of coercivity means J + εξ, ξ ∈ ∂φ is not surjective... the “natural” convergence on whh is the weak-* convergence

  • f Radon measures...

Also... Subdifferential of φ(w) = 1 2 1 (whh + c0)−2dh... what does this even mean? φ does not charge very large whh...

8 / 25

slide-13
SLIDE 13

ADL regime Nematic Liquid Crystals

the “natural” functional space is W 2,1(0, 1)′′... not H2(0, 1) (or any W 2,p(0, 1) with p ≥ 1)... otherwise lack of coercivity means J + εξ, ξ ∈ ∂φ is not surjective... the “natural” convergence on whh is the weak-* convergence

  • f Radon measures...

Also... Subdifferential of φ(w) = 1 2 1 (whh + c0)−2dh... what does this even mean? φ does not charge very large whh...

8 / 25

slide-14
SLIDE 14

ADL regime Nematic Liquid Crystals

So φ(w) = 1 2 1 (whh + c0)−2dh is more like φ(w) = 1 2 1 (whh + c0)−2dh... And ∂φ(w) = −(whh + c0)−3 + singular measures

9 / 25

slide-15
SLIDE 15

ADL regime Nematic Liquid Crystals

Set E(w) := 1 2 1 [(whh + c0)−3]2

hhdh =

1 w2

t dh

and note: dE(w) dt = 1 [(whh + c0)−3]hh[(whh + c0)−3]hhtdh = 1 −3[(whh + c0)t]2 (whh + c0)4 dh ≤ 0, and d dt 1 (whh + c0)dh = 1 [(whh + c0)−3]hhhhdh = 0,

10 / 25

slide-16
SLIDE 16

ADL regime Nematic Liquid Crystals

And note there is bound on 1 [whh + c0]dh hence there is an invariant ball of the form {whBV ≤ C}... So consider the evolution equation wt ∈ −∂φ(w) − ∂ψ(w), ψ(w) := χ{whBV ≤C} and we can recover coercivity via ψ...

11 / 25

slide-17
SLIDE 17

ADL regime Nematic Liquid Crystals

And note there is bound on 1 [whh + c0]dh hence there is an invariant ball of the form {whBV ≤ C}... So consider the evolution equation wt ∈ −∂φ(w) − ∂ψ(w), ψ(w) := χ{whBV ≤C} and we can recover coercivity via ψ...

11 / 25

slide-18
SLIDE 18

ADL regime Nematic Liquid Crystals

Gao, Liu, L., Xu, 2018 Given T > 0, initial data w0 ∈ D(B), there exists a strong solution w of wt = (ηhh + c0)−3

hh ,

for a.e. (t, h) ∈ [0, T] × [0, 1]. Besides, we have ((ηhh + c0)−3)hh ∈ L∞([0, T]; L2(0, 1)) and the dissipation inequality E(t) := 1 2 1

  • ((ηhh + c0)−3)hh

2dh ≤ E(0), where ηhh is the absolutely continuous part of whh. However, whh might have singular parts... (Liu and Xu, Ji and Witelski)

12 / 25

slide-19
SLIDE 19

ADL regime Nematic Liquid Crystals

Similarly, the multidimensional model ut = ∆e−∆u can be treated with the same techniques: Gao, Liu, L., 2017 Given T > 0, initial data u0, there exists a strong solution w of ut = ∆e−∆u, for a.e. (t, h) ∈ [0, T] × Ω. Moreover, (∆e−∆u) ∈ L2(0, T; L2(Ω)). However, ∆u might have singular parts... (Ji and Witelski)

13 / 25

slide-20
SLIDE 20

ADL regime Nematic Liquid Crystals

Nematic Liquid Crystals

14 / 25

slide-21
SLIDE 21

ADL regime Nematic Liquid Crystals

Liquid crystals (LC): a state of the matter between crystalline and liquid...

15 / 25

slide-22
SLIDE 22

ADL regime Nematic Liquid Crystals

Different states of LC:

16 / 25

slide-23
SLIDE 23

ADL regime Nematic Liquid Crystals

Landau-De Gennes theory for nematic liquid crystals: the evolution is driven by the energy of the form E[Q] :=

  • F(∇Q(x), Q(x))dx − κQ2

L2(Ω), ,

κ > 0 Q varies in the Q-tensor space S(d) := {symmetric, trace free matrices of Rd×d}. Interesting case d = 3.

17 / 25

slide-24
SLIDE 24

ADL regime Nematic Liquid Crystals

Energy F = Fel + FBM, where Fel(∇Q) :=

d

  • i,j,k=1
  • L1|Qij

xk|2 + L2Qik xj Qij xk + L3Qij xjQik xk

  • , L1 ≫ L2, L3

FBM(Q) := inf

ρ∈AQ

  • S2 ρ(p) log ρ(p)dp

(Ball & Majumdar, 2009) AQ :=

  • ρ : S2 −

→ R : ρ ≥ 0,

  • S2 ρdx = 1,
  • S2 ρ(x)
  • x ⊗ x − id/3
  • dx = Q
  • .

18 / 25

slide-25
SLIDE 25

ADL regime Nematic Liquid Crystals

Energy F = Fel + FBM, where Fel(∇Q) :=

d

  • i,j,k=1
  • L1|Qij

xk|2 + L2Qik xj Qij xk + L3Qij xjQik xk

  • , L1 ≫ L2, L3

FBM(Q) := inf

ρ∈AQ

  • S2 ρ(p) log ρ(p)dp

(Ball & Majumdar, 2009) AQ :=

  • ρ : S2 −

→ R : ρ ≥ 0,

  • S2 ρdx = 1,
  • S2 ρ(x)
  • x ⊗ x − id/3
  • dx = Q
  • .

18 / 25

slide-26
SLIDE 26

ADL regime Nematic Liquid Crystals

About FBM(Q): well defined convex and isotropic log speed asymptote if any eigenvalue of Q approaches −1/3, 2/3 smooth in its effective domain

19 / 25

slide-27
SLIDE 27

ADL regime Nematic Liquid Crystals

Energy E[Q] =

  • Fel(∇Q) + FBM(Q)dx − κQ2

L2(Ω),

κ > 0 satisfies Boundedness from below: inf E > −∞ since convex functions are bounded from below, and Q2

L2(Ω) is also bounded due to

requirement that all eigenvalues of Q are in (−1/3, 2/3). Lower semicontinuity: consider a sequence Qn → Q strongly: we have then lim inf

n→+∞ E(Qn) ≥ E(Q).

λ-convexity along segments, with λ = −2κ: we have indeed E((1 − t)Q + tP) ≤ (1 − t)E(Q) + tE(P) + κt(1 − t)Q − P2

L2(Ω).

20 / 25

slide-28
SLIDE 28

ADL regime Nematic Liquid Crystals

Existence and regularity For any initial datum Q0 ∈ D(E) there exists a unique function Q such that: Regularizing effect: Q is locally Lipschitz regular, and Q(t) ∈ D(|∂E|) ⊆ D(E) for all t > 0. In particular, all eigenvalues of Q stay in (−1/3, 2/3) for a.e. x and all t > 0. Variational inequality: Q is the unique solution of the evolution variational inequality 1 2 d dt Q(t) − P2

L2(Ω) − κQ(t) − P2 L2(Ω) + E(Q(t)) ≤ E(P)

among all the locally absolutely continuous curves such that Q(t) → Q0 as t ↓ 0+.

21 / 25

slide-29
SLIDE 29

ADL regime Nematic Liquid Crystals

More properties: Exponential semigroup formula: Q(t) = limn→+∞ Jn

t/n(Q0),

with J denoting the resolvent X ∈ Jτ(Y ) ⇐ ⇒ X ∈ argmin

  • E(·) + 1

2τ Y − ·2

L2(Ω)

  • .

Contraction semigroup: for initial data Q0, P0 ∈ D(E), the corresponding solutions Q, P satisfy Q(t) − P(t)L2(Ω) ≤ e2κtQ0 − P0L2(Ω). This is not enough... Physicality fails if eigenvalues reach −1/3, 2/3 anywhere...

22 / 25

slide-30
SLIDE 30

ADL regime Nematic Liquid Crystals

More properties: Exponential semigroup formula: Q(t) = limn→+∞ Jn

t/n(Q0),

with J denoting the resolvent X ∈ Jτ(Y ) ⇐ ⇒ X ∈ argmin

  • E(·) + 1

2τ Y − ·2

L2(Ω)

  • .

Contraction semigroup: for initial data Q0, P0 ∈ D(E), the corresponding solutions Q, P satisfy Q(t) − P(t)L2(Ω) ≤ e2κtQ0 − P0L2(Ω). This is not enough... Physicality fails if eigenvalues reach −1/3, 2/3 anywhere...

22 / 25

slide-31
SLIDE 31

ADL regime Nematic Liquid Crystals

Main result (Liu, L. and Xu, 2018) There exists some time T0 > 0 such that all eigenvalues of Q(t) are uniformly bounded away from −1/3, 2/3 for all t > T0. AGS gives more or less −∆Q(t) + F ′

BM(Q(t)) + ξ(Q(t)) ∈ L2(0, T; L2(Ω)).

Issues: ∆Q(t) + F ′

BM(Q(t)) ∈ L2(Ω) does not give ∆Q(t) ∈ L2(Ω)...

(Not enough regularity) ξ(Q(t)) perturbation of Laplacian destroys any comparison/maximum principle... (So no way to follow L1 → L∞ arguments from [Constantin, Kiselev, Ryzhik, Zlatoˇ s, 2008])

23 / 25

slide-32
SLIDE 32

ADL regime Nematic Liquid Crystals

Main result (Liu, L. and Xu, 2018) There exists some time T0 > 0 such that all eigenvalues of Q(t) are uniformly bounded away from −1/3, 2/3 for all t > T0. AGS gives more or less −∆Q(t) + F ′

BM(Q(t)) + ξ(Q(t)) ∈ L2(0, T; L2(Ω)).

Issues: ∆Q(t) + F ′

BM(Q(t)) ∈ L2(Ω) does not give ∆Q(t) ∈ L2(Ω)...

(Not enough regularity) ξ(Q(t)) perturbation of Laplacian destroys any comparison/maximum principle... (So no way to follow L1 → L∞ arguments from [Constantin, Kiselev, Ryzhik, Zlatoˇ s, 2008])

23 / 25

slide-33
SLIDE 33

ADL regime Nematic Liquid Crystals

Main result (Liu, L. and Xu, 2018) There exists some time T0 > 0 such that all eigenvalues of Q(t) are uniformly bounded away from −1/3, 2/3 for all t > T0. AGS gives more or less −∆Q(t) + F ′

BM(Q(t)) + ξ(Q(t)) ∈ L2(0, T; L2(Ω)).

Issues: ∆Q(t) + F ′

BM(Q(t)) ∈ L2(Ω) does not give ∆Q(t) ∈ L2(Ω)...

(Not enough regularity) ξ(Q(t)) perturbation of Laplacian destroys any comparison/maximum principle... (So no way to follow L1 → L∞ arguments from [Constantin, Kiselev, Ryzhik, Zlatoˇ s, 2008])

23 / 25

slide-34
SLIDE 34

ADL regime Nematic Liquid Crystals

Main arguments:

1 Approximate FBM with Fn, and analyze the gradient flow of

En := Fel + Fn.

2 Use the Γ-convergence to infer convergence of gradient flows. 3 Achieve ∆Q(t) ∈ L2(0, T; L2(Ω)). 4 Upgrade to ∆Q(t) ∈ L∞(t0, T; L2(Ω)). 24 / 25

slide-35
SLIDE 35

ADL regime Nematic Liquid Crystals

Main arguments:

1 Approximate FBM with Fn, and analyze the gradient flow of

En := Fel + Fn.

2 Use the Γ-convergence to infer convergence of gradient flows. 3 Achieve ∆Q(t) ∈ L2(0, T; L2(Ω)). 4 Upgrade to ∆Q(t) ∈ L∞(t0, T; L2(Ω)). 24 / 25

slide-36
SLIDE 36

ADL regime Nematic Liquid Crystals

Main arguments:

1 Approximate FBM with Fn, and analyze the gradient flow of

En := Fel + Fn.

2 Use the Γ-convergence to infer convergence of gradient flows. 3 Achieve ∆Q(t) ∈ L2(0, T; L2(Ω)). 4 Upgrade to ∆Q(t) ∈ L∞(t0, T; L2(Ω)). 24 / 25

slide-37
SLIDE 37

ADL regime Nematic Liquid Crystals

Main arguments:

1 Approximate FBM with Fn, and analyze the gradient flow of

En := Fel + Fn.

2 Use the Γ-convergence to infer convergence of gradient flows. 3 Achieve ∆Q(t) ∈ L2(0, T; L2(Ω)). 4 Upgrade to ∆Q(t) ∈ L∞(t0, T; L2(Ω)). 24 / 25

slide-38
SLIDE 38

ADL regime Nematic Liquid Crystals

Thank you for your attention!
