Electrons for neutrinos Lawrence Weinstein Old Dominion University Neutrino Cross Section Strategy Workshop FermiLab, March 2018 Collaboration Old Dominion University Michigan State Larry Weinstein Kendall Mahn Florian

slide-1
SLIDE 1

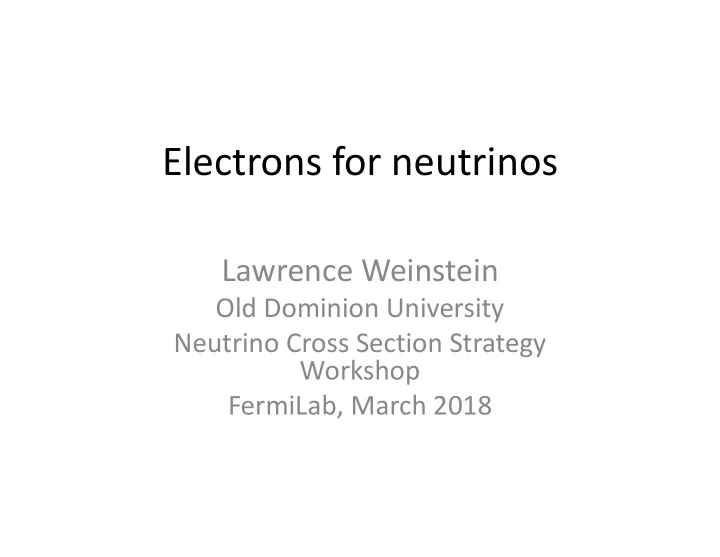

Electrons for neutrinos

Lawrence Weinstein

Old Dominion University Neutrino Cross Section Strategy Workshop FermiLab, March 2018

slide-2
SLIDE 2

Collaboration

  • Old Dominion University

– Larry Weinstein – Florian Hauenstein (PD) – Mariana Khachatryan (grad)

  • MIT

– Or Hen – Adi Ashkenazi (PD) – Afroditi Papdolopou (grad)

  • Jefferson Lab

– Stepan Stepanyan

  • Tel Aviv U

– Eli Piasetky

  • L. Weinstein, Neutrino Cross Sections 2018

2

  • Michigan State

– Kendall Mahn – Luke Pickering

  • FermiLab

– Minerba Betancourt (PD)

  • Pitt

– Steve Dytman

slide-3
SLIDE 3

Outline

  • Why electrons?

– Nuclear Physics

  • The ``ideal” electron experiment
  • How to use electron data to reduce neutrino

uncertainties

  • Current results
  • Future plans
  • L. Weinstein, Neutrino Cross Sections 2018

3

slide-4
SLIDE 4

Why electrons?

  • Known incident energy
  • High intensity
  • Similar interaction with nuclei

– Single boson exchange – CC Weak current [vector plus axial]

  • !"

± = %

&

'()* + + (-" − -"-/)&

– EM current [vector]

  • !"

12 = %

& -"&

  • Similar nuclear physics
  • 3+ = ⃗

5+ − 6+

  • Energy transfer: 6 or 7
  • L. Weinstein, Neutrino Cross Sections 2018

4

W+

N N 78 9' p :' :'

slide-5
SLIDE 5

Nuclear Physics

dσ dω

  • L. Weinstein, Neutrino Cross Sections 2018

5

  • r ν

Dip Two body reaction mechanisms

slide-6
SLIDE 6

How Quasielastic is the (e,e’) QE peak?

RT ν

0.2

RL ν (GeV)

0.2 C(e,e’) |q|=0.4 GeV/c

Fermi gas model

y = minimum initial nucleon momentum = mν/q − q/2 (nonrelativistic only!) f = reduced response function y (GeV/c)

0.8 f(y)

L T

q=0.4 q=0.5

  • L scales
  • T scales
  • T≠L!!
  • P. Barreau et al, NPA 402, 515 (1983)

Finn et al, PRC 29, 2230 (1984)

L T

dσ dΩdν = σ M ′ E E Q4 ! q4 RL(Q2,ν)+ Q2 2! q2 + tan2 θ 2 ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ RT (Q2,ν) ⎡ ⎣ ⎢ ⎤ ⎦ ⎥

6

  • L. Weinstein, Neutrino Cross Sections 2018
slide-7
SLIDE 7

How to read an (e,e’p) spectrum

  • L. Weinstein, Neutrino Cross Sections 2018

7

Single nucleon knockout Undetected nucleon Missing energy (MeV) Undetected nucleon Undetected pion

slide-8
SLIDE 8

Extra Transverse even at the QE peak

RT RL ST-SL

12C(e,e’p)

q=0.4 GeV and x=1 extra transverse strength starting at the 2N KO threshold decreases with Q2

Ulmer et al, PRL 59, 2259 (1987); Dutta et al, PRC 61, 061602 (2000)

p3/2 s1/2

Emiss(MeV) T/L Q2 (GeV2) 1 2

8

  • L. Weinstein, Neutrino Cross Sections 2018
slide-9
SLIDE 9

QE 12C(e,e’p) q ~ 1 GeV/c

Non-QE reactions increase with ω

  • L. Weinstein, Neutrino Cross Sections 2018

9

  • S. Penn, unpublished
  • J. Morrison, PRC 59, 221, (1999)

Dip

! = #$ 2&'

slide-10
SLIDE 10

Fixed ω = 0.2 GeV, vary q

0.4 GeV/c dip 0.6 GeV/c x ~ 1 q =0.9 GeV/c x ~ 2

  • L. Weinstein, Neutrino Cross Sections 2018

10

  • R. Lourie, PRL 56, 2364 (1986)
  • L. Weinstein, PRL 64, 1646 (1990)
  • S. Penn, unpublished

Dip Missing energy [MeV]

From QE to dip: S-shell decreases Non-QE strength increases

slide-11
SLIDE 11

12C(e,e’p) Delta Region

q = 400 MeV/c ω = 275 MeV/c q = 473 MeV/c ω = 382 MeV/c ΔNèpN

  • r 2p2h

Δèπp

  • L. Weinstein, Neutrino Cross Sections 2018

11

Baghaei, PRC 39, 177 (1989) Missing Energy (MeV) Missing Energy (MeV)

Dip ΔNèpN Δèπp

slide-12
SLIDE 12

Average Two-Nucleon Properties in the Nuclear Ground State

Responsible for the high momentum part of of the Nuclear WF

Two-body currents are not Correlations (but everything adds coherently)

What are correlations?

!

!

in SRC

  • L. Weinstein, Neutrino Cross Sections 2018

12

slide-13
SLIDE 13

2N currents enhance correlations

Central correlations only Central + tensor corr Corr + MEC θpq

90

Em

30 360

σ

1250 12

σ σ

80

  • L. Weinstein, Neutrino Cross Sections 2018

13

MEC changes the magnitude

  • f the cross section,

not the distribution in Emiss vs Thetapq

O(e,e’p) Ryckebusch NP A672 (2000) 285

slide-14
SLIDE 14

Physics Summary

  • Electron scattering:

– Intense monochromatic beams – Can choose kinematics to minimize “uninteresting”(i.e., complicated) reaction mechanisms – Calculate cross sections after the fact

  • Neutrino interactions

– Continuous mixed beams – Must include all reaction mechanisms – Need good models in event generators

  • Correct initial state
  • MEC, IC
  • FSI (not discussed here)
  • L. Weinstein, Neutrino Cross Sections 2018

14

slide-15
SLIDE 15

The ideal electron experiment

  • Identify contributing reaction mechanisms
  • ver a wide kinematic range

– Full acceptance for all charged hadrons – High efficiency for neutrals

  • Neutrons
  • !"
  • Lots of targets

– Neutrino detector materials: C, O, Ar, Fe – More nuclei to constrain models

  • Enough beam energies to cover the full range
  • f interesting momentum transfers
  • L. Weinstein, Neutrino Cross Sections 2018

15

slide-16
SLIDE 16

Why momentum transfer and not beam energy?

  • The scattering cross section depends primarily on

energy and momentum transfer

  • For (e,e’p):

–

!"# !$%!$&!'&!( = *+,--[/010 + /313 + /03103456789 +

/33133 cos 2789] – Kinematic factors /? depend on {AB, D, EF} – Response functions 1? depend on {AB, D, E89} – Only beam energy dependence comes from EF

  • Need to account for boson propagator ∝

I JKL+K

– ∝

I +K for W exchange

– ∝

I JK for photon exchange (Mott Cross section)

  • L. Weinstein, Neutrino Cross Sections 2018

16

slide-17
SLIDE 17

How to use electron data for neutrino measurements

  • Tune vector models in generators to data,

especially the Q2 and A dependence

– Span a wide enough range in Q2 and A to constrain models well – Constrain final state interaction (outgoing particle rescattering) models

  • Tune remaining model elements to near

detector data

  • Guide event selection for “enhanced QE”

samples, “Res” samples, etc

  • L. Weinstein, Neutrino Cross Sections 2018

17

slide-18
SLIDE 18

A real electron experiment

CLAS6: 1996-2015

  • L. Weinstein, Neutrino Cross Sections 2018

18

TOF CER CAL DC1 DC2 DC3

slide-19
SLIDE 19

CLAS6 coverage

  • L. Weinstein, Neutrino Cross Sections 2018

19

!"#$ ≈ 300 MeV/c !"#$ ≈ 150 MeV/c

slide-20
SLIDE 20

CLAS6 Data (million events)

  • L. Weinstein, Neutrino Cross Sections 2018

20

1.1 GeV 2.2 GeV (e,e’) 2.2 GeV (e,e’p) 4.4 GeV (e,e’) 4.4 GeV (e,e’p) 3He Not done 29 12 4 1 4He Not done 46 17 8 3 12C Not done 19 11 5 2 56Fe Not done 1 1 0.4 0.1

E2a data only. E2b has more 4.6 GeV 3He and 56Fe Eg2 has 5 GeV d, C, Al, Fe, and Pb

Q2 (GeV2)

0.5 1 1.5 ! (GeV) 1 0.5 QE

2.2 GeV

3He

(stripes are detector artifacts)

slide-21
SLIDE 21
  • L. Weinstein, Neutrino Cross Sections 2018

21

4 GeV charged particle multiplicity

Protons: 3He Protons: 56Fe 1 2 1 2 3 Pions: 56Fe Pions: 3He 1 2 1 2

slide-22
SLIDE 22

Reconstructing the initial energy

  • Select an enhanced QE sample using

– Zero pion events – !"#$$

%

= !'

%+ !( % cuts for (e,e’p) and (e,e’X) events

  • Reconstruct the incident lepton energy:

– )*#+ =

,-./0,-.123"2

4

,(-.3120*267$82)

  • : single nucleon separation energy
  • ;< nucleon mass
  • {>(, )(, @(, A(} scattered lepton mass, energy,

momentum and angle

  • broadened by nucleon fermi motion

– )6C( = )D + F

' + : [for (e,e’p) ]

  • L. Weinstein, Neutrino Cross Sections 2018

22

slide-23
SLIDE 23
  • L. Weinstein, Neutrino Cross Sections 2018

23

Reconstructed energy Ekin (GeV)

1 2 1 2 1 2 1 2

!"#$$

%

(GeV/c)

0.2 0.4 0.6 0.2 0.4 0.6

3He 3He 56Fe 56Fe

2.2 GeV (e,e’p) events

slide-24
SLIDE 24

Form “pure” 0!1# (e,e’p) spectrum: Subtract undetected pi and proton

  • For (e,e’p pi) events:

– Rotate pions around q – Determine pion acceptance for that event – Subtract undetected pions

  • Repeat for undetected two proton events
  • L. Weinstein, Neutrino Cross Sections 2018

24

$%&' = $' + *

+

(all events weighted by 1/-./00to account for the different propagators)

slide-25
SLIDE 25

Compare Ekin and Ecal

  • L. Weinstein, Neutrino Cross Sections 2018

25

3He: low density, primarily 1-body 56Fe: typical density, more complicated

slide-26
SLIDE 26

Compare to generators

  • Genie for electrons

– QE and 2p2h mechanisms

  • Focus on peak of QE
  • Physics should be well described
  • ! =

#$ %&' = 1 ± 0.2

  • L. Weinstein, Neutrino Cross Sections 2018

26

Genie Data

56Fe at 2.2 GeV

Energy Transfer [GeV] Energy Transfer [GeV] 0.5 1 0.5 1

slide-27
SLIDE 27
  • L. Weinstein, Neutrino Cross Sections 2018

27

Electron energy [GeV] 1.2 1.6 2 data Genie Proton energy [GeV] 1 1.6 2 (MC-Data)/mc Genie data (MC-Data)/mc 0.25 0.5 0.75

56Fe 2.2 GeV

Genie Data

slide-28
SLIDE 28

Near term next steps

  • Add more reaction mechanisms to electron-

Genie

– Resonance production

  • Δ → #$
  • Δ# → ##

– Electron radiation

  • See effect on neutrino model parameters

– Tune models – Use beam energy reconstructions directly

  • Analyze the 1$ reaction channel %, %'($
  • Resubmit a proposal to take more data
  • L. Weinstein, Neutrino Cross Sections 2018

28

slide-29
SLIDE 29

Electrons for neutrinos proposal

CLAS12

  • 6-sector forward detector (8

– 40o)

– Toroidal magnetic field – !"

" ~ 0.5—1%

– 50% neutron detection efficiency for p > 1 GeV/c (Pb/scint cal) – 200 ps @ 5 m à

!" " ~10% at

1—1.5 GeV/c

  • Hermetic central detector

(40 – 135o)

– 5 T solenoidal field, 30 cm radius – 10—15% neutron detection efficiency (scintillator) – 60 ps @ 0.3 m

  • L. Weinstein, Neutrino Cross Sections 2018

29

slide-30
SLIDE 30

Electrons for neutrinos proposal

  • CLAS12

– 6-sector forward detector (8 – 40o)

  • Toroidal magnetic field
  • 50% neutron detection efficiency for p > 1 GeV/c (Pb/scint cal)
  • 200 ps @ 5 m à

!" " ~10 − 15% at 1—1.5 GeV/c

– Hermetic central detector (40 – 135o)

  • 5 T solenoidal field, 30 cm radius
  • 10—15% neutron detection efficiency (scintillator)
  • 60 ps @ 0.3 m
  • 37.5 beam days requested for

– 1.1, 2.2, 4.4, 6.6 and 8.8 GeV beam energies – H, He, C, O, Ar, and Pb

  • Conditionally approved by Jlab PAC45

– Need to return and optimize beam time request

  • L. Weinstein, Neutrino Cross Sections 2018

30

slide-31
SLIDE 31

Goals

  • We provide event yields and detector acceptance

maps

– Many beam energies – Many targets – Many event topologies

  • Let experts use these to tune generators
  • What do you want to see??

– Targets – Energies – Event topologies – Distributions

  • Proposal update due April 30 to CLAS!
  • L. Weinstein, Neutrino Cross Sections 2018

31

slide-32
SLIDE 32

Summary

  • Electron scattering can contribute dramatically

to neutrino experiments

  • We need guidance from the neutrino

community

  • We’ll provide data, you figure out what it

means

  • L. Weinstein, Neutrino Cross Sections 2018

32

slide-33
SLIDE 33

Backup slides

  • L. Weinstein, Neutrino Cross Sections 2018

33

slide-34
SLIDE 34

Mott weighting

  • L. Weinstein, Neutrino Cross Sections 2018

34

slide-35
SLIDE 35
  • L. Weinstein, Neutrino Cross Sections 2018

35

slide-36
SLIDE 36
  • L. Weinstein, Neutrino Cross Sections 2018

36

slide-37
SLIDE 37
  • L. Weinstein, Neutrino Cross Sections 2018

37

Ekin Ecal

!"#$$

%

slices

3He 4He 12C 56Fe

!"#$$

%

< 0.2 0.2—0.4 !"#$$

%

> 0.4 MeV/c

> 0.4

0.2 – 0.4 !"#$$

%

< 0.2 0.2—0.4 !"#$$

%

> 0.4 MeV/c !"#$$

%

< 0.2 !"#$$

%

< 0.2 0.2—0.4 !"#$$

%

> 0.4 MeV/c !"#$$

%

< 0.2 0.2—0.4 !"#$$

%

> 0.4 MeV/c !"#$$

%

< 0.2 0.2—0.4 !"#$$

%

> 0.4 MeV/c
