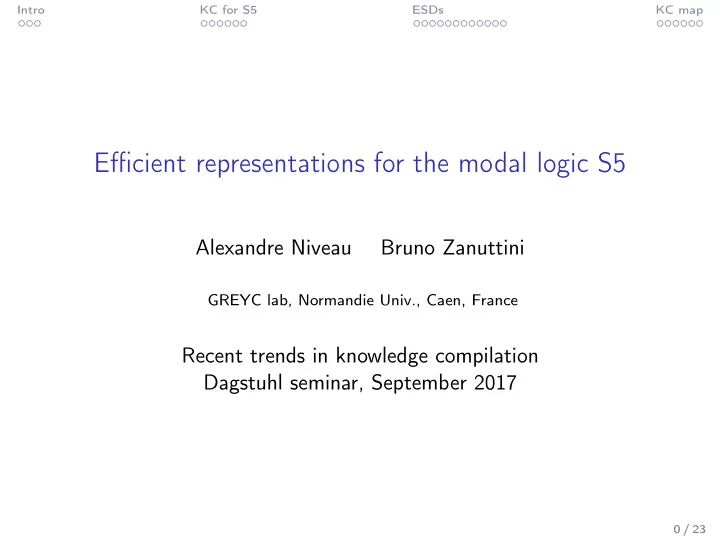

Efficient representations for the modal logic S5

Alexandre Niveau Bruno Zanuttini

GREYC lab, Normandie Univ., Caen, France

Recent trends in knowledge compilation Dagstuhl seminar, September 2017

0 / 23

slide-2
SLIDE 2

Intro KC for S5 ESDs KC map

Plan

1

Epistemic logic S5 for contingent planning

2

Compiling subjective S5 formulas

3

Epistemic splitting diagrams

4

Knowledge compilation map

0 / 23

slide-3
SLIDE 3

Intro KC for S5 ESDs KC map

Plan

1

Epistemic logic S5 for contingent planning

2

Compiling subjective S5 formulas

3

Epistemic splitting diagrams

4

Knowledge compilation map

0 / 23

slide-4
SLIDE 4

Intro KC for S5 ESDs KC map

Introduction

S5 = modal logic of mono-agent knowledge: K(x ∨ y): “I know that x or y is true” Kx: “I know that x is false” ≡ ¬Kx Kx ∨ Kx: “I know the value of x”

1 / 23

slide-5
SLIDE 5

Intro KC for S5 ESDs KC map

Introduction

S5 = modal logic of mono-agent knowledge: K(x ∨ y): “I know that x or y is true” Kx: “I know that x is false” ≡ ¬Kx Kx ∨ Kx: “I know the value of x” Semantics: interpreted on knowledge states (KSs) knowledge state = set of propositional assignments = all worlds considered to be possibly the actual one KS | = Kϕ: ∀m ∈ KS, m| =ϕ KS | = ¬Kϕ: ∃m ∈ KS, m| =ϕ

1 / 23

slide-6
SLIDE 6

Intro KC for S5 ESDs KC map

Introduction

S5 = modal logic of mono-agent knowledge: K(x ∨ y): “I know that x or y is true” Kx: “I know that x is false” ≡ ¬Kx Kx ∨ Kx: “I know the value of x” Semantics: interpreted on knowledge states (KSs) knowledge state = set of propositional assignments = all worlds considered to be possibly the actual one KS | = Kϕ: ∀m ∈ KS, m| =ϕ KS | = ¬Kϕ: ∃m ∈ KS, m| =ϕ

Note: we only consider subjective S5 formulas

1 / 23

slide-7
SLIDE 7

Intro KC for S5 ESDs KC map

Contingent planning

Motivation: contingent planning with sensing the agent has a current KS, e.g. {xyh, xyh}

  • ntic (nondeterministic) action

toss in {xyh, xyh} → {xyh, xyh, xyh, xyh} sensing action watch in {xyh, xyh, xyh, xyh}, feedback h → {xyh, xyh} goal: reaching a state (or acquiring a certain knowledge)

2 / 23

slide-8
SLIDE 8

Intro KC for S5 ESDs KC map

Contingent planning

Motivation: contingent planning with sensing the agent has a current KS, e.g. {xyh, xyh}

  • ntic (nondeterministic) action

toss in {xyh, xyh} → {xyh, xyh, xyh, xyh} sensing action watch in {xyh, xyh, xyh, xyh}, feedback h → {xyh, xyh} goal: reaching a state (or acquiring a certain knowledge) Planning (offline): reasoning on epistemic formulas consider all possible executions → set of KSs → S5 formula Ex: plan toss; watch in {xyh, xyt}:

  • {xyh, xyh}, {xyt, xyt}
  • goal: positive S5 formula

consistency checking, entailment checking, conjunction, forgetting

2 / 23

slide-9
SLIDE 9

Intro KC for S5 ESDs KC map

Plan

1

Epistemic logic S5 for contingent planning

2

Compiling subjective S5 formulas

3

Epistemic splitting diagrams

4

Knowledge compilation map

2 / 23

slide-10
SLIDE 10

Intro KC for S5 ESDs KC map

Knowledge compilation for subjective S5

Parameterized language of Bienvenu, Fargier, Marquis [AAAI 2010]: epistemic term: T = Kϕ ∧ ¬Kψ1 ∧ · · · ∧ ¬Kψk (wlog) epistemic DNF: T1 ∨ · · · ∨ Tℓ

3 / 23

slide-11
SLIDE 11

Intro KC for S5 ESDs KC map

Knowledge compilation for subjective S5

Parameterized language of Bienvenu, Fargier, Marquis [AAAI 2010]: epistemic term: T = Kϕ ∧ ¬Kψ1 ∧ · · · ∧ ¬Kψk (wlog) epistemic DNF: T1 ∨ · · · ∨ Tℓ → general language s-S5-DNFL,L′

ϕ restricted to language L ψi restricted to language L′

Idea: K ≃ ∀ → take an L that supports efficient validity checking and an L′ that supports efficient consistency checking They considered in particular L = DNF, L′ = CNF → EDNF

3 / 23

slide-12
SLIDE 12

Intro KC for S5 ESDs KC map

EDNF

              K(ab ∨ cd) ∧ ¬K

  • (x ∨ y) ∧ (¬a ∨ z)
  • K(x) ∧ ¬K(z ∨ x) ∧ ¬K(a ∨ b)

¬K(t)

4 / 23

slide-13
SLIDE 13

Intro KC for S5 ESDs KC map

OBDD

CNF, DNF:

representations are generally large in practice hard to minimize

natural idea: L = L′ = OBDD x ϕ y z ⊤ ⊥ xyz | =

? ϕ

5 / 23

slide-14
SLIDE 14

Intro KC for S5 ESDs KC map

OBDD

CNF, DNF:

representations are generally large in practice hard to minimize

natural idea: L = L′ = OBDD x ϕ y z ⊤ ⊥ xyz | =

? ϕ

5 / 23

slide-15
SLIDE 15

Intro KC for S5 ESDs KC map

OBDD

CNF, DNF:

representations are generally large in practice hard to minimize

natural idea: L = L′ = OBDD x ϕ y z ⊤ ⊥ xyz | =

? ϕ

5 / 23

slide-16
SLIDE 16

Intro KC for S5 ESDs KC map

OBDD

CNF, DNF:

representations are generally large in practice hard to minimize

natural idea: L = L′ = OBDD x ϕ y z ⊤ ⊥ xyz | =

? ϕ

5 / 23

slide-17
SLIDE 17

Intro KC for S5 ESDs KC map

OBDD

CNF, DNF:

representations are generally large in practice hard to minimize

natural idea: L = L′ = OBDD x ϕ y z ⊤ ⊥ xyz | = ϕ

5 / 23

slide-18
SLIDE 18

Intro KC for S5 ESDs KC map

OBDD

CNF, DNF:

representations are generally large in practice hard to minimize

natural idea: L = L′ = OBDD x ϕ y z ⊤ ⊥ xyz | = ϕ xyz | =

? ϕ

5 / 23

slide-19
SLIDE 19

Intro KC for S5 ESDs KC map

OBDD

CNF, DNF:

representations are generally large in practice hard to minimize

natural idea: L = L′ = OBDD x ϕ y z ⊤ ⊥ xyz | = ϕ xyz | =

? ϕ

5 / 23

slide-20
SLIDE 20

Intro KC for S5 ESDs KC map

OBDD

CNF, DNF:

representations are generally large in practice hard to minimize

natural idea: L = L′ = OBDD x ϕ y z ⊤ ⊥ xyz | = ϕ xyz | = ϕ

5 / 23

slide-21
SLIDE 21

Intro KC for S5 ESDs KC map

EBDD

∨ ∧ ∧ K ¬K K x y y z ⊤ ⊥ ⊤ ⊥

6 / 23

slide-22
SLIDE 22

Intro KC for S5 ESDs KC map

Limitations of s-S5-DNFL,L′

Combination of Kϕ → separation between epistemic and propositional levels Epistemic splitting diagrams (ESDs) [N., Zanuttini, IJCAI 2016]: more “native” representation, viewing formulas as sets of KSs inspired from OBDDs knowledge compilation map and experimentation for the three languages (EDNFs, EBDDs, ESDs)

7 / 23

slide-23
SLIDE 23

Intro KC for S5 ESDs KC map

Plan

1

Epistemic logic S5 for contingent planning

2

Compiling subjective S5 formulas

3

Epistemic splitting diagrams

4

Knowledge compilation map

7 / 23

slide-24
SLIDE 24

Intro KC for S5 ESDs KC map

Constants

Model set of an S5 formula = set of KSs: Mod(K(x ↔ y)) =

  • {xy, xy}, {xy}, {xy}, {}
  • Mod(¬Kx) = {{x}, {x, x}}

Mod(Kx ∨ Ky) =

  • {xy, xy}, {xy}, {xy}, {}
  • ∪
  • {xy, xy}, {xy}, {xy}, {}
  • 8 / 23
slide-25
SLIDE 25

Intro KC for S5 ESDs KC map

Constants

Model set of an S5 formula = set of KSs: Mod(K(x ↔ y)) =

  • {xy, xy}, {xy}, {xy}, {}
  • Mod(¬Kx) = {{x}, {x, x}}

Mod(Kx ∨ Ky) =

  • {xy, xy}, {xy}, {xy}, {}
  • ∪
  • {xy, xy}, {xy}, {xy}, {}
  • Two KSs with no variable: {} and {

∅} → four possible formulas of empty scope → four constants: ⊥: satisfied by no KS (Mod(⊥) = ∅) ⊤: satisfied by all KSs (Mod(⊤) = {{}, { ∅}}) ∇: satisfied by all nonempty KSs (Mod(∇) = {{ ∅}}) ∆: satisfied only by the empty KS (Mod(∆) = {{}})

8 / 23

slide-26
SLIDE 26

Intro KC for S5 ESDs KC map

Split: base case

Inspired from Shannon expansion and BDDs KS = {m ∈ KS | m | = x} ∪ {m ∈ KS | m | = x} → “Split” operator: KS = spl(x, KS|x, KS|x)      xy xy xy      =

9 / 23

slide-27
SLIDE 27

Intro KC for S5 ESDs KC map

Split: base case

Inspired from Shannon expansion and BDDs KS = {m ∈ KS | m | = x} ∪ {m ∈ KS | m | = x} → “Split” operator: KS = spl(x, KS|x, KS|x)      xy xy xy      = {xy} ∪ x ·

  • y

y

  • 9 / 23
slide-28
SLIDE 28

Intro KC for S5 ESDs KC map

Split: base case

Inspired from Shannon expansion and BDDs KS = {m ∈ KS | m | = x} ∪ {m ∈ KS | m | = x} → “Split” operator: KS = spl(x, KS|x, KS|x)      xy xy xy      = {xy} ∪ x ·

  • y

y

  • = spl(x, {y},
  • y

y

  • )

9 / 23

slide-29
SLIDE 29

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?           xy xy xy      ,

  • xy

xy

  • ,
  • xy

xy

  • , {xy}

    

10 / 23

slide-30
SLIDE 30

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?           xy xy xy      ,

  • xy

xy

  • ,
  • xy

xy

  • , {xy}

    

10 / 23

slide-31
SLIDE 31

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?         x · {y} x ·

  • y

y

  ,

  • xy

xy

  • ,
  • xy

xy

  • , {xy}

    

10 / 23

slide-32
SLIDE 32

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ),
  • xy

xy

  • ,
  • xy

xy

  • , {xy}
  • 10 / 23
slide-33
SLIDE 33

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ),
  • xy

xy

  • ,
  • xy

xy

  • , {xy}
  • 10 / 23
slide-34
SLIDE 34

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ),
  • x · {y}

x · {y}

  • ,
  • xy

xy

  • , {xy}
  • 10 / 23
slide-35
SLIDE 35

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ), spl(x, {y}, {y}),
  • xy

xy

  • , {xy}
  • 10 / 23
slide-36
SLIDE 36

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ), spl(x, {y}, {y}),
  • xy

xy

  • , {xy}
  • 10 / 23
slide-37
SLIDE 37

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?      spl(x, {y},

  • y

y

  • ), spl(x, {y}, {y}),

   x · {} x ·

  • y

y

  , {xy}     

10 / 23

slide-38
SLIDE 38

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ), spl(x, {y}, {y}), spl(x, {},
  • y

y

  • ), {xy}
  • 10 / 23
slide-39
SLIDE 39

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ), spl(x, {y}, {y}), spl(x, {},
  • y

y

  • ), {xy}
  • 10 / 23
slide-40
SLIDE 40

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ), spl(x, {y}, {y}), spl(x, {},
  • y

y

  • ),
  • x · {}

x · {y}

10 / 23

slide-41
SLIDE 41

Intro KC for S5 ESDs KC map

Split on sets of KSs

What happens with sets of KSs?

  • spl(x, {y},
  • y

y

  • ), spl(x, {y}, {y}), spl(x, {},
  • y

y

  • ), spl(x, {}, {y})
  • 10 / 23
slide-42
SLIDE 42

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? ∪

  • spl(x, {y},
  • y

y

  • ), spl(x, {y}, {y})
  • spl(x, {},
  • y

y

  • ), spl(x, {}, {y})
  • 10 / 23
slide-43
SLIDE 43

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? ∪

  • spl(x, {y},
  • y

y

  • ), spl(x, {y}, {y})
  • spl(x, {},
  • y

y

  • ), spl(x, {}, {y})
  • 10 / 23
slide-44
SLIDE 44

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? ∪ spl(x, {y},

  • y

y

  • , {y}
  • )
  • spl(x, {},
  • y

y

  • ), spl(x, {}, {y})
  • 10 / 23
slide-45
SLIDE 45

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? ∪ spl(x, {y},

  • y

y

  • , {y}
  • )
  • spl(x, {},
  • y

y

  • ), spl(x, {}, {y})
  • 10 / 23
slide-46
SLIDE 46

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? ∪ spl(x, {y},

  • y

y

  • , {y}
  • )

spl(x, {},

  • y

y

  • , {y}
  • )

10 / 23

slide-47
SLIDE 47

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? ∪ spl(x, {y},

  • y

y

  • , {y}
  • )

spl(x, {},

  • y

y

  • , {y}
  • )

10 / 23

slide-48
SLIDE 48

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? ∪ spl(x, {y},

  • y

y

  • , {y}
  • )

spl(x, {},

  • y

y

  • , {y}
  • )

10 / 23

slide-49
SLIDE 49

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? spl(x,

  • {y}, {}
  • ,
  • y

y

  • , {y}
  • )

10 / 23

slide-50
SLIDE 50

Intro KC for S5 ESDs KC map

Splits on sets of KSs

What happens with sets of KSs? spl(x,

  • {y}, {}
  • ,
  • y

y

  • , {y}
  • )

Cartesian product, to exploit independancy between projections on x and on x: spl(x, M, M′) = {x · KS ∪ x · KS′ | KS ∈ M, KS′ ∈ M′} Of course, not always applicable:

  • {xy}, {xy}
  • = spl(x, {y}, {}) ∪ spl(x, {}, {y})

→ not representable as a single split

10 / 23

slide-51
SLIDE 51

Intro KC for S5 ESDs KC map

ESD

ESD language: constants ⊤, ⊥, ∆, ∇ + operators spl and ∨ + order on variables ∨ x x ∨ y ∆ y z z ⊤ ∇ ⊤ ∆

11 / 23

slide-52
SLIDE 52

Intro KC for S5 ESDs KC map

Basic constructions

x ⊤ ∆

Cheat sheet: Mod(⊥) = ∅ Mod(⊤) = {{}, { ∅}} Mod(∆) = {{}} Mod(∇) = {{ ∅}} Mod(spl(x, Φ, Φ′)) = {x · KS ∪ x · KS′ | KS ∈ Mod(Φ), KS′ ∈ Mod(Φ′)}

12 / 23

slide-53
SLIDE 53

Intro KC for S5 ESDs KC map

Basic constructions

x Kx ⊤ ∆

Cheat sheet: Mod(⊥) = ∅ Mod(⊤) = {{}, { ∅}} Mod(∆) = {{}} Mod(∇) = {{ ∅}} Mod(spl(x, Φ, Φ′)) = {x · KS ∪ x · KS′ | KS ∈ Mod(Φ), KS′ ∈ Mod(Φ′)}

12 / 23

slide-54
SLIDE 54

Intro KC for S5 ESDs KC map

Basic constructions

x Kx ⊤ ∆ y ⊤ ∇

Cheat sheet: Mod(⊥) = ∅ Mod(⊤) = {{}, { ∅}} Mod(∆) = {{}} Mod(∇) = {{ ∅}} Mod(spl(x, Φ, Φ′)) = {x · KS ∪ x · KS′ | KS ∈ Mod(Φ), KS′ ∈ Mod(Φ′)}

12 / 23

slide-55
SLIDE 55

Intro KC for S5 ESDs KC map

Basic constructions

x Kx ⊤ ∆ y ¬Ky ⊤ ∇

Cheat sheet: Mod(⊥) = ∅ Mod(⊤) = {{}, { ∅}} Mod(∆) = {{}} Mod(∇) = {{ ∅}} Mod(spl(x, Φ, Φ′)) = {x · KS ∪ x · KS′ | KS ∈ Mod(Φ), KS′ ∈ Mod(Φ′)}

12 / 23

slide-56
SLIDE 56

Intro KC for S5 ESDs KC map

Basic constructions

x Kx ⊤ ∆ y ¬Ky ⊤ ∇ z ∇ ∇

Cheat sheet: Mod(⊥) = ∅ Mod(⊤) = {{}, { ∅}} Mod(∆) = {{}} Mod(∇) = {{ ∅}} Mod(spl(x, Φ, Φ′)) = {x · KS ∪ x · KS′ | KS ∈ Mod(Φ), KS′ ∈ Mod(Φ′)}

12 / 23

slide-57
SLIDE 57

Intro KC for S5 ESDs KC map

Basic constructions

x Kx ⊤ ∆ y ¬Ky ⊤ ∇ z ¬Kz ∧ ¬K¬z ∇ ∇

Cheat sheet: Mod(⊥) = ∅ Mod(⊤) = {{}, { ∅}} Mod(∆) = {{}} Mod(∇) = {{ ∅}} Mod(spl(x, Φ, Φ′)) = {x · KS ∪ x · KS′ | KS ∈ Mod(Φ), KS′ ∈ Mod(Φ′)}

12 / 23

slide-58
SLIDE 58

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-59
SLIDE 59

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-60
SLIDE 60

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-61
SLIDE 61

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-62
SLIDE 62

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-63
SLIDE 63

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-64
SLIDE 64

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-65
SLIDE 65

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-66
SLIDE 66

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-67
SLIDE 67

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-68
SLIDE 68

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-69
SLIDE 69

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-70
SLIDE 70

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-71
SLIDE 71

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-72
SLIDE 72

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-73
SLIDE 73

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy     

13 / 23

slide-74
SLIDE 74

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy      | = Φ

13 / 23

slide-75
SLIDE 75

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy      | = Φ {xy}

13 / 23

slide-76
SLIDE 76

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy      | = Φ {xy} | = Φ

13 / 23

slide-77
SLIDE 77

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy      | = Φ {xy} | = Φ

  • xy

xy

  • 13 / 23
slide-78
SLIDE 78

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy      | = Φ {xy} | = Φ

  • xy

xy

  • |

= Φ

13 / 23

slide-79
SLIDE 79

Intro KC for S5 ESDs KC map

Evaluation of an ESD on a given KS

x Φ y y ∆ ⊤ ∇

{y} {y, y} {} { ∅} { ∅} { ∅}

     xy xy xy      | = Φ {xy} | = Φ

  • xy

xy

  • |

= Φ → to be a model, a KS cannot contain xy and must contain xy → Φ ≡ K¬(xy) ∧ ¬K¬(xy)

13 / 23

slide-80
SLIDE 80

Intro KC for S5 ESDs KC map

Compiling epistemic atoms: Kϕ

Construction of Kϕ from an OBDD ϕ: x ϕ y z ⊤ ⊥

slide-81
SLIDE 81

Intro KC for S5 ESDs KC map

Compiling epistemic atoms: Kϕ

Construction of Kϕ from an OBDD ϕ: x ϕ y z ⊤ ⊥ x Kϕ y y ⊤ ∆

14 / 23

slide-82
SLIDE 82

Intro KC for S5 ESDs KC map

Compiling epistemic atoms: ¬Kϕ

x ϕ y z ⊤ ⊥

slide-83
SLIDE 83

Intro KC for S5 ESDs KC map

Compiling epistemic atoms: ¬Kϕ

x ϕ y z ⊤ ⊥ ∨ ¬Kϕ x x ⊤ ∨ y y ⊤ ∨ z z ⊤ ⊥ ∇

15 / 23

slide-84
SLIDE 84

Intro KC for S5 ESDs KC map

A remark about “redundant” nodes

In (propositional) OBDDs: ite(x, ϕ, ϕ) ≡ ϕ In ESDs, spl(x, Φ, Φ) = Φ in general:

let Φ = Ky ∨ Kz let KS = {xyz, xyz} KS | = spl(x, Φ, Φ), but KS | = Φ

x ∨ y z ⊤ ∆

16 / 23

slide-85
SLIDE 85

Intro KC for S5 ESDs KC map

A remark about “redundant” nodes

In (propositional) OBDDs: ite(x, ϕ, ϕ) ≡ ϕ In ESDs, spl(x, Φ, Φ) = Φ in general:

let Φ = Ky ∨ Kz let KS = {xyz, xyz} KS | = spl(x, Φ, Φ), but KS | = Φ

x ∨ y z ⊤ ∆ → some operations require ESDs to be “explicitly ordered”

16 / 23

slide-86
SLIDE 86

Intro KC for S5 ESDs KC map

Plan

1

Epistemic logic S5 for contingent planning

2

Compiling subjective S5 formulas

3

Epistemic splitting diagrams

4

Knowledge compilation map

16 / 23

slide-87
SLIDE 87

Intro KC for S5 ESDs KC map

Knowledge compilation map

Comparison of theoretical efficiency of representation languages Focus on practical applications (which language for which use?) Criteria:

tractability of basic operations (queries and transformations)

  • n each language

relative succinctness of languages

17 / 23

slide-88
SLIDE 88

Intro KC for S5 ESDs KC map

Queries and transformations

Req./Tr. ESD EBDD EDNF CO √ √ √ VA, IM

  • EQ, SE
  • MCe

√ √ √ B.CEOBDD √

E

√ ? MXe √ √ √ ∨C √ √ √ ∧BC √

E

√ √ ∧C

  • ¬C
  • FO
  • √

SFO √

E

√ √

Essentially same complexity in general Checking consistency, entailment of Kϕ or ¬Kϕ polytime Forgetting a propositional variable, disjoining, B-conjoining polytime

18 / 23

slide-89
SLIDE 89

Intro KC for S5 ESDs KC map

Succinctness

“L as least as succinct as L′ ”≃ formulas are at worst polynomially larger in L than in L′ All 3 languages are incomparable wrt succinctness:

19 / 23

slide-90
SLIDE 90

Intro KC for S5 ESDs KC map

Succinctness

“L as least as succinct as L′ ”≃ formulas are at worst polynomially larger in L than in L′ All 3 languages are incomparable wrt succinctness:

EDNF vs EBDD: comes directly from DNF vs OBDD n

i=1 ¬K(y ↔ xi): polynomial in

EDNF and EBDD, exponential in ESD (

I⊆[n](. . . ))

19 / 23

slide-91
SLIDE 91

Intro KC for S5 ESDs KC map

Succinctness

“L as least as succinct as L′ ”≃ formulas are at worst polynomially larger in L than in L′ All 3 languages are incomparable wrt succinctness:

EDNF vs EBDD: comes directly from DNF vs OBDD n

i=1 ¬K(y ↔ xi): polynomial in

EDNF and EBDD, exponential in ESD (

I⊆[n](. . . ))

n

i=1(Kxi ∨ Kxi): exponential in

EDNF and EBDD (

τ⊆X Kτ),

polynomial in ESD (figure)

19 / 23

slide-92
SLIDE 92

Intro KC for S5 ESDs KC map

Succinctness

“L as least as succinct as L′ ”≃ formulas are at worst polynomially larger in L than in L′ All 3 languages are incomparable wrt succinctness:

EDNF vs EBDD: comes directly from DNF vs OBDD n

i=1 ¬K(y ↔ xi): polynomial in

EDNF and EBDD, exponential in ESD (

I⊆[n](. . . ))

n

i=1(Kxi ∨ Kxi): exponential in

EDNF and EBDD (

τ⊆X Kτ),

polynomial in ESD (figure)

∨ x1 x1 ∆ ∆ ∨ x2 x2 ∆ ∆ ∨ ∨ xn xn ∆ ∆ ∇

19 / 23

slide-93
SLIDE 93

Intro KC for S5 ESDs KC map

Succinctness for positive formulas

Restriction to positive formulas, which have an important role in

  • ur planning application

EDNF+ and EBDD+ incomparable EDNF+ and ESD+ incomparable

20 / 23

slide-94
SLIDE 94

Intro KC for S5 ESDs KC map

Succinctness for positive formulas

Restriction to positive formulas, which have an important role in

  • ur planning application

EDNF+ and EBDD+ incomparable EDNF+ and ESD+ incomparable ESD+ strictly more succinct than EBDD+:

any positive formula in EBDD “is” an ESD (disjunction of positive epistemic atoms)

20 / 23

slide-95
SLIDE 95

Intro KC for S5 ESDs KC map

Succinctness for positive formulas

Restriction to positive formulas, which have an important role in

  • ur planning application

EDNF+ and EBDD+ incomparable EDNF+ and ESD+ incomparable ESD+ strictly more succinct than EBDD+:

any positive formula in EBDD “is” an ESD (disjunction of positive epistemic atoms) but ESD can be exponentially better because it allows for “pushing ∨-nodes downwards” (ex. in previous slide)

20 / 23

slide-96
SLIDE 96

Intro KC for S5 ESDs KC map

Experiments on succinctness

Compilation of m

i=1(Kti ∨ K¬ti) for random terms ti

→ Inspired from planning: offline progression of a knowledge state by actions test(ti). ESD, EBDD, EDNF on positive formulas (30 variables)

10 12 14 16 18 1,000 2,000 3,000 4,000 m, ti = 1 literal size 10 12 14 16 18 2,000 4,000 6,000 8,000 m, ti = 3 literals size 10 12 14 16 18 5,000 10,000 15,000 m, ti = 7 literals size

→ ESDs are more compact, comput. time ≃ EBDD Experiment for general formulas : EBDD clearly better

21 / 23

slide-97
SLIDE 97

Intro KC for S5 ESDs KC map

Conclusion

Contingent planning with sensing → reasoning on subjective S5 formulas Three representations considered:

EDNFs and EBDDs = epistemic DNFs with propositional languages in epistemic atoms ESDs do not involve epistemic atoms: representation of sets of sets of propositional assignments

Positive formulas:

ESD+ theoretically more succinct than EBDD+; seems true in practice EDNF+ less succinct than others in practice

General formulas: no theoretical winner. . . but EBDD seems experimentally better

22 / 23

slide-98
SLIDE 98

Intro KC for S5 ESDs KC map

Current work

Implementation of contingent planner using S5 representations → compilation of problems given in PDDL (but: not many benchmarks, and existing ones are rather artificial) → approaches by progression and especially regression: having compact representations is very important → comparison of the three languages in a more practical setting Compiling multi-agent epistemic formulas: can we leverage our data structures?

23 / 23

slide-99
SLIDE 99

Experiments on succinctness: time

30 variables, time for compiling m

i=1(Kt ∨ Kt) for increasing

m, random terms t ESD, EBDD, EDNF on positive formulas

10 12 14 16 18 0.5 1 1.5 m, t = 1 literal time (s) 10 12 14 16 18 0.5 1 1.5 m, t = 3 literals time (s) 10 12 14 16 18 0.5 1 1.5 m, t = 7 literals time (s)

24 / 23
