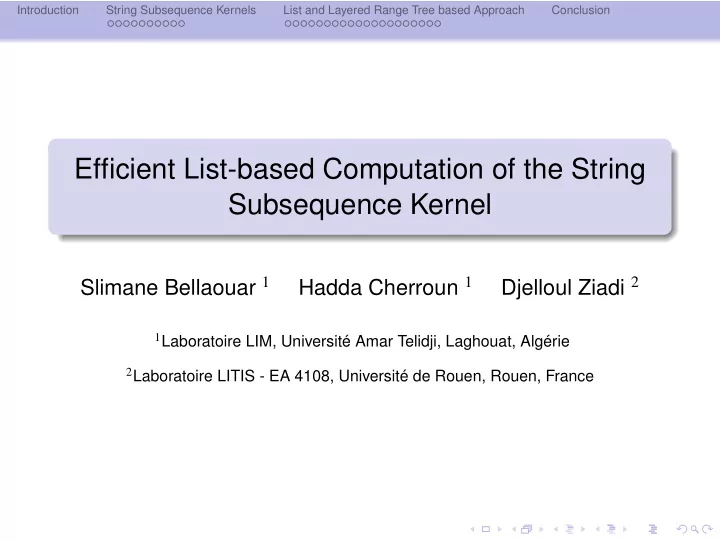

Efficient List-based Computation of the String Subsequence Kernel - - PowerPoint PPT Presentation
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion Efficient List-based Computation of the String Subsequence Kernel Slimane Bellaouar 1 Hadda Cherroun 1 Djelloul Ziadi 2 1 Laboratoire LIM, Universit
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Slimane Bellaouar 1 Hadda Cherroun 1 Djelloul Ziadi 2
1Laboratoire LIM, Université Amar Telidji, Laghouat, Algérie 2Laboratoire LITIS - EA 4108, Université de Rouen, Rouen, France
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
1
Introduction
2
String Subsequence Kernels Naive Implementation Efficient Implementations
3
List and Layered Range Tree based Approach Suffix Table Representation Location of Points in a Range Fractional Cascading List of lists Building and GWSK Computation
4
Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Machine learning algorithms are applied to linear separable problems.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Kernel methods project the data into a high dimensional feature space where linear learning machines can be applied.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Strings are considered among the important data types. A great effort of research has been devoted to string kernels. The philosophy of all string kernels can be reduced to different ways to count common substrings or subsequences that occur in the two strings.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
SSK measures the similarity between two strings based on non contiguous elements (subsequences) a gap penalty λ ∈]0, 1] is introduced. φp
u(s) =
λl(I), u ∈ Σp. The associated kernel can be written as: Kp(s, t) = φp(s), φp(t) =
λl(I)+l(J).
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
1
Introduction
2
String Subsequence Kernels Naive Implementation Efficient Implementations
3
List and Layered Range Tree based Approach Suffix Table Representation Location of Points in a Range Fractional Cascading List of lists Building and GWSK Computation
4
Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
A suffix kernel is defined to assist in the computation of the SSK : φp,S
u (s) =
p :u=s(I)
λl(I), u ∈ Σp, The SSK can be expressed in terms of its suffix version as follows: Kp(s, t) =
|s|
|t|
KS
p(s(1 : i), t(1 : j)),
with KS
1(s, t) = ([s|s| = t|t|] λ2).
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
A recursion has to be devised. The similarity between two strings (sa and tb) is conditioned by their last symbols. KS
p(sa, tb) = [a = b] |s|
|t|
λ2+|s|−i+|t|−jKS
p−1(s(1 : i), t(1 : j)).
The recursion leads to an O(p(|s|2 |t|2) time complexity.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Example (computation of the SSK) s = gatta, t = cata and p = 1. KS
1
g a t t a c a λ2 λ2 t λ2 λ2 a λ2 λ2 K1(gatta, cata) = 6λ2
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
1
Introduction
2
String Subsequence Kernels Naive Implementation Efficient Implementations
3
List and Layered Range Tree based Approach Suffix Table Representation Location of Points in a Range Fractional Cascading List of lists Building and GWSK Computation
4
Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
There exists three efficient approaches to compute the SSK: Dynamic Programming Approach Trie-based Approach Sparse Dynamic Programming Approach
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Dynamic Programming Approach
The similarity between two strings (sa and tb) is conditioned by their final symbols. KS
p(sa, tb) = [a = b] |s|
|t|
λ2+|s|−i+|t|−jKS
p−1(s(1 : i), t(1 : j)).
We can consider a separate dynamic programming table: DPp(k, l) =
k
l
λk−i+l−j KS
p−1(s(1 : i), t(1 : j)).
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Dynamic Programming Approach
DPp(k, l) =
k
l
λk−i+l−j KS
p−1(s(1 : i), t(1 : j)).
Computing ordinary DPp for each (k, l) would be inefficient. We can devise a recursion DPp(k, l) = KS
p−1(s(1 : k), t(1 : l)) + λDPp(k − 1, l)+
λDPp(k, l − 1) − λ2DPp(k − 1, l − 1). The computation of SSK leads to an O(p |s| |t|) time
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Trie-based Approach
Approach based on search trees known as tries, introduced by E. Fredkin in 1960. The key idea: leaves play the role as indices of the feature space indexed by the set Σp. kernel will be evaluated as follows: Kp(s, t) =
φp
u(s)φp u(t) =
λgs+p|Ls(u, gs)| · λgt+p|Lt(u, gt)| The worst-case time complexity of the algorithm is O( p+m
m
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Sparse Dynamic Programming Approach
Observation: Most of the entries of the DP matrix are zero Propositions: Two data structures
A set of match lists instead of the KS
p matrix.
A range sum tree (B-tree) instead of the DPp matrix.
The time complexity is O(p |L| log min(|s|, |t|)), where L = {(i, j) | si = tj}.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Objective: Improve the complexity of the SSK Observation 1: the computation of KS
p(s, t) is required only
when s|s| = t|t| Proposition: keep only a list of index pairs rather than the whole suffix table, L(s, t) = {(i, j) : si = tj}.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Example KS
1
g a t t a c a λ2 λ2 t λ2 λ2 a λ2 λ2 L(gatta, cata) = {(2, 2), (5, 2), (3, 3), (4, 3), (2, 4), (5, 4)}.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Observation 2: Not obvious to compute KS
p(s, t) efficiently
Proposition: The suffix table of KS
p(s, t) can be represented
by a 2-D dimensional space.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
KS
1
g a t t a c a λ2 λ2 t λ2 λ2 a λ2 λ2
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
⇒ the computation of KS
p(s, t) can be interpreted as
several data structures that are used in computational geometry.
Kd-tree: The time cost = O(p(|L|
the reported points). Range tree: Better query time for rectangular range queries.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
1
Introduction
2
String Subsequence Kernels Naive Implementation Efficient Implementations
3
List and Layered Range Tree based Approach Suffix Table Representation Location of Points in a Range Fractional Cascading List of lists Building and GWSK Computation
4
Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
L(gatta, cata) = {(2, 2), (5, 2), (3, 3), (4, 3), (2, 4), (5, 4)}.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
L(gatta, cata) = {(2, 2), (5, 2), (3, 3), (4, 3), (2, 4), (5, 4)}.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Construction of the range tree
Problem Points have the same x or y-coordinates. Solution Lexicographic order.
Replace the real number by a composite-number space. (x|y) < (x′|y′) ⇔ x < x′ ∨ (x = x′ ∧ y < y′).
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Complexity of range tree construction
Let s and t be two strings. L(s, t) = {(i, j) : si = tj} the match list associated to the suffix version of the SSK. Space: O(|L| log |L|) Time construction: O(|L| log |L|)
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
1
Introduction
2
String Subsequence Kernels Naive Implementation Efficient Implementations
3
List and Layered Range Tree based Approach Suffix Table Representation Location of Points in a Range Fractional Cascading List of lists Building and GWSK Computation
4
Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Recall the computation of KS
p(sa, tb) = [a = b] |s|
|t|
λ2+|s|−i+|t|−jKS
p−1(s(1 : i), t(1 : j)).
can be interpreted as the evaluation of 2-dimensional range queries applied to a 2-dimensional range tree.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
[x1 : x2] × [y1 : y2] is a 2-dimensional range query. First ask for the points with x-coordinates (Select a collection of subtrees which contains, exactly, the points that lie in the x-range [x1 : x2].) Consider the points that fall in the y-range [y1 : y2].
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Complexity The total task of a range query can be performed in O(log2 |L| + k) time, where k is the number of points that are in the range. Improvement Enhancing the 2-dimensional range tree with the fractional cascading technique.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
1
Introduction
2
String Subsequence Kernels Naive Implementation Efficient Implementations
3
List and Layered Range Tree based Approach Suffix Table Representation Location of Points in a Range Fractional Cascading List of lists Building and GWSK Computation
4
Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Observations A rectangular range query searchs the same range [y1 : y2] in the associated structures y-RT . There exists an inclusion relation between these associated structures. Goal of the fractional cascading Execute the binary search only once and use the result to speed up other searches without expanding the storage by more than a constant factor.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Algorithm 1 Fractional Cascading Technique {A(v)[i] stores a point with an y-coordinate yi} if There exist a smallest key (y-coordinate) larger or equal yi then store a pointer to A(left(v)) with the smallest key (y- coordinate) larger or equal yi else the pointer is nil end if {The pointer into A(right(v)) is defined in the same way.}
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Complexity of the layered range tree construction Let s and t be two strings. L(s, t) = {(i, j) : si = tj} the match list associated to the suffix version of the SSK. Space: O(|L| log |L|) Time construction: O(|L| log |L|) Complexity of SSK computation the SSK of length p can be computed in O(p(|L| log |L| + K)), where K is the total number of reported points over all the entries of L.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
1
Introduction
2
String Subsequence Kernels Naive Implementation Efficient Implementations
3
List and Layered Range Tree based Approach Suffix Table Representation Location of Points in a Range Fractional Cascading List of lists Building and GWSK Computation
4
Conclusion
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
L(gatta, cata) = {(2, 2), (5, 2), (3, 3), (4, 3), (2, 4), (5, 4)}.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Observations Point coordinates, in our case, in the plane remain unchanged during the entire processing. The computation of KS
p(sa, tb) is recursive
KS
p(sa, tb) = [a = b] |s|
|t|
λ2+|s|−i+|t|−jKS
p−1(s(1 : i), t(1 : j)).
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Mutiple invocations of the 2-D range query can be replaced by only one computation. Extension of the match list to be a list of lists.
Figure : List of lists inherent to KS
1(gatta,cata).
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Algorithm 2 List of Lists Creation Require: match list L(s, t) and Layered Range Tree RT for each entry (k, l) ∈ L(s, t) do {Preparing the range query} x1 ← 0; y1 ← 0; x2 ← k − 1; y2 ← l − 1 relatedpoints ← 2D-RANGE-QUERY(RT , [(x1|−∞) : (x2|+ ∞)] × [(y1| − ∞) : (y2| + ∞)] while There exists (i, j) ∈ relatedpoints do add (i, j) to (k, l)-list end while end for Ensure: List of Lists LL(s, t): The match list augmented with lists containing reported points
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Algorithm 3 SSK computation Require: List of Lists LL(s, t), length p and coefficient λ for q=1:p do K(q) ← 0; KPS(1 : |max|) ← 0 for each entry (k, l) ∈ LL(s, t) do for each entry r ∈ (k, l) − list do (i, j) ← r.Key; KPS(i,j) ← r.Value KPS(k, l) ← KPS(k, l) + λk−i+l−j KPS(i,j) end for K(q) ← K(q) + KPS(k, l)) end for {Preparing LL(s, t) For the next computation} for each entry (k, l) ∈ KPS do Update LL(k, l) with KPS(k, l) end for end for Ensure: Kernel values Kq(s, t) = K(q) : q = 1, . . . , p
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
L(gatta, cata) = {(2, 2), (5, 2), (3, 3), (4, 3), (2, 4), (5, 4)}.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Figure : List of lists inherent to KS
1(gatta,cata).
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Complexity Time : O(|L| log |L| + pK). Space : O(|L| log |L| + K). The cost of naive implementation of the list version is O(p |L|2). Obvious improvement of the time complexity.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
The proposed algorithm is output sensitive:
Empirical analysis to compare our contribution with other approaches.
Comparison
DP: faster when DP table is nearly full.
Short strings. Long strings and small alphabet.
Trie-based: medium-sized alphabets. Spars DP: large-sized alphabets.
Time computation: O(p |L| log min(|s|, |t|)).
List & LRT: large-sized alphabets.
Time computation: O(pK)
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Separation of the process of required data location from the strict computation one: O(|L| log |L| + pK)
Limits the impact of the length of the SSK on the computation. It can be favorable if we assume that the problem is multi-dimensional.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
Implementation: a great programming effort is supported by well-studied and ready to use computational geometry algorithms
the emphasis is shifted to a variant of string kernel computations that can be easily adapted.
Introduction String Subsequence Kernels List and Layered Range Tree based Approach Conclusion
